Overview
A simple mesh filter between the lubrication-pump outlet and supply main in 10 MPa centralized grease systems, suitable for manual, electric, pneumatic or hydraulic pumps. It removes residual contaminants. Use NLGI 0-2 grease with penetration 265-385 × 0.1 mm at 25 °C and 150 g. The stated filtration rating is 120 μm and maximum operating temperature 120 °C.
Selection and operation
Install in the direction of the arrow on the body. Allow space to withdraw the element and clean it regularly.
Technical documentation

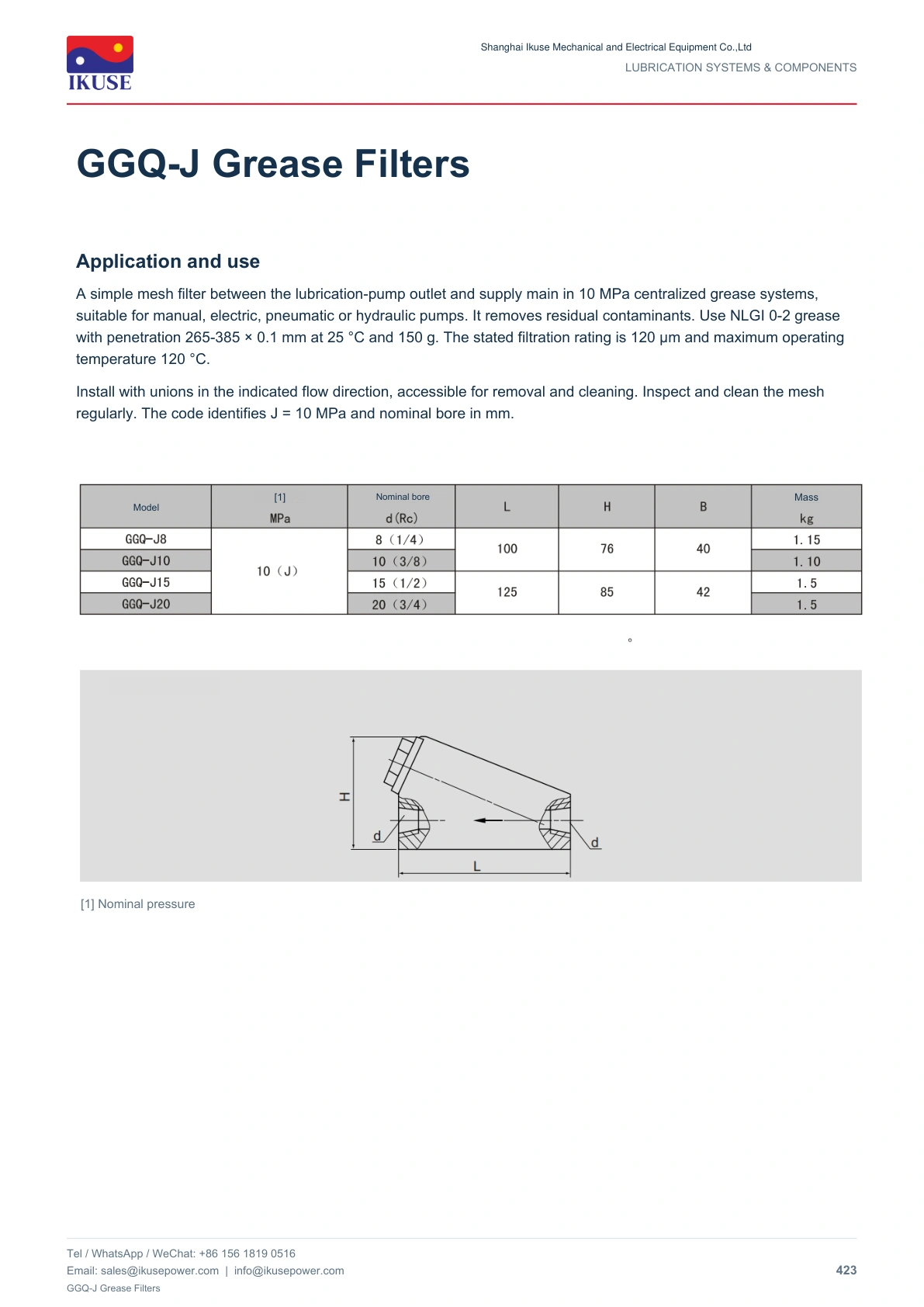

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
