Circulating lubrication units combine oil storage, pumping, filtration, cooling, heating and monitoring for machinery. Select by oil flow, pressure, viscosity and equipment operating conditions.

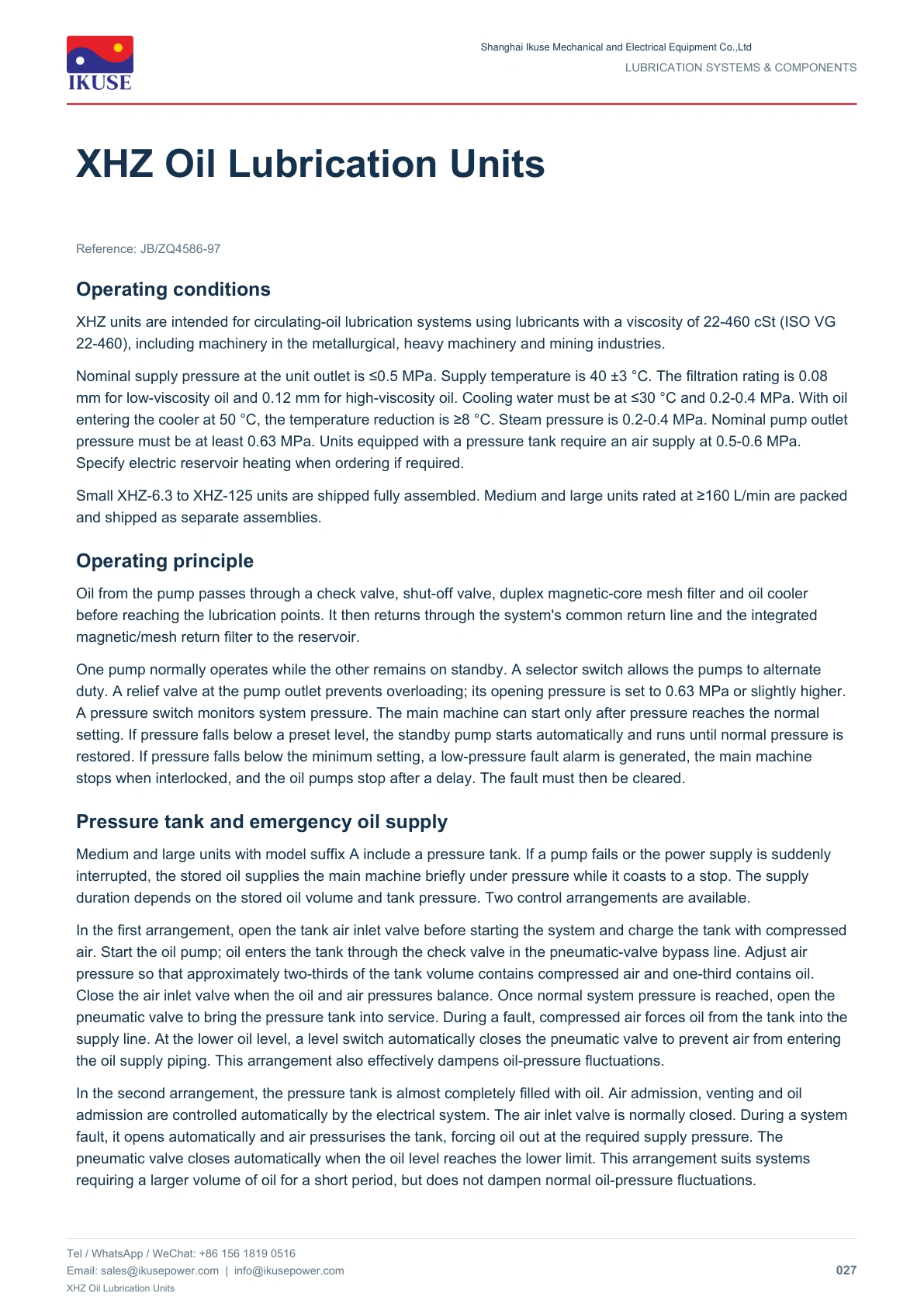

XHZ units are intended for circulating-oil lubrication systems using lubricants with a viscosity of 22-460 cSt (ISO VG 22-460), including machinery in the metallurgical, heavy machinery and mining industries.
Technical Specifications

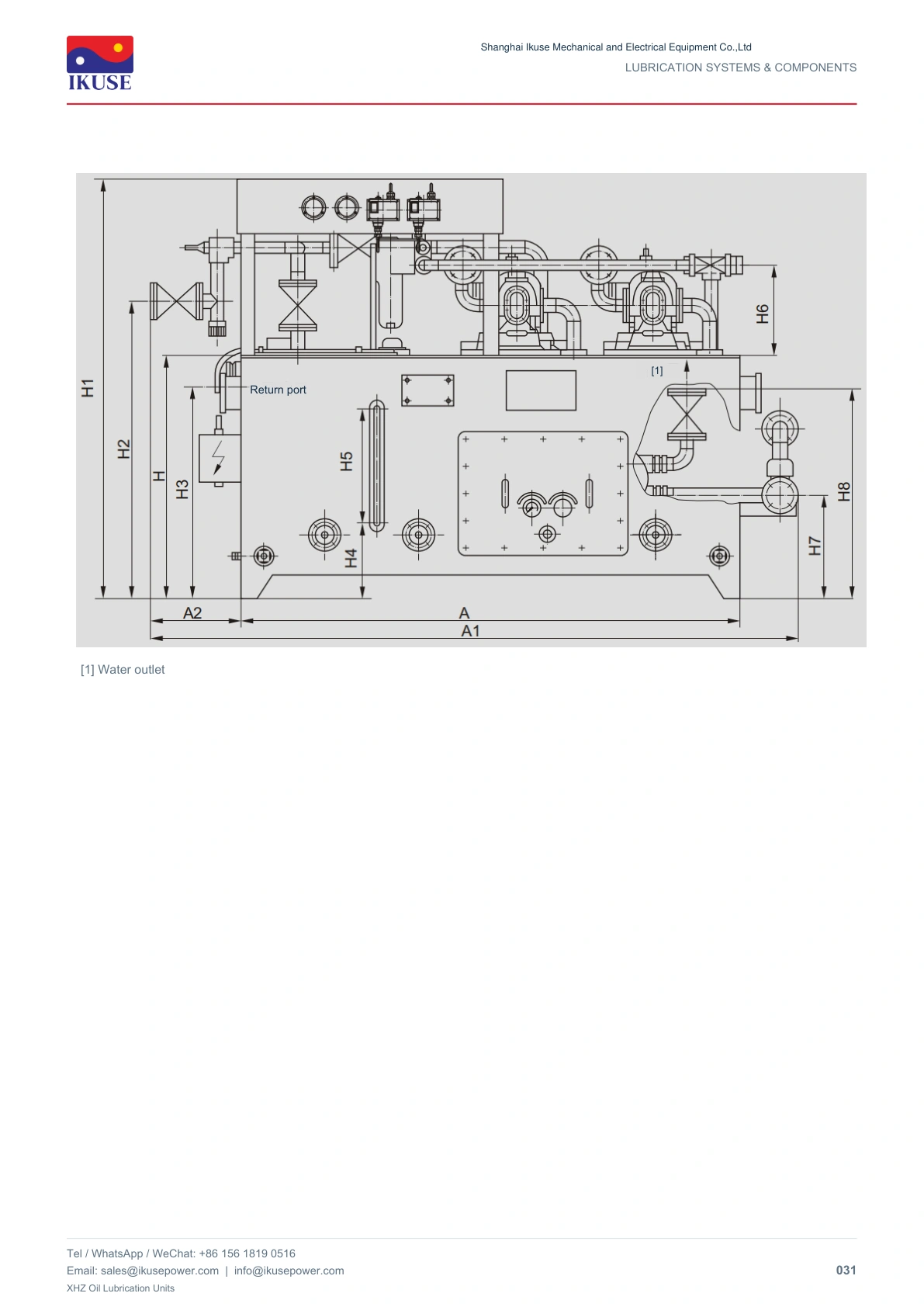

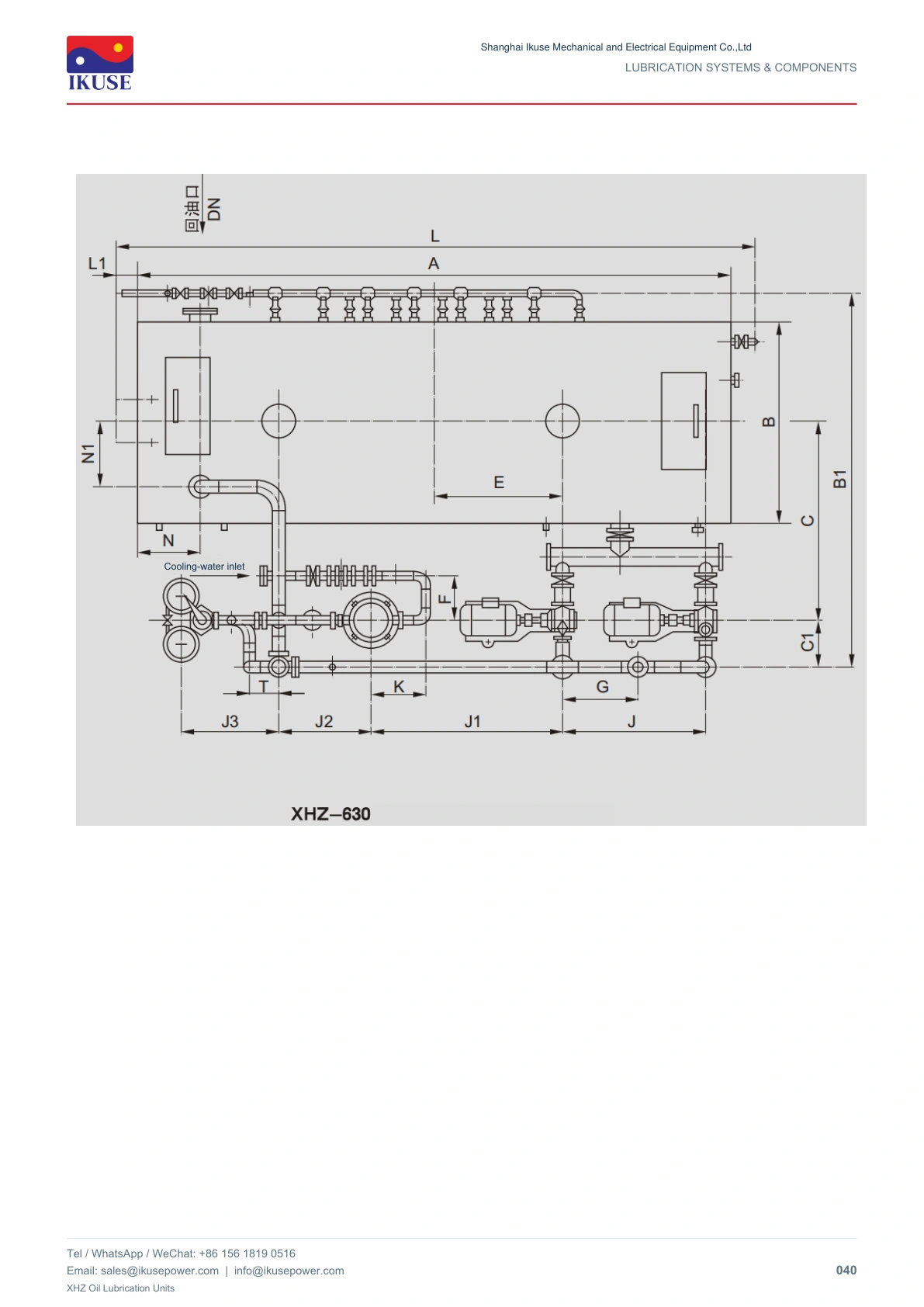

| Illustration | Illustrative view of a compact unit; refer to the technical drawings for the specific configuration. |
| Product type | Oil lubrication unit |
| Product series | XHZ |
| Filtration rating | Low-viscosity oil: 0.08 mm; high-viscosity oil: 0.12 mm |
| Nominal flow rate | 6.3～2000 L/min |
| Unit configuration | Standard type / Type A (with pressure vessel) |
| Oil supply pressure | ≤0.5 MPa |
| Oil supply temperature | 40±3 ℃ |
| Applicable oil viscosity | 22～460 mm²/s |
Product Details
