Overview
For individual machines or small single-line oil/grease systems below 30 MPa. Internal pistons positively meter the inlet flow to outlets on both sides. Mounting dimensions are common across outlet-count variants. Combining outlets increases delivery. The distributor may be used with manual, pneumatic or electric pumps, or as a secondary unit in larger single-/dual-line systems. Use grease with penetration greater than 265 × 0.1 mm; for oil above grade N68, reduce operating pressure to approximately 15 MPa.
Selection and operation
Do not block outlets 1 and 2. Use the specified connectors to combine outlets. For oil service, reduce the pressure to approximately 15 MPa.
Technical documentation

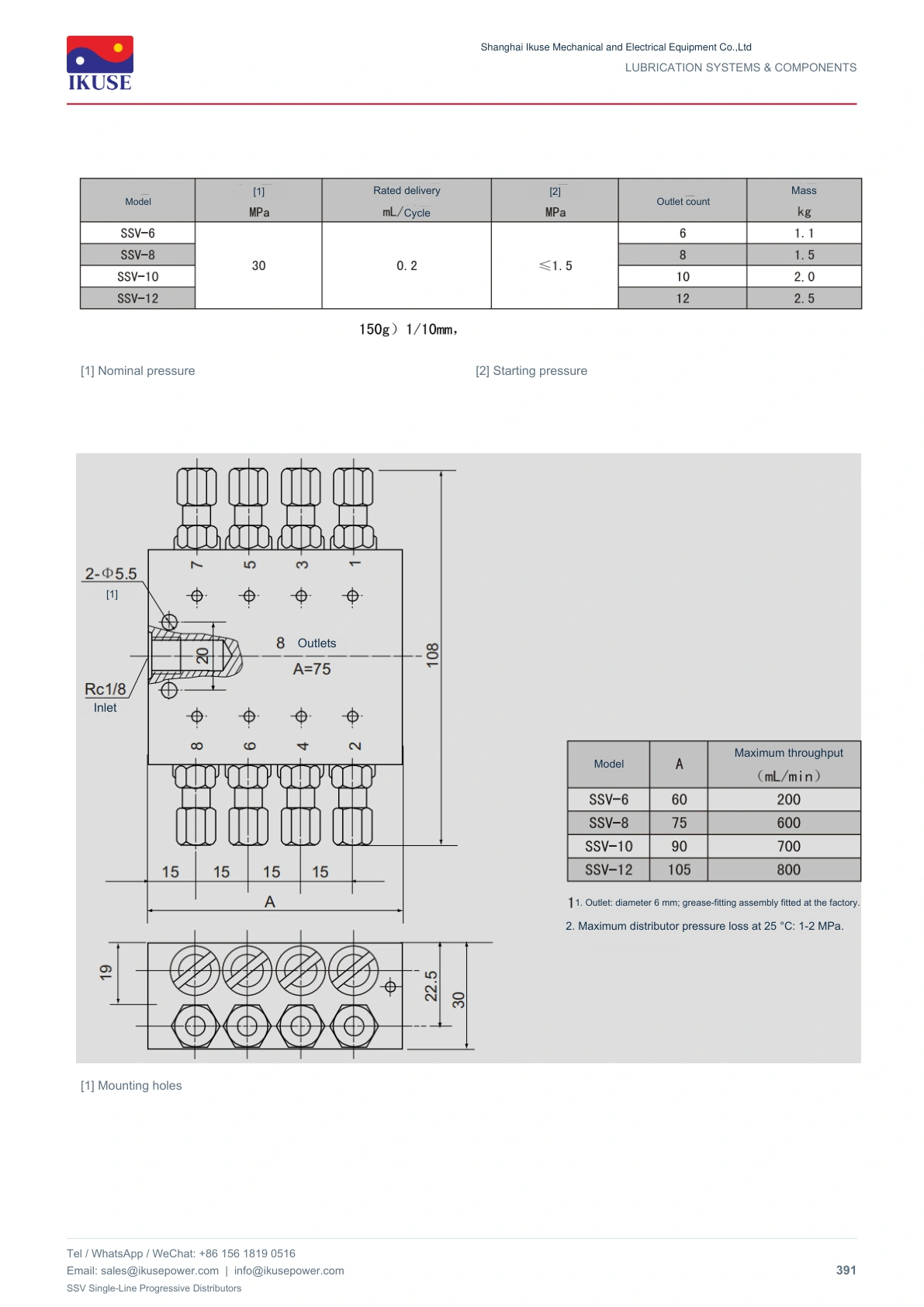

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
