Overview

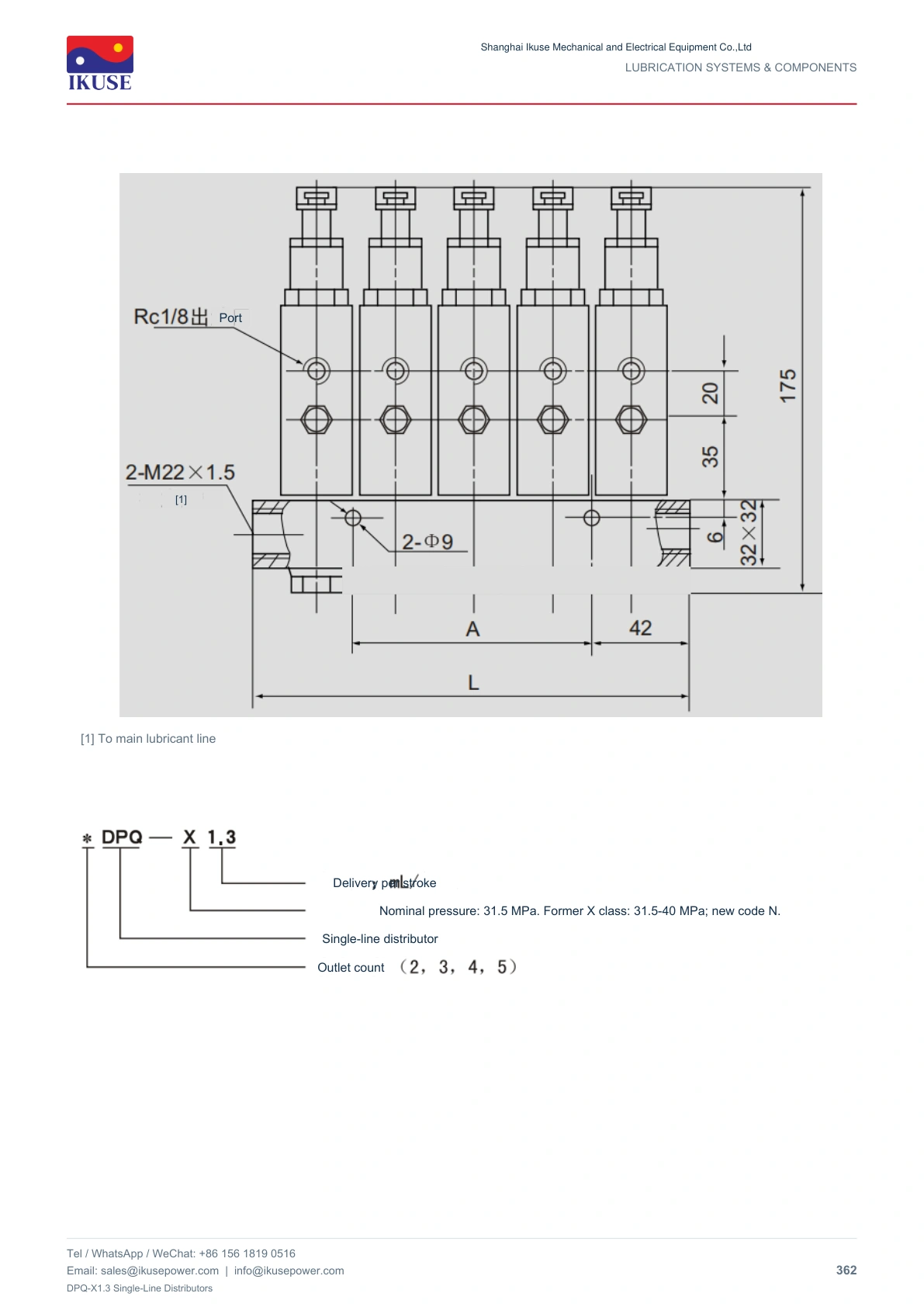

For automatic metered grease delivery in single-line systems at 31.5 MPa. Use grease with penetration at least 220 × 0.1 mm at 25 °C and 150 g. The model identifies 2, 3, 4 or 5 outlets and 1.3 mL per delivery. X is the older 31.5-40 MPa pressure code; under the newer designation, 31.5 MPa is N. Specify temperatures outside −10 to 80 °C for suitable seals. Drawing labels: oil outlet; connection to main supply. Table fields include pressure, delivery, outlet count, mounting-hole count and mass.
Selection and operation
Select according to the number of outlets, connections and mounting-hole dimensions.
Technical documentation
Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
