Overview

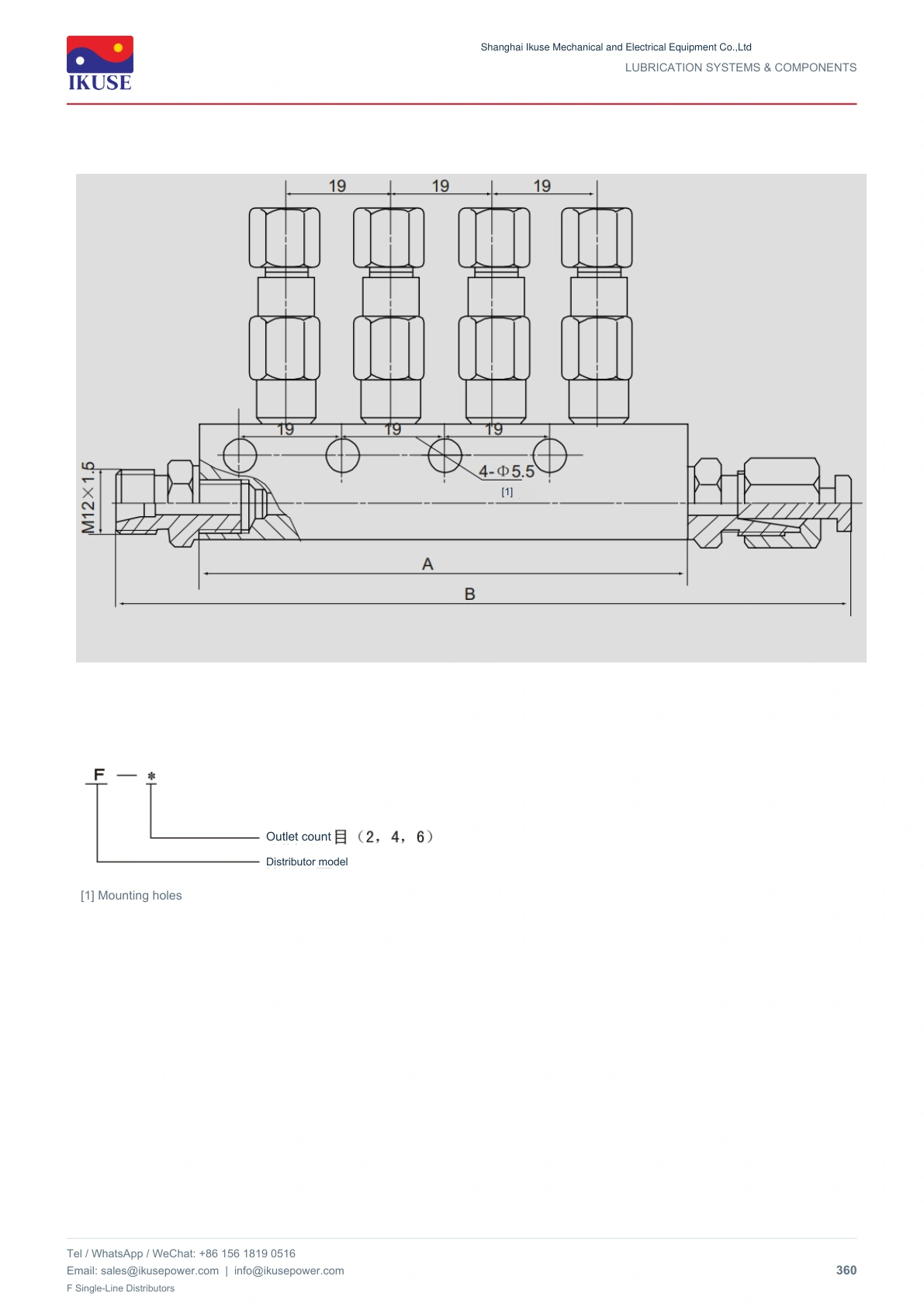

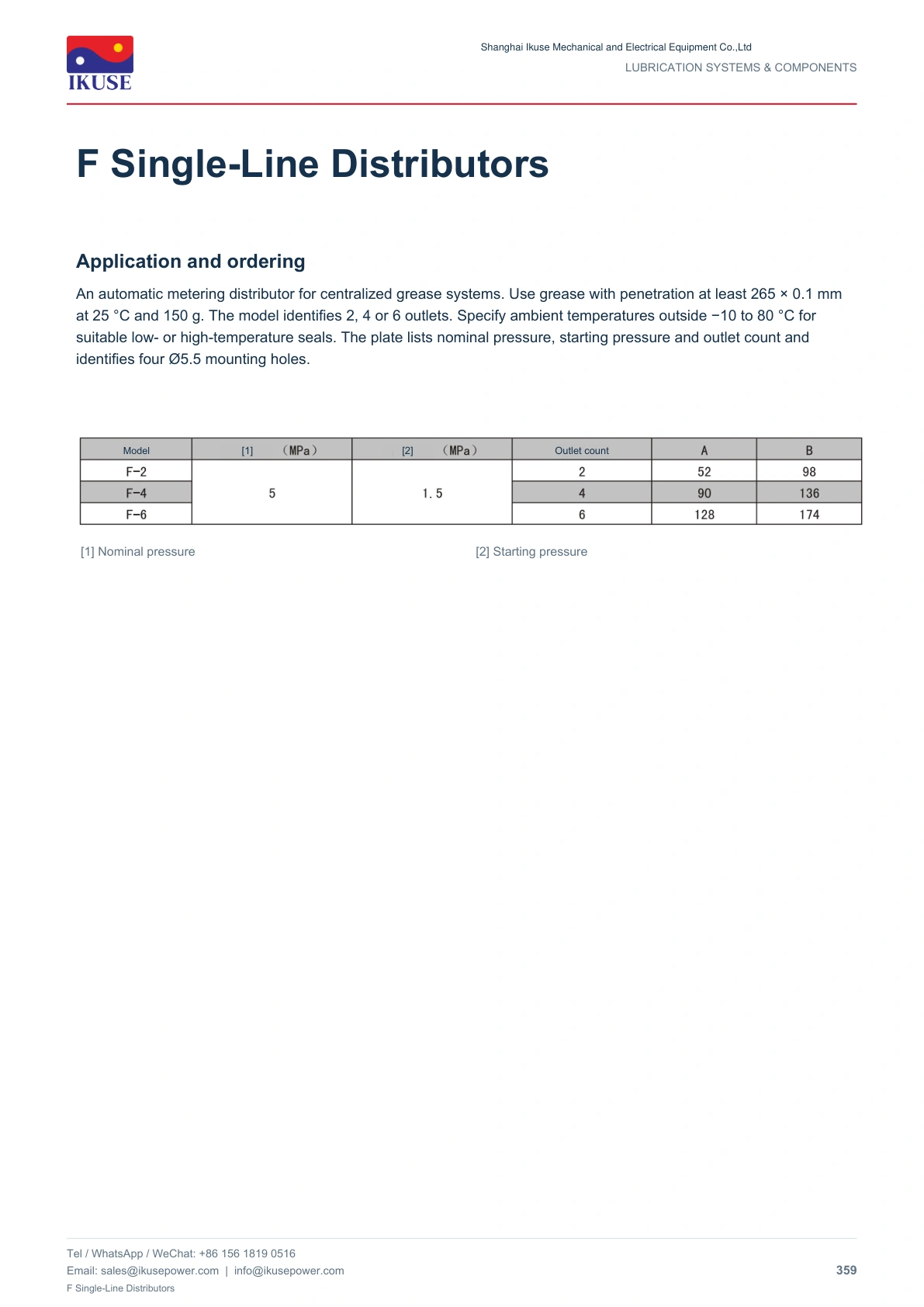

An automatic metering distributor for centralized grease systems. Use grease with penetration at least 265 × 0.1 mm at 25 °C and 150 g. The model identifies 2, 4 or 6 outlets. Specify ambient temperatures outside −10 to 80 °C for suitable low- or high-temperature seals. The plate lists nominal pressure, starting pressure and outlet count and identifies four Ø5.5 mounting holes.
Selection and operation
Use grease with a penetration of at least 265 (0.1 mm). Check pressure and mounting dimensions against the table for the selected model.
Technical documentation
Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
