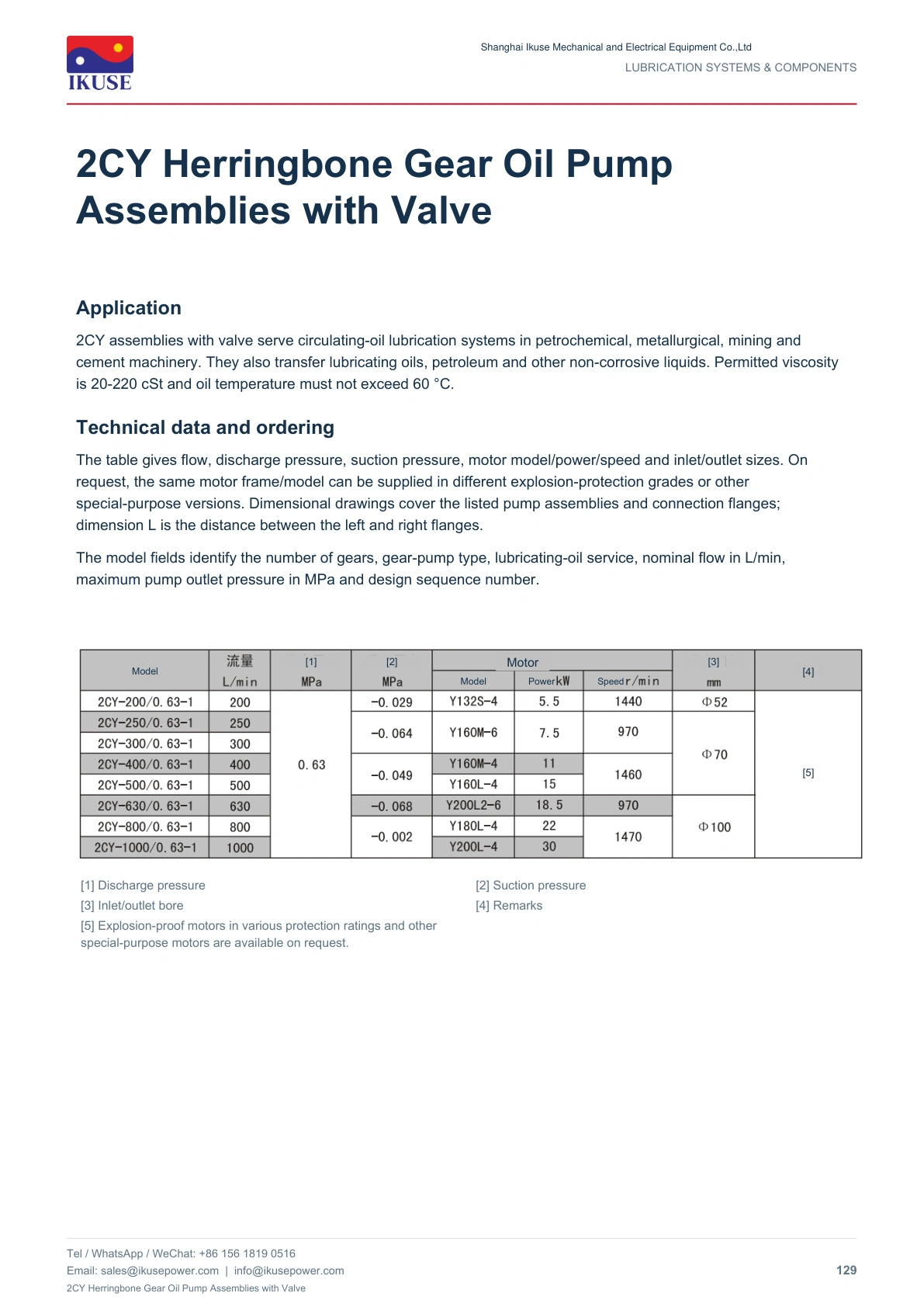

Overview
2CY assemblies with valve serve circulating-oil lubrication systems in petrochemical, metallurgical, mining and cement machinery. They also transfer lubricating oils, petroleum and other non-corrosive liquids. Permitted viscosity is 20-220 cSt and oil temperature must not exceed 60 °C.
Selection and operation
Kinematic viscosity: 20–220 cSt. Oil temperature must not exceed 60°C. Specify the motor type and explosion-protection requirements when ordering.
Technical documentation

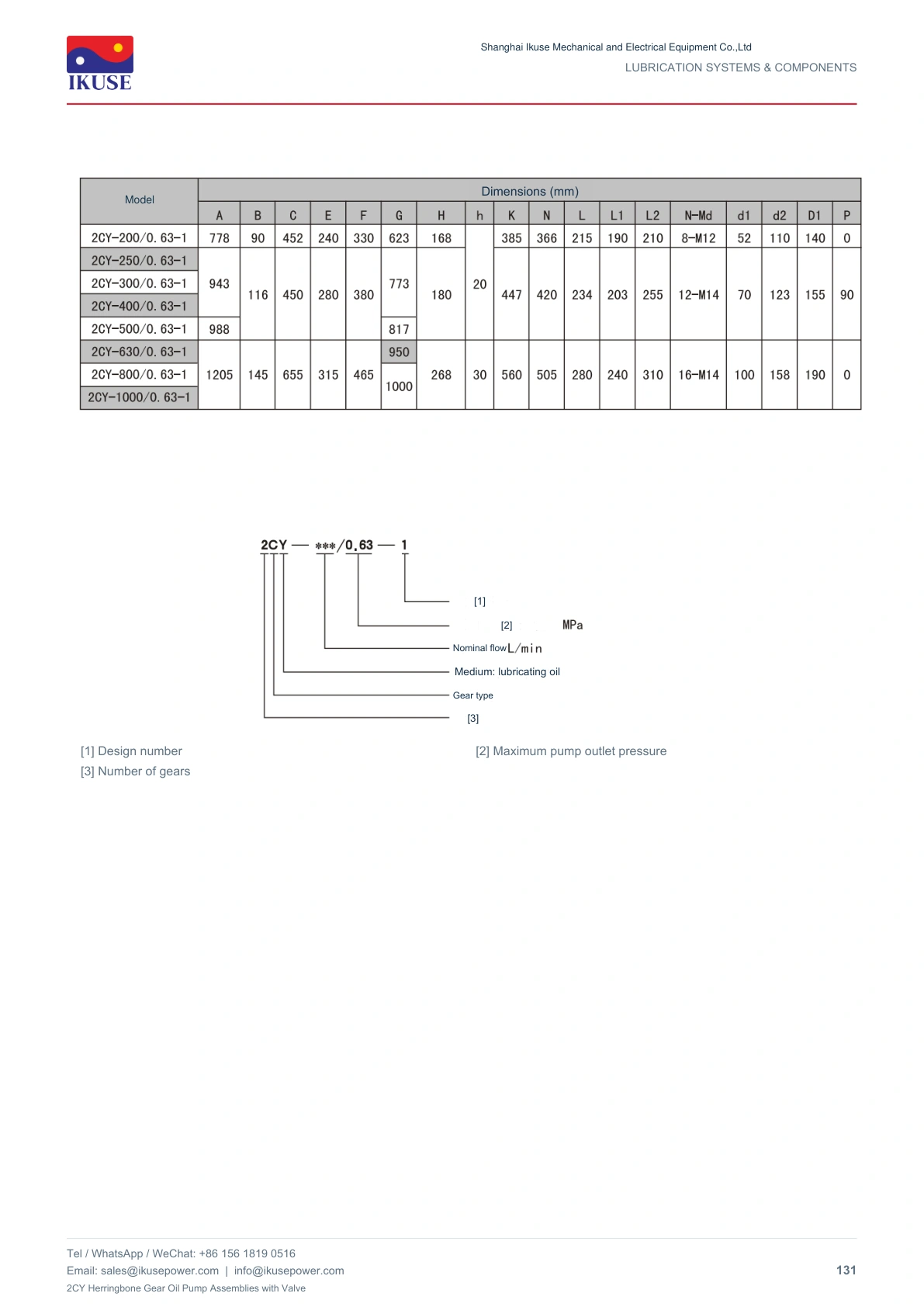

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
