Overview
Metal diaphragms provide flexible compensation for high-speed machines and compact shaft connections.
Construction

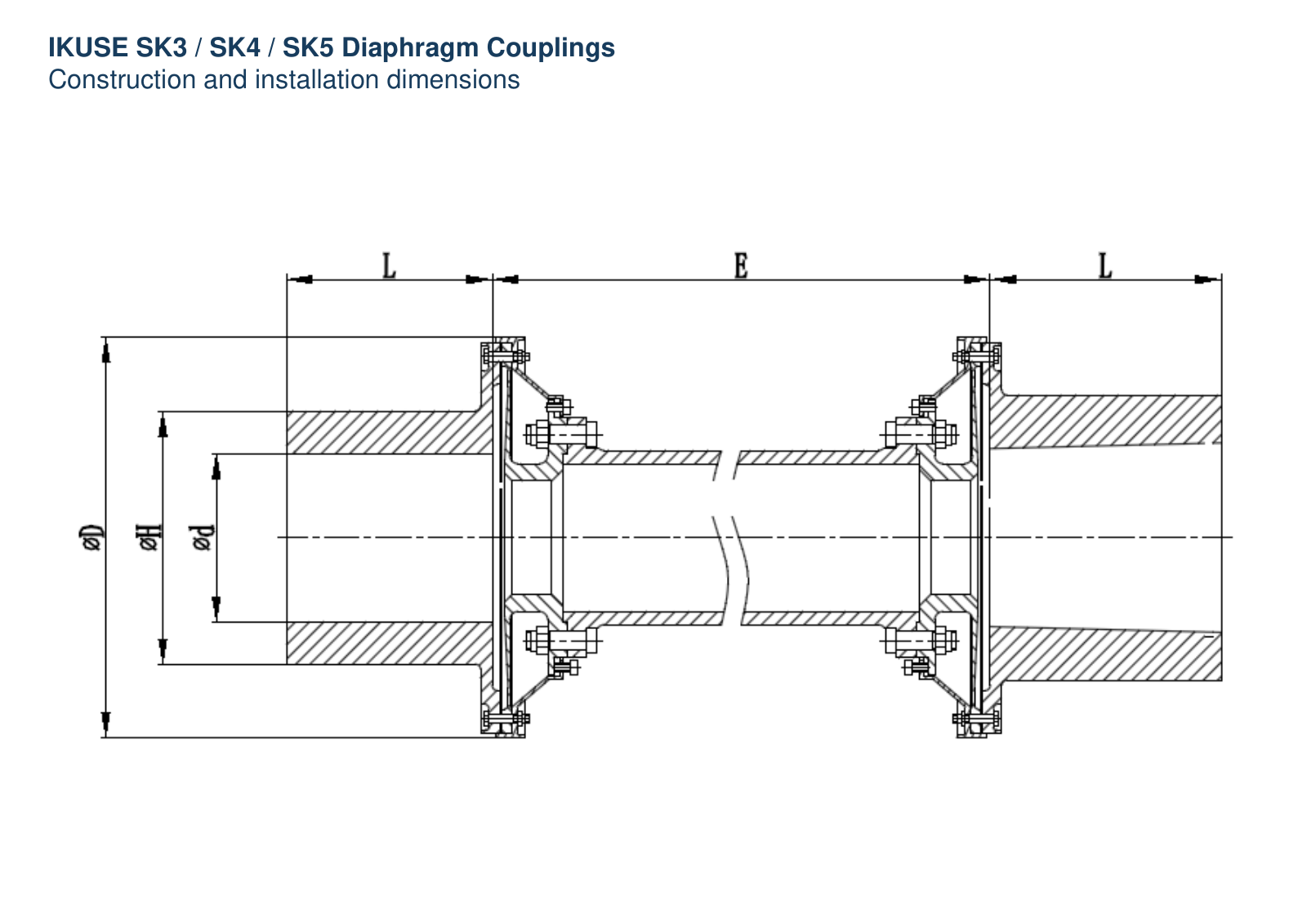

Flexible diaphragms accommodate specified axial, radial and angular displacements. Capacity differs between series.
Applications
Compressors, high-speed turbomachinery, fans and pumps.
Selection

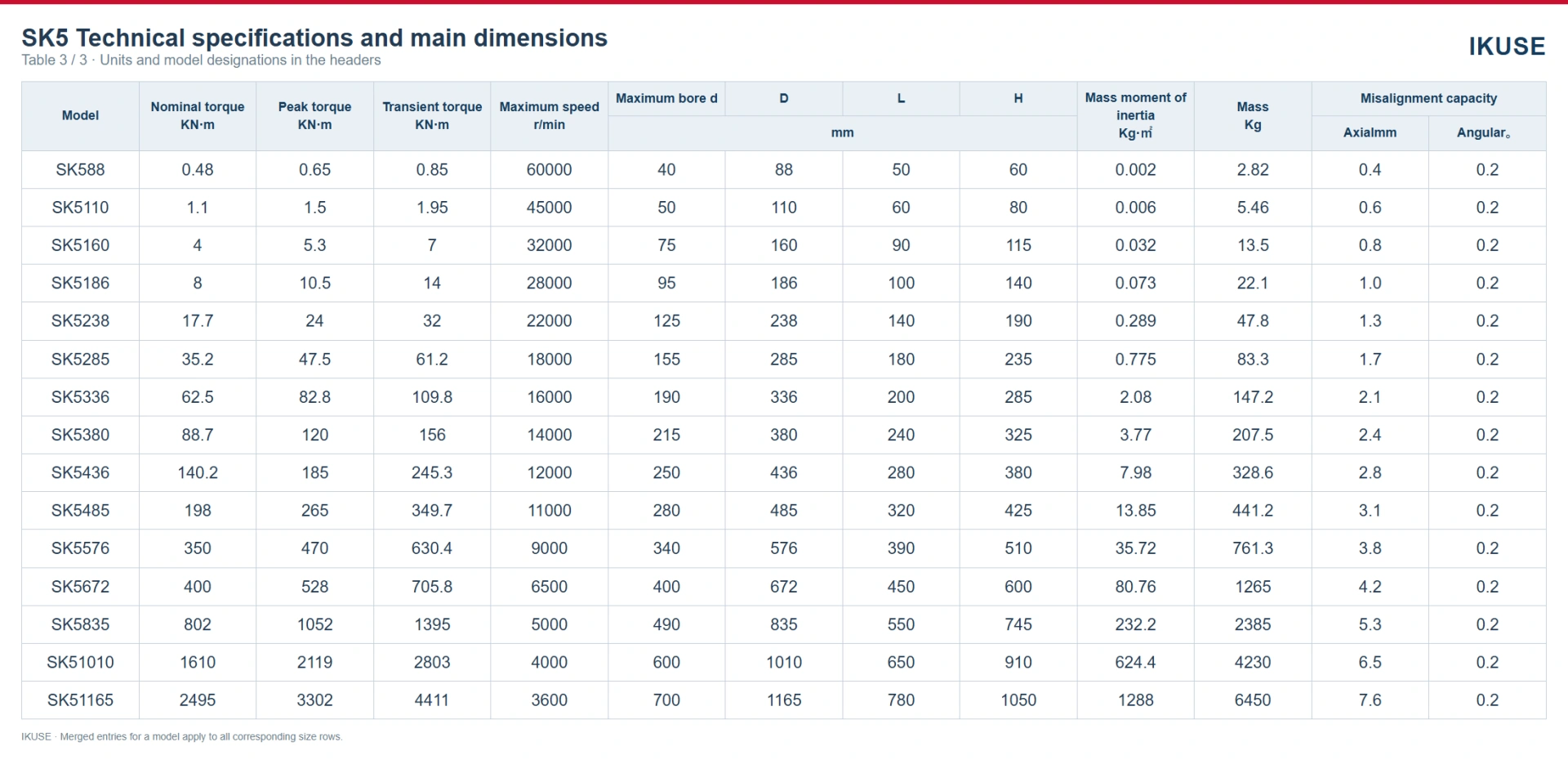

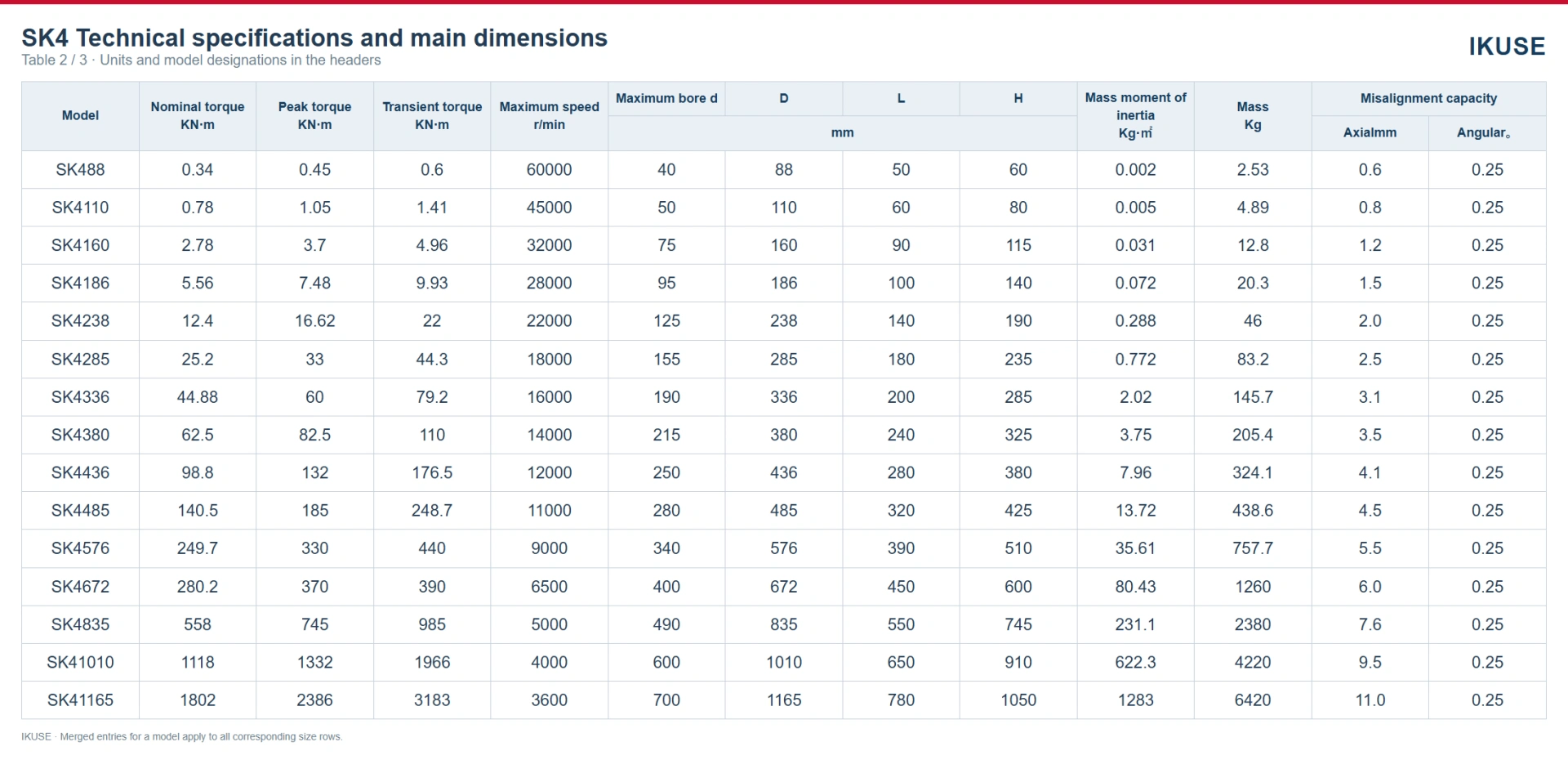

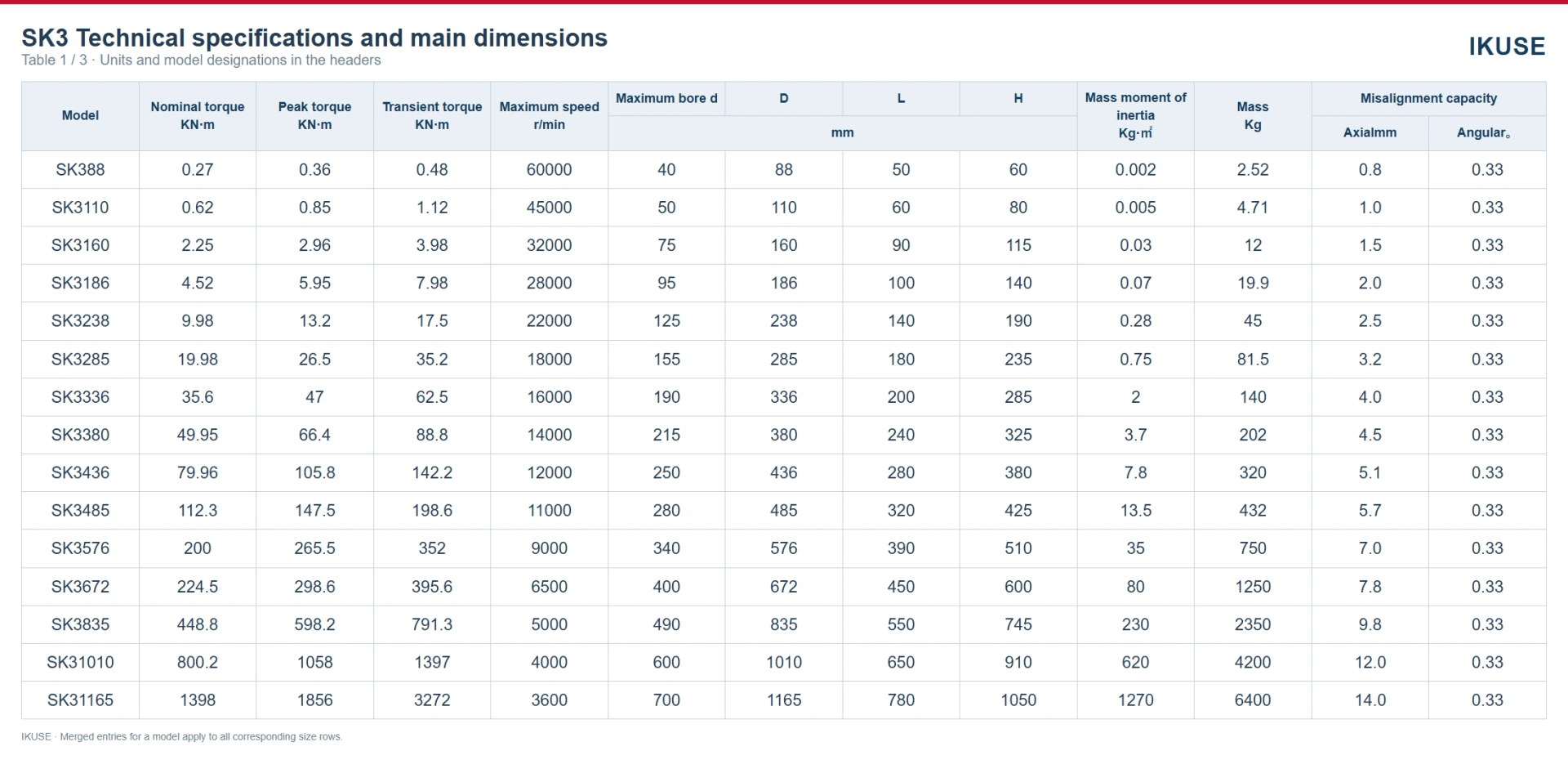

Catalogue angular capacities for SK3, SK4 and SK5 are respectively 1/3°, 1/4° and 1/5°. Select each series using its own table.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
