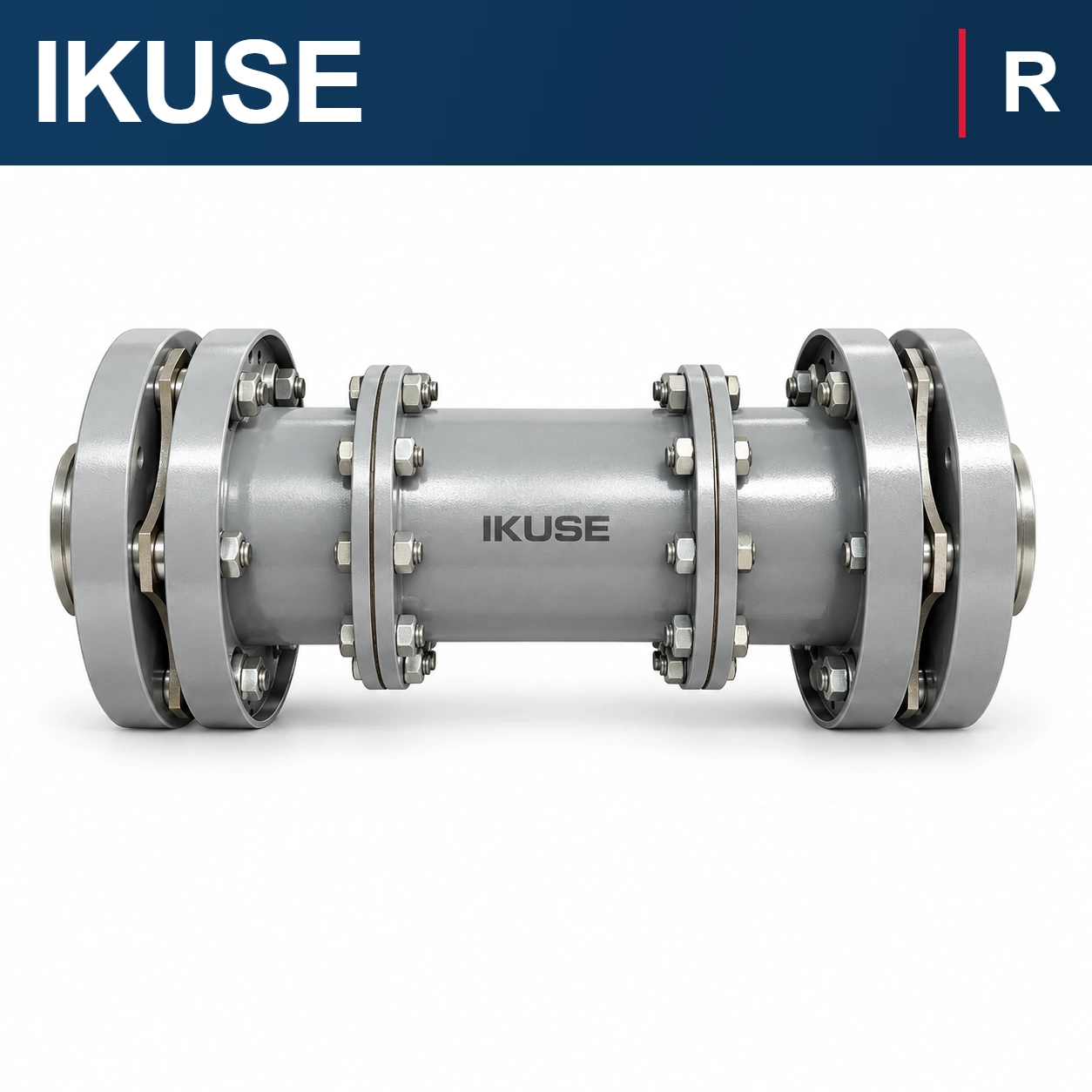

Overview
Flexible assemblies located close to the bearings and an intermediate section reduce additional bending moments at the shaft ends. Used in high-speed drives.

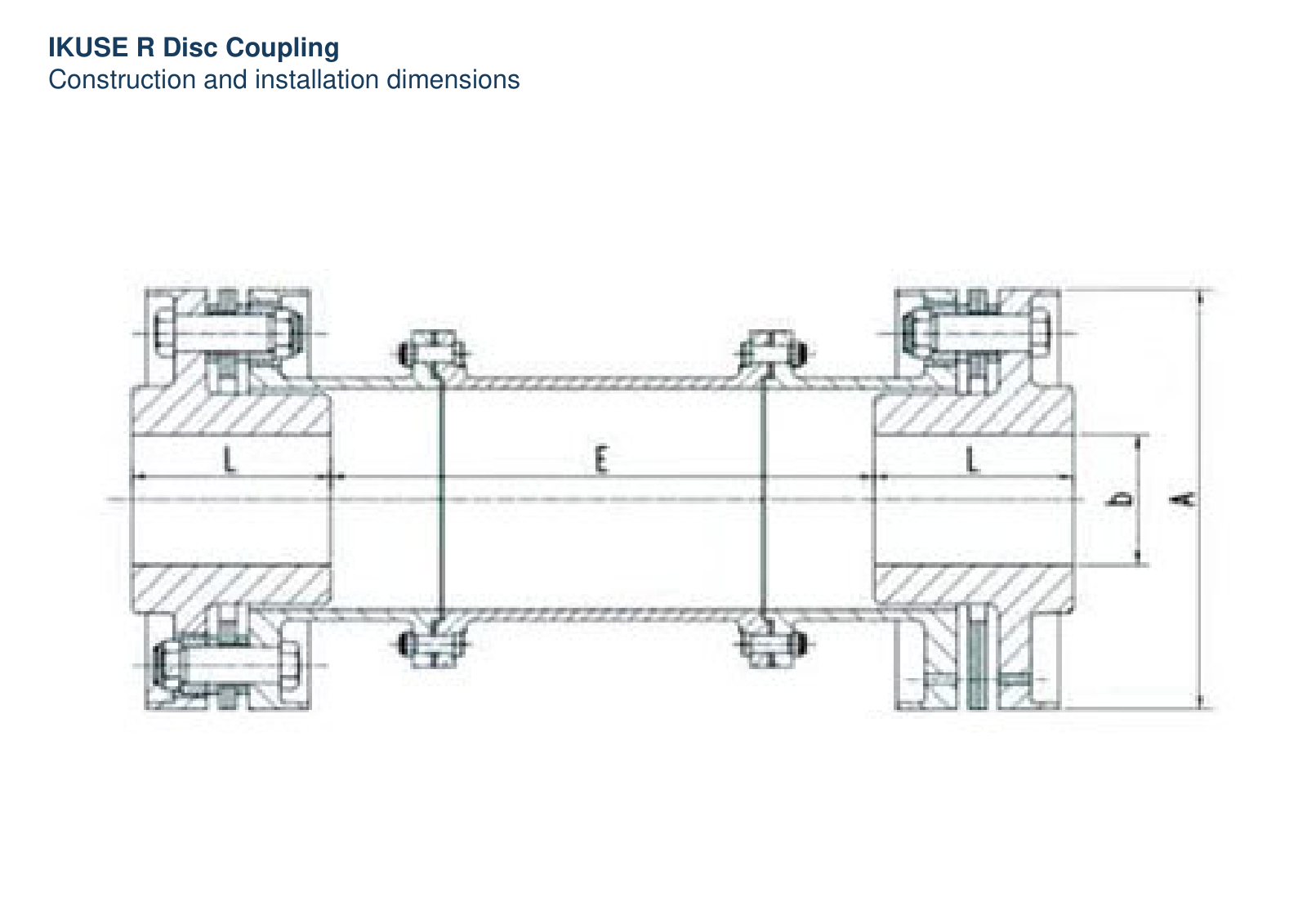

Construction
Detachable connections between the flexible assemblies and spacer facilitate maintenance. Check installation prestretch against thermal displacement.
Applications
High-speed equipment requiring dynamic balancing and accommodation of thermal displacement.
Selection
Assemble, align and balance according to the final drawings. Do not mix parameters for configurations with different shaft separations.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
