Circulating lubrication units combine oil storage, pumping, filtration, cooling, heating and monitoring for machinery. Select by oil flow, pressure, viscosity and equipment operating conditions.
RT units supply lubrication and control oil to industrial machinery. Select the oil supply flow, pressure, filtration and cooling configuration to suit the equipment requirements.
Technical Specifications

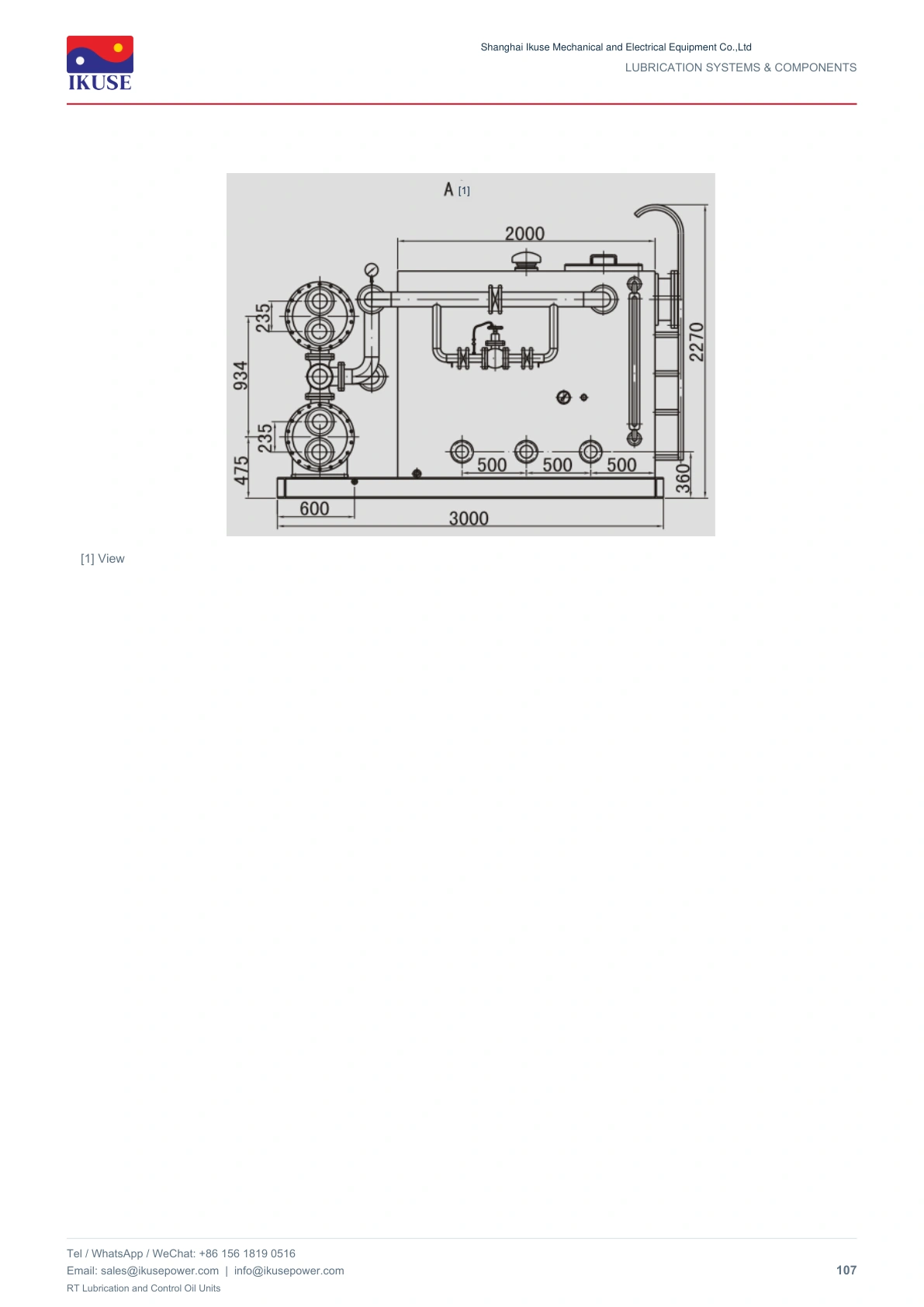

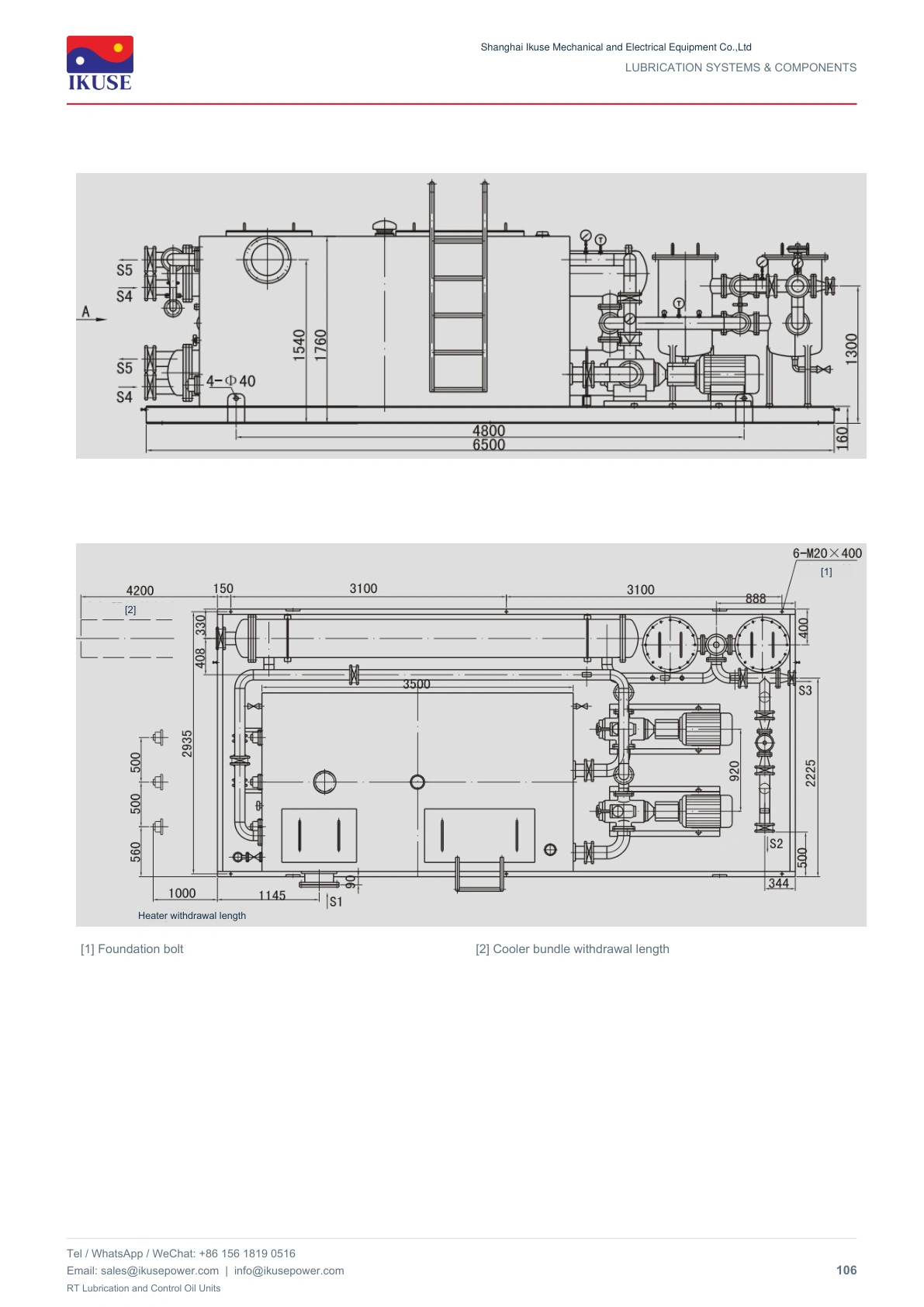

| Illustration | Illustrative product view; refer to the technical drawings for the specific configuration. |
| Product type | Oil lubrication unit |
| Product series | RT |
| Control oil pressure | 0.85 MPa |
| Configuration options | Typical configuration; select to suit the main machine. |
| Lubricating oil pressure | 0.25 MPa |
| Lubricating oil flow rate | 700 L/min |
