Overview

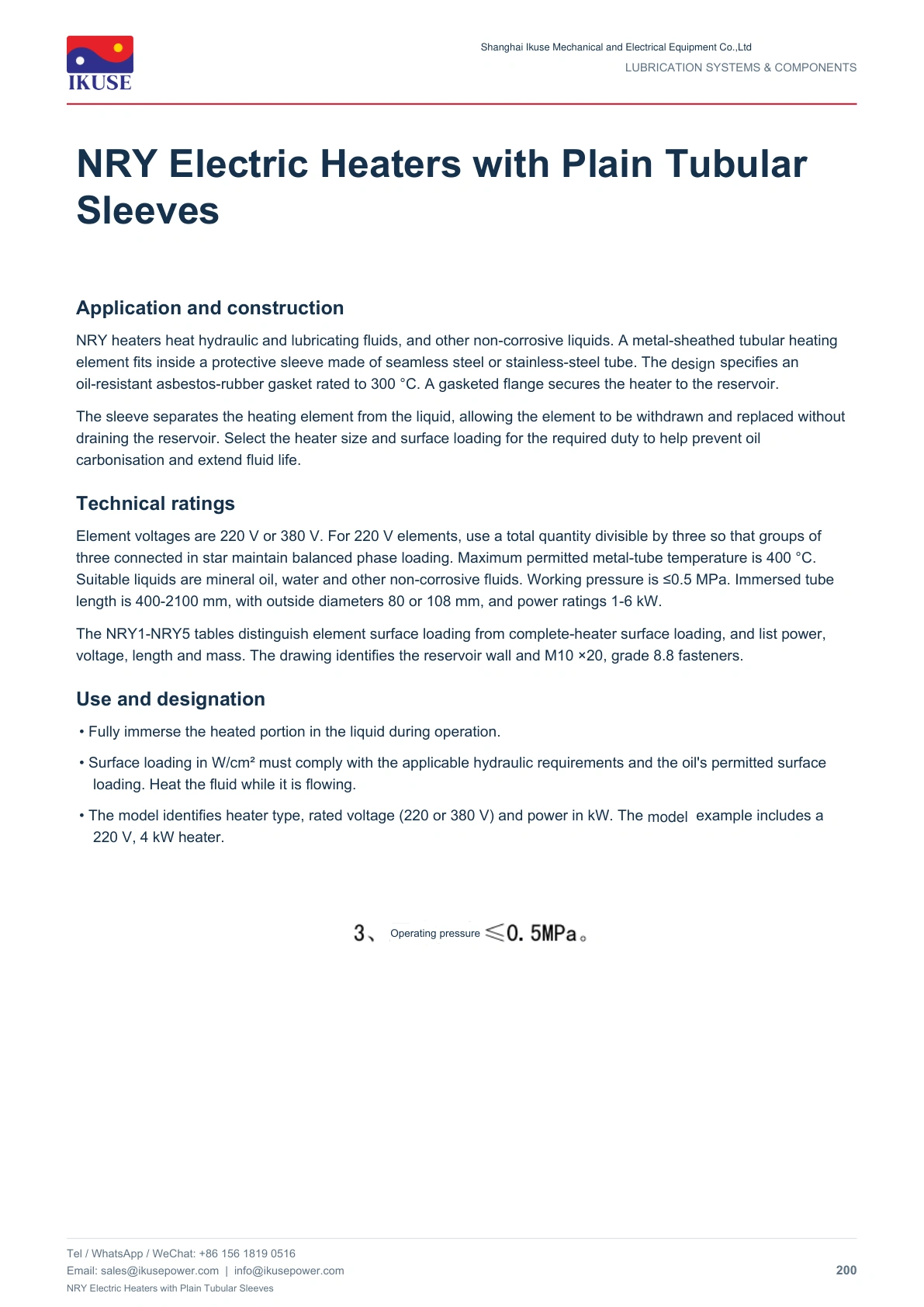

NRY heaters heat hydraulic and lubricating fluids, and other non-corrosive liquids. A metal-sheathed tubular heating element fits inside a protective sleeve made of seamless steel or stainless-steel tube. The oil-resistant asbestos-rubber gasket is rated to 300 °C. A gasketed flange secures the heater to the reservoir.
Selection and operation
The heating section must be fully immersed; heating a moving liquid is preferred. The specific surface loading must suit the oil and operating conditions.
Technical documentation

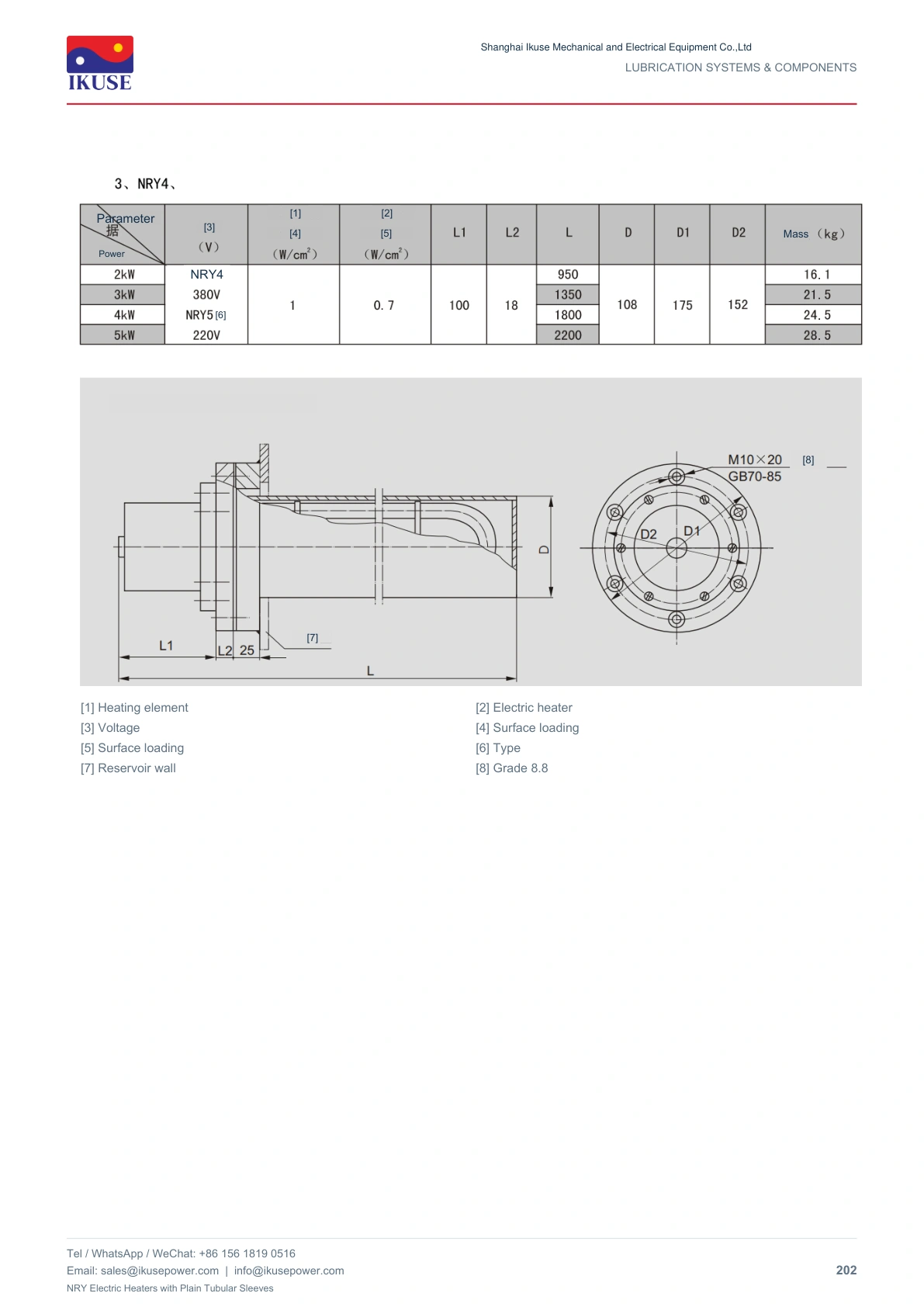

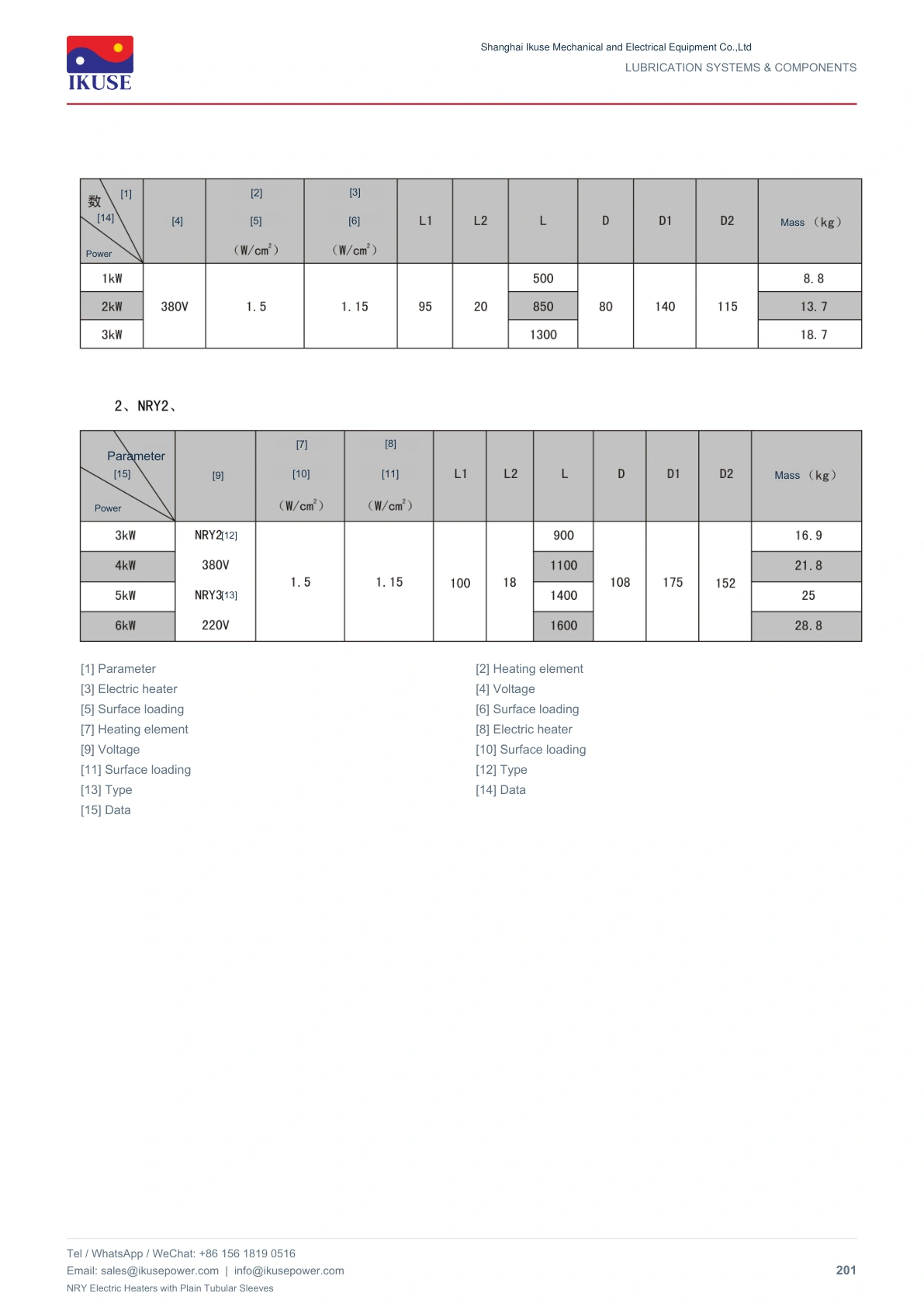

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
