Overview
NRC heaters serve hydraulic/lubricating fluids and other non-corrosive liquids. Fins substantially increase heat-transfer area, reducing heat output per unit surface area and helping prevent oil carbonisation. The assembly comprises a metal-sheathed tubular heating element, a seamless steel protective sleeve with metal fins, and a gasket. The asbestos-rubber gasket material is rated to 300 °C.
Selection and operation
The heating section must be fully immersed; heating a moving liquid is preferred. Select the power according to the oil, viscosity and cold-start conditions.

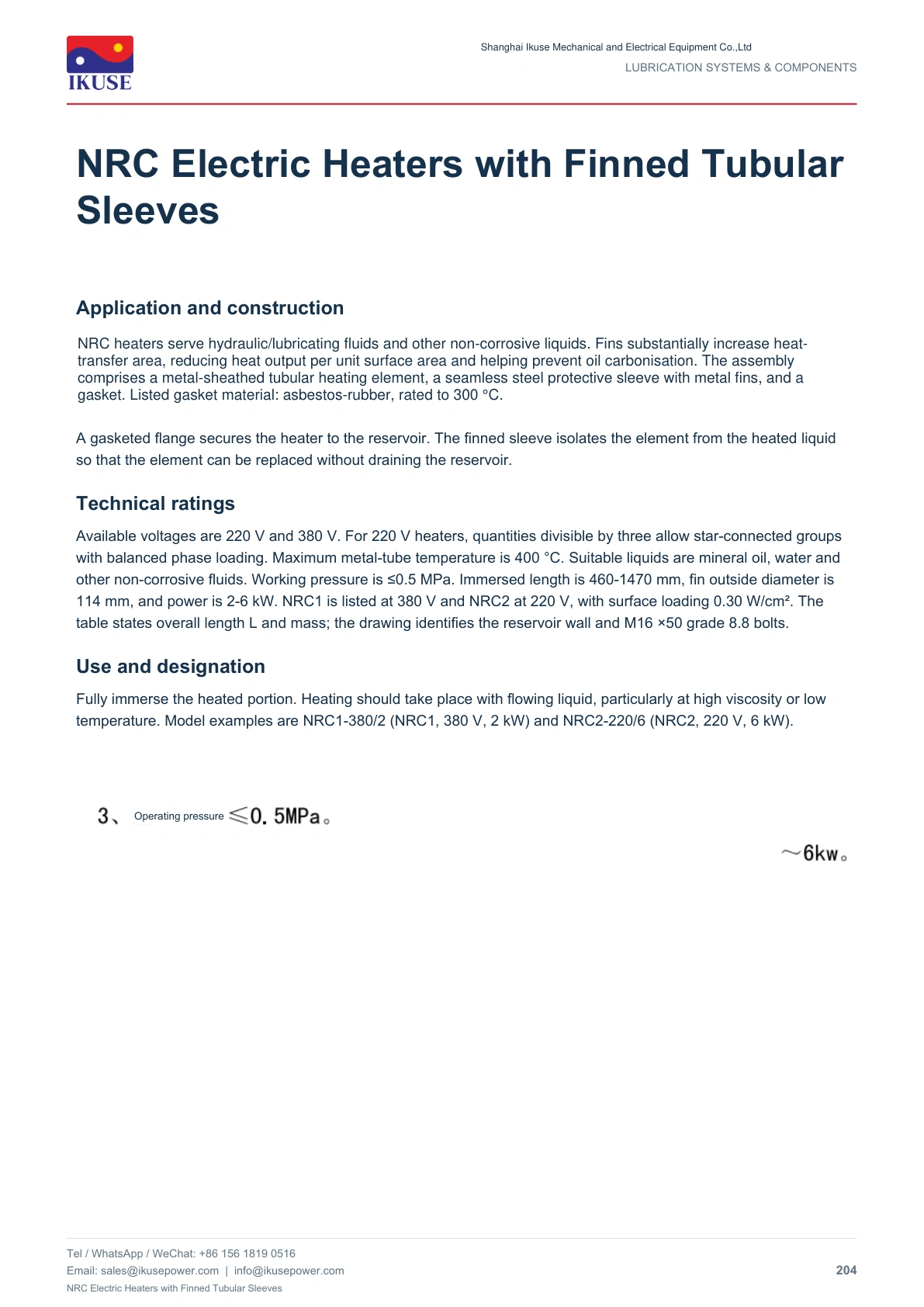

Technical documentation

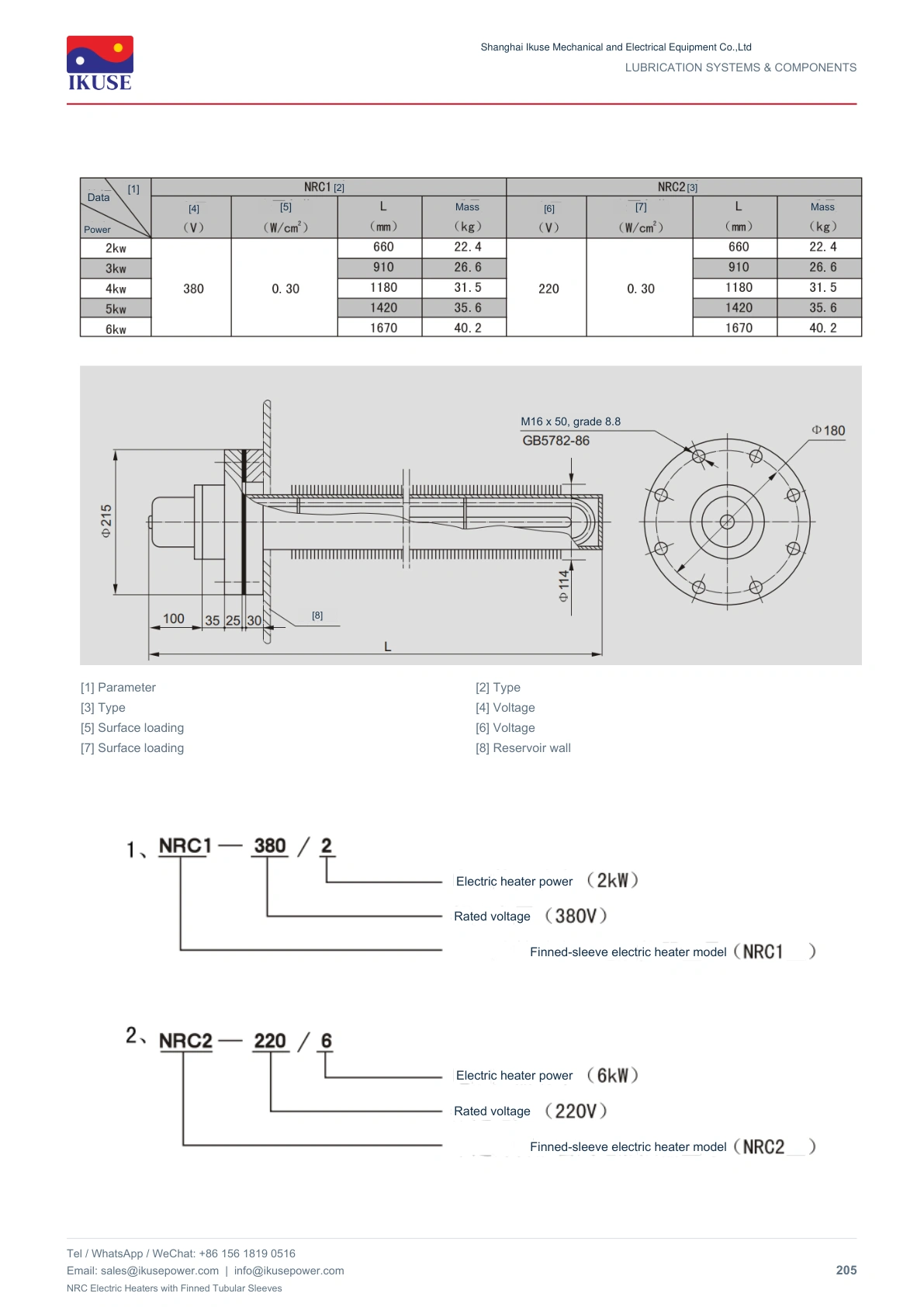

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
