Overview

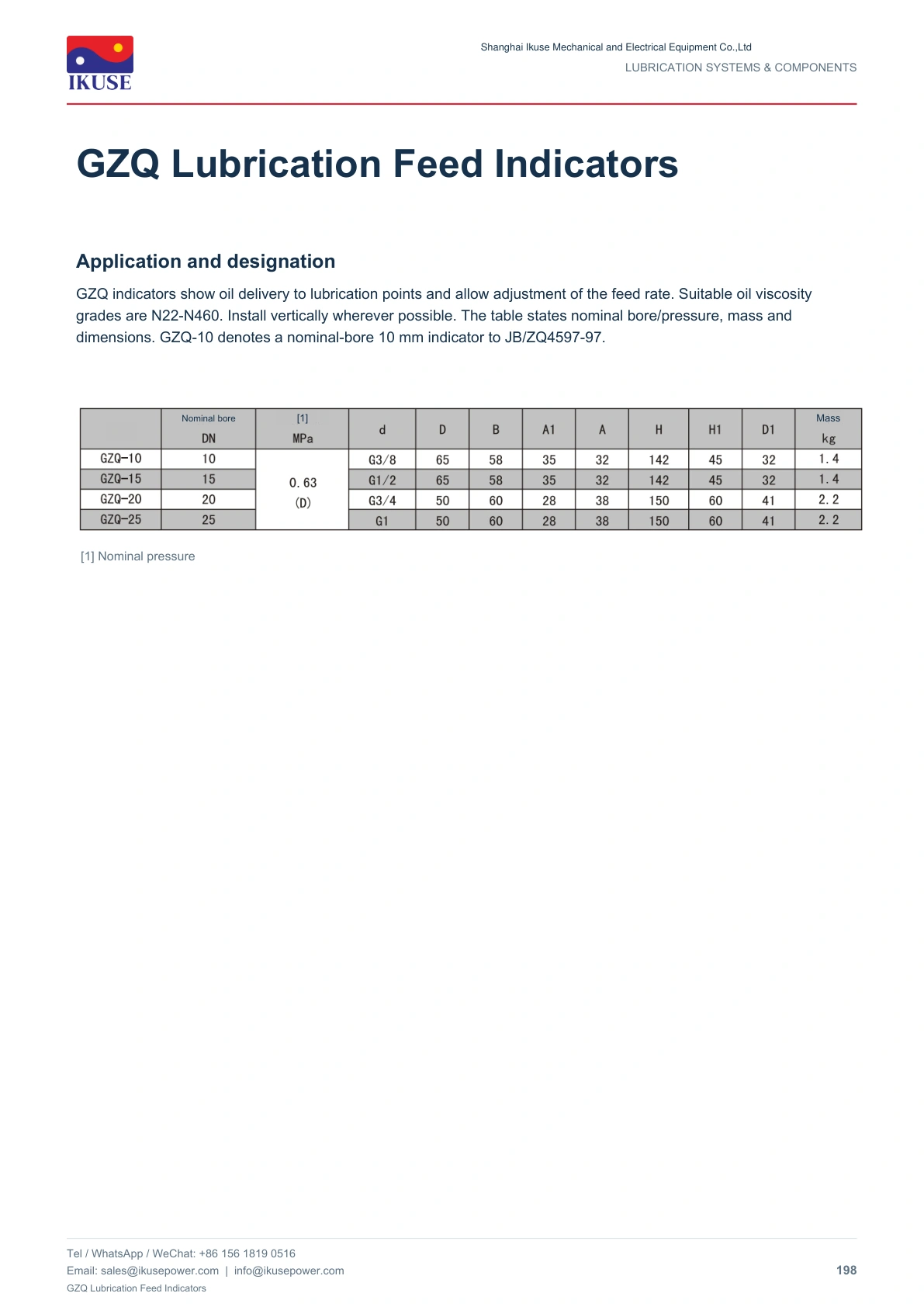

GZQ indicators show oil delivery to lubrication points and allow adjustment of the feed rate. Suitable oil viscosity grades are N22-N460. Install vertically wherever possible. The table states nominal bore/pressure, mass and dimensions. GZQ-10 denotes a nominal-bore 10 mm indicator to JB/ZQ4597-97.
Selection and operation
For N22–N460 oil; vertical mounting is preferred.
Technical documentation

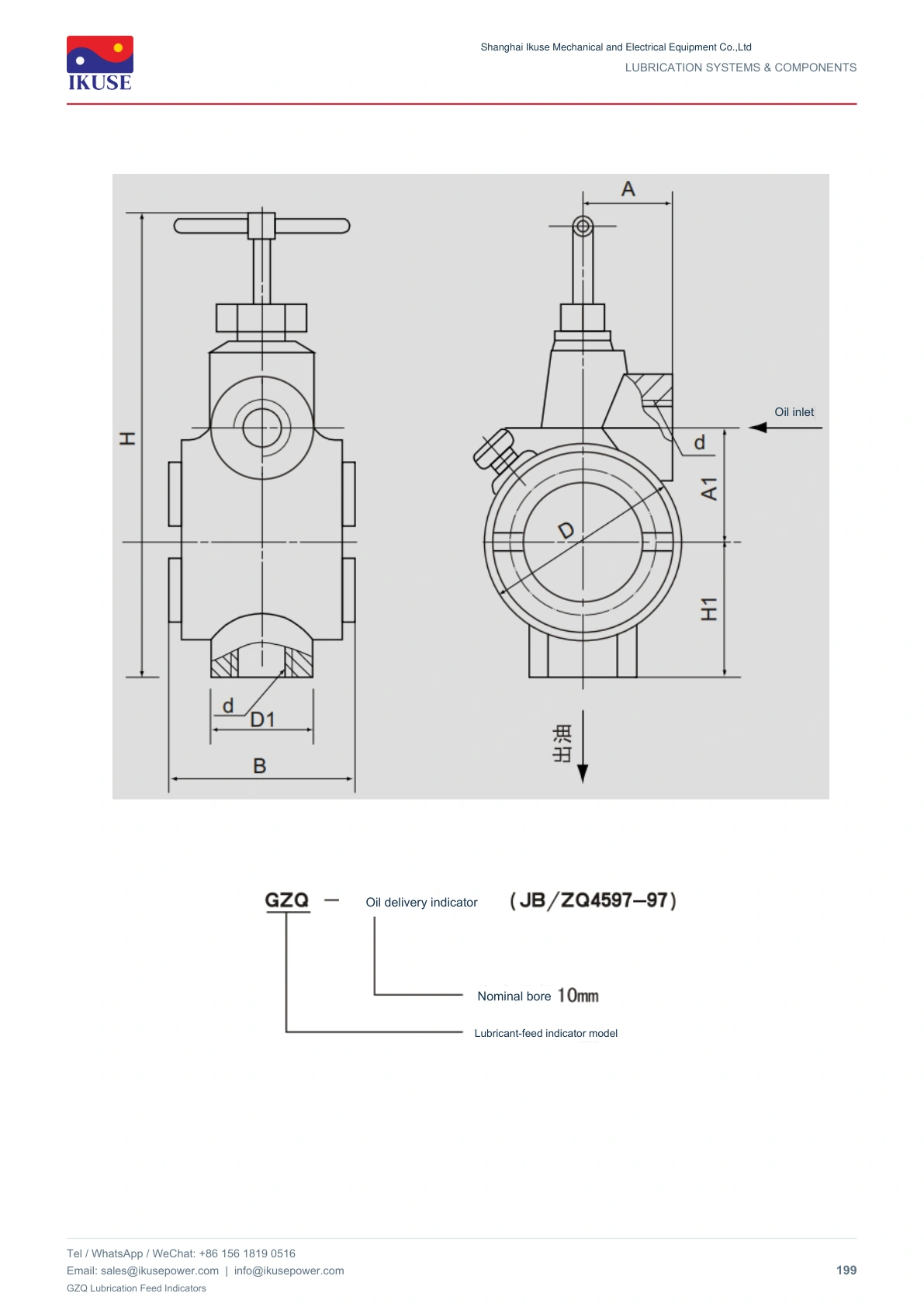

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
