Overview

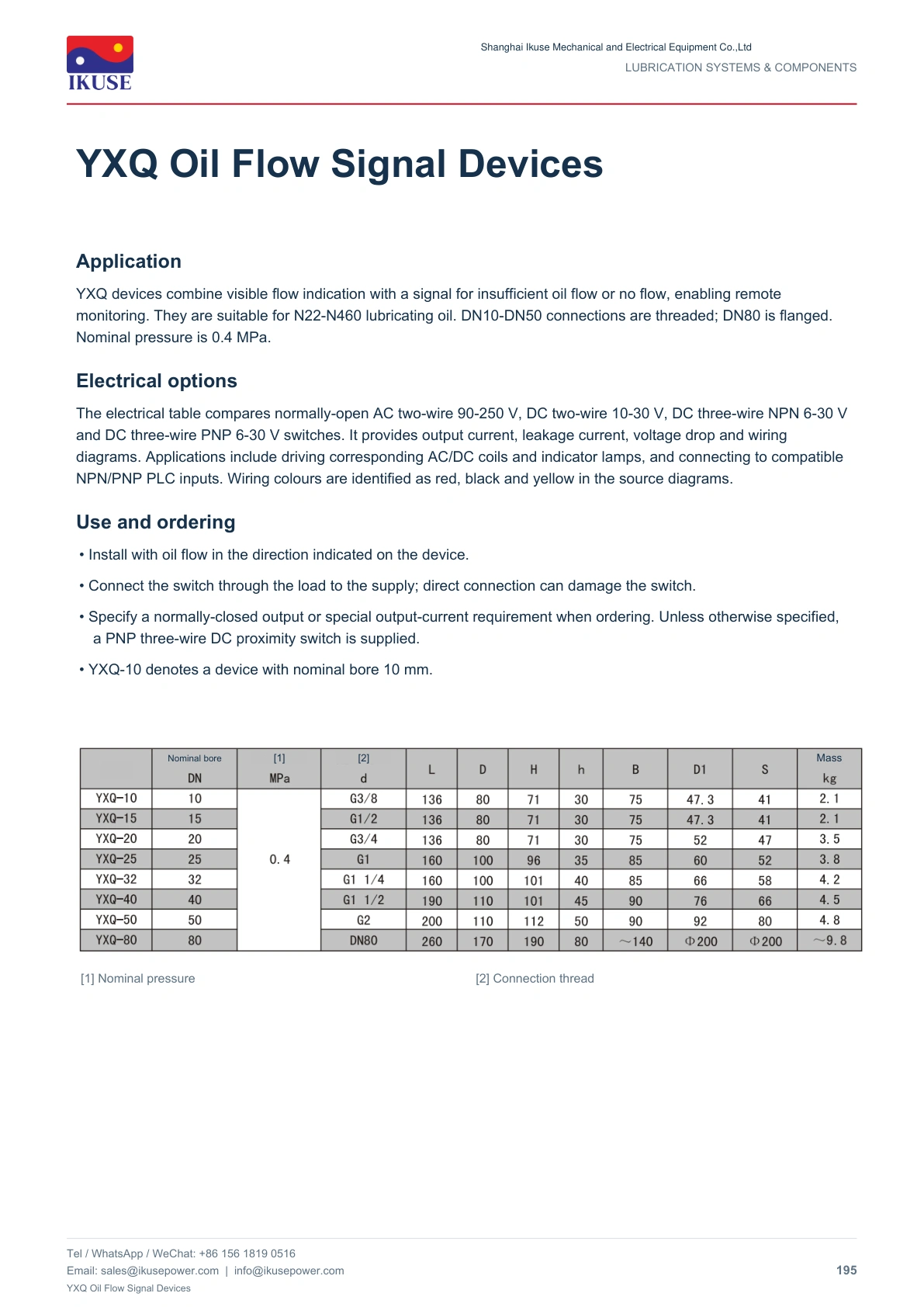

YXQ devices combine visible flow indication with a signal for insufficient oil flow or no flow, enabling remote monitoring. They are suitable for N22-N460 lubricating oil. DN10-DN50 connections are threaded; DN80 is flanged. Nominal pressure is 0.4 MPa.
Selection and operation
Install in the direction of the arrow on the body. Connect the proximity sensor to its power supply through the load; match the voltage, current and NPN/PNP input.
Technical documentation

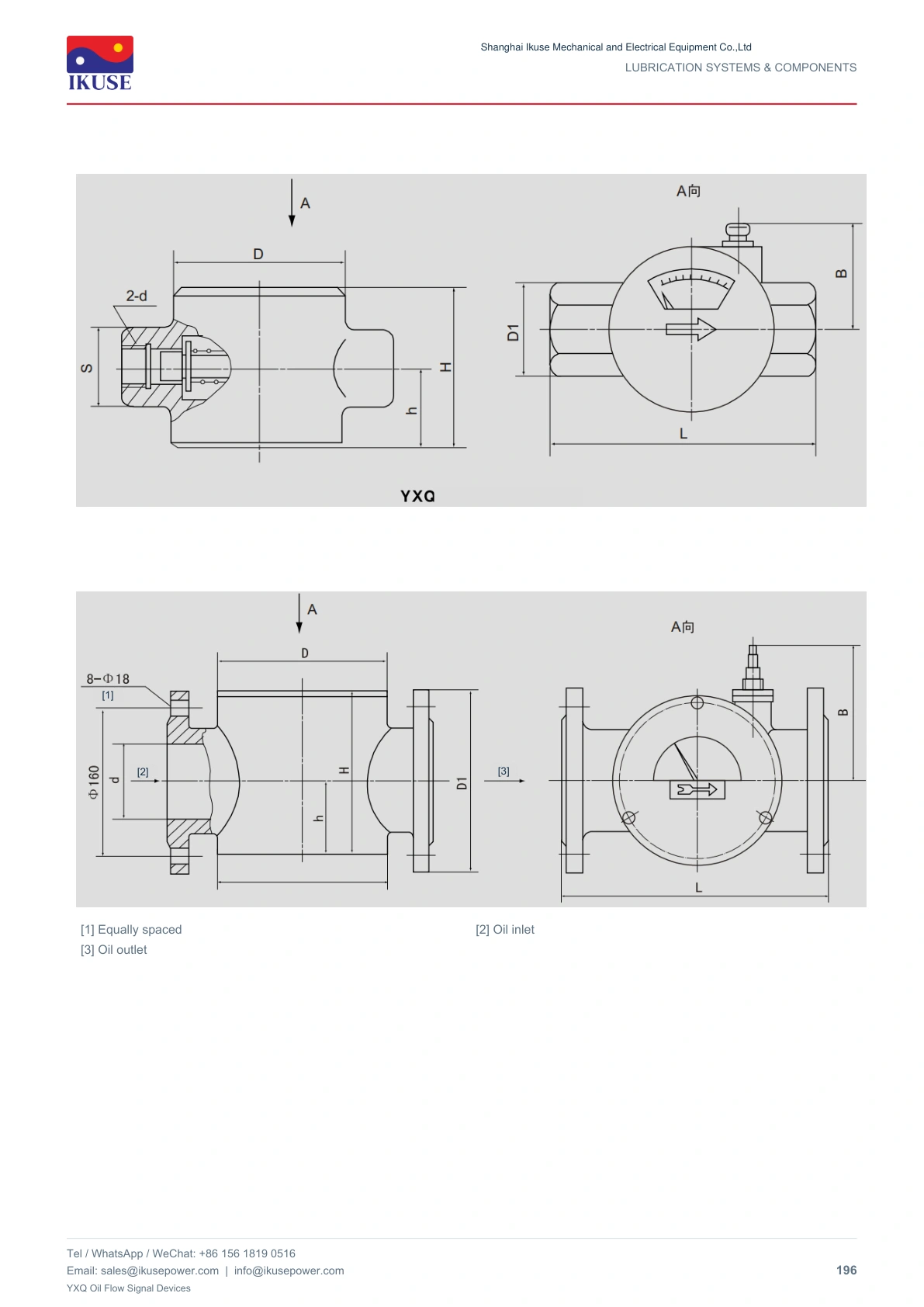

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
