Overview
A mesh filter between the pump outlet and system supply main for 40 MPa centralized grease systems, removing residual contaminants. Use grease with penetration 265-385 × 0.1 mm at 25 °C and 150 g. Filtration rating: 120 μm. Maximum operating temperature: 120 °C.
Selection and operation
Install in the direction of the arrow on the body. Allow space to withdraw the element and clean it regularly.
Technical documentation

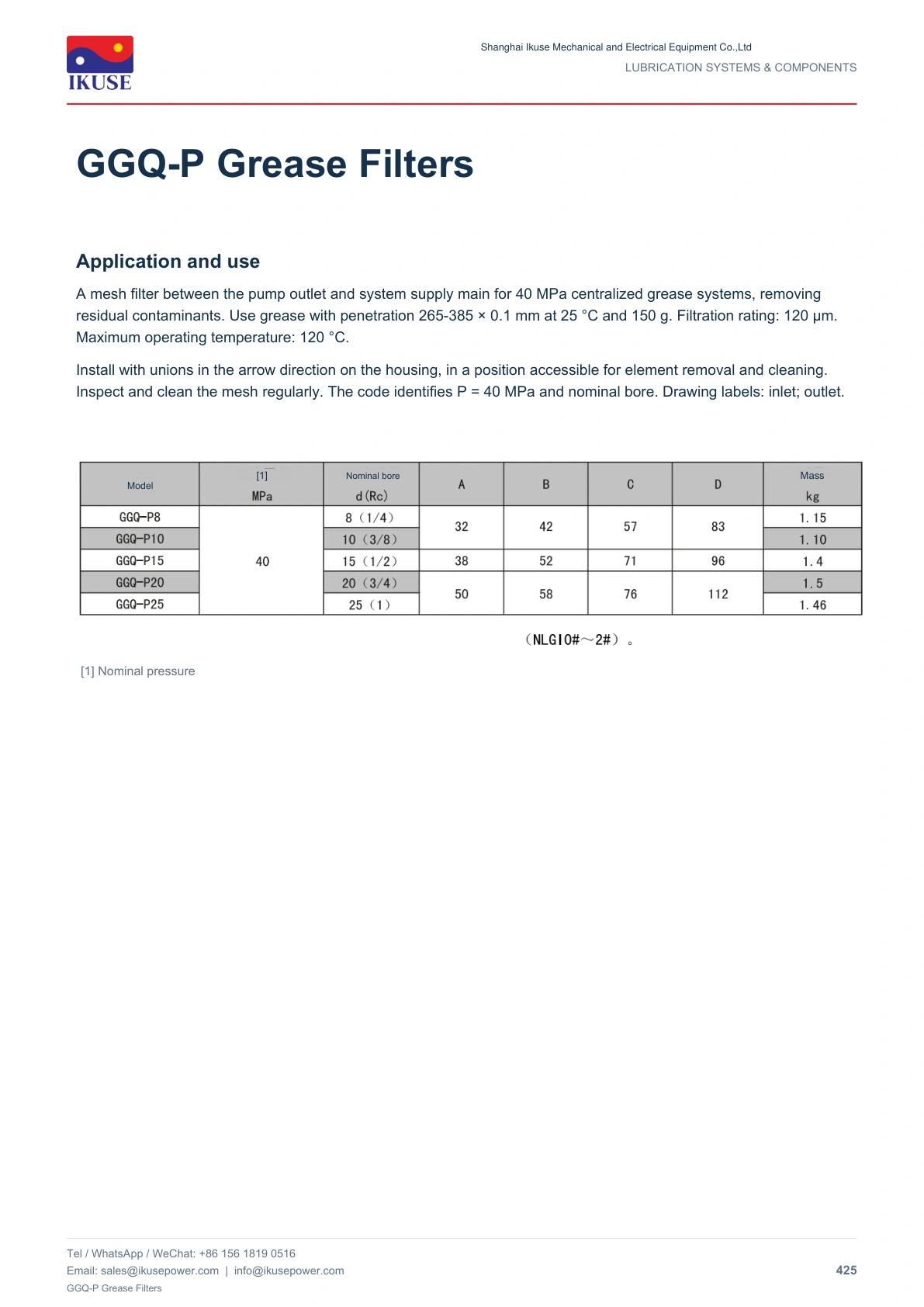

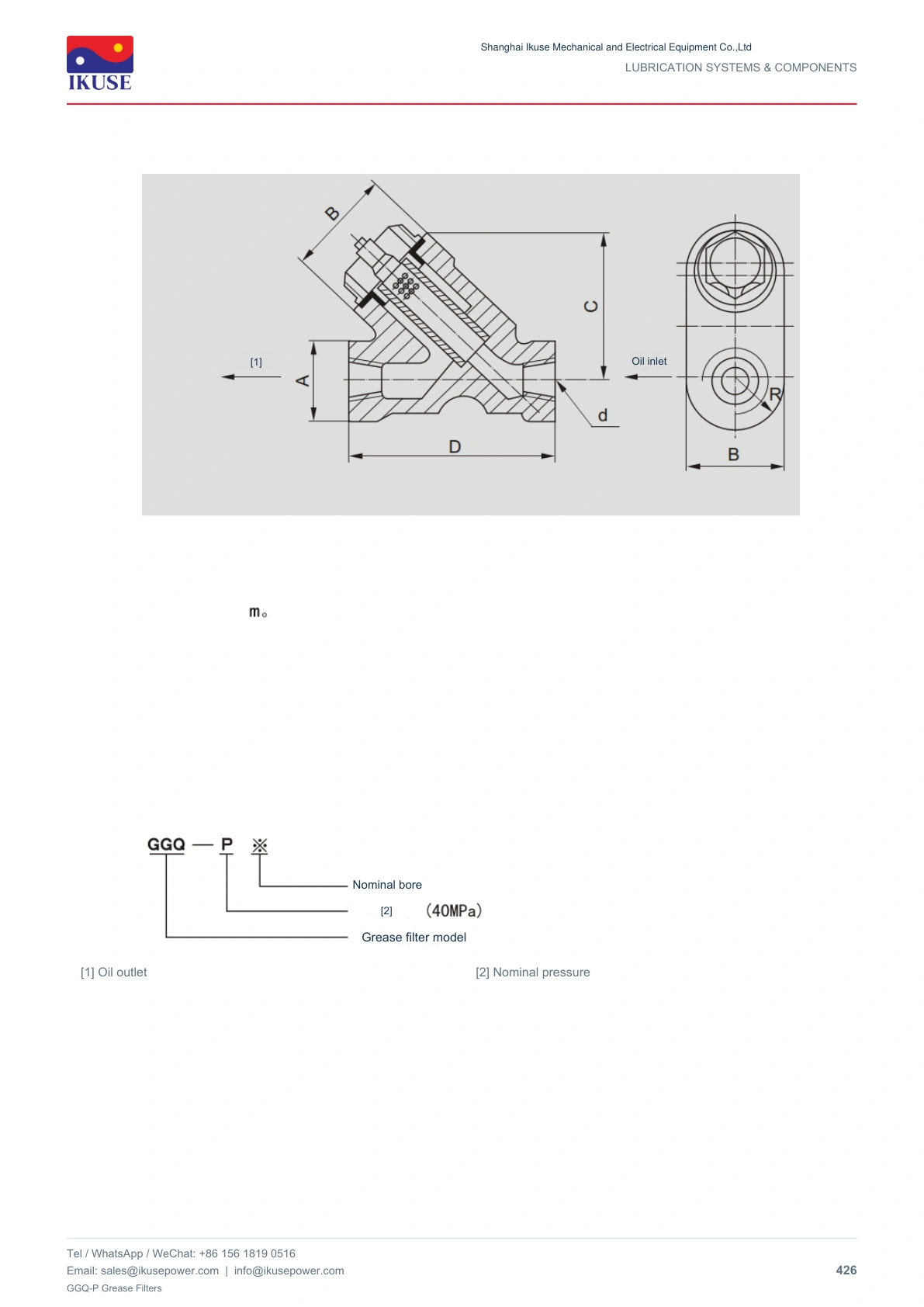

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
