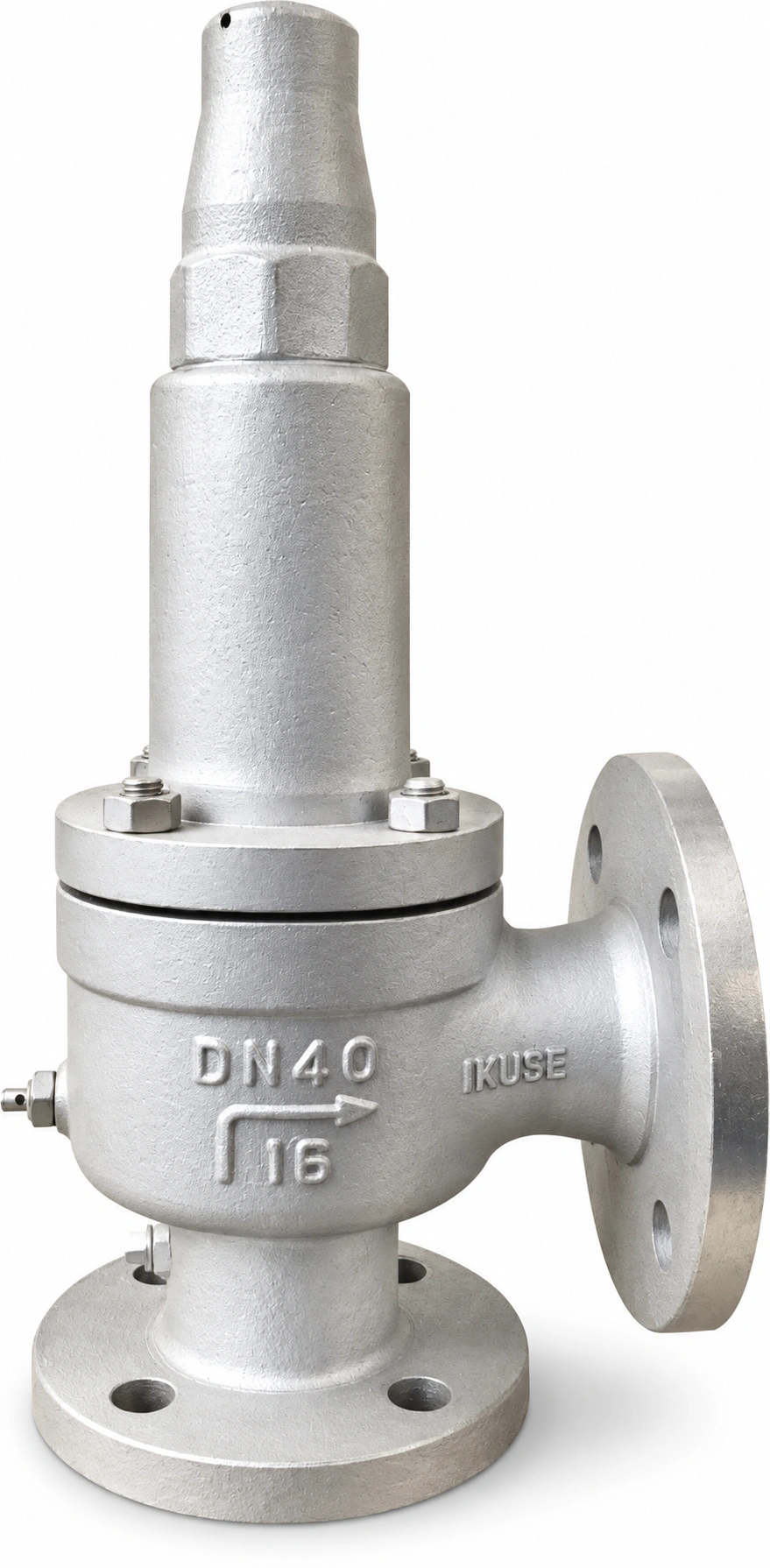

IKUSE Flanged Cryogenic Safety Valve · DA42Y-16P · DN40–200
IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Safety & Breather Valves
IKUSE Flanged Cryogenic Safety Valve · DA42Y-16P · DN40–200

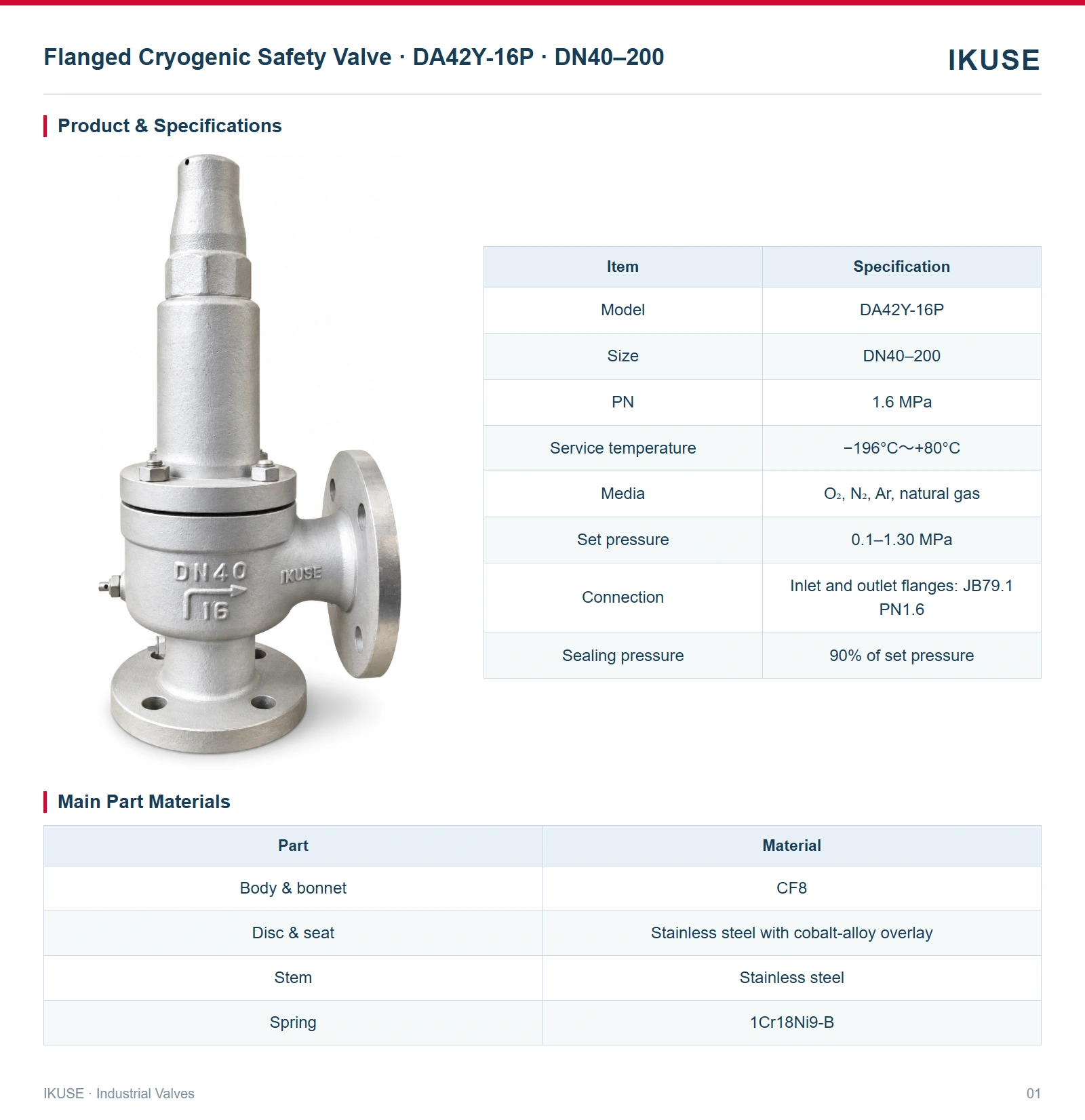

Model: DA42Y-16P; Size: DN40–200; PN: 1.6 MPa; Temperature: −196°C～+80°C; Body: CF8; Set pressure: 0.1–1.30 MPa; Connection: Inlet and outlet flanges: JB79.1 PN1.6.
Price
Price on request
Submit requirements for a customized quote
PN
1.6 MPa
Body
CF8
Size
DN40–200
Model
DA42Y-16P
Connection
Inlet and outlet flanges: JB79.1 PN1.6
Temperature
−196°C～+80°C
Service Hotline
+86 156 1819 0516
Technical Parameters
Technical Specifications
| PN | 1.6 MPa |
| Body | CF8 |
| Size | DN40–200 |
| Model | DA42Y-16P |
| Connection | Inlet and outlet flanges: JB79.1 PN1.6 |
| Temperature | −196°C～+80°C |
| Set pressure | 0.1–1.30 MPa |
