Jacketed Valves

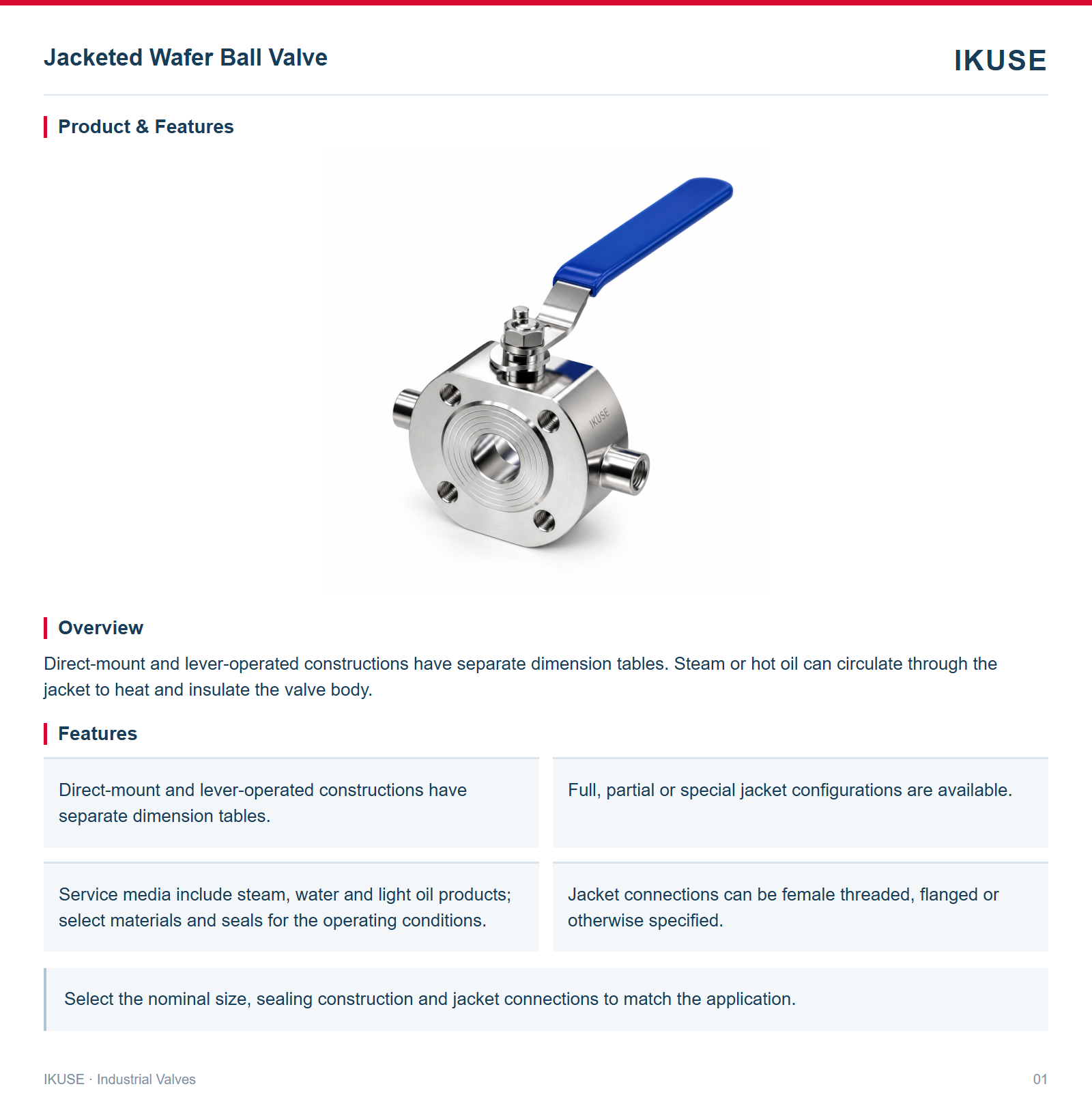

IKUSE Jacketed Wafer Ball Valve

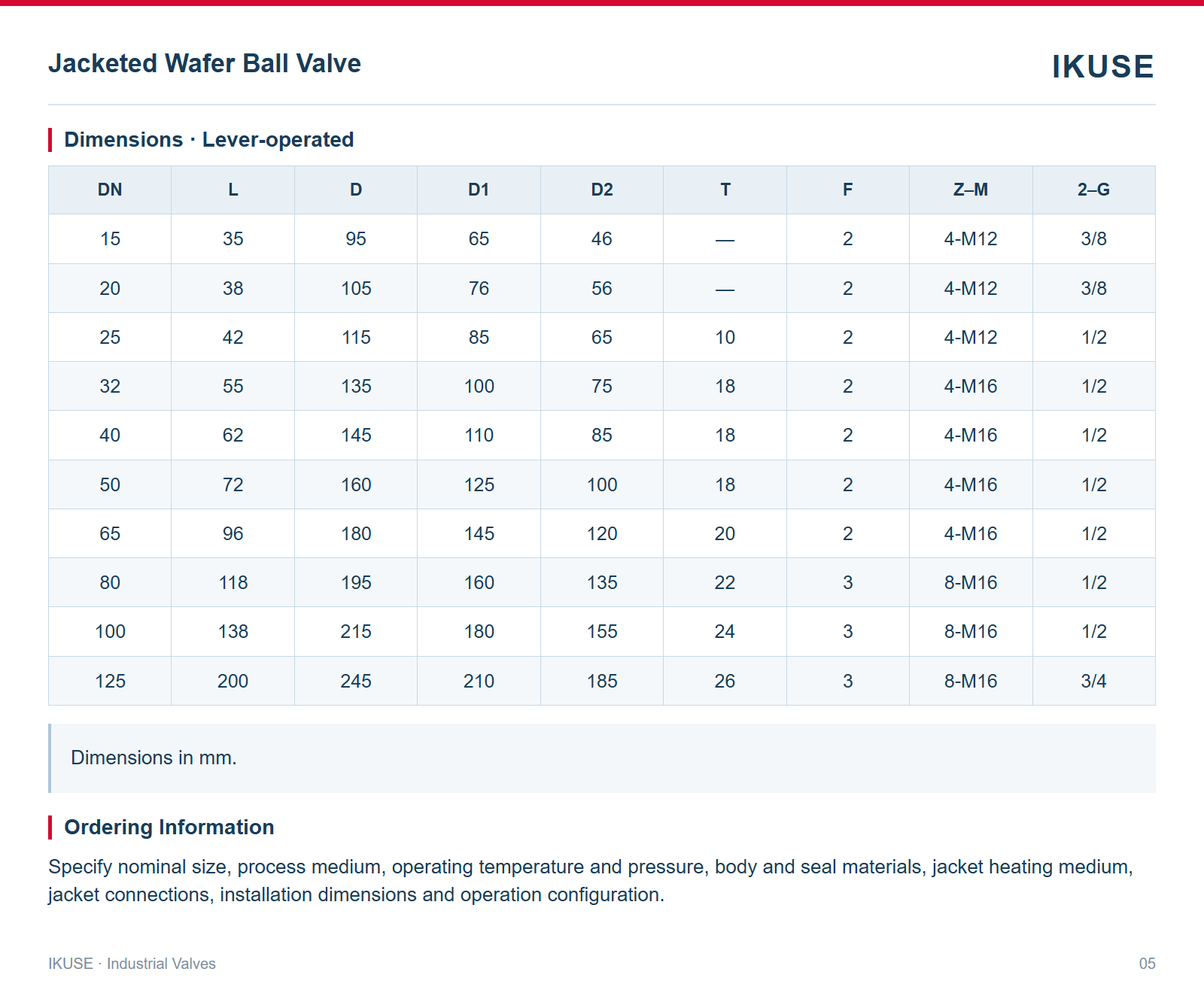

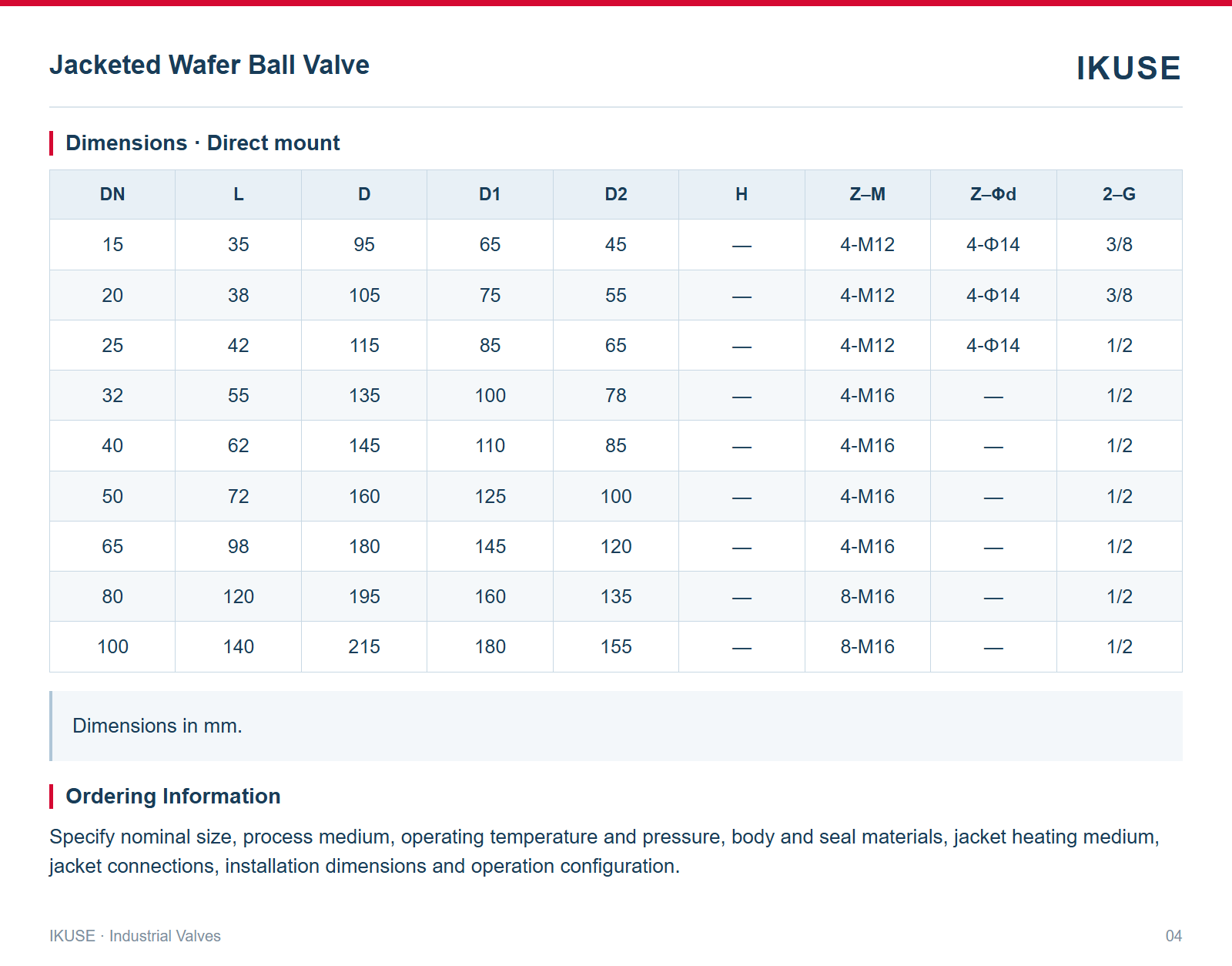

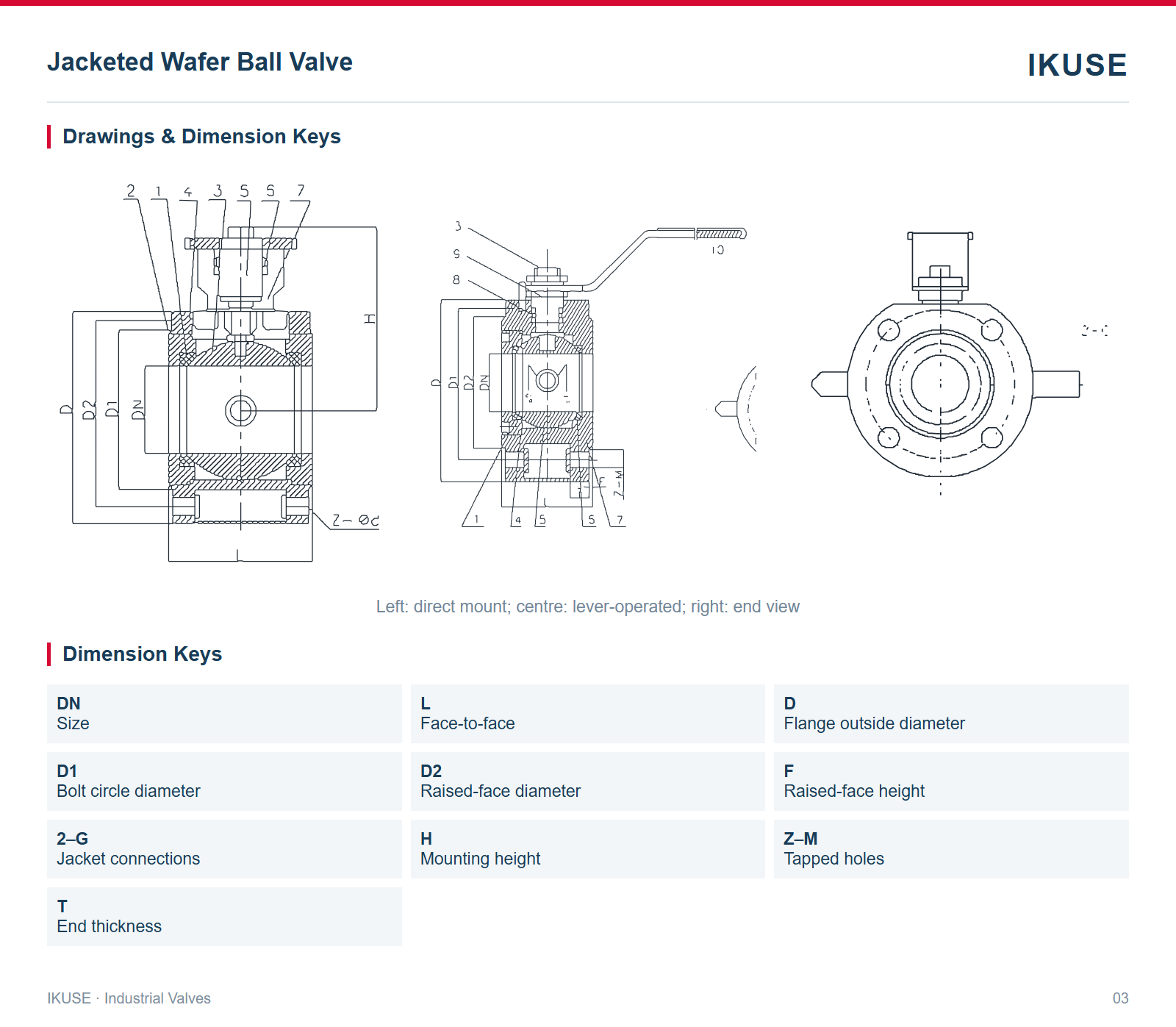

Direct-mount and lever-operated constructions have separate dimension tables. Steam or hot oil can circulate through the jacket to heat and insulate the valve body.
Price
Price on request
Submit requirements for a customized quote
PN
1.6 MPa
Seal
PPL
Size
DN15–125
Brand
IKUSE
Body material
304 / 316L
Service Hotline
+86 156 1819 0516

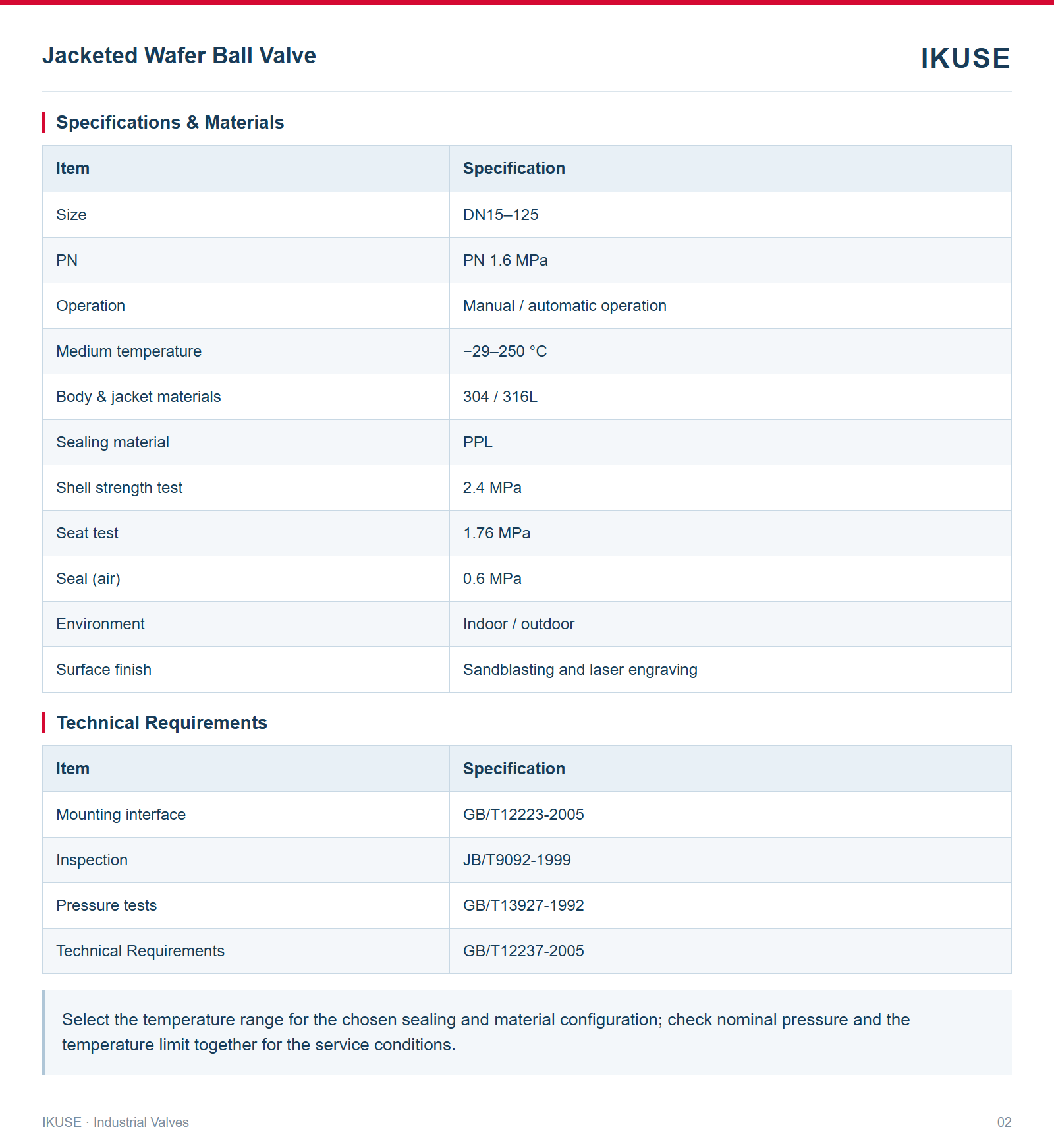

Technical Parameters
Technical Specifications
| PN | 1.6 MPa |
| Seal | PPL |
| Size | DN15–125 |
| Brand | IKUSE |
| Body material | 304 / 316L |
Product Details
Product Details
