IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Safety & Breather Valves

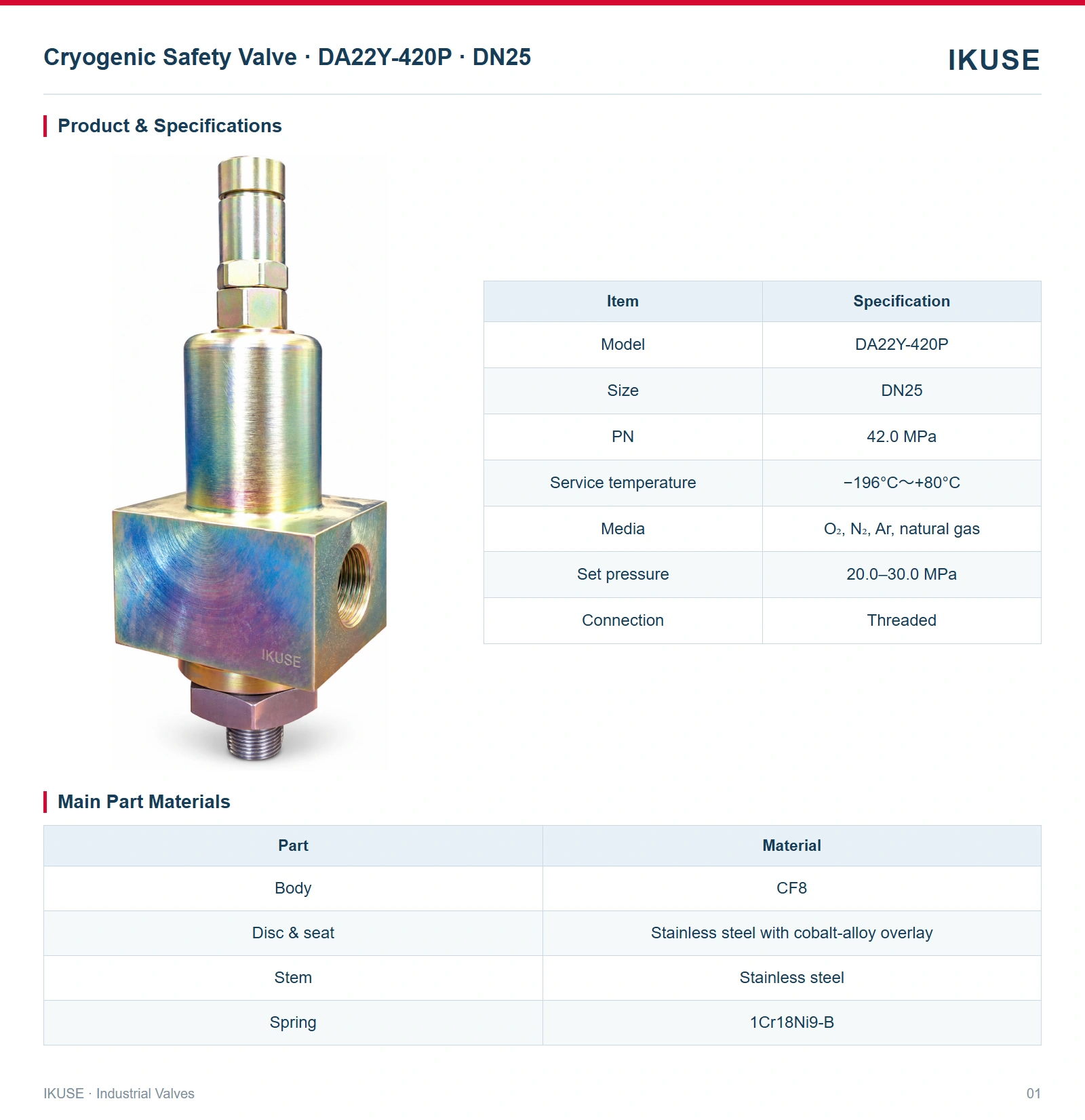

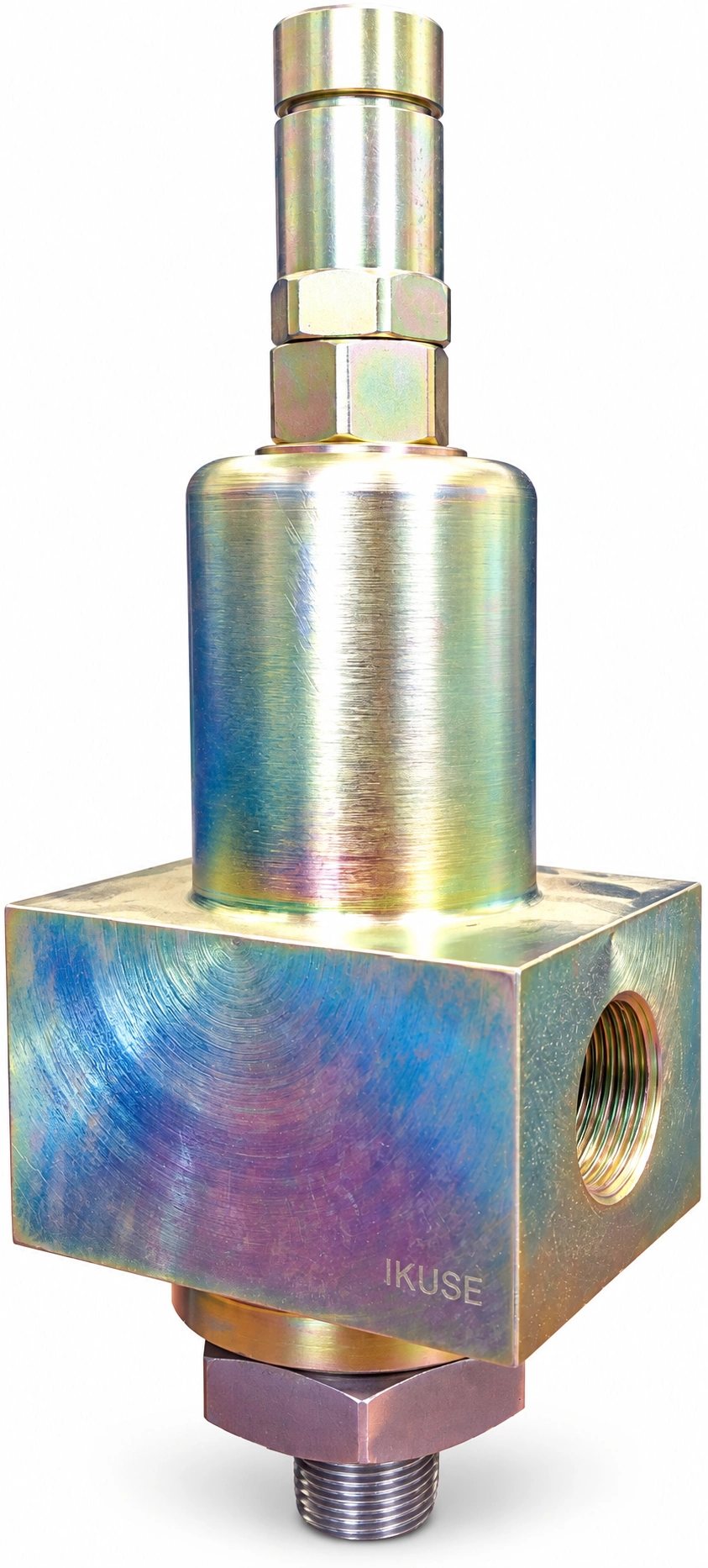

IKUSE Cryogenic Safety Valve · DA22Y-420P · DN25
Model: DA22Y-420P; Size: DN25; PN: 42.0 MPa; Temperature: −196°C～+80°C; Body: CF8; Set pressure: 20.0–30.0 MPa; Connection: Threaded.
Price
Price on request
Submit requirements for a customized quote
PN
42.0 MPa
Body
CF8
Size
DN25
Model
DA22Y-420P
Connection
Threaded
Temperature
−196°C～+80°C
Service Hotline
+86 156 1819 0516
Technical Parameters
Technical Specifications
| PN | 42.0 MPa |
| Body | CF8 |
| Size | DN25 |
| Model | DA22Y-420P |
| Connection | Threaded |
| Temperature | −196°C～+80°C |
| Set pressure | 20.0–30.0 MPa |
