Ball Valves

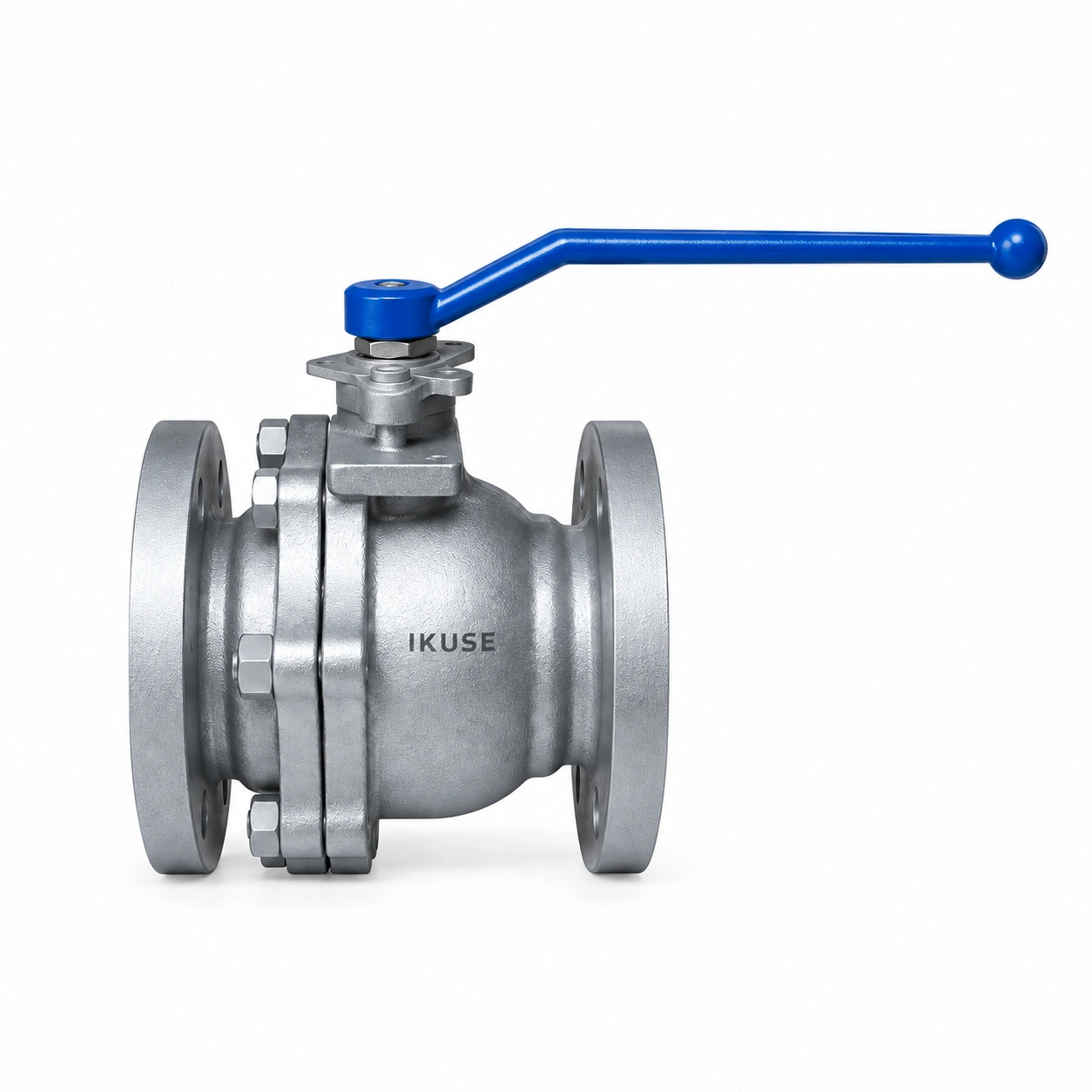

IKUSE Cast Steel Floating Ball Valve

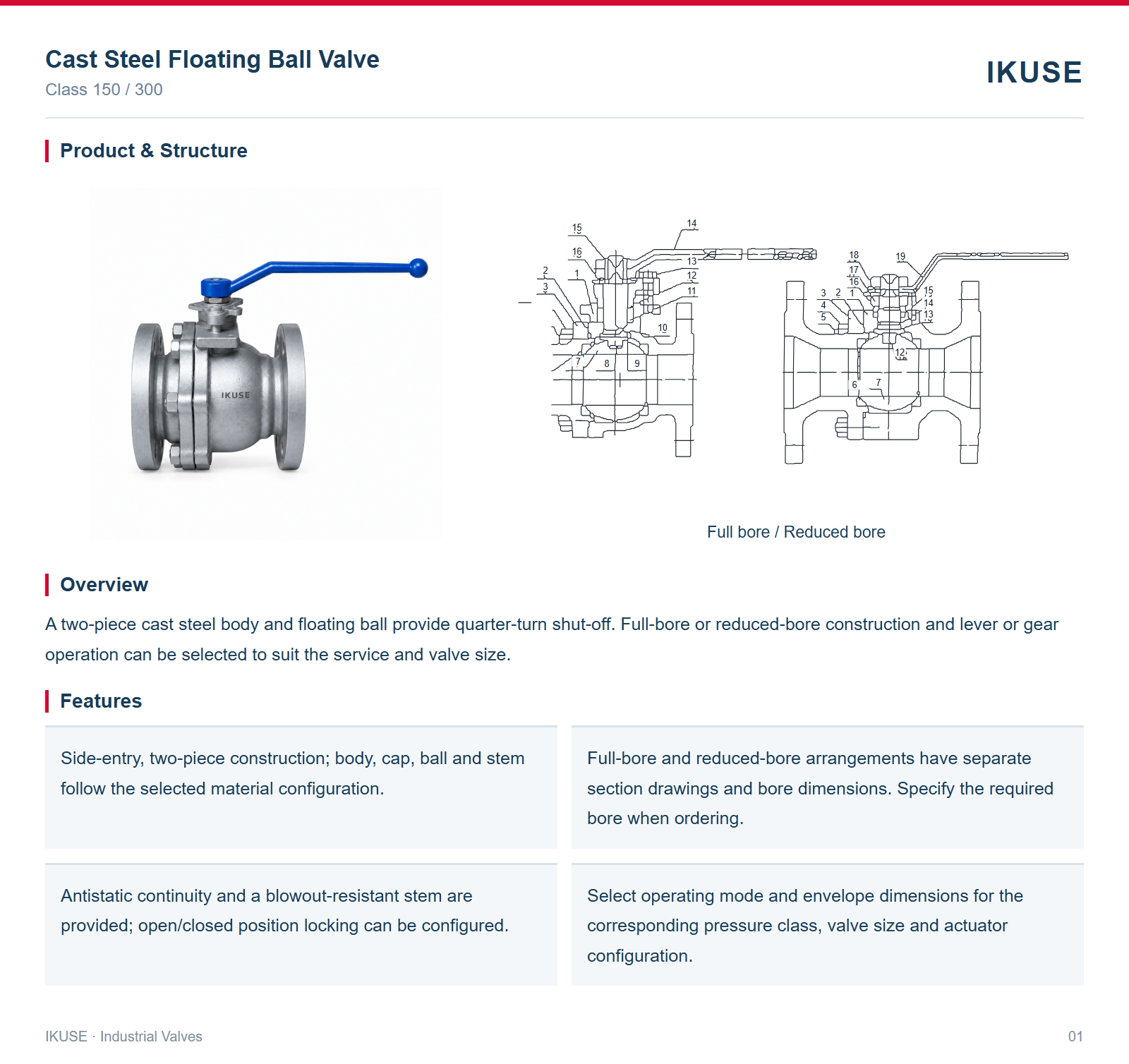

A two-piece cast steel body and floating ball provide quarter-turn shut-off. Full-bore or reduced-bore construction and lever or gear operation can be selected to suit the service and valve size.
Price
Price on request
Submit requirements for a customized quote
Brand
IKUSE
Class
Class 150 / Class 300
Operation

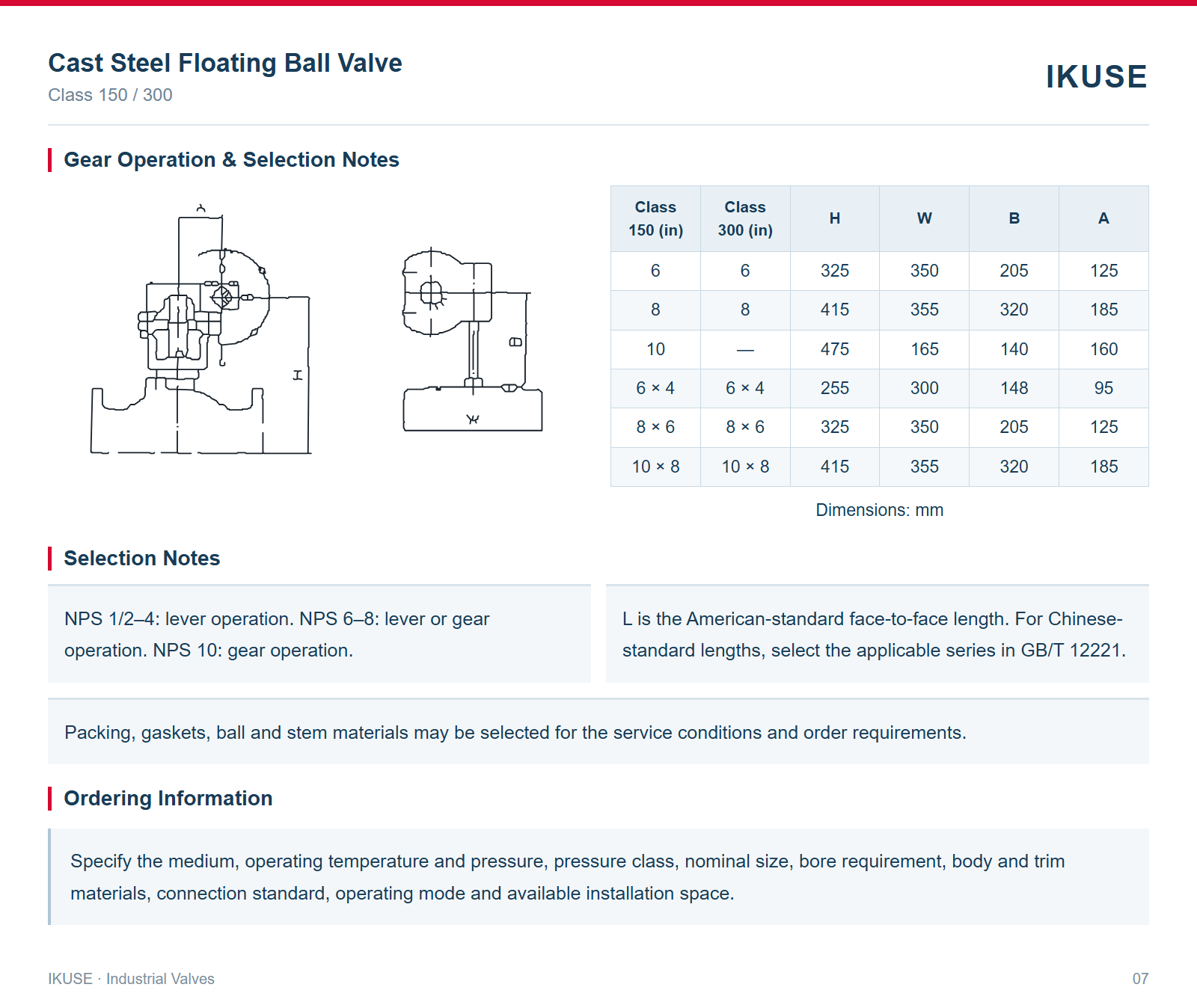

Lever or gear operation
Connection
Flanged
Nominal size, Class 150
DN15–250
Nominal size, Class 300
DN15–200
Service Hotline
+86 156 1819 0516
Technical Parameters

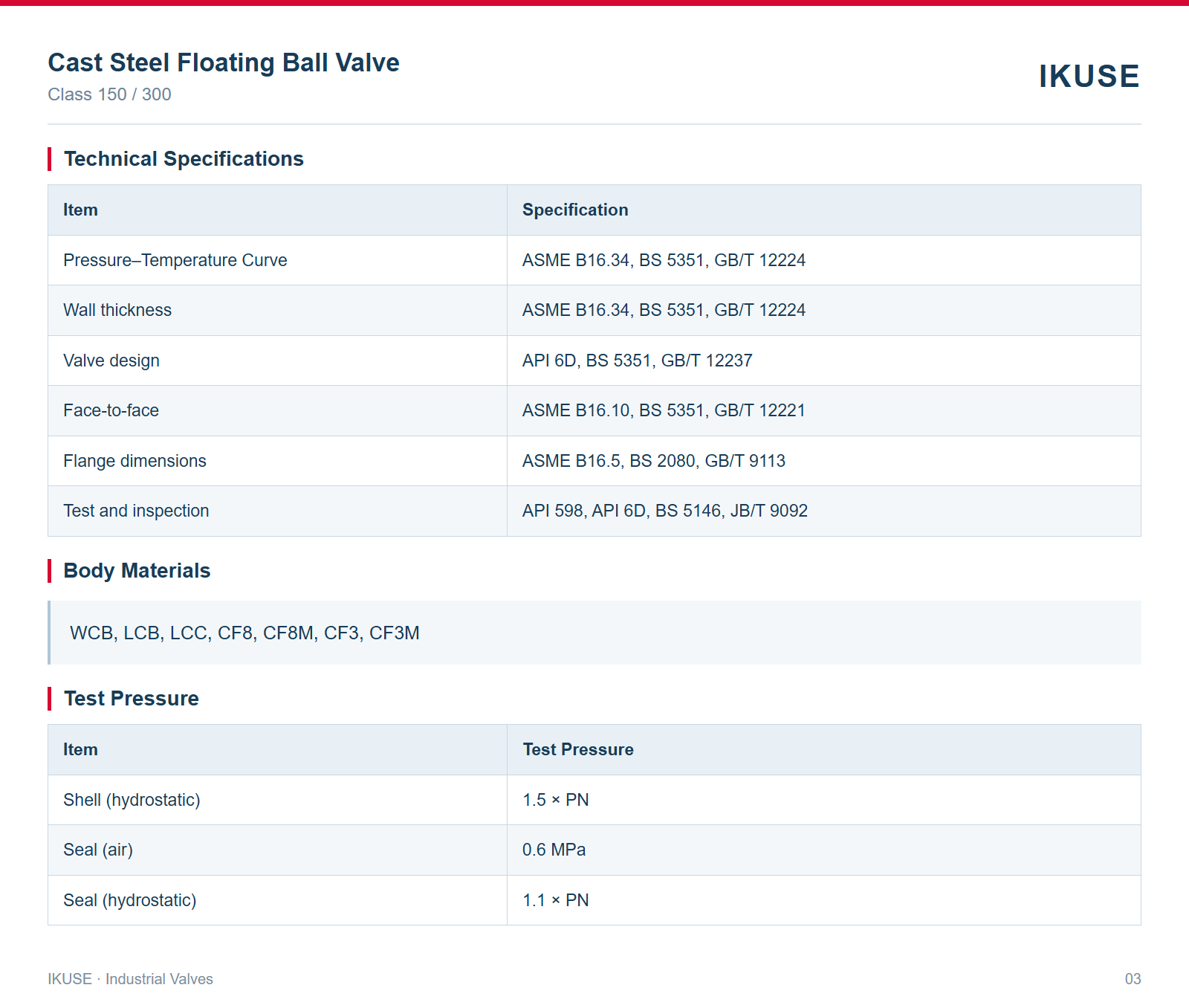

Technical Specifications
| Brand | IKUSE |
| Class | Class 150 / Class 300 |
| Operation | Lever or gear operation |
| Connection | Flanged |
| Nominal size, Class 150 | DN15–250 |
| Nominal size, Class 300 | DN15–200 |
