Ball Valves

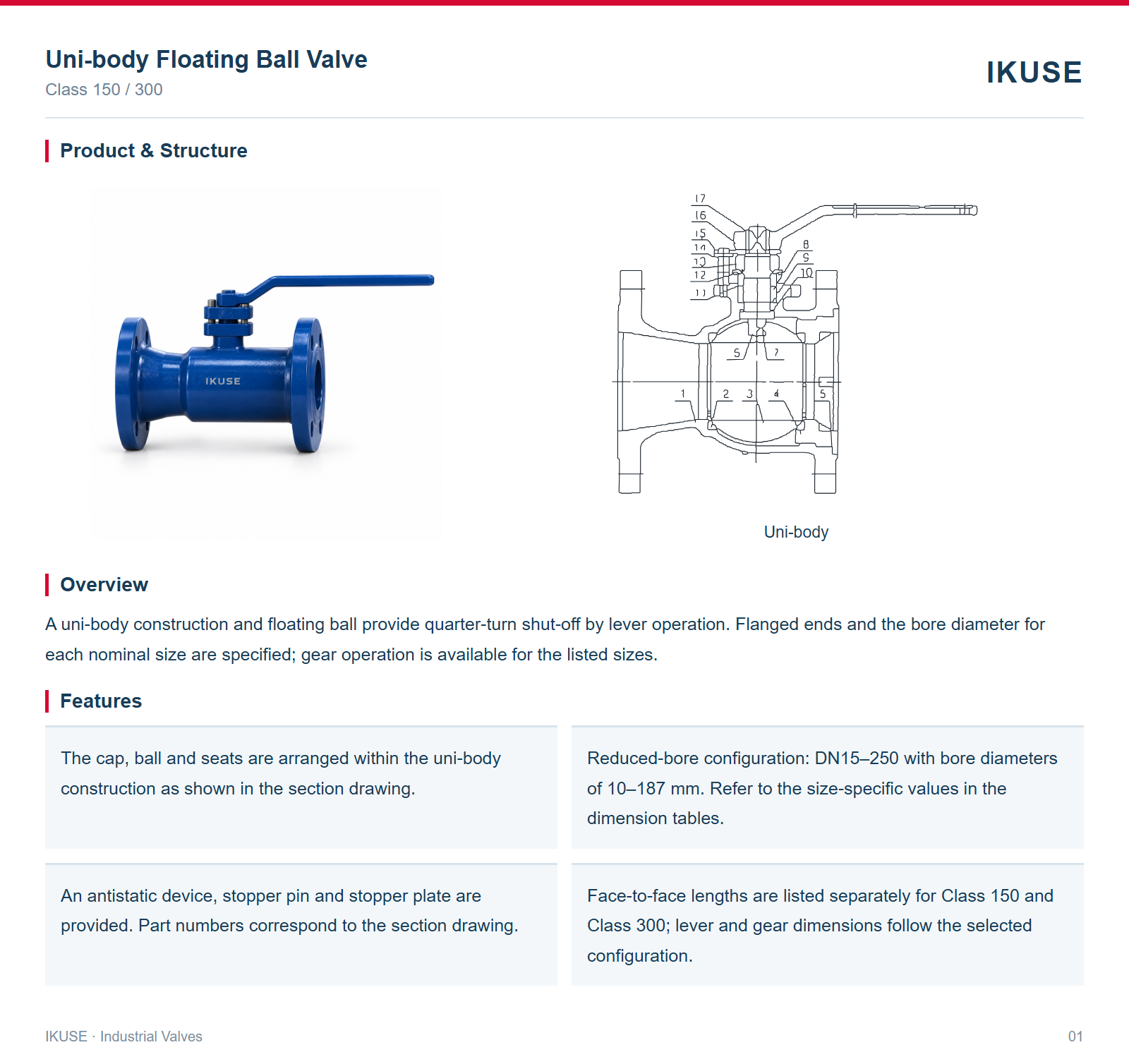

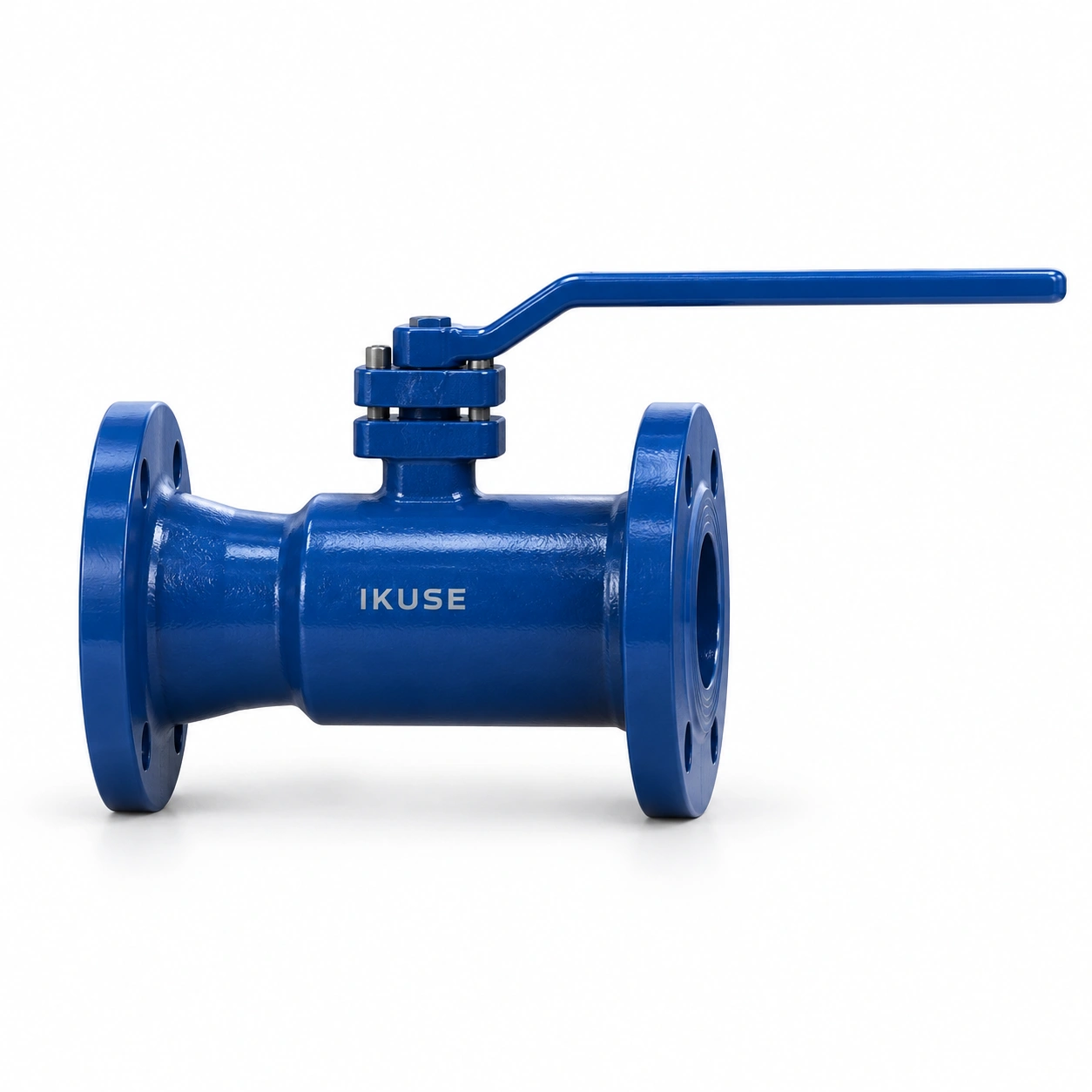

IKUSE Uni-body Floating Ball Valve
A uni-body construction and floating ball provide quarter-turn shut-off by lever operation. Flanged ends and the bore diameter for each nominal size are specified; gear operation is available for the listed sizes.
Price
Price on request
Submit requirements for a customized quote
Brand
IKUSE
Class
Class 150 / 300
Operation

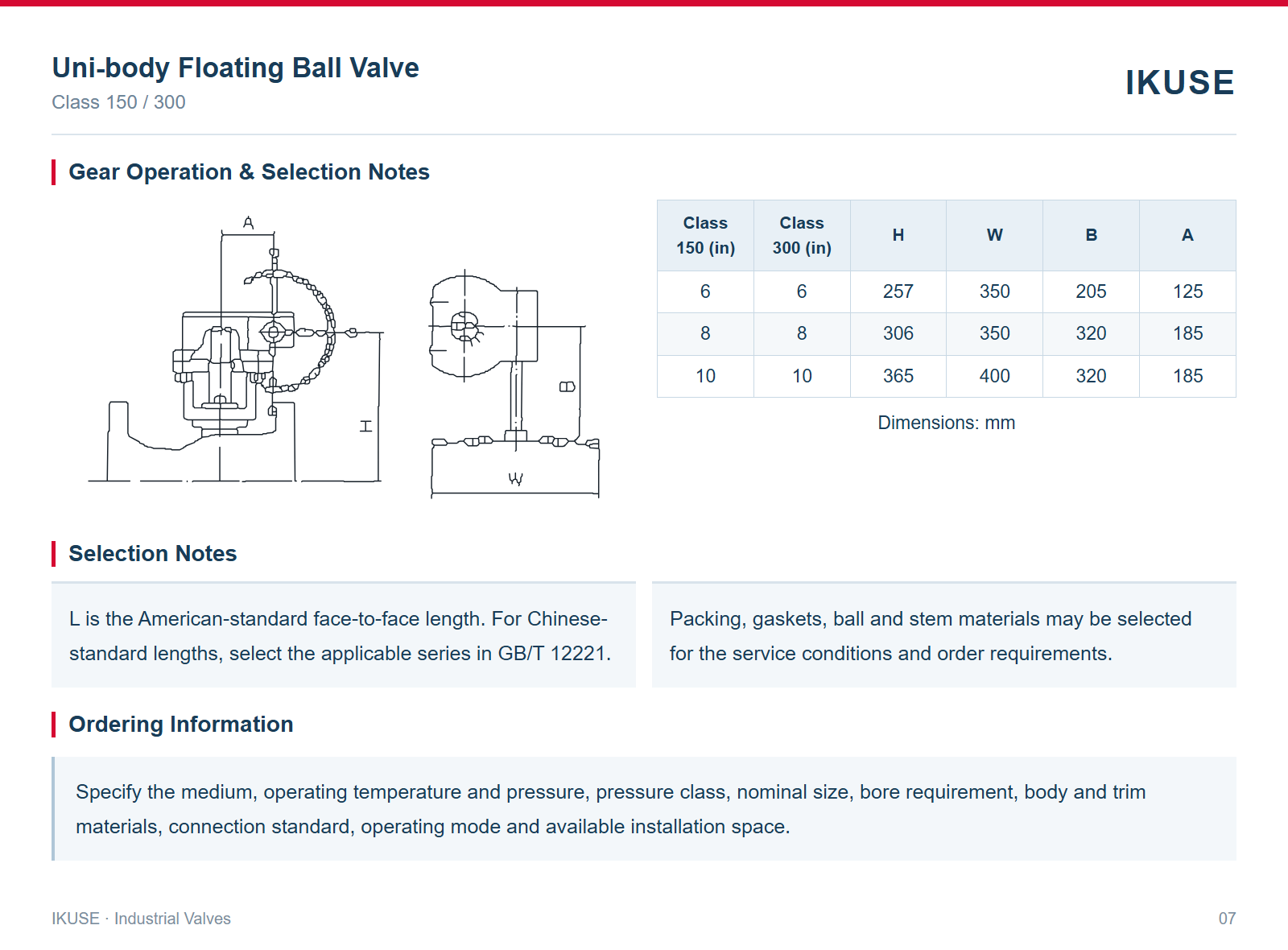

Lever or gear operation
Connection
Flanged
Nominal size, Class 150
DN15–250
Nominal size, Class 300
DN15–250
Service Hotline
+86 156 1819 0516
Technical Parameters

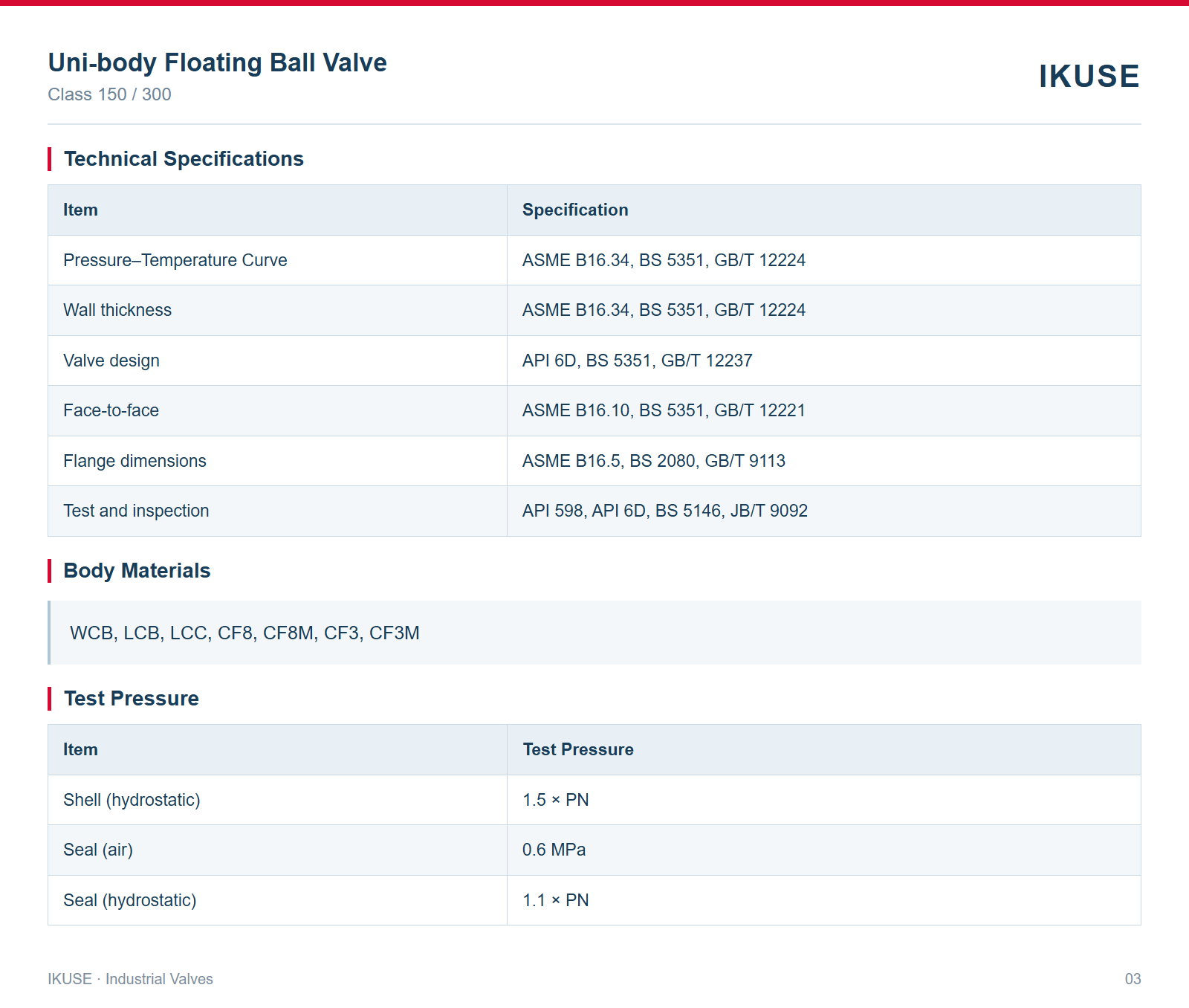

Technical Specifications
| Brand | IKUSE |
| Class | Class 150 / 300 |
| Operation | Lever or gear operation |
| Connection | Flanged |
| Nominal size, Class 150 | DN15–250 |
| Nominal size, Class 300 | DN15–250 |
