Overview
AQF valves limit pressure in oil lubrication systems after the relief setting is adjusted, protecting the system against pressure overload. Suitable oil viscosity grades are N22-N460. Small-bore valves, up to DN40, use an adjusting screw; larger DN50-DN100 valves use a handwheel.
Selection and operation
DN20–40 versions are adjusted by a screw; DN50–100 versions by a handwheel. The working-pressure range is determined by the model suffix.
Technical documentation

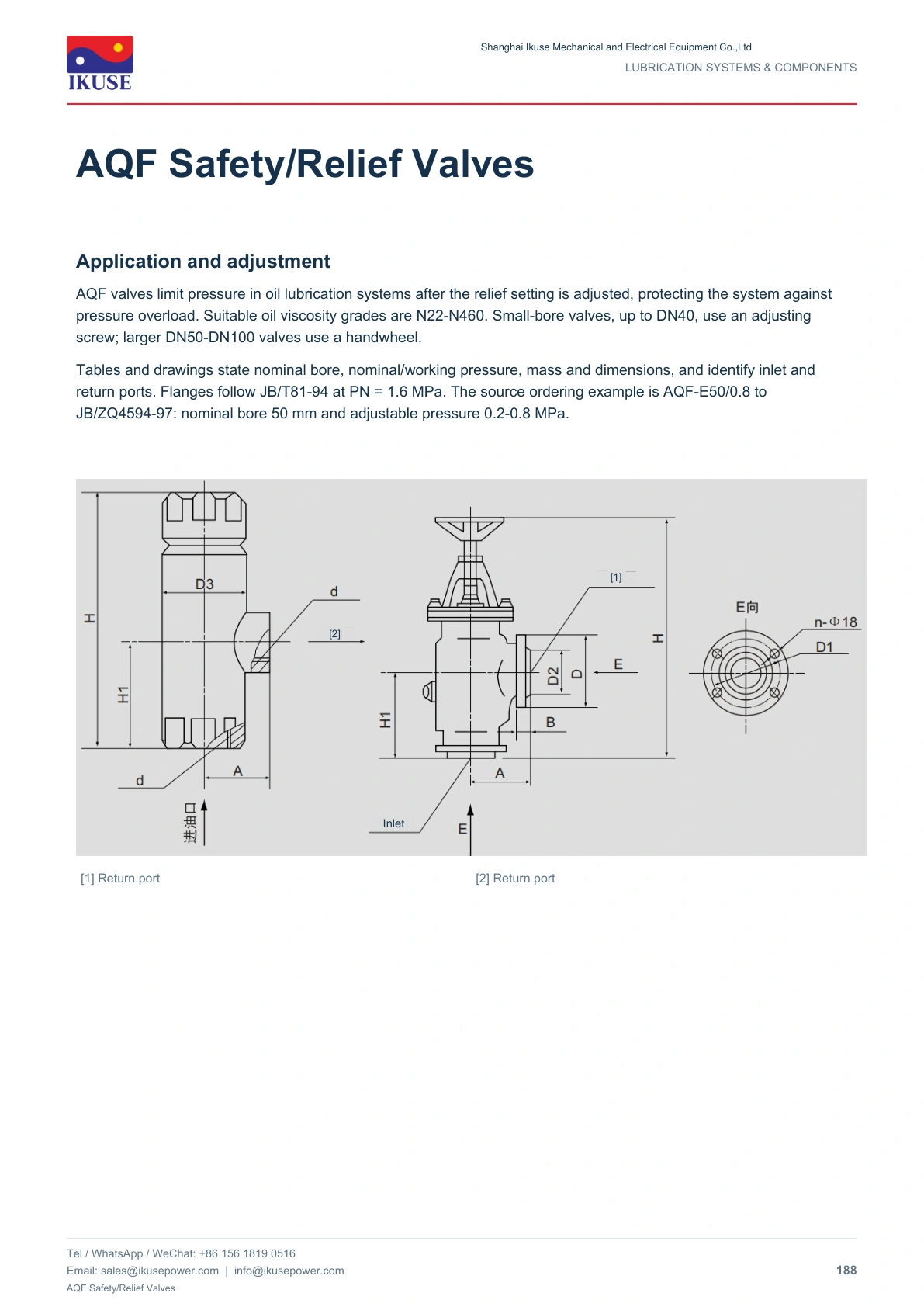

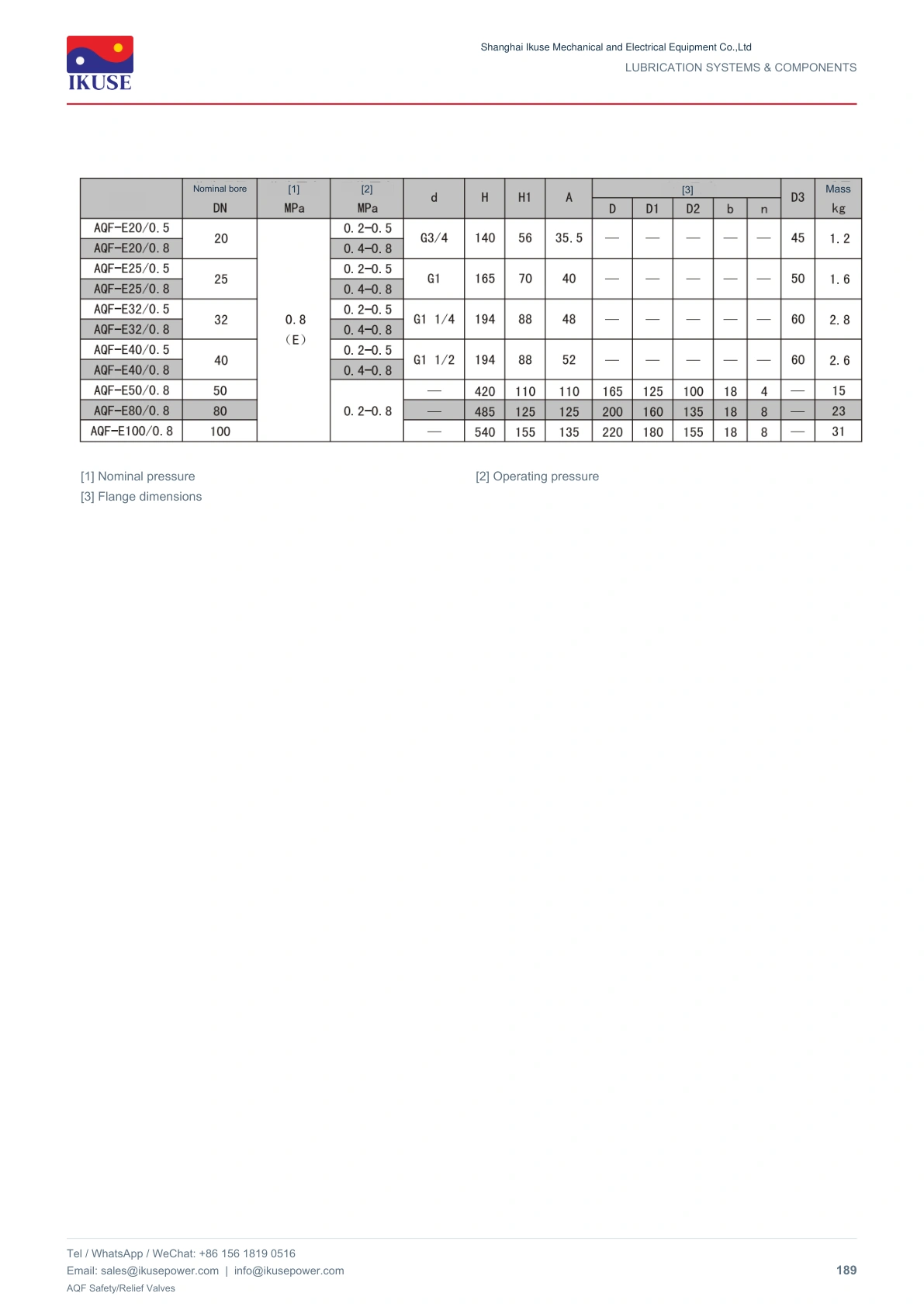

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
