Overview

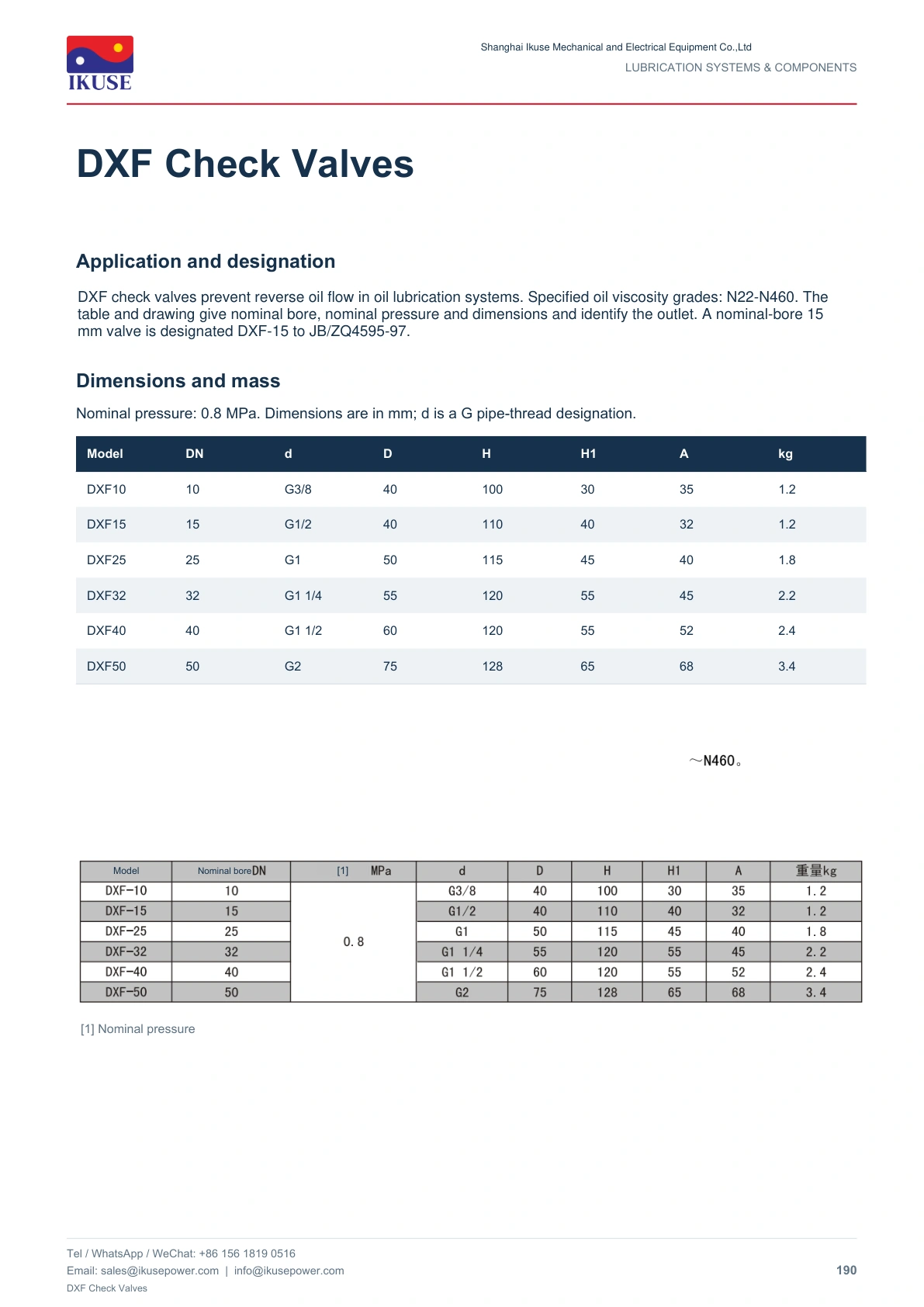

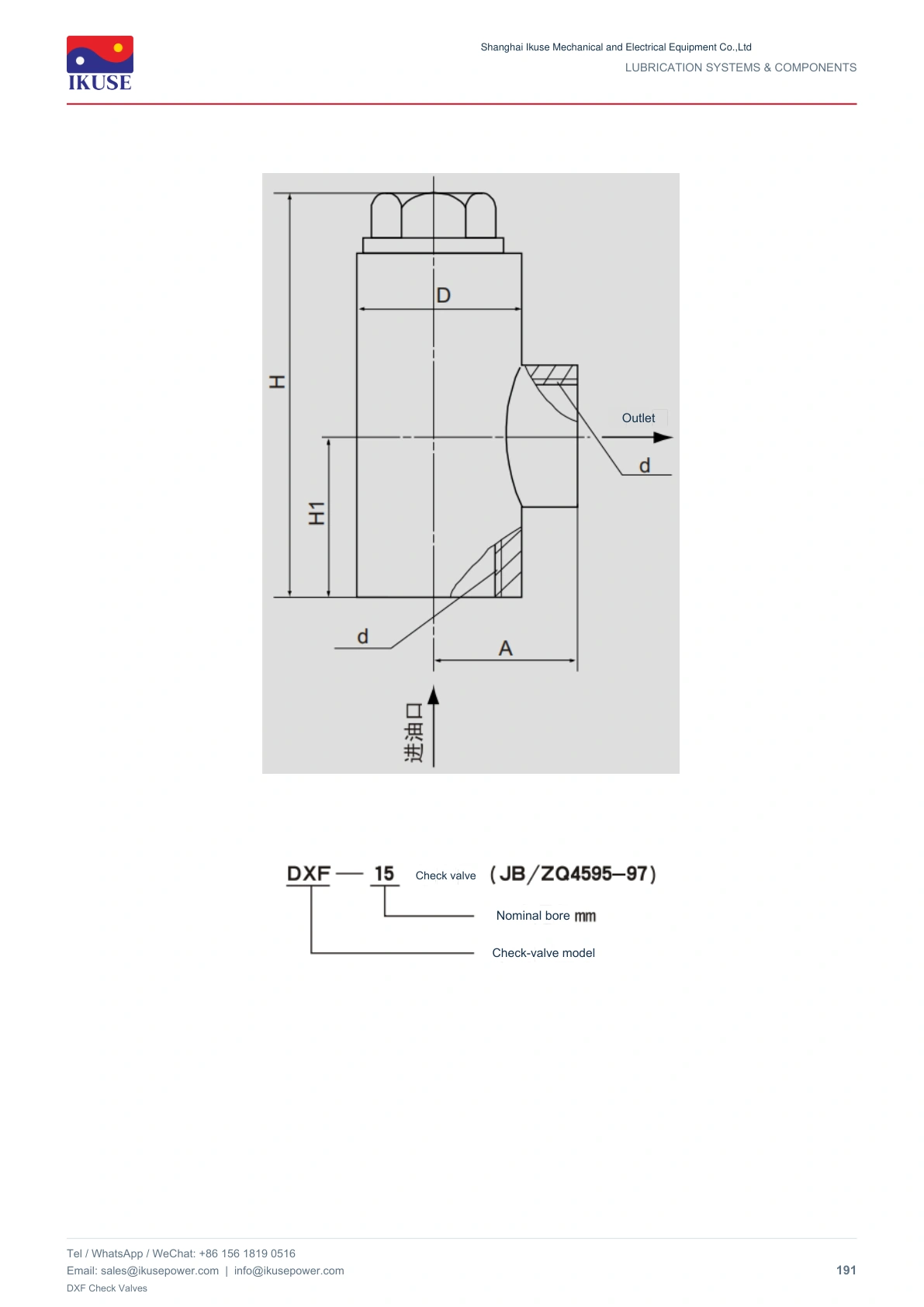

DXF check valves prevent reverse oil flow in oil lubrication systems. The specified lubricant is N22-N460 viscosity-grade oil. The table and drawing give nominal bore, nominal pressure and dimensions and identify the outlet. A nominal-bore 15 mm valve is designated DXF-15 to JB/ZQ4595-97.
Selection and operation
For N22–N460 oil. Install in the specified flow direction. The model numbers indicate the nominal size.
Technical documentation
Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
