Overview
LBZ assemblies supply lubricating oil in XYZ-16G to XYZ-125G units and other lubrication systems. They may also act as hydraulic power sources or transfer non-corrosive lubricating liquids. Suitable fluids are N22-N460 industrial lubricating or hydraulic oils, equivalent to ISO VG 22-VG 460.
Technical documentation

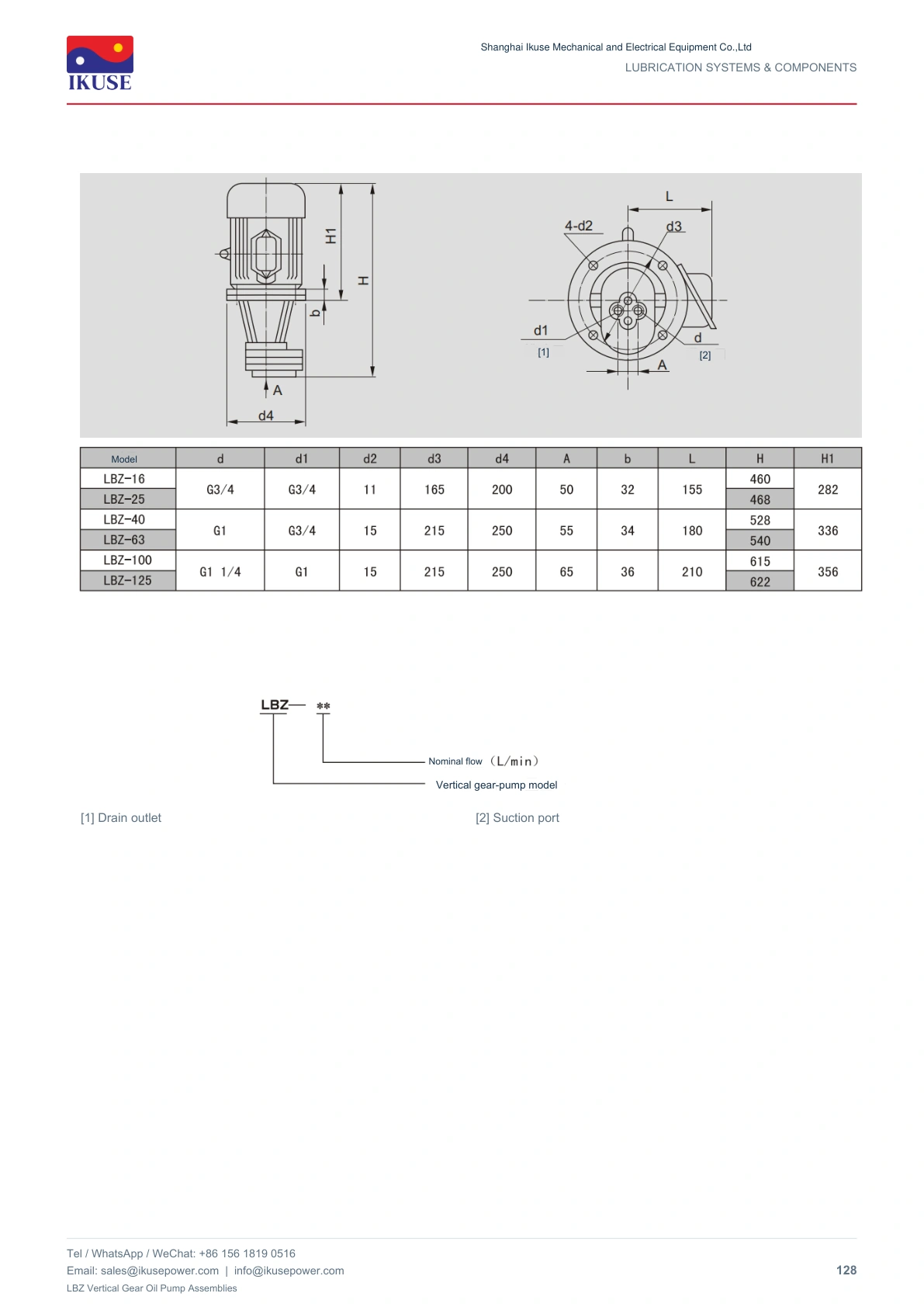

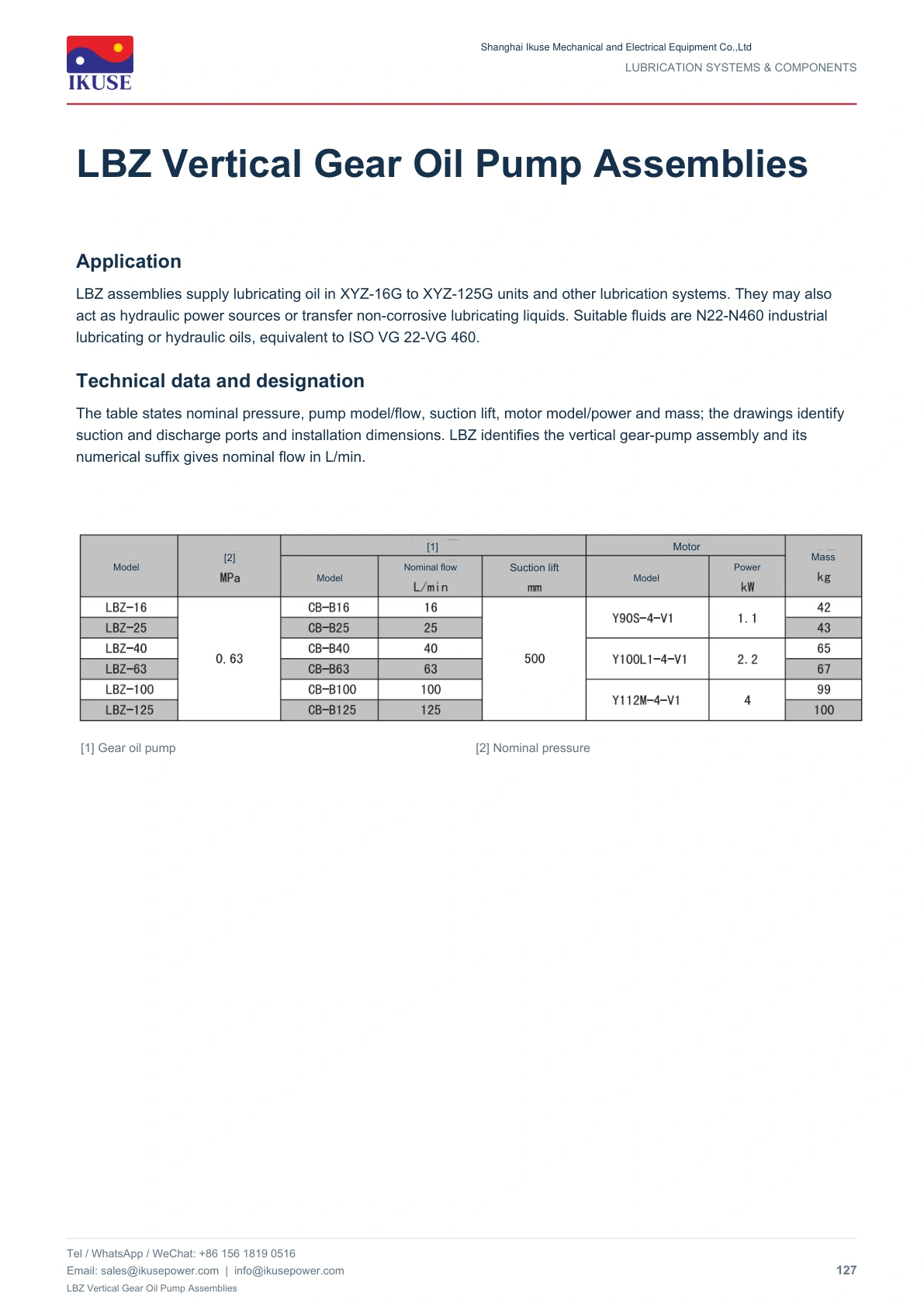

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
