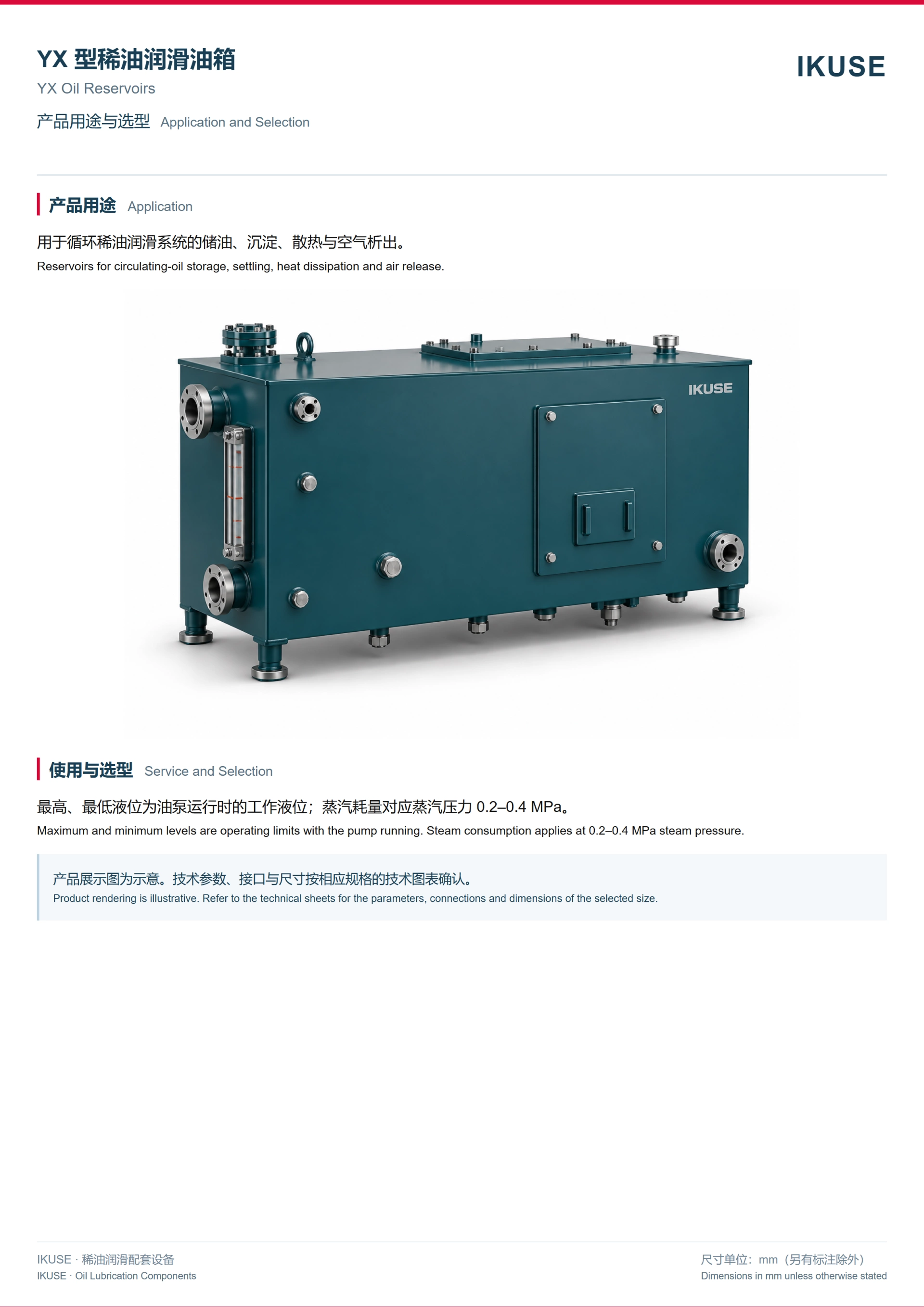

产品概述 / Overview
用于循环稀油润滑系统的储油、沉淀、散热与空气析出。
Reservoirs for circulating-oil storage, settling, heat dissipation and air release.
Reservoirs for circulating-oil storage, settling, heat dissipation and air release.
使用与选型 / Service and Selection
最高、最低液位为油泵运行时的工作液位；蒸汽耗量对应蒸汽压力 0.2–0.4 MPa。
Maximum and minimum levels are operating limits with the pump running. Steam consumption applies at 0.2–0.4 MPa steam pressure.
Maximum and minimum levels are operating limits with the pump running. Steam consumption applies at 0.2–0.4 MPa steam pressure.
技术资料 / Technical Data

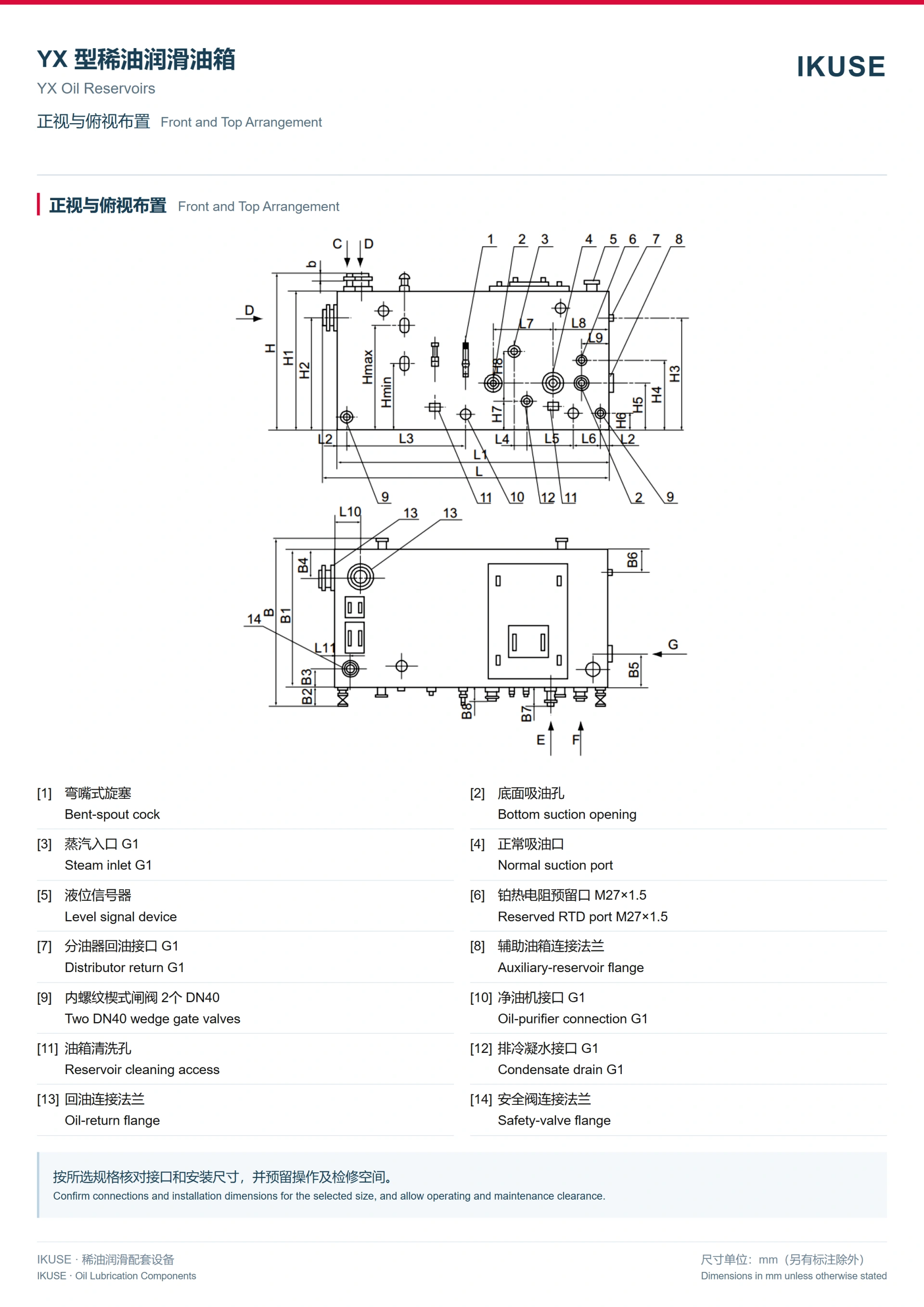

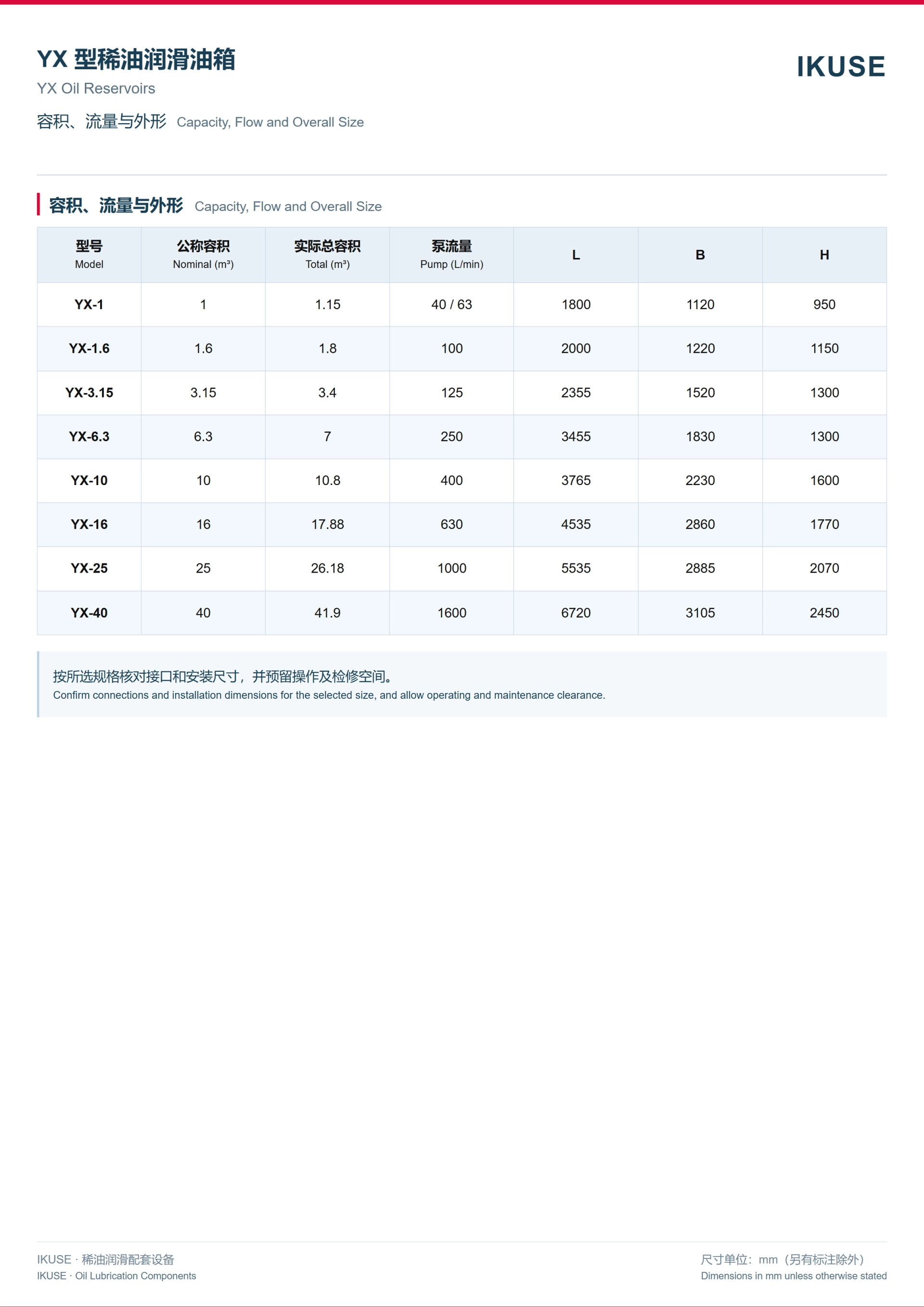

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
