产品概述 / Overview
用于储油、沉淀、冷却、消泡与脱气，回油过滤结合网式及磁性过滤。
Reservoirs provide oil storage, settling, cooling, defoaming and deaeration, with mesh and magnetic return-oil filtration.
Reservoirs provide oil storage, settling, cooling, defoaming and deaeration, with mesh and magnetic return-oil filtration.
使用与选型 / Service and Selection
工作液位以油泵运行状态为准；液位信号触点为 220 V、0.2 A。
Operating level limits apply with the pump running. Level-switch contacts are rated at 220 V, 0.2 A.
Operating level limits apply with the pump running. Level-switch contacts are rated at 220 V, 0.2 A.
技术资料 / Technical Data

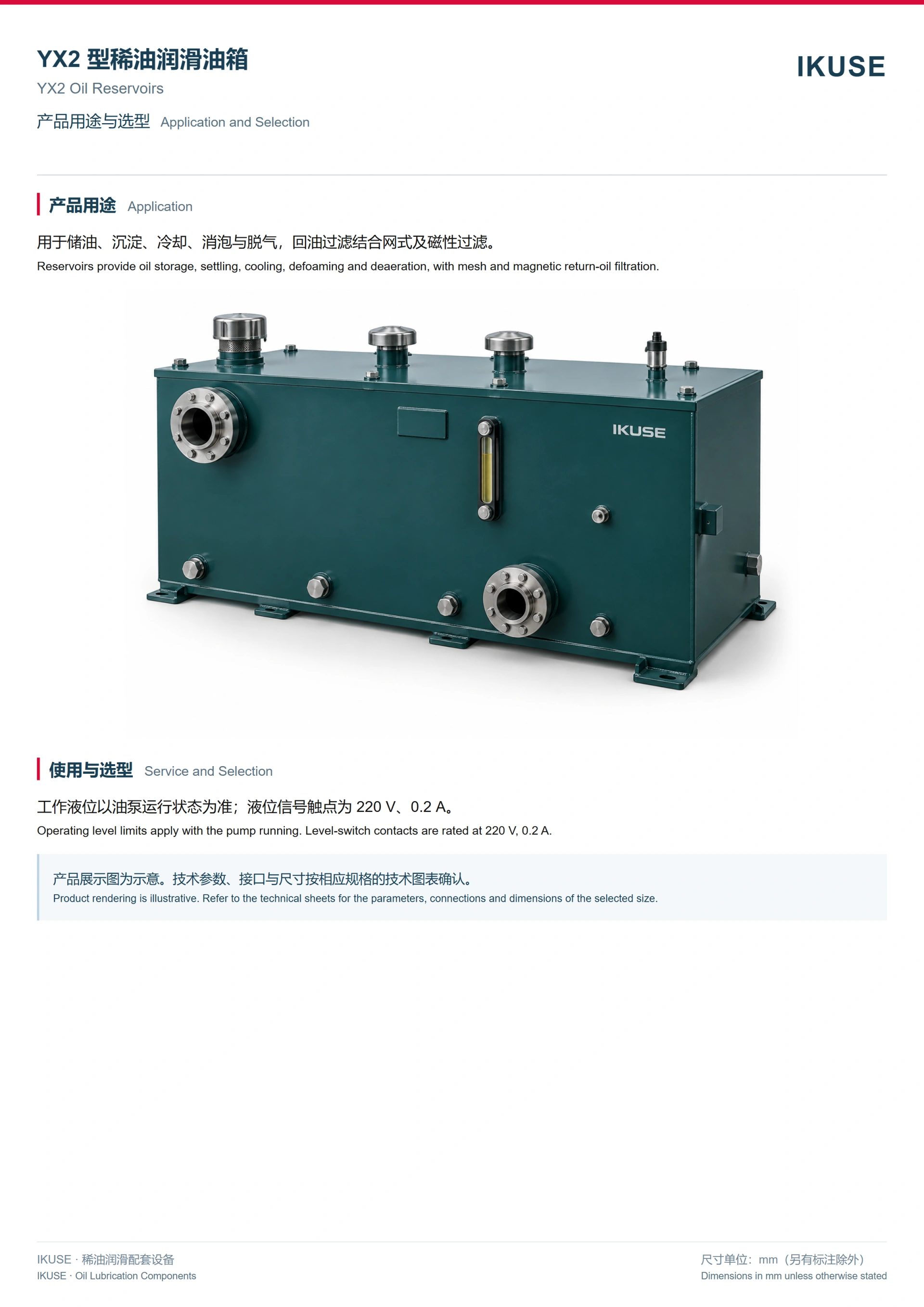

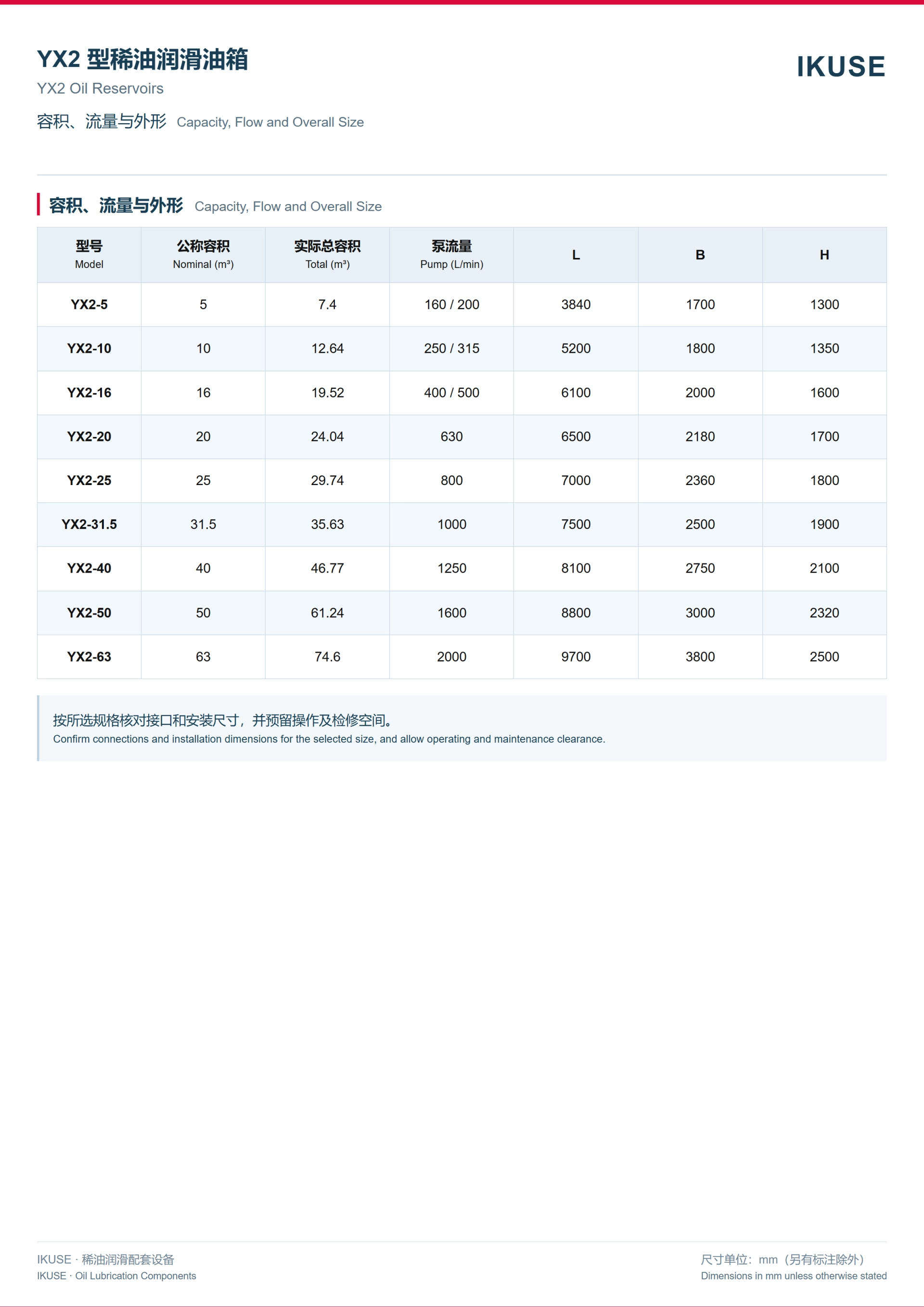

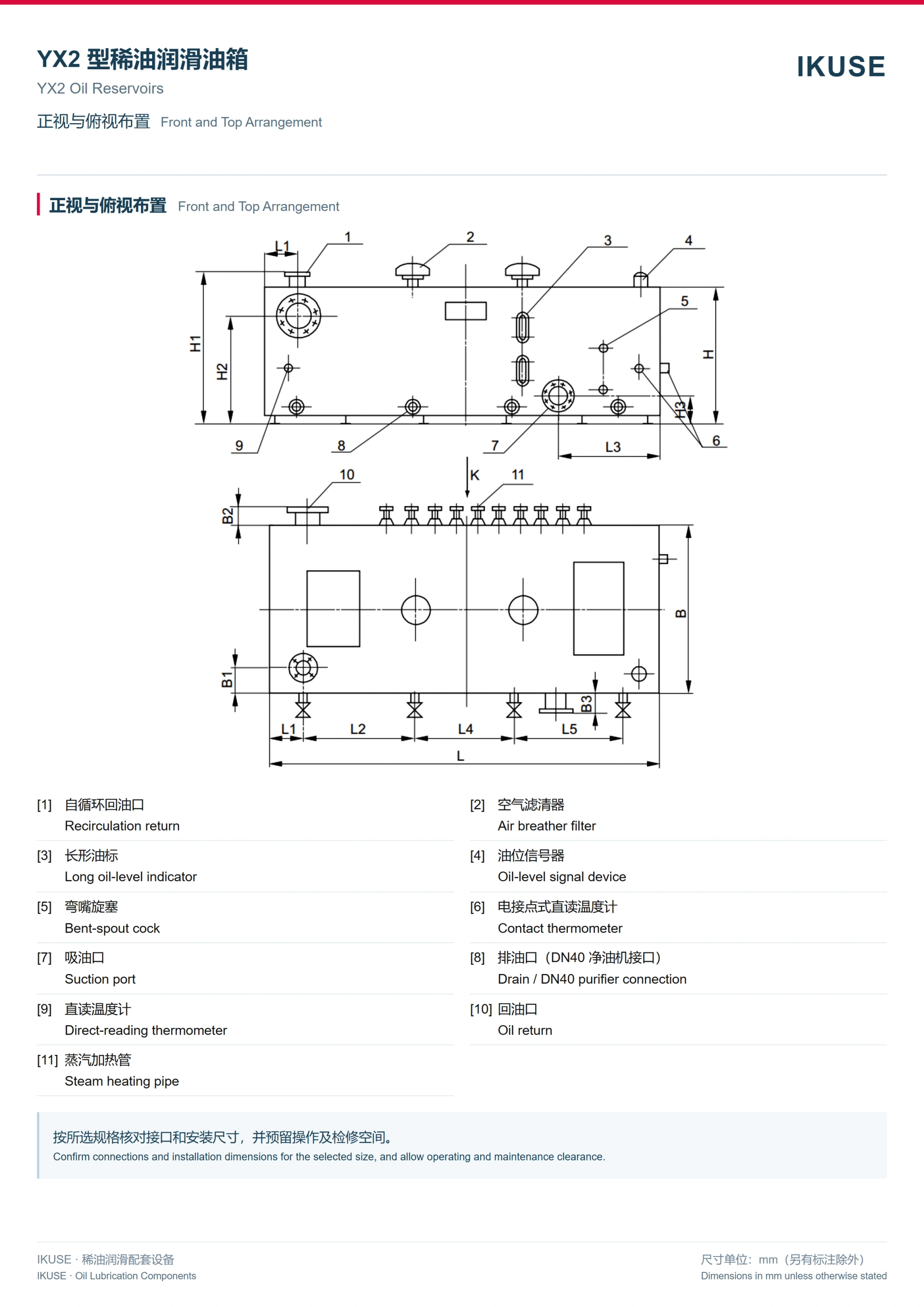

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
