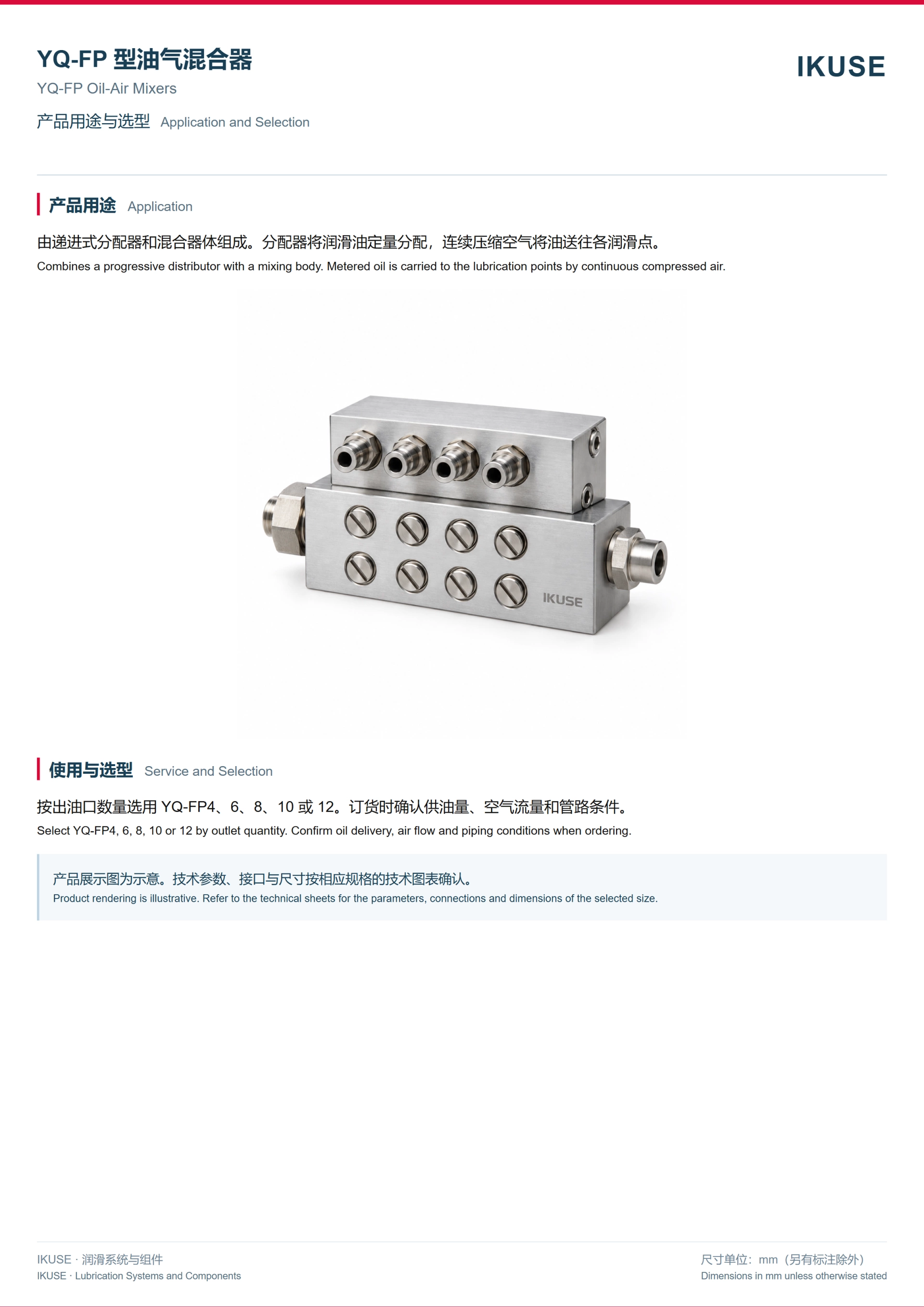

产品概述 / Overview
由递进式分配器和混合器体组成。分配器将润滑油定量分配，连续压缩空气将油送往各润滑点。
Combines a progressive distributor with a mixing body. Metered oil is carried to the lubrication points by continuous compressed air.
Combines a progressive distributor with a mixing body. Metered oil is carried to the lubrication points by continuous compressed air.
使用与选型 / Service and Selection

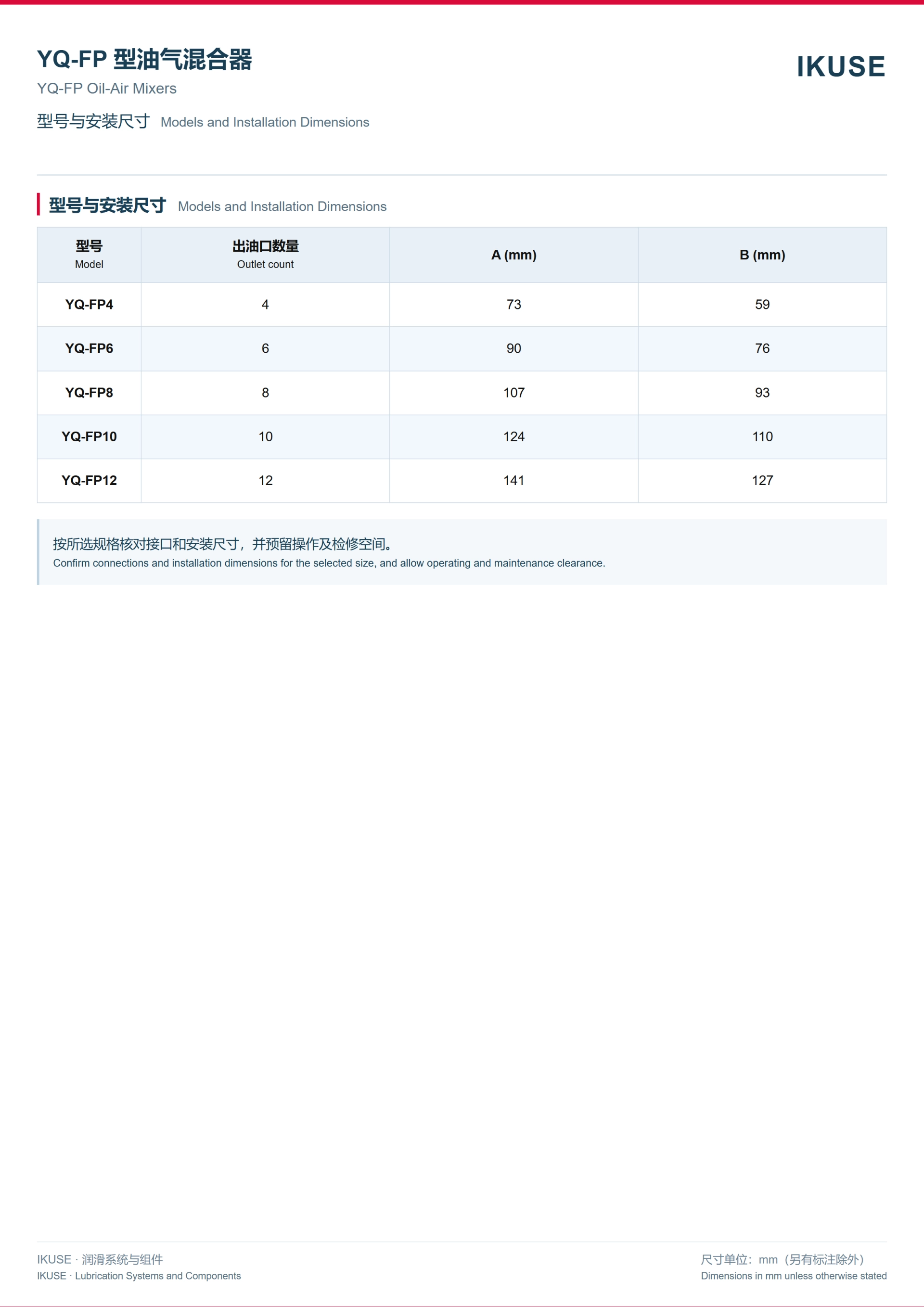

按出油口数量选用 YQ-FP4、6、8、10 或 12。订货时确认供油量、空气流量和管路条件。
Select YQ-FP4, 6, 8, 10 or 12 by outlet quantity. Confirm oil delivery, air flow and piping conditions when ordering.
Select YQ-FP4, 6, 8, 10 or 12 by outlet quantity. Confirm oil delivery, air flow and piping conditions when ordering.
技术资料 / Technical Data

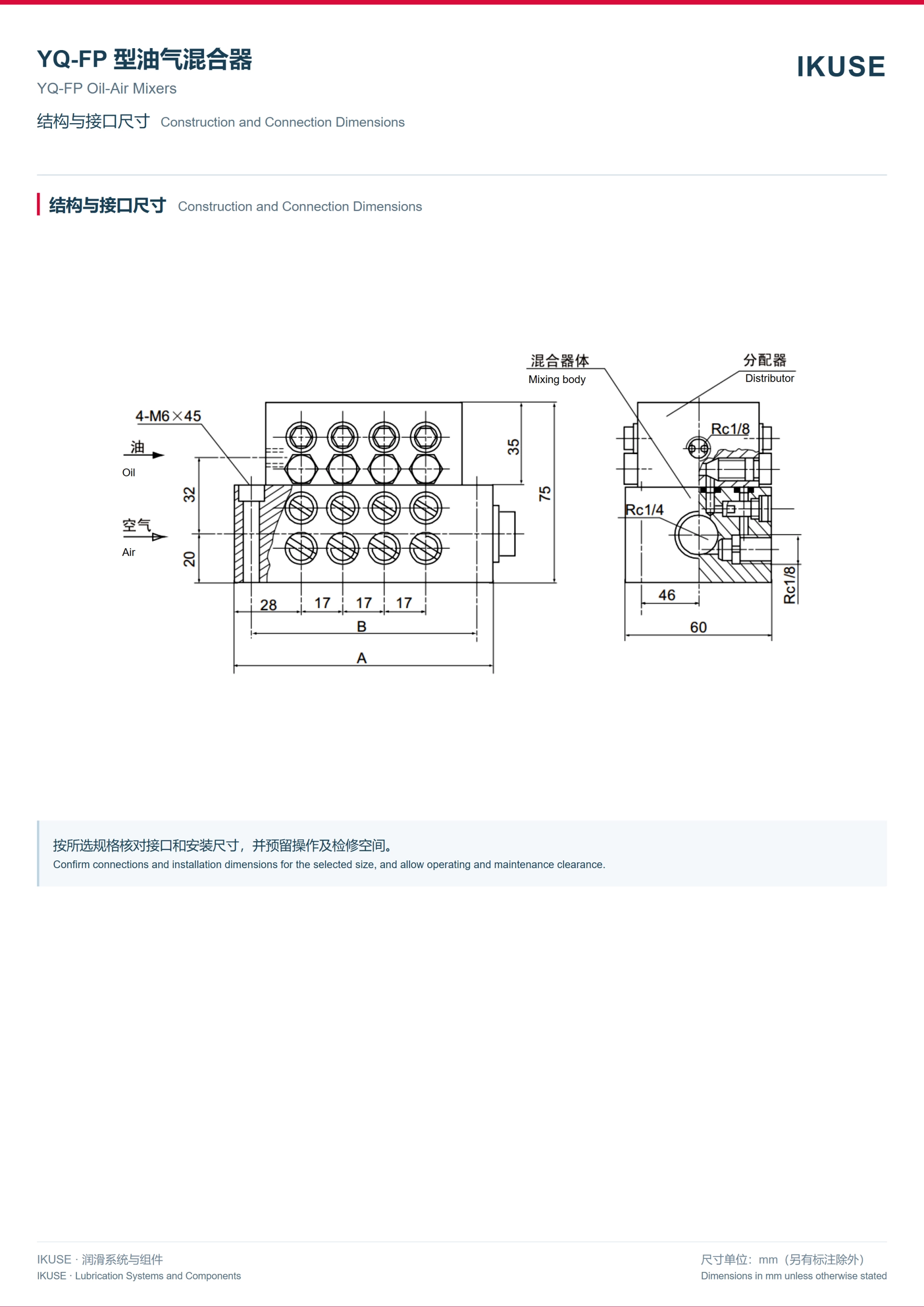

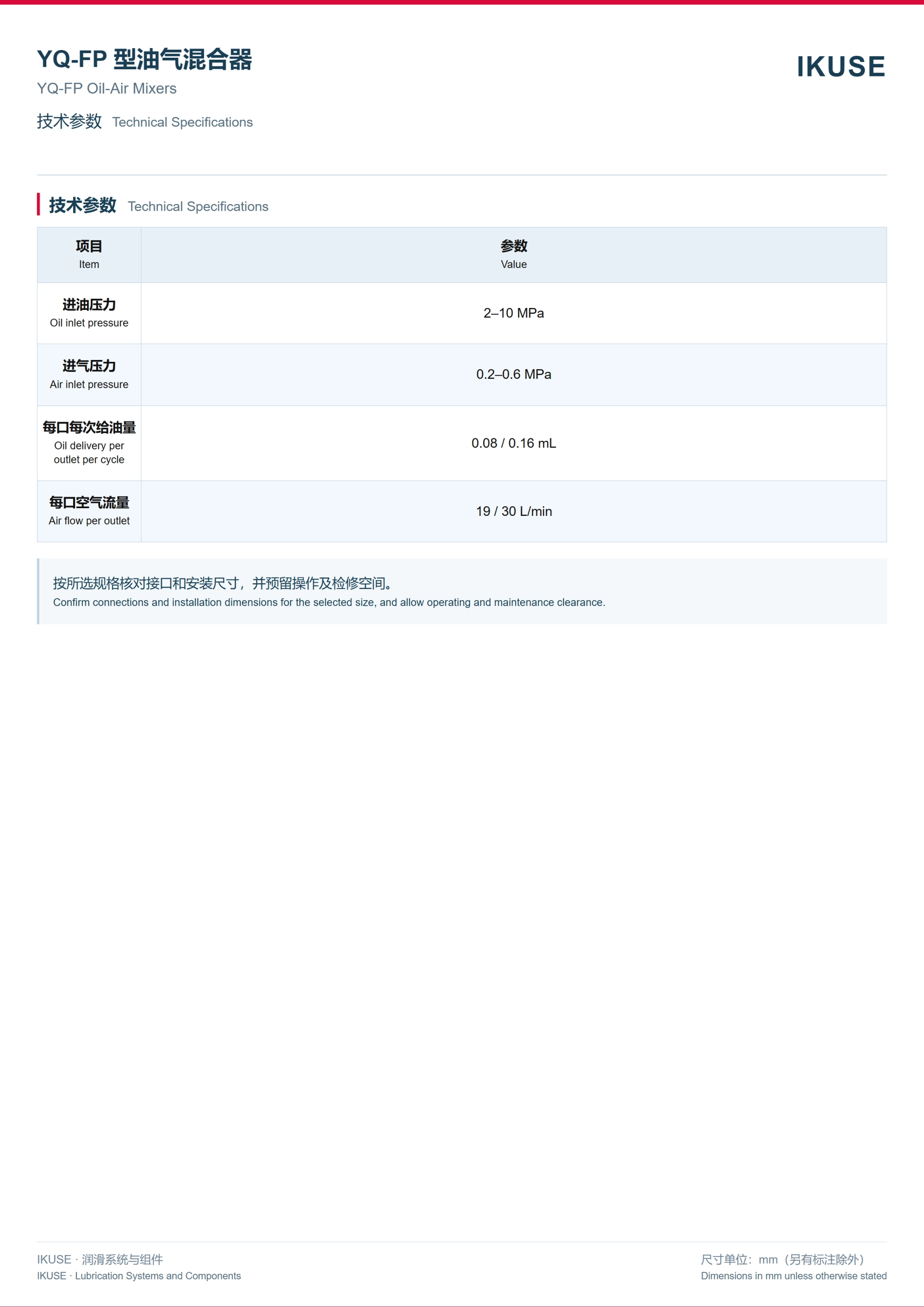

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

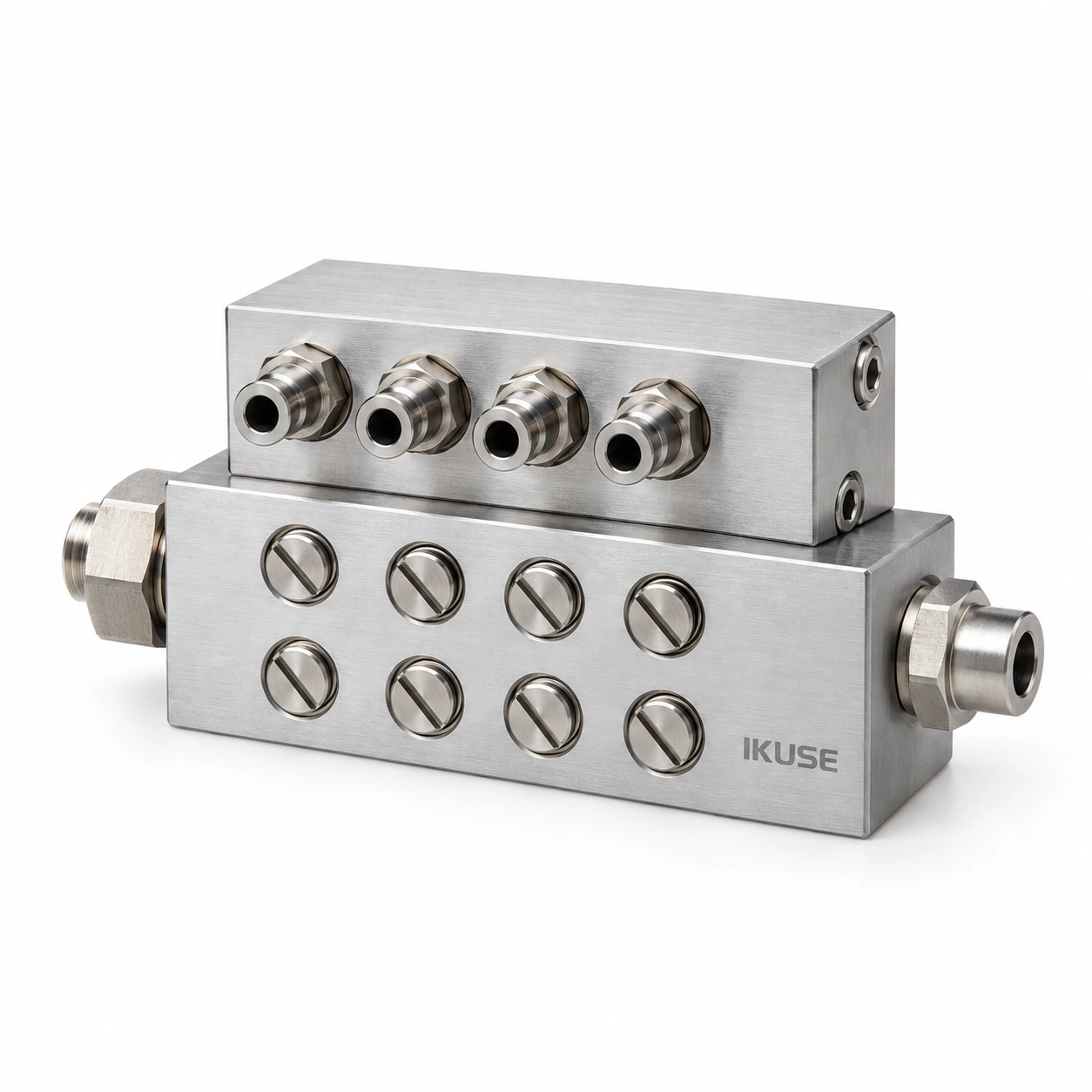

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
