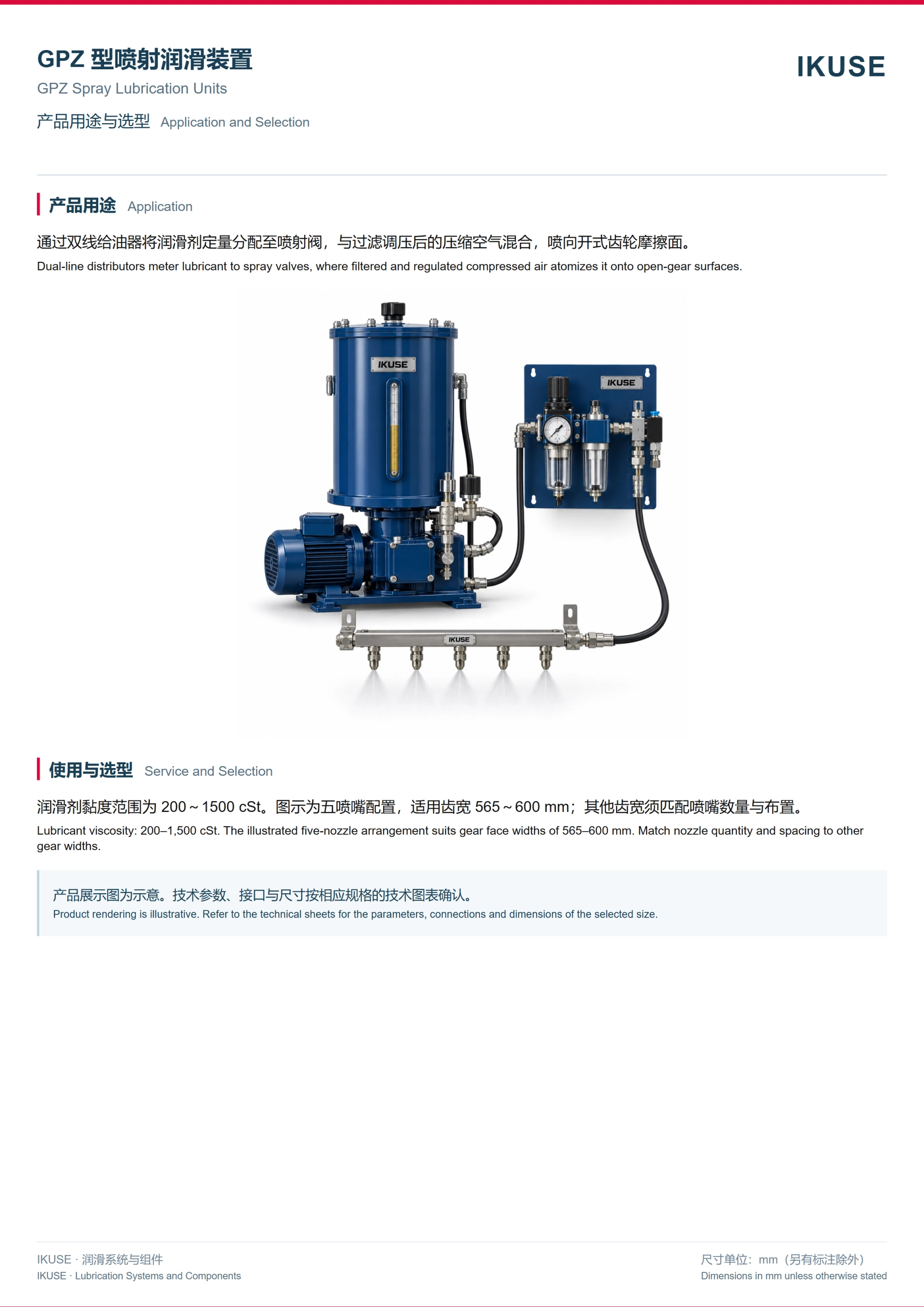

产品概述 / Overview

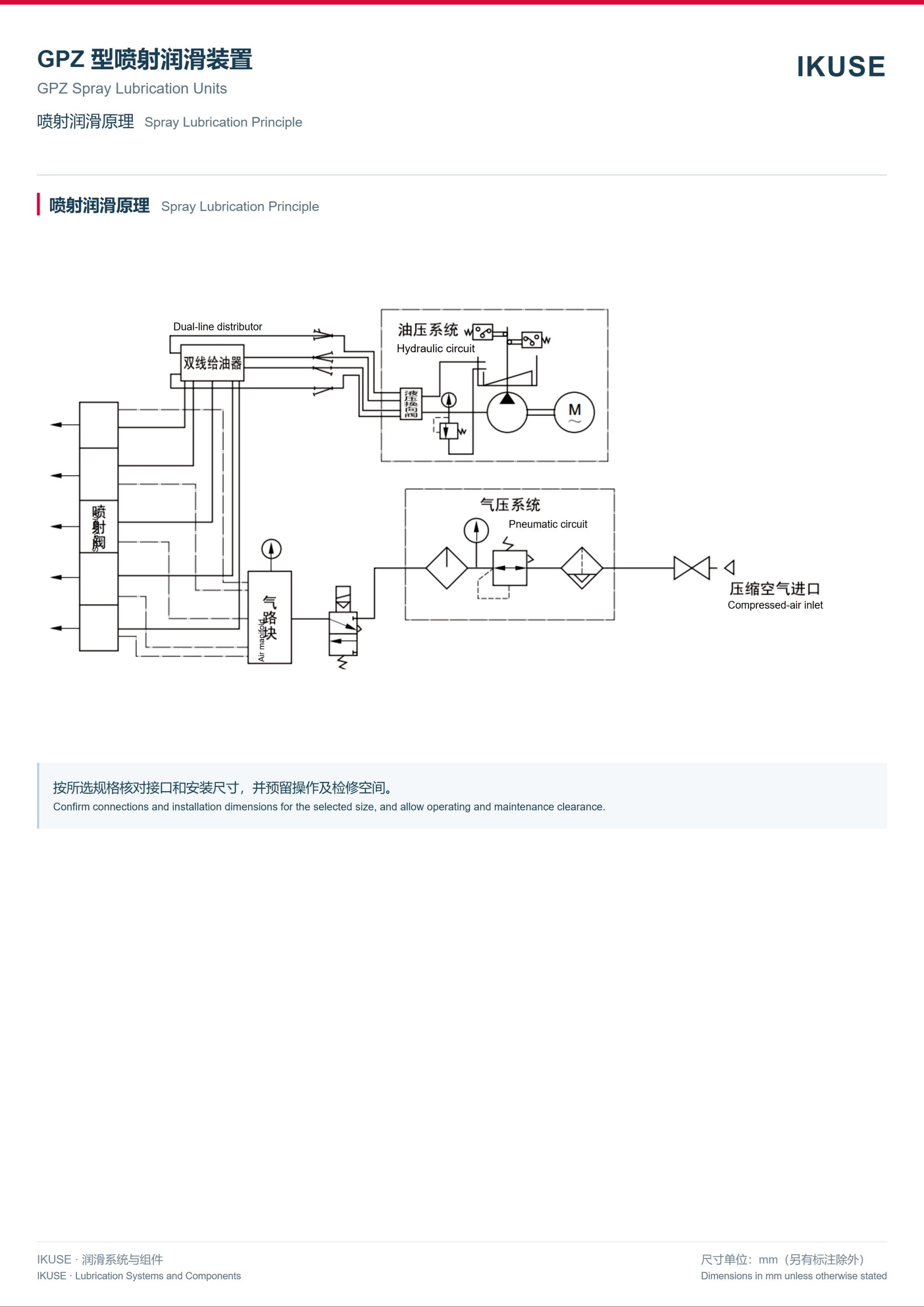

通过双线给油器将润滑剂定量分配至喷射阀，与过滤调压后的压缩空气混合，喷向开式齿轮摩擦面。
Dual-line distributors meter lubricant to spray valves, where filtered and regulated compressed air atomizes it onto open-gear surfaces.
Dual-line distributors meter lubricant to spray valves, where filtered and regulated compressed air atomizes it onto open-gear surfaces.
使用与选型 / Service and Selection

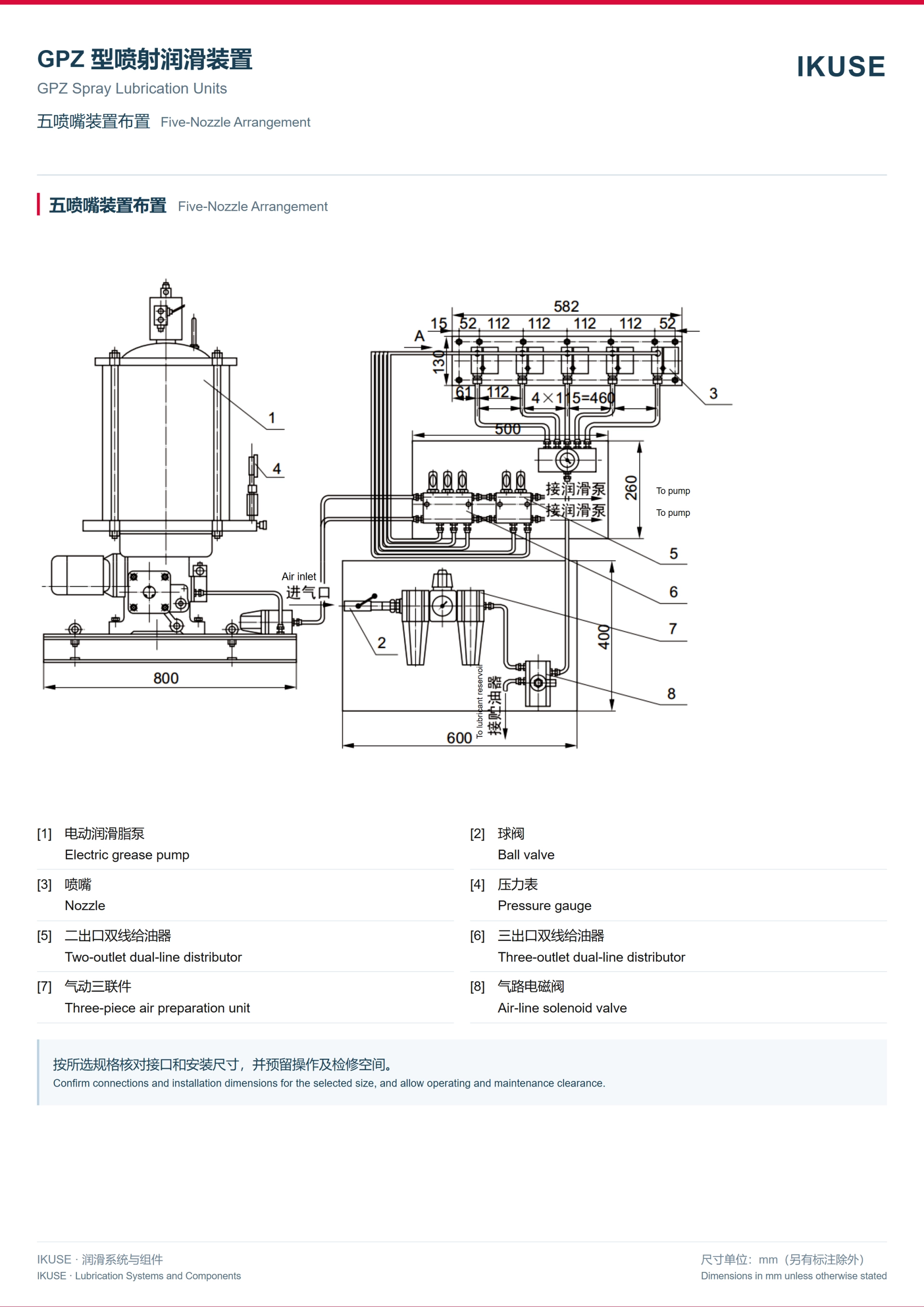

润滑剂黏度范围为 200～1500 cSt。图示为五喷嘴配置，适用齿宽 565～600 mm；其他齿宽须匹配喷嘴数量与布置。
Lubricant viscosity: 200–1,500 cSt. The illustrated five-nozzle arrangement suits gear face widths of 565–600 mm. Match nozzle quantity and spacing to other gear widths.
Lubricant viscosity: 200–1,500 cSt. The illustrated five-nozzle arrangement suits gear face widths of 565–600 mm. Match nozzle quantity and spacing to other gear widths.

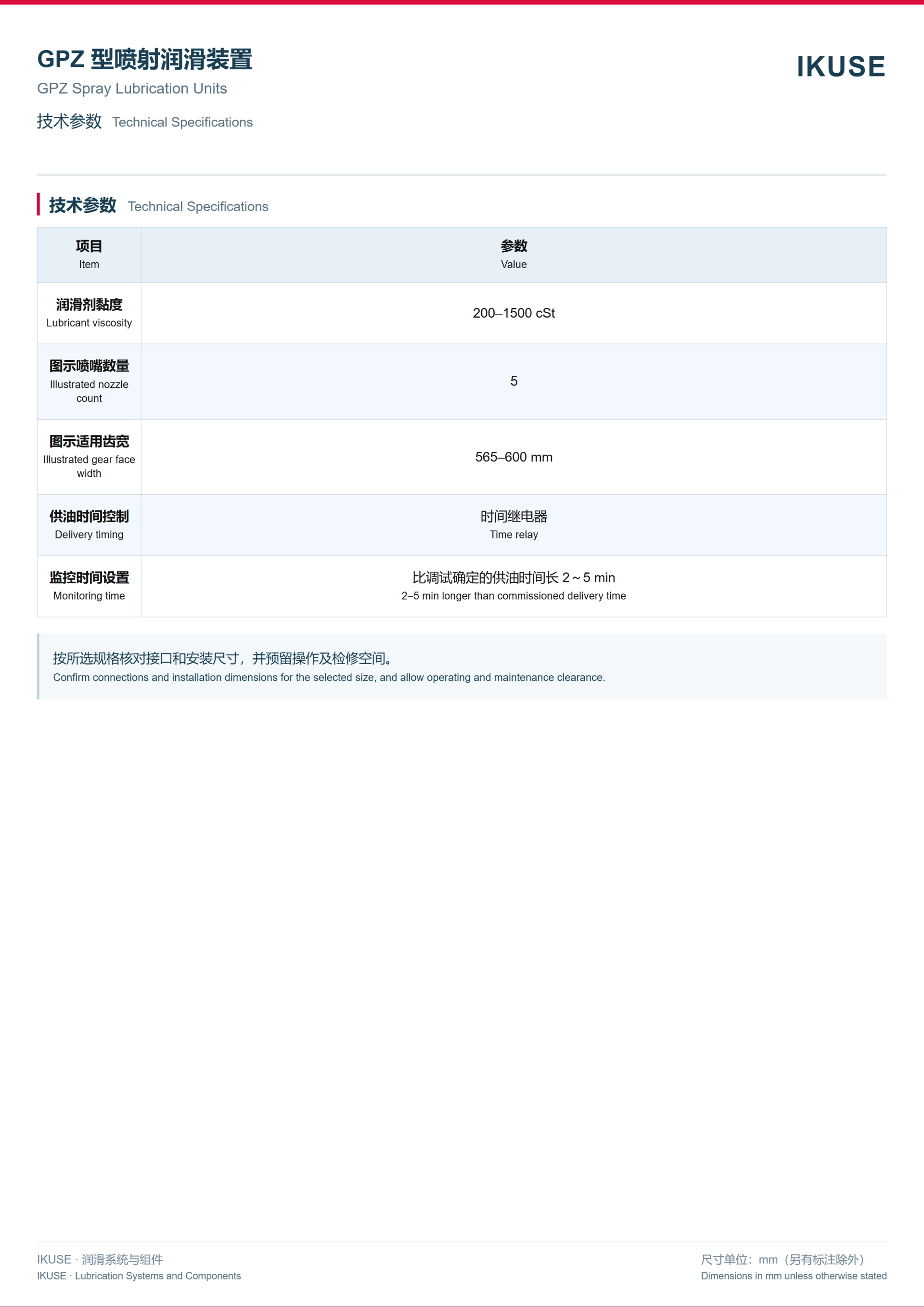

技术资料 / Technical Data
技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

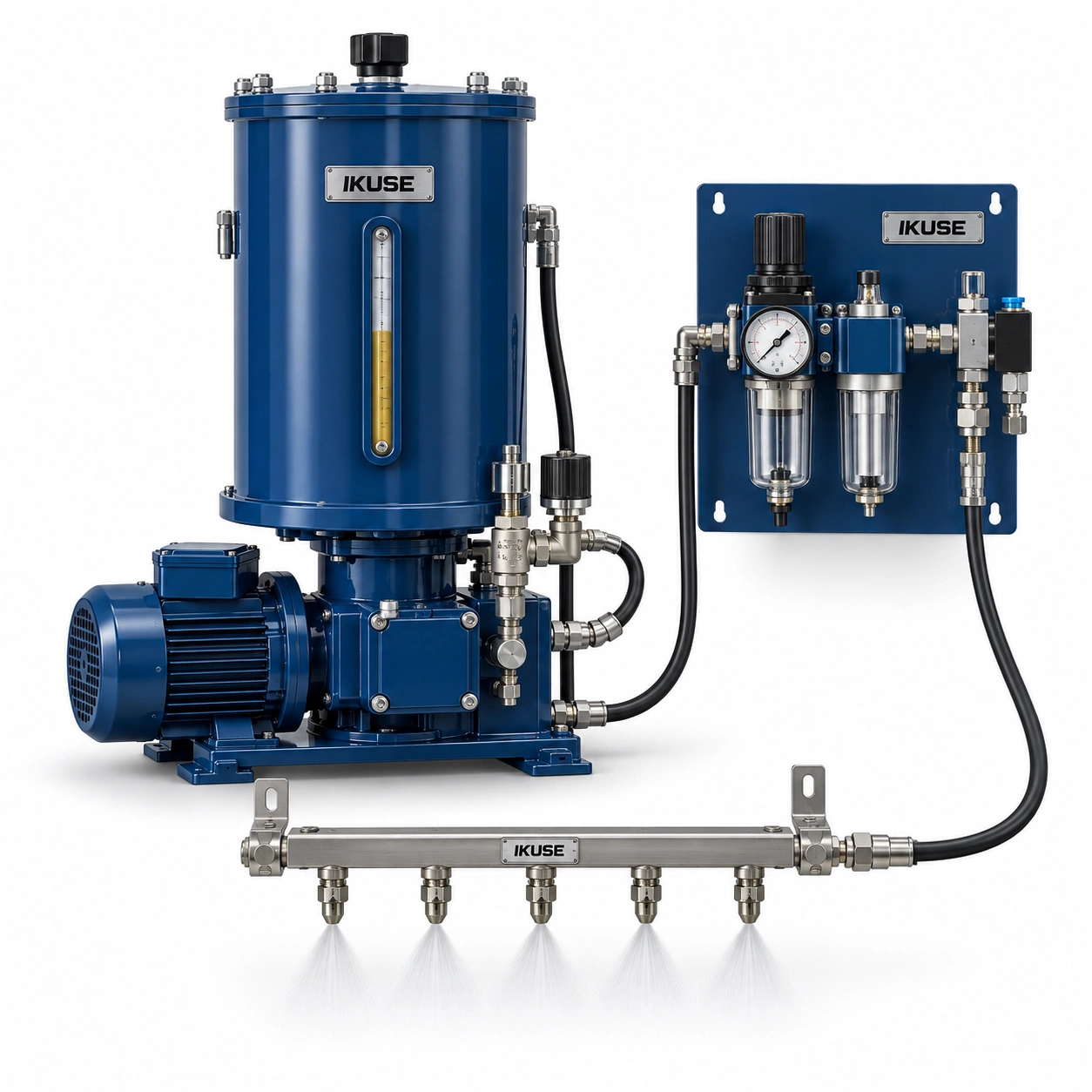

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
