Overview

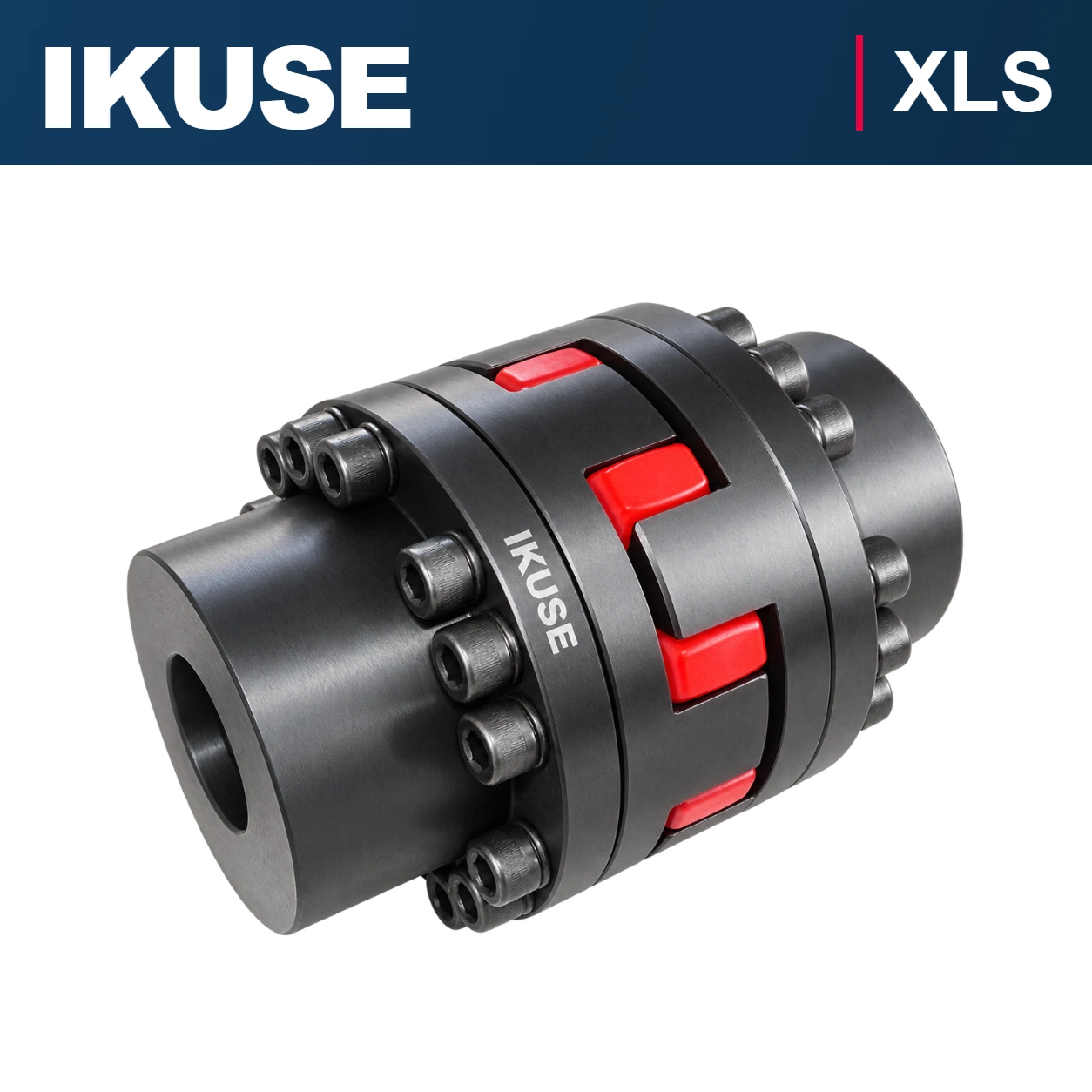

An elastic spider between the jaws of the two coupling halves transmits torque and cushions shocks.

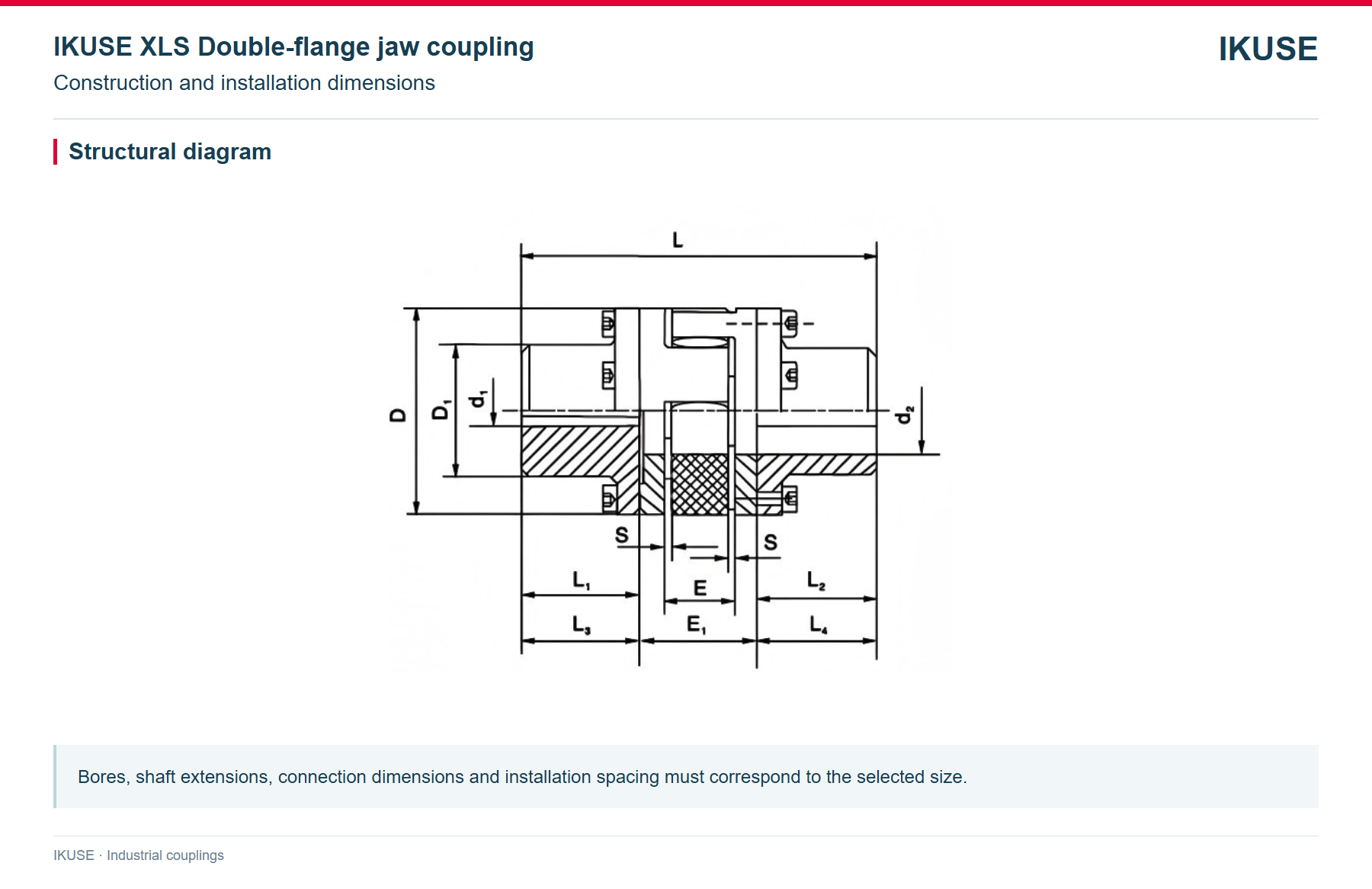

Construction and maintenance
Check bores, flanges and the elastic element against the corresponding XL, XLS or XLD connection arrangement.

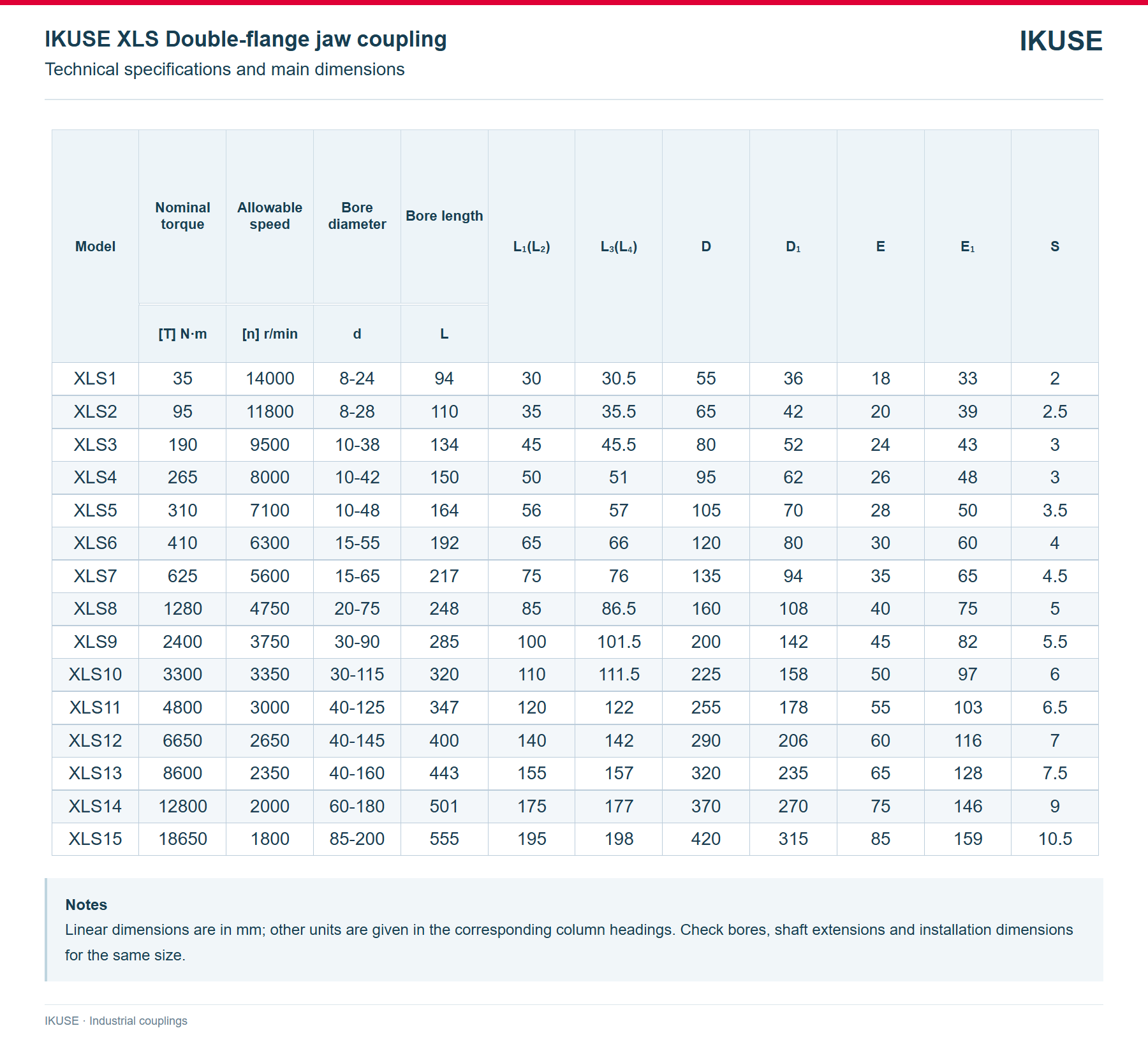

Technical specifications
Torque, speed, bores and installation dimensions must all correspond to the same size.
Ordering information
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation conditions. Include brake, dynamic-balancing and elastic-element requirements where applicable.
