Ball Valves

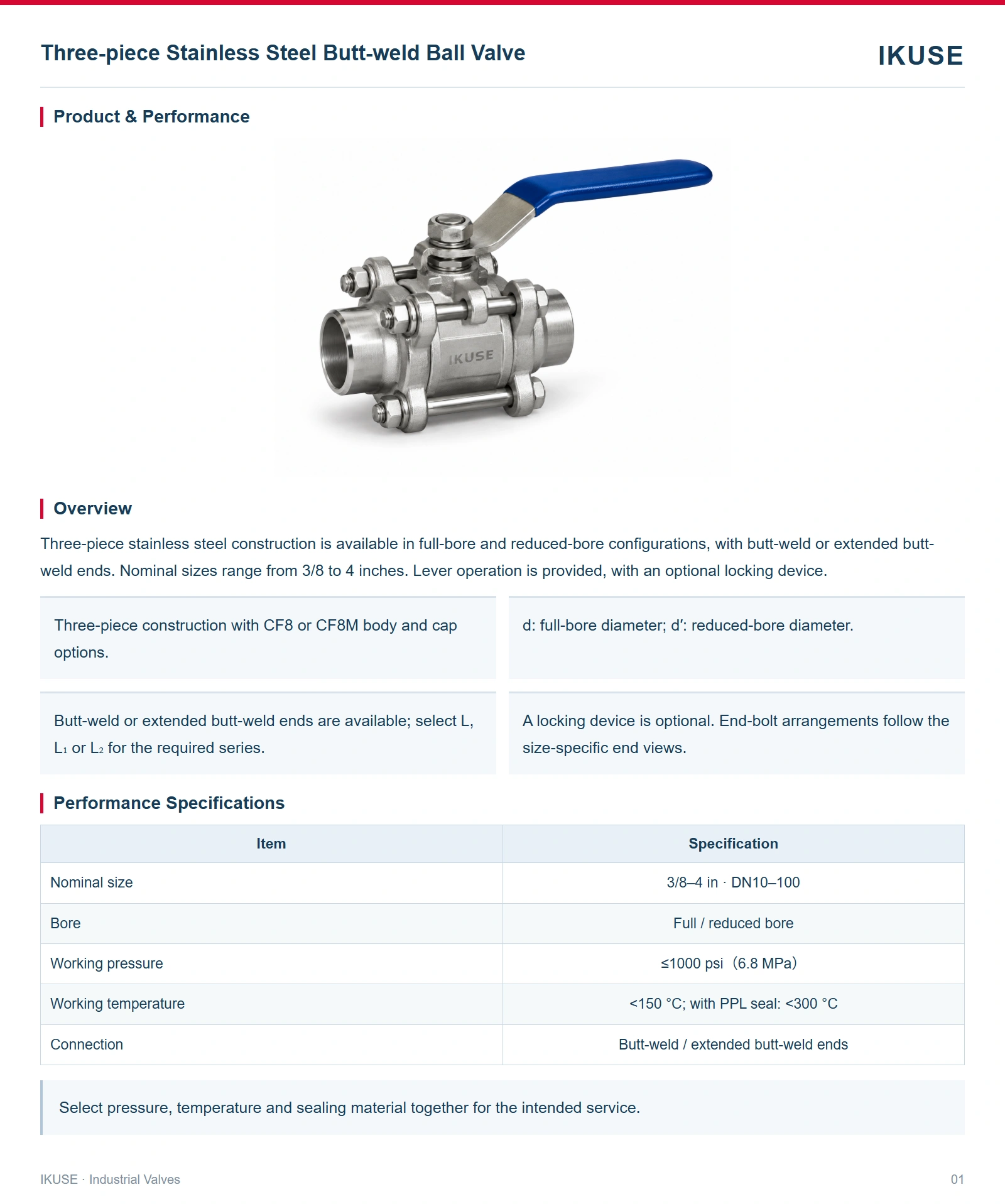

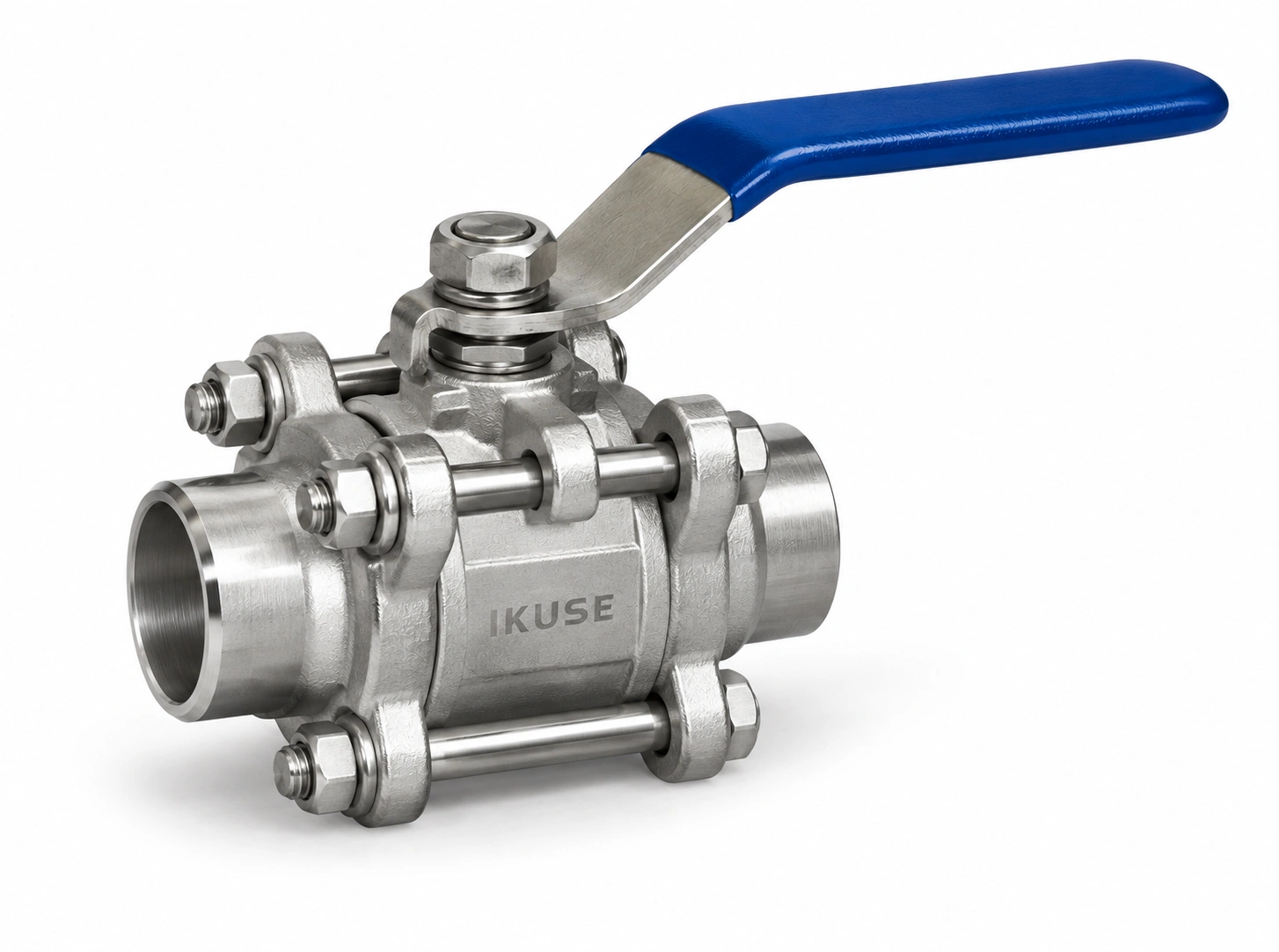

IKUSE Three-piece Stainless Steel Butt-weld Ball Valve
Three-piece stainless steel construction is available in full-bore and reduced-bore configurations, with butt-weld or extended butt-weld ends. Nominal sizes range from 3/8 to 4 inches. Lever operation is provided, with an optional locking device.
Price
Price on request
Submit requirements for a customized quote
Bore
Full / reduced bore
Brand
IKUSE
Material

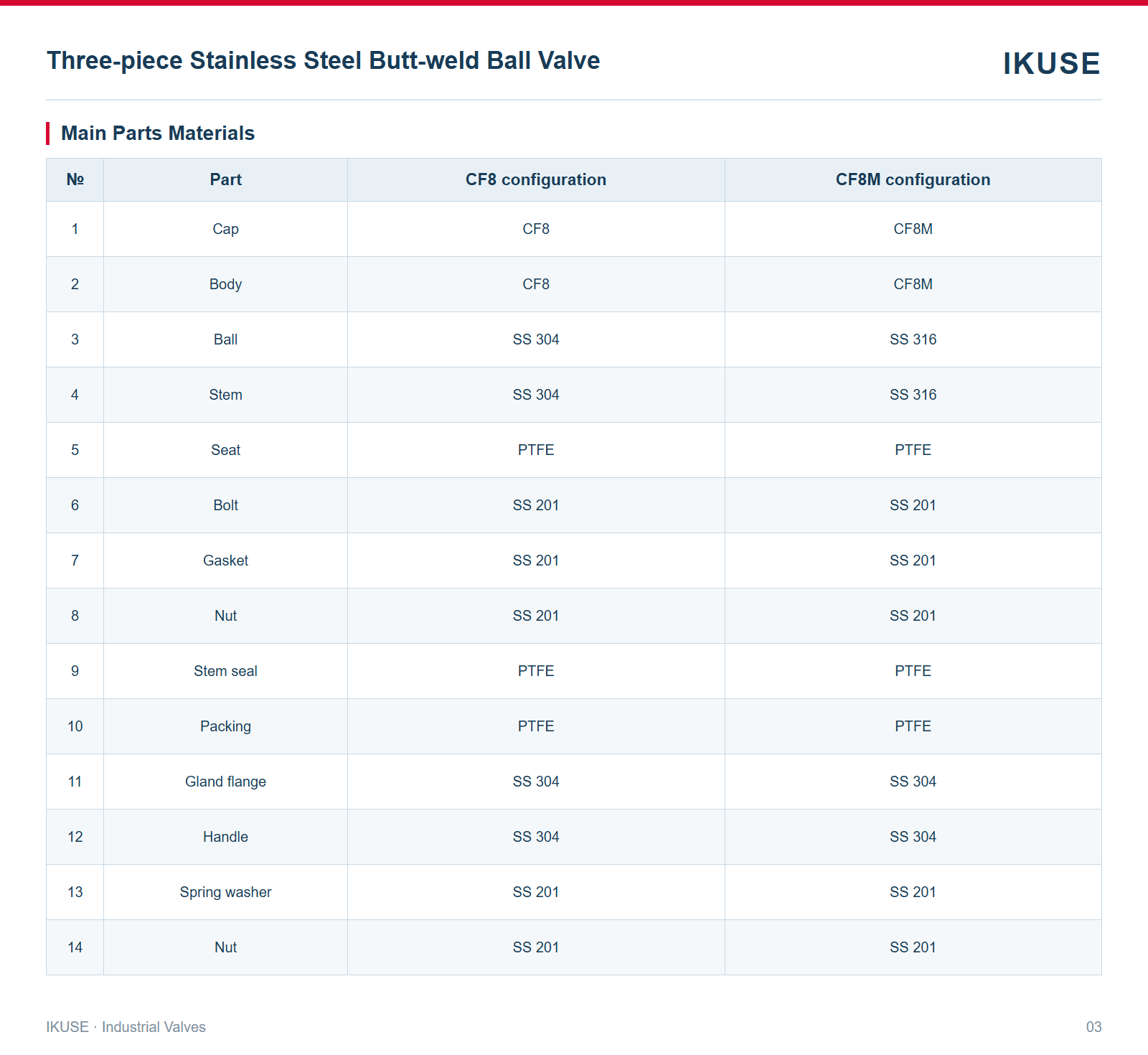

CF8 / CF8M
Construction
Three-piece body
Nominal size

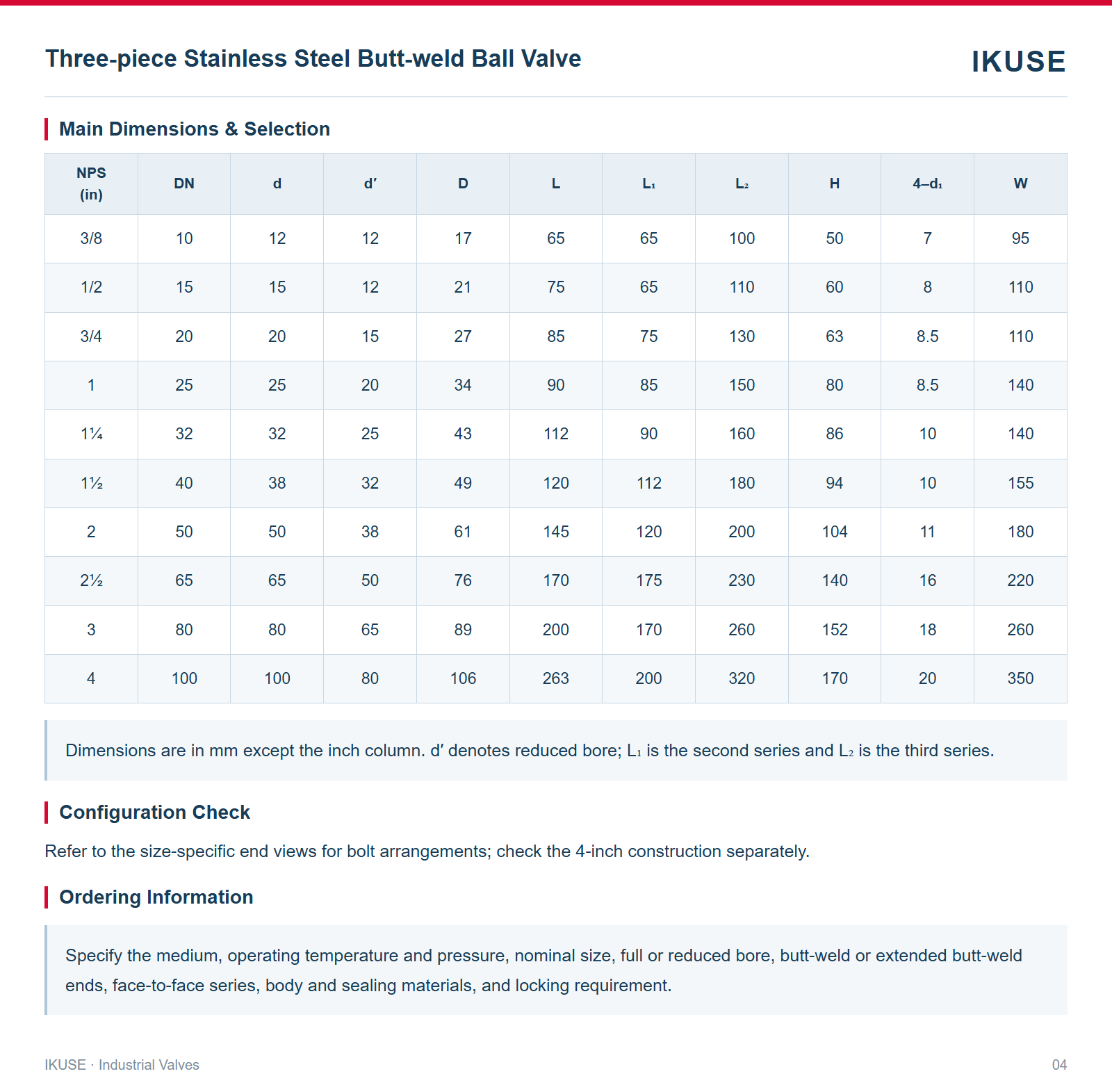

DN10–100
Working pressure
≤1000 psi (6.8 MPa)
Service Hotline
+86 156 1819 0516
Technical Parameters
Technical Specifications
| Bore | Full / reduced bore |
| Brand | IKUSE |
| Material | CF8 / CF8M |
| Construction | Three-piece body |
| Nominal size | DN10–100 |
| Working pressure | ≤1000 psi (6.8 MPa) |
