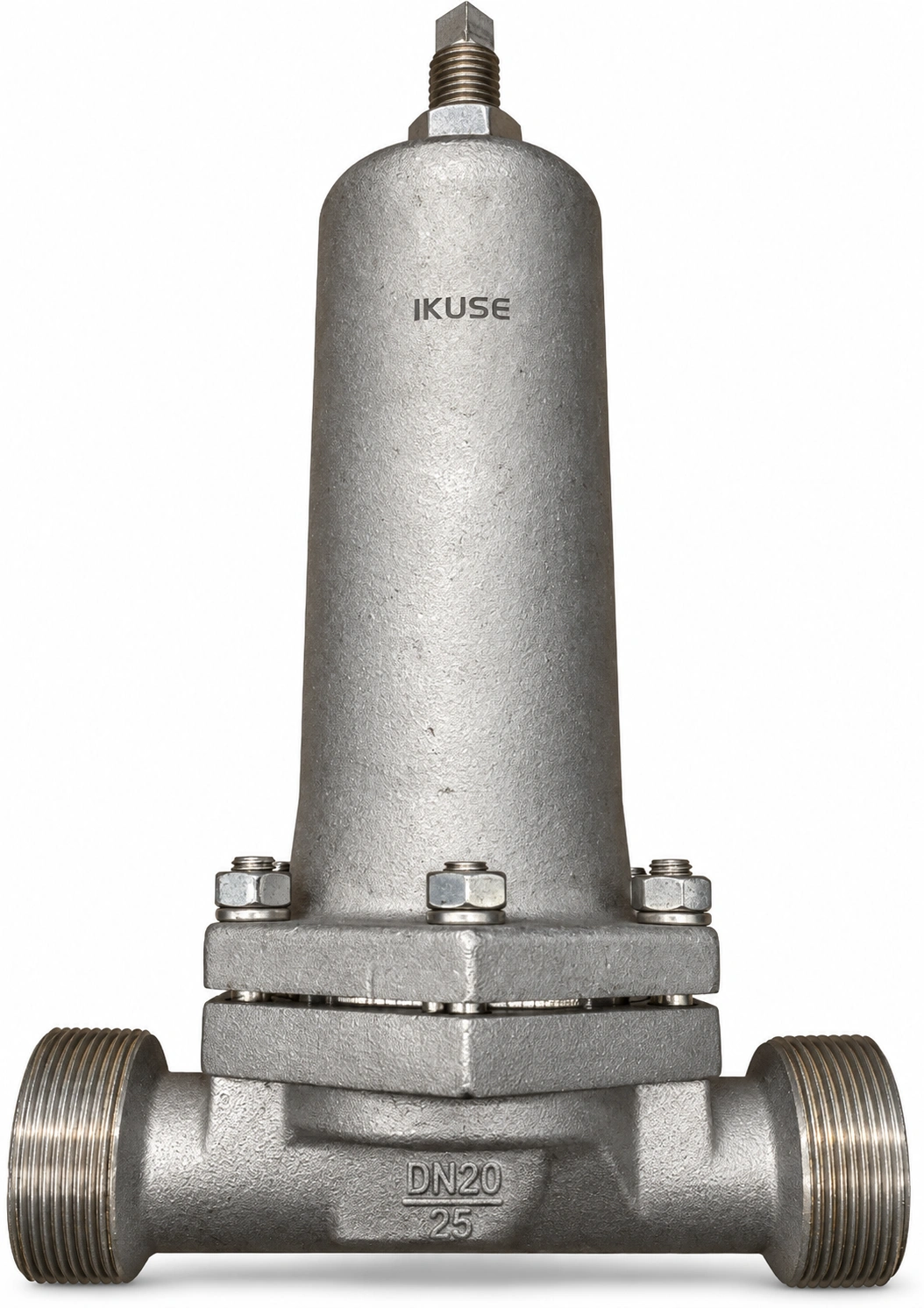

IKUSE Cryogenic Pressure-reducing Regulating Valve · DY21F-25P
IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Self-operated Control Valves
IKUSE Cryogenic Pressure-reducing Regulating Valve · DY21F-25P

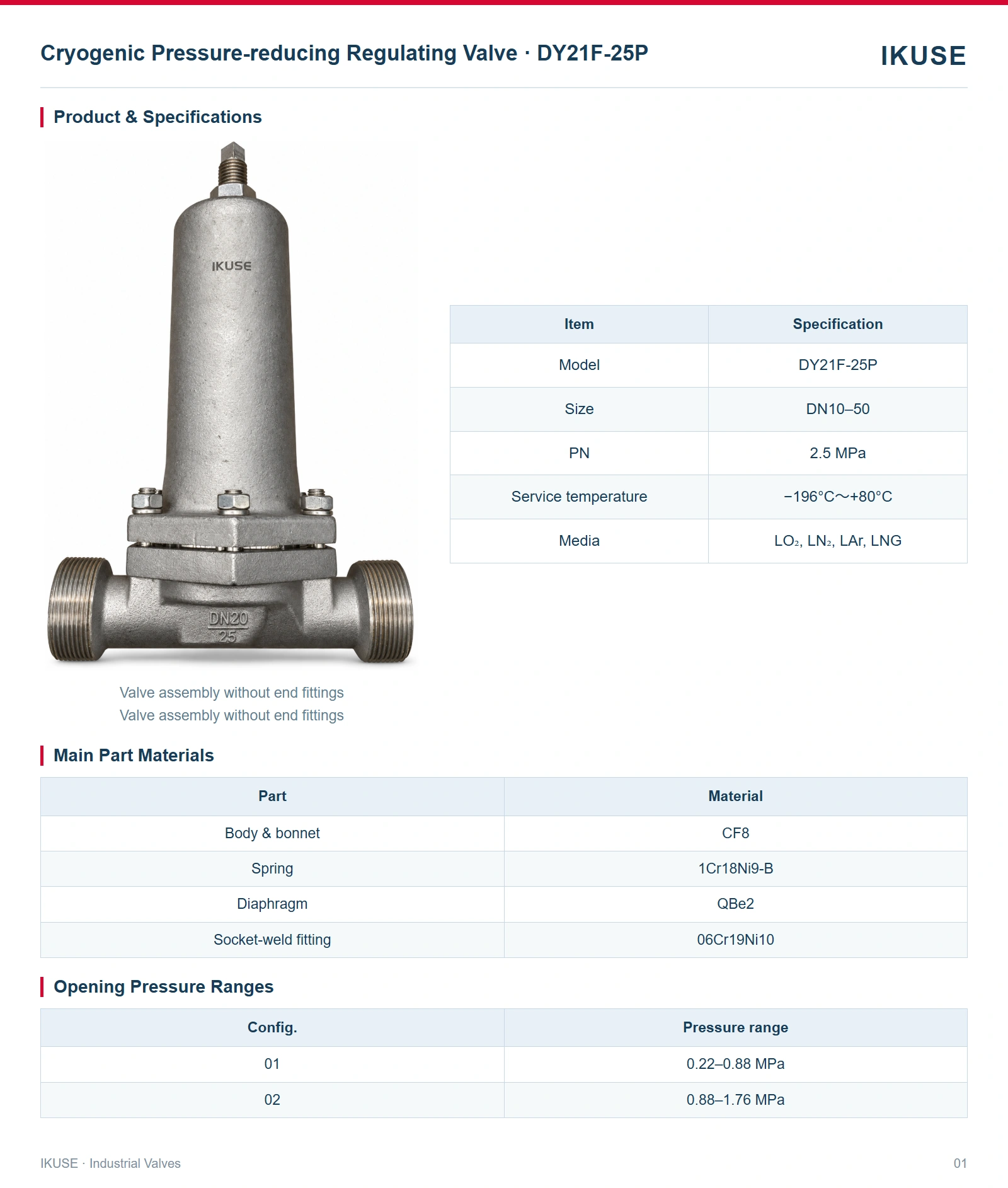

Model: DY21F-25P; Size: DN10–50; PN: 2.5 MPa; Temperature: −196°C～+80°C; Body: CF8; Connection: Male-threaded body with socket-weld nipples.
Price
Price on request
Submit requirements for a customized quote
PN
2.5 MPa
Body
CF8
Size
DN10–50
Model
DY21F-25P
Connection

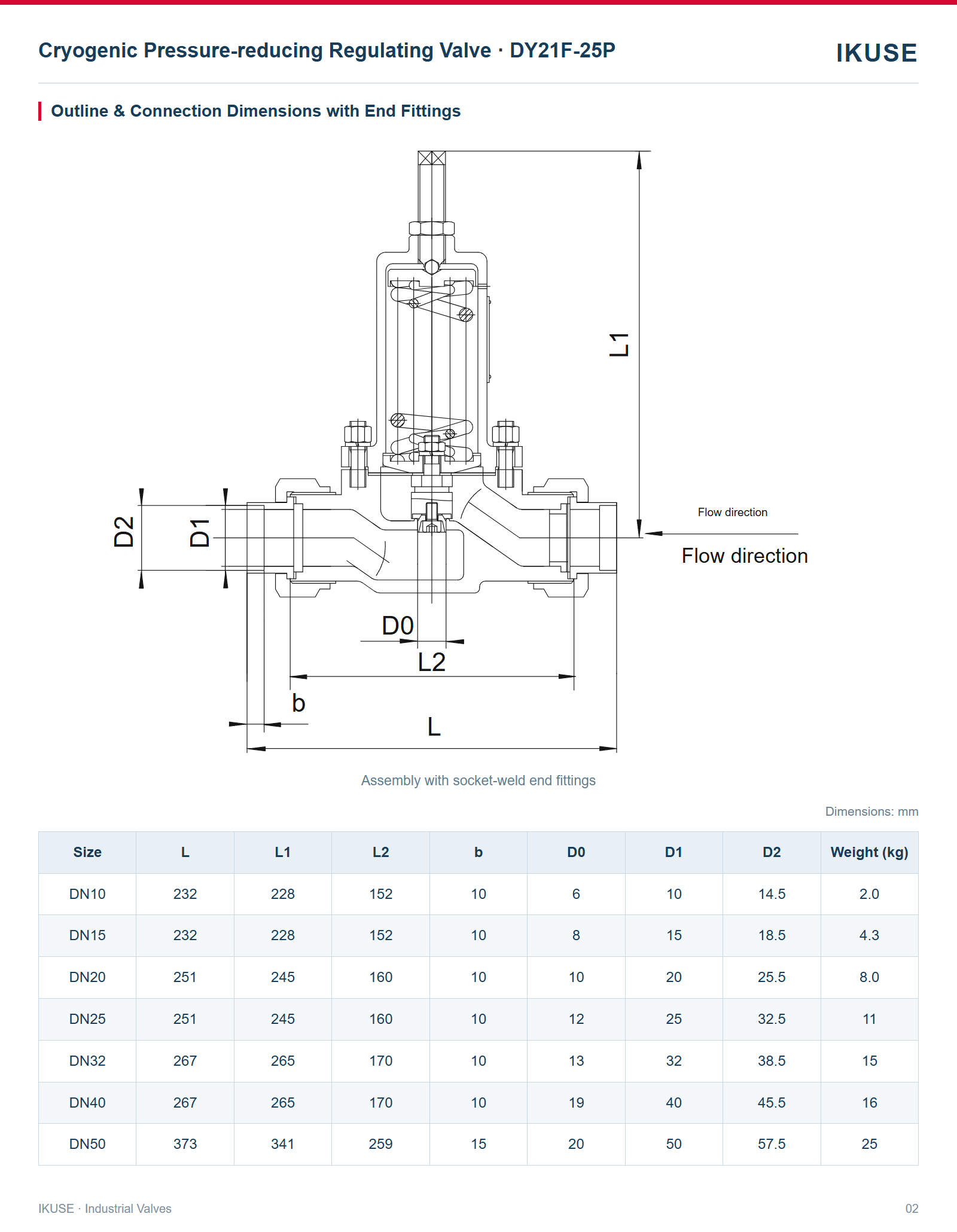

Male-threaded body with socket-weld nipples
Temperature
−196°C～+80°C
Service Hotline
+86 156 1819 0516
Technical Parameters
Technical Specifications
| PN | 2.5 MPa |
| Body | CF8 |
| Size | DN10–50 |
| Model | DY21F-25P |
| Connection | Male-threaded body with socket-weld nipples |
| Temperature | −196°C～+80°C |
