Overview
SWCD — Short telescopic configuration. Transmits torque between shafts arranged at an angle. Length compensation is provided; select the installation length for the equipment.
Construction

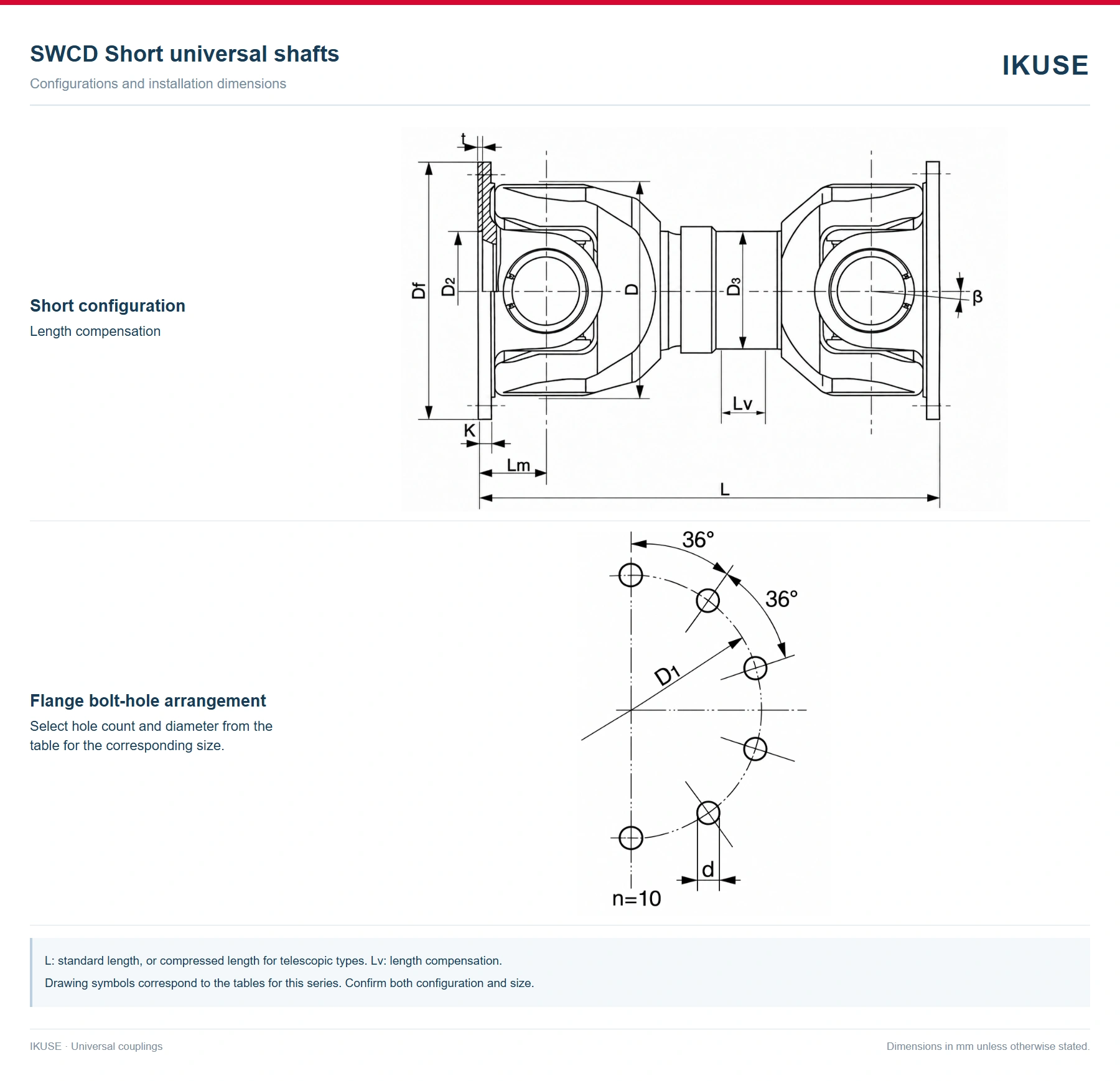

Crosses in two universal joints transmit torque between angled shafts. Short telescopic configuration. L is the compressed length and Lv the length compensation. Select flange pilots, bolt circles, hole diameters and hole counts for the same size. Check maximum angle β and operating speed against shaft length, load and balancing conditions.
Applications
Installations with limited axial space requiring a universal connection with a small angle and limited length compensation. Check torque, angle and flange dimensions.
Technical specifications

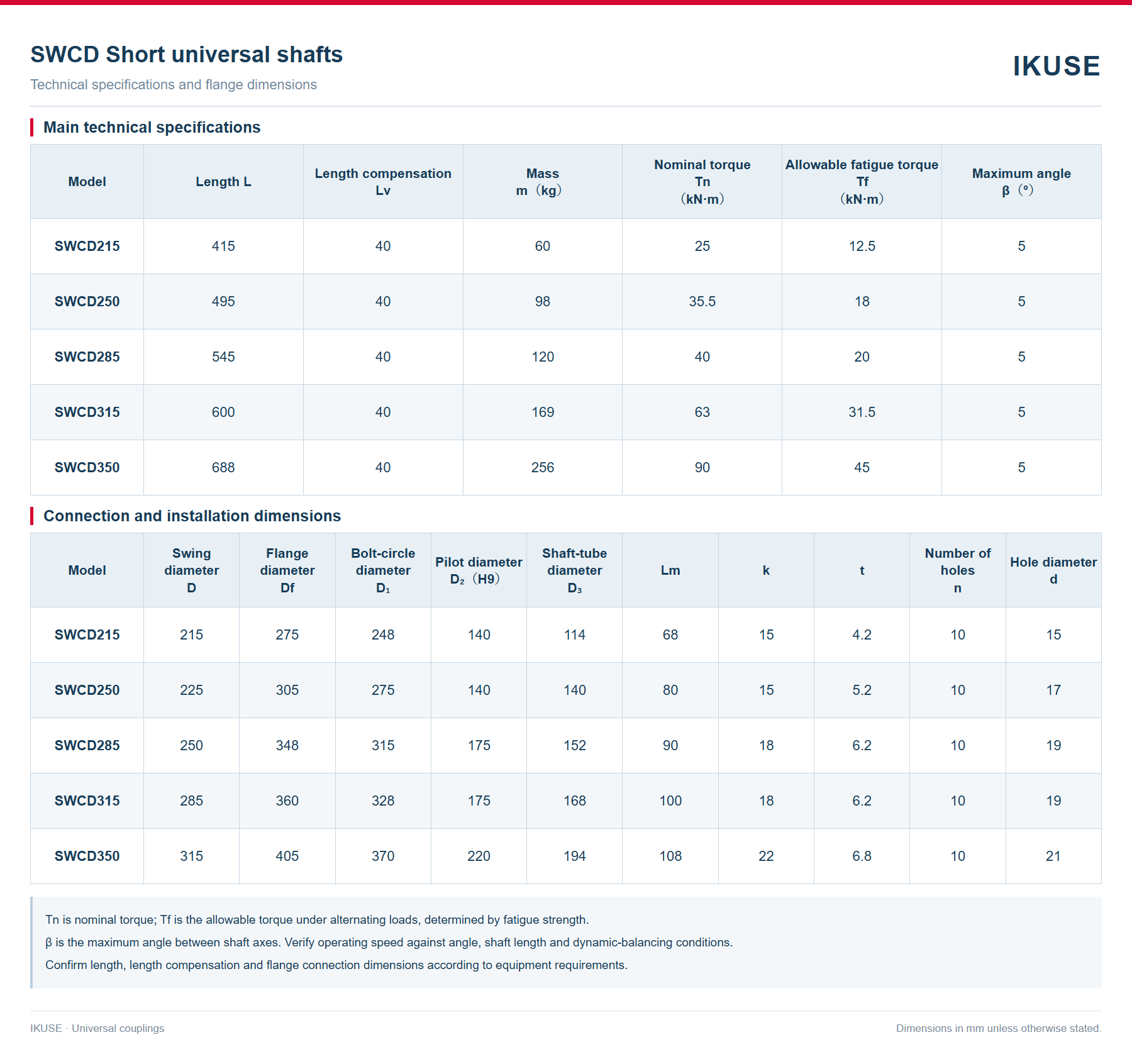

Nominal torque Tn and allowable fatigue torque Tf are in kN·m. Dimensions are in mm unless otherwise stated. Use the rows for the selected configuration; do not mix dimensions from different configurations.
Installation and maintenance
Check both flanges, connecting bolts and shaft arrangement during installation. Tighten according to the selected size. Inspect for loose fasteners, unusual vibration, noise and lubrication condition. Set lubrication and maintenance intervals according to actual duty.
Ordering information
Specify equipment type, power, operating speed, operating and peak torque, load characteristics, shaft angle, installation length, required length compensation and dimensions of both flanges. Include ambient temperature, balancing and protection requirements.
