Overview
SWC C — Short flanges without length compensation. Transmits torque between shafts arranged at an angle. No axial length compensation is provided; the installation length is set by the equipment arrangement.
Construction

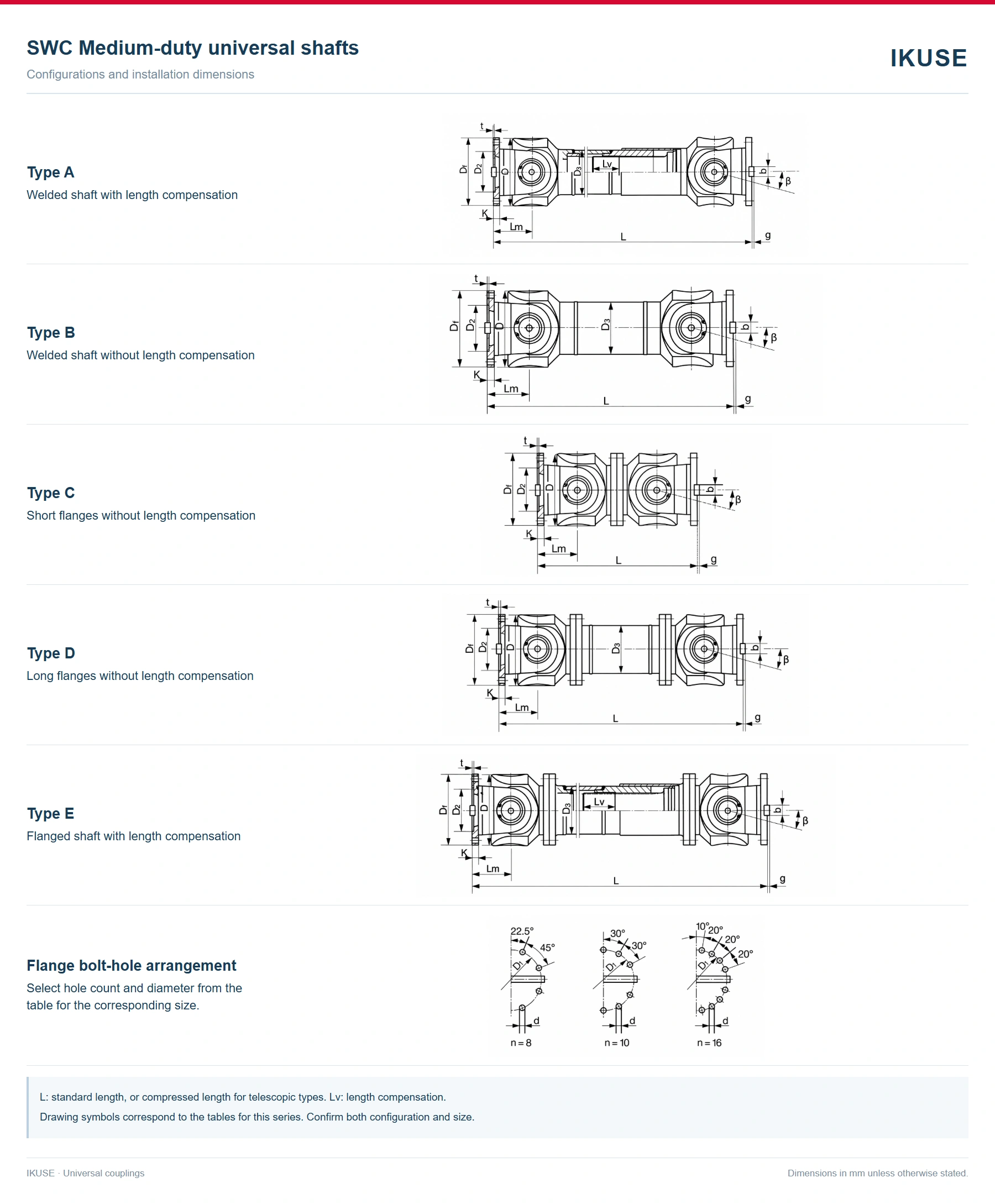

Crosses in two universal joints transmit torque between angled shafts. Short flanges without length compensation. Check standard length L and installation position together; no length compensation is provided. Select flange pilots, bolt circles, hole diameters and hole counts for the same size. Check maximum angle β and operating speed against shaft length, load and balancing conditions.
Applications
Rolling mills, rubber and plastics machinery and other industrial drives. Select the configuration by torque, speed, shaft angle and equipment arrangement.
Technical specifications

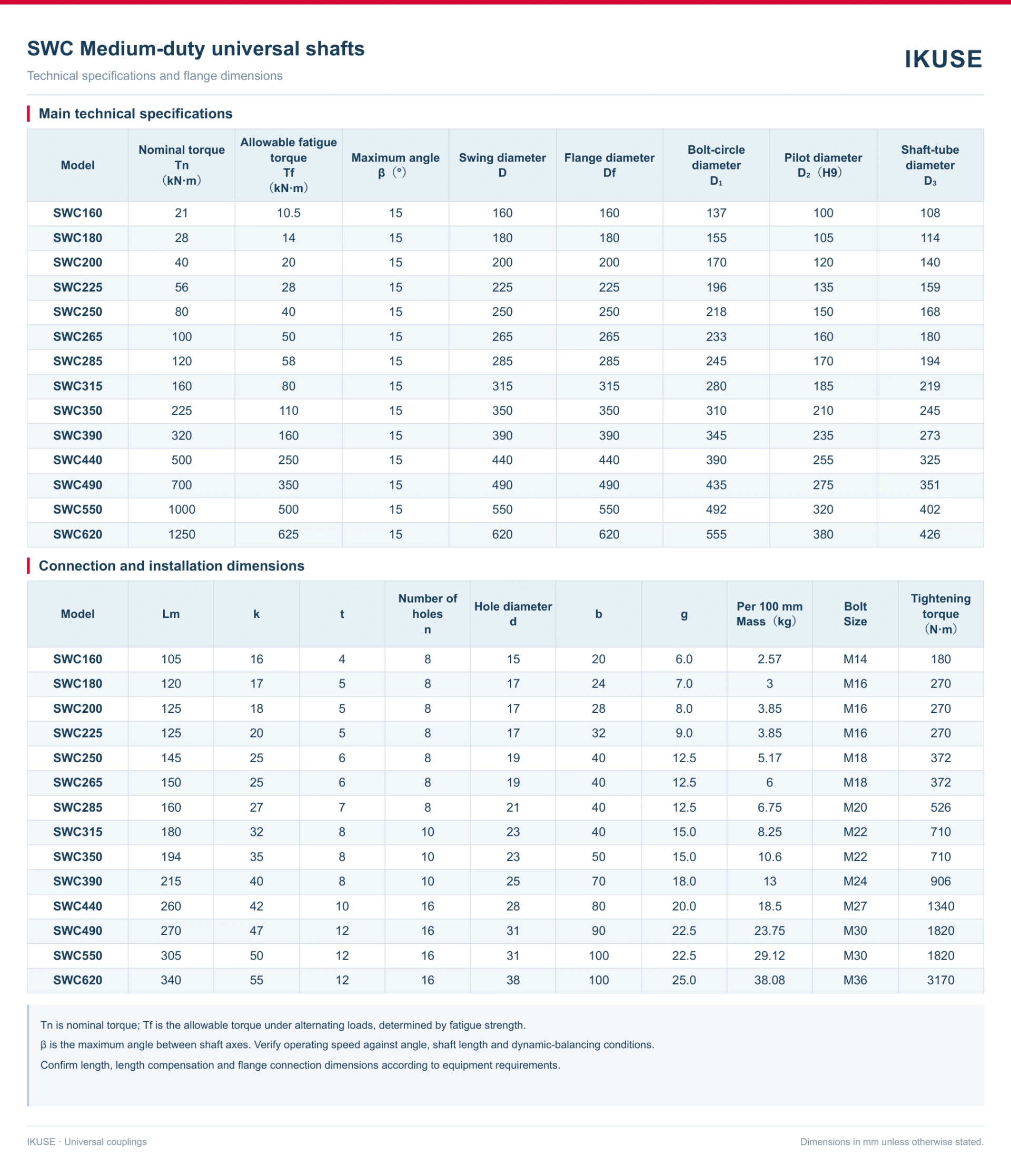

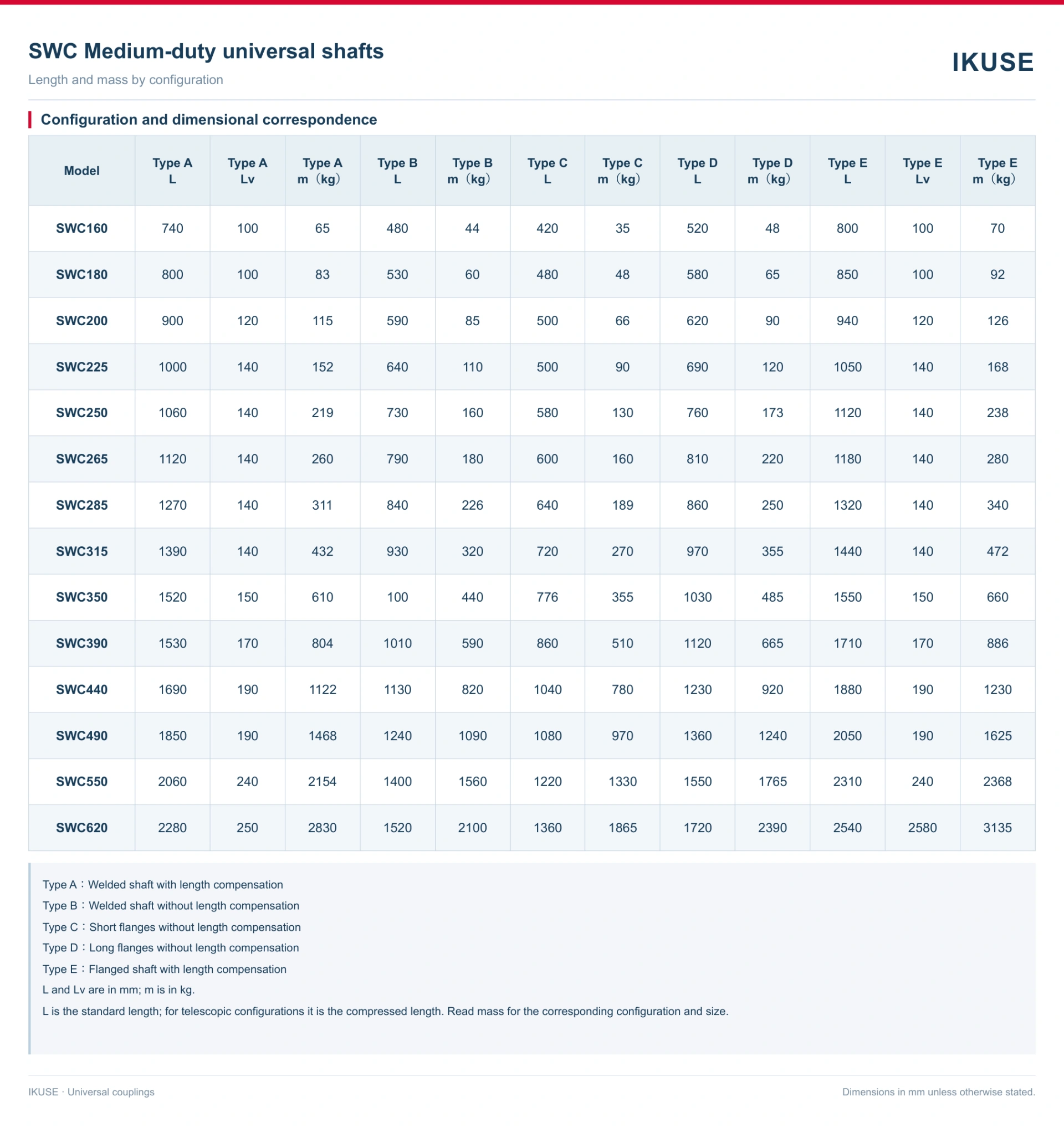

Nominal torque Tn and allowable fatigue torque Tf are in kN·m. Dimensions are in mm unless otherwise stated. Use the rows for the selected configuration; do not mix dimensions from different configurations.
Installation and maintenance
Check both flanges, connecting bolts and shaft arrangement during installation. Tighten according to the selected size. Inspect for loose fasteners, unusual vibration, noise and lubrication condition. Set lubrication and maintenance intervals according to actual duty.
Ordering information
Specify equipment type, power, operating speed, operating and peak torque, load characteristics, shaft angle, installation length, required length compensation and dimensions of both flanges. Include ambient temperature, balancing and protection requirements.
