Overview
A compact disc connection accommodates large bores with a comparatively small outside diameter. It is intended for large machines requiring convenient assembly and removal.

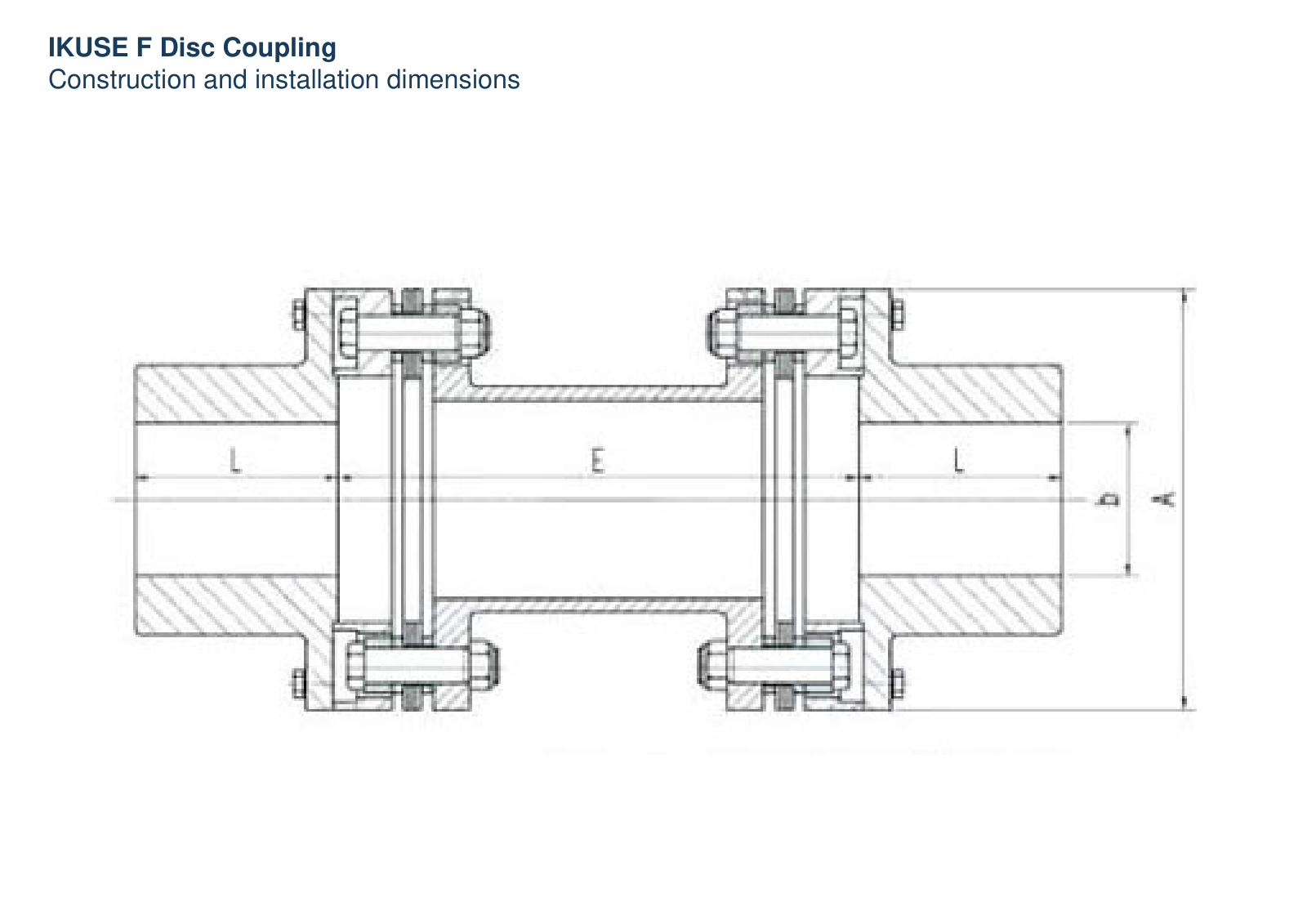

Construction
Large permissible bore and compact outside diameter. Select the spacer and shaft-end connections for the specific machine.
Applications
Large machines operating below 10000 rpm; check the limit for the selected size separately.
Selection

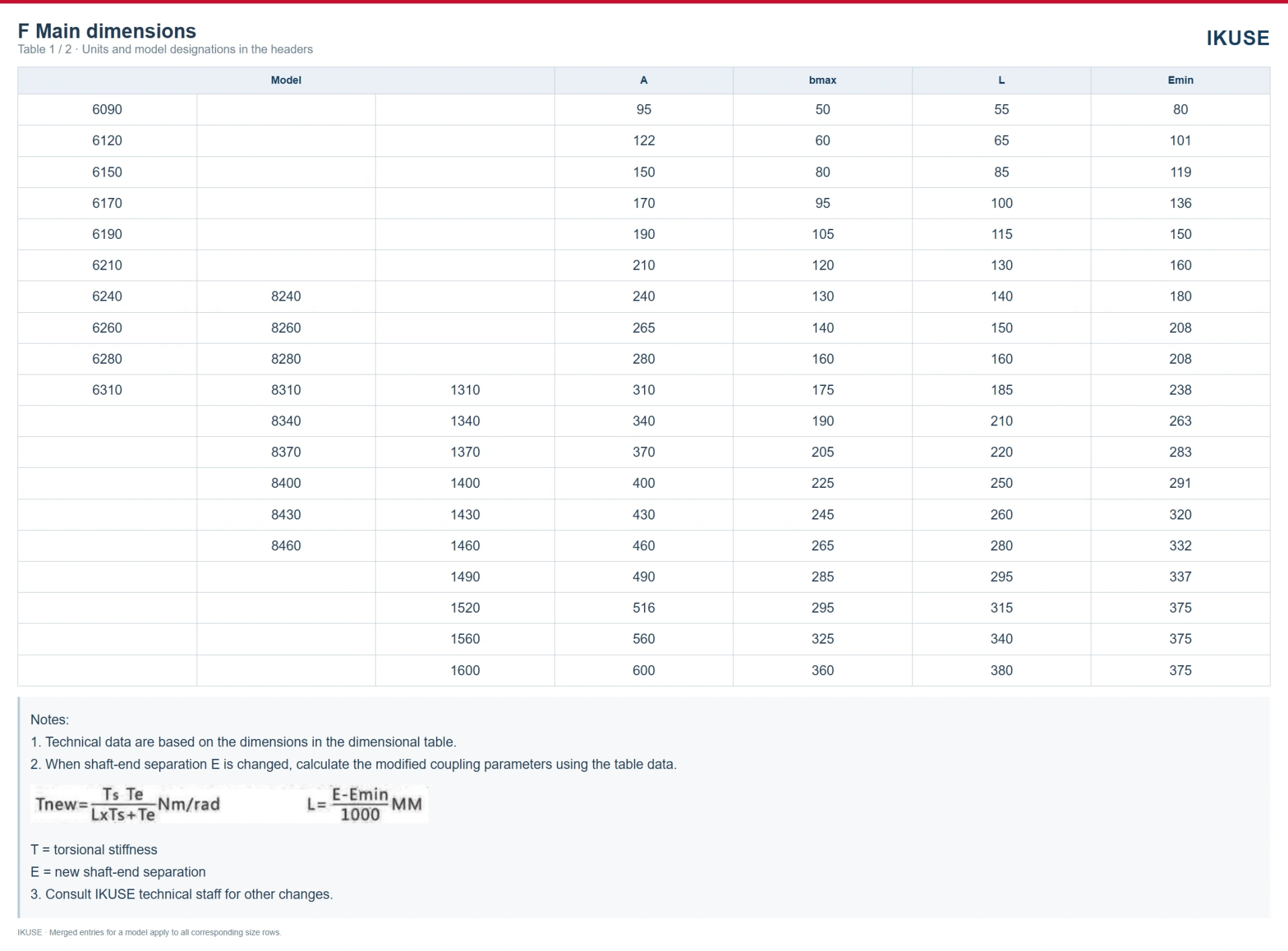

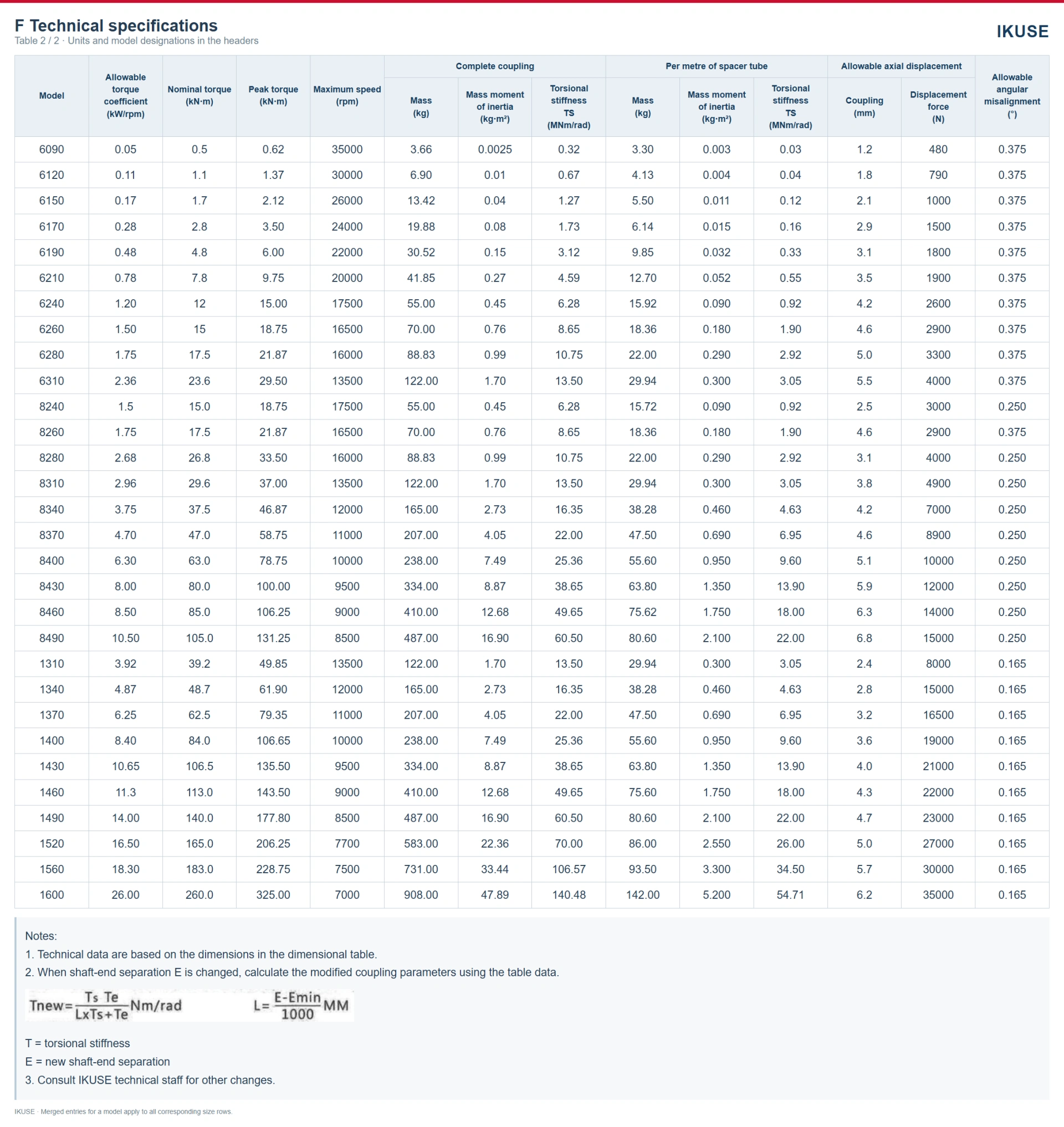

Changing shaft-end separation E affects torsional stiffness, inertia and mass. Check these values against the final drawing.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
