Overview

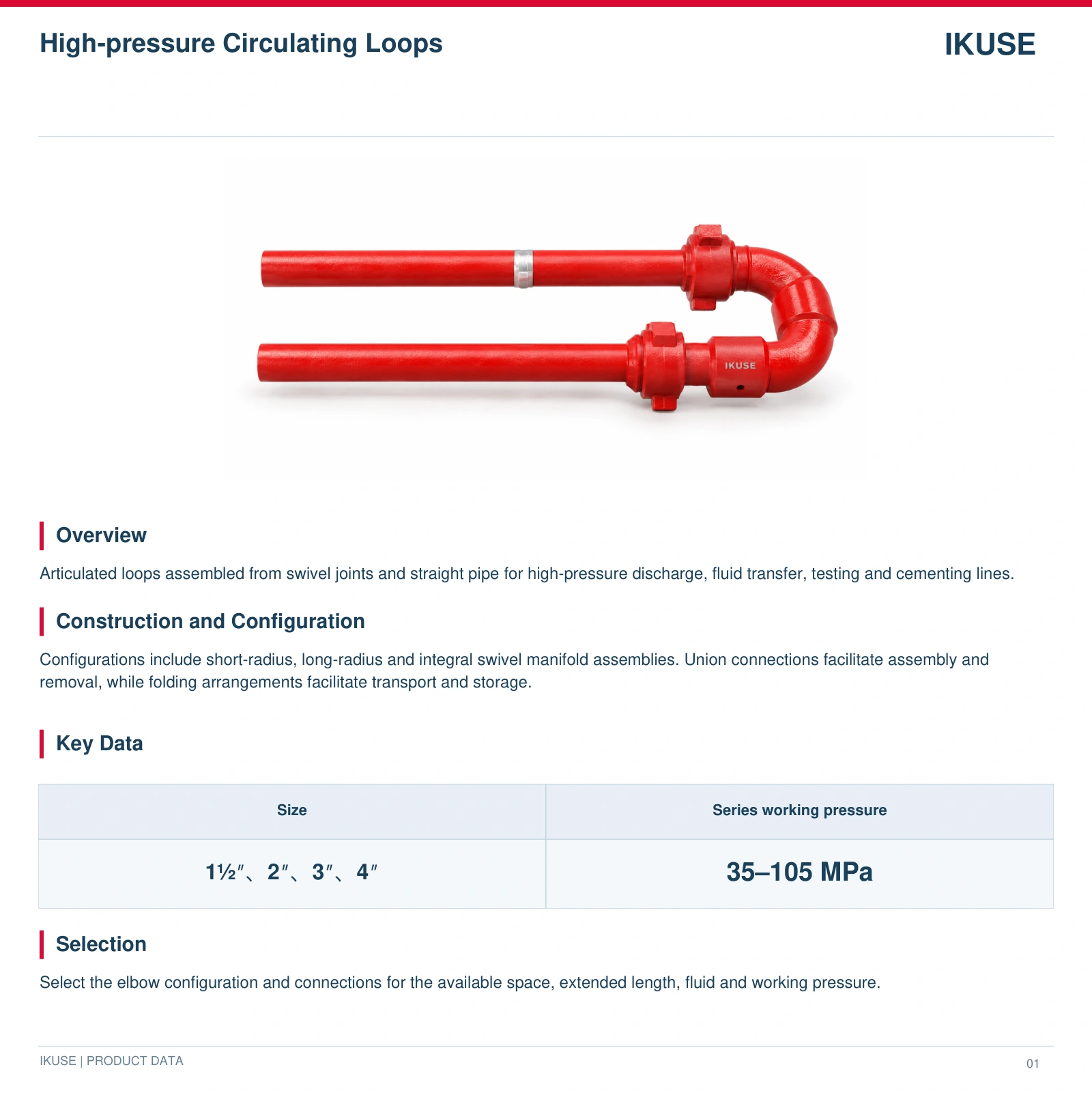

Articulated loops assembled from swivel joints and straight pipe for high-pressure discharge, fluid transfer, testing and cementing lines.
Construction and Configuration
Configurations include short-radius, long-radius and integral swivel manifold assemblies. Union connections facilitate assembly and removal, while folding arrangements facilitate transport and storage.
Selection
Select the elbow configuration and connections for the available space, extended length, fluid and working pressure.
Technical Documentation
Model specifications, construction and selection information are provided in the technical sheets and PDF. Product images illustrate appearance. Check connection and installation dimensions for the selected model. To download the PDF, open the Download Center, select Petroleum Equipment and find the product by name.
