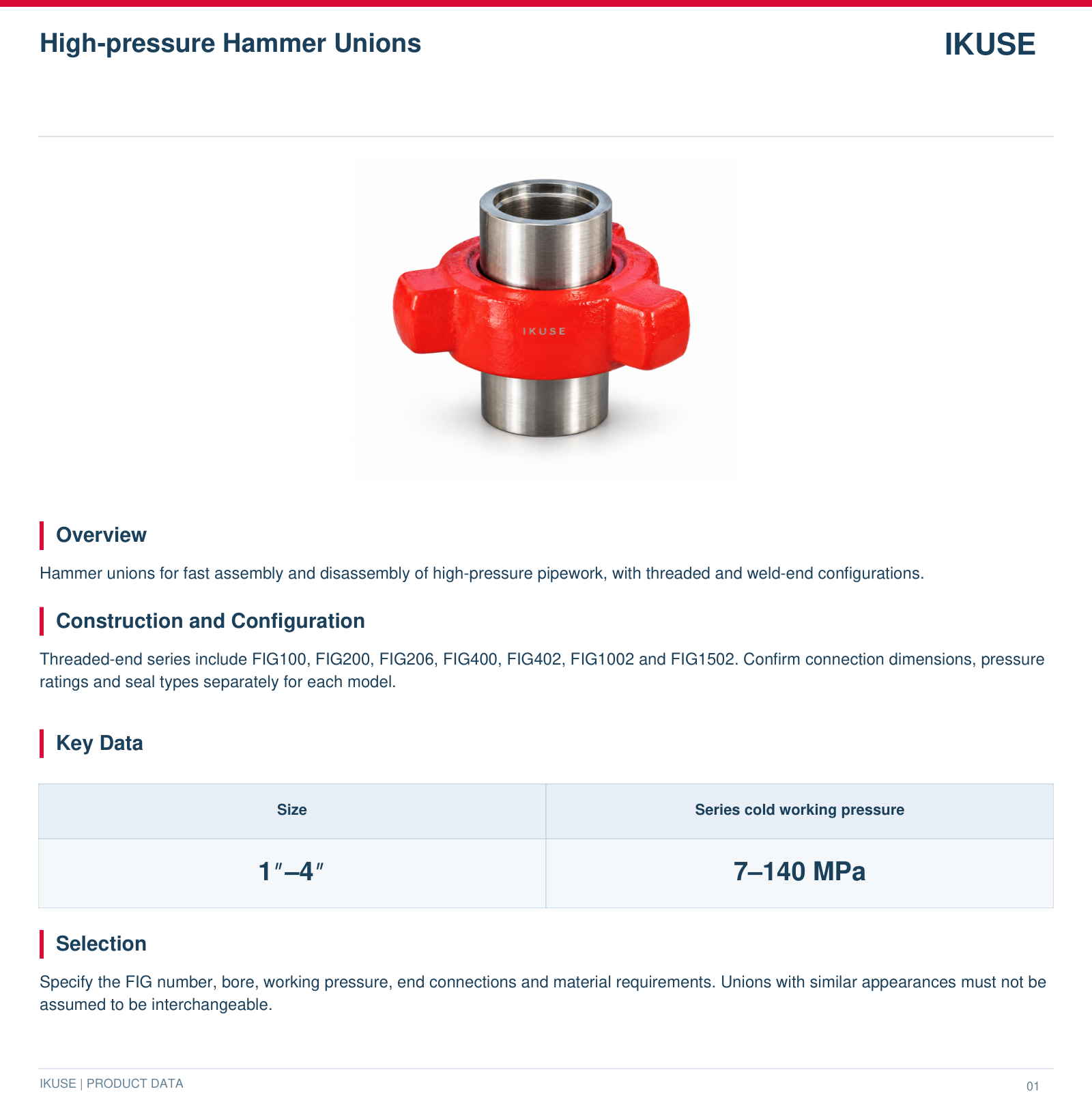

Overview
Hammer unions for fast assembly and disassembly of high-pressure pipework, with threaded and weld-end configurations.
Construction and Configuration
Threaded-end series include FIG100, FIG200, FIG206, FIG400, FIG402, FIG1002 and FIG1502. Confirm connection dimensions, pressure ratings and seal types separately for each model.
Selection
Specify the FIG number, bore, working pressure, end connections and material requirements. Unions with similar appearances must not be assumed to be interchangeable.
Technical Documentation
Model specifications, construction and selection information are provided in the technical sheets and PDF. Product images illustrate appearance. Check connection and installation dimensions for the selected model. To download the PDF, open the Download Center, select Petroleum Equipment and find the product by name.
