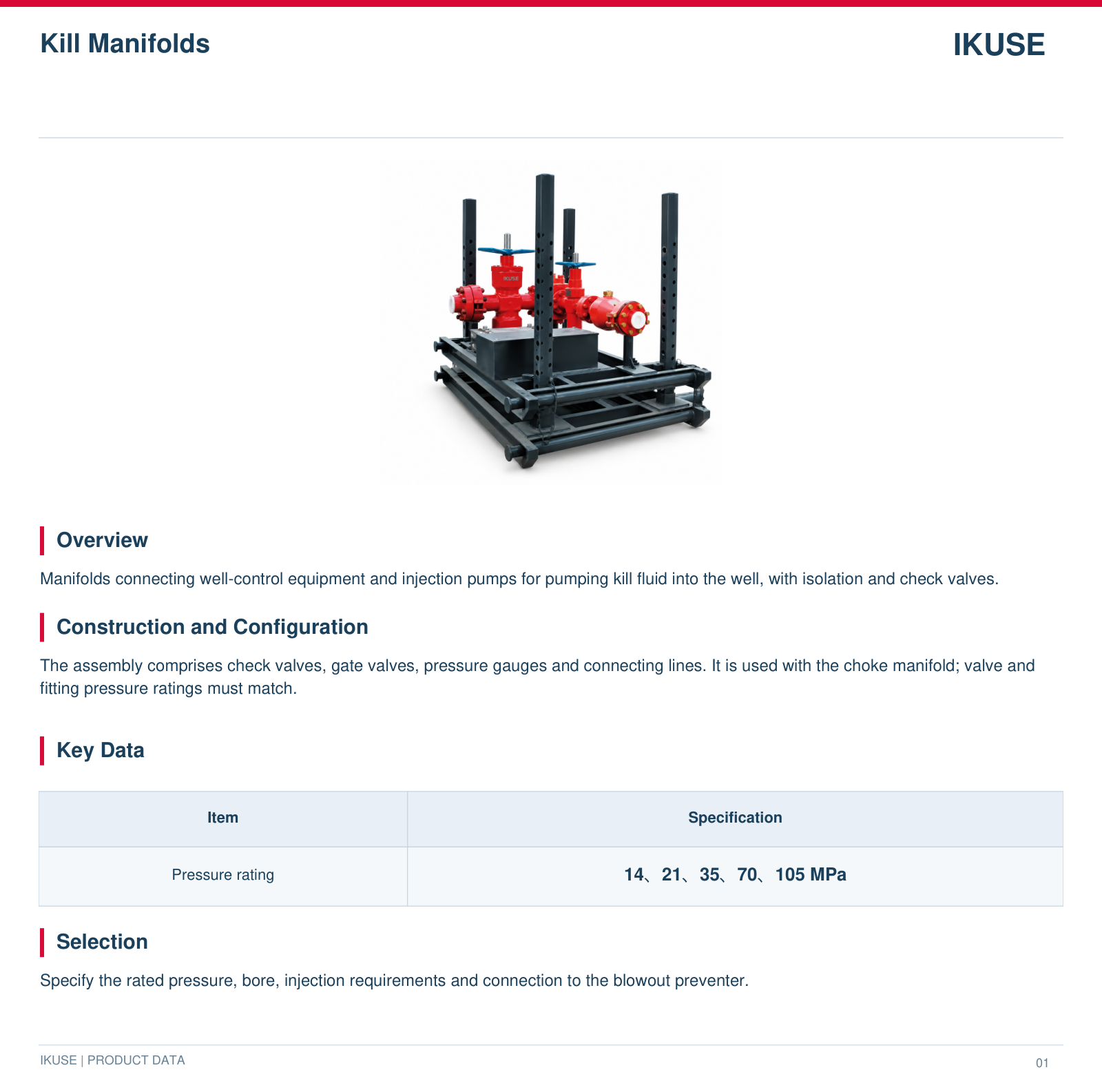

Overview
Manifolds connecting well-control equipment and injection pumps for pumping kill fluid into the well, with isolation and check valves.
Construction and Configuration
The assembly comprises check valves, gate valves, pressure gauges and connecting lines. It is used with the choke manifold; valve and fitting pressure ratings must match.
Selection
Specify the rated pressure, bore, injection requirements and connection to the blowout preventer.
Technical Documentation
Model specifications, construction and selection information are provided in the technical sheets and PDF. Product images illustrate appearance. Check connection and installation dimensions for the selected model. To download the PDF, open the Download Center, select Petroleum Equipment and find the product by name.
