IKUSE Choke Manifold Control Console
IKUSE Choke Manifold Control Console image 1
IKUSE Choke Manifold Control Console image 2
Manifolds and Wellhead Equipment

IKUSE Choke Manifold Control Console

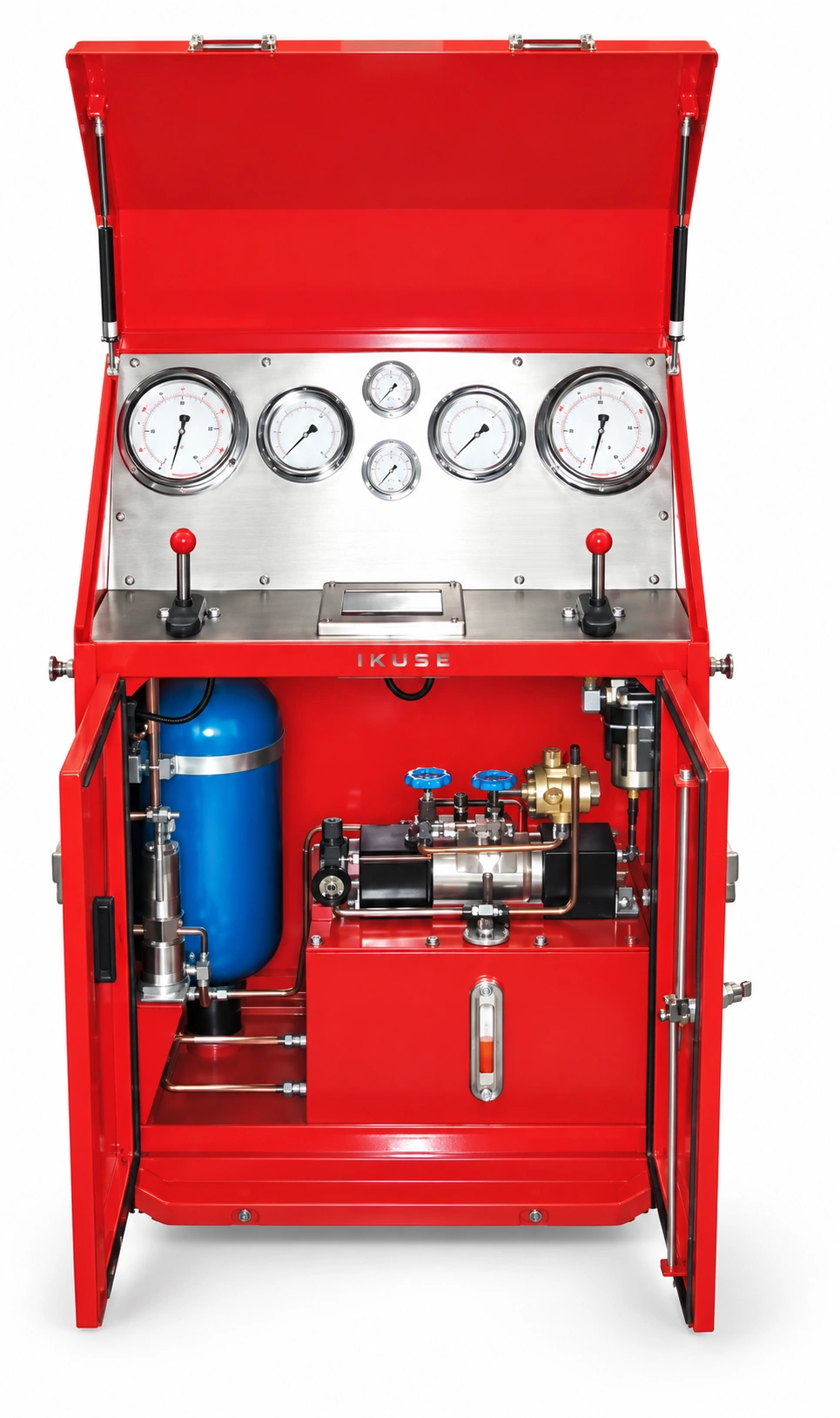

Remote operating console for hydraulically actuated chokes, with pressure and valve-position indication.

Petroleum Equipment Manifolds and Wellhead Equipment IKUSE
Price Price on request Submit requirements for a customized quote
Net weight 300 kg
Working pressure 3 MPa
Overall dimensions 960×600×1300 mm
Air supply pressure 0.6 MPa
Ambient temperature −20–60 °C
Phone Consultation
Service Hotline +86 156 1819 0516

Technical Parameters

Technical Specifications

Net weight 300 kg
Working pressure 3 MPa
Overall dimensions 960×600×1300 mm
Air supply pressure 0.6 MPa
Ambient temperature −20–60 °C

Product Details

Product Details

Overview

Remote operating console for hydraulically actuated chokes, with pressure and valve-position indication.

Construction and Configuration

Air-line quick connections are M16×1.5 and hydraulic-line quick connections are M22×1.5. Pump-stroke counters and indicators are configured to suit the system requirements.

Selection

Check the compatibility of the actuator, hydraulic control circuit, air supply and indication signals.

Technical Documentation

Model specifications, construction and selection information are provided in the technical sheets and PDF. Product images illustrate appearance. Check connection and installation dimensions for the selected model. To download the PDF, open the Download Center, select Petroleum Equipment and find the product by name.

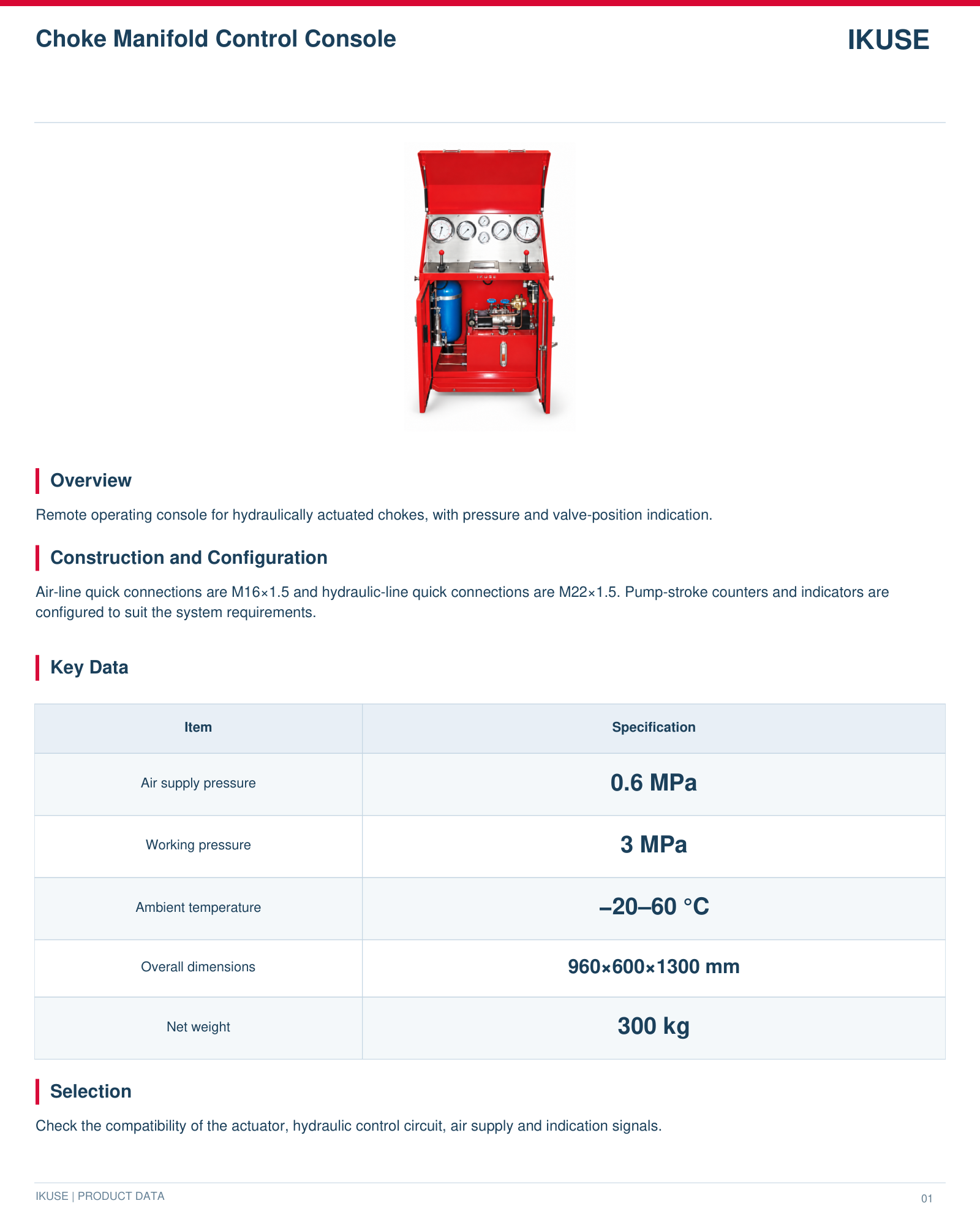

Choke Manifold Control Console — Technical Data 1
