Overview
Pins fitted into corresponding holes in the coupling halves and outer ring transmit torque.

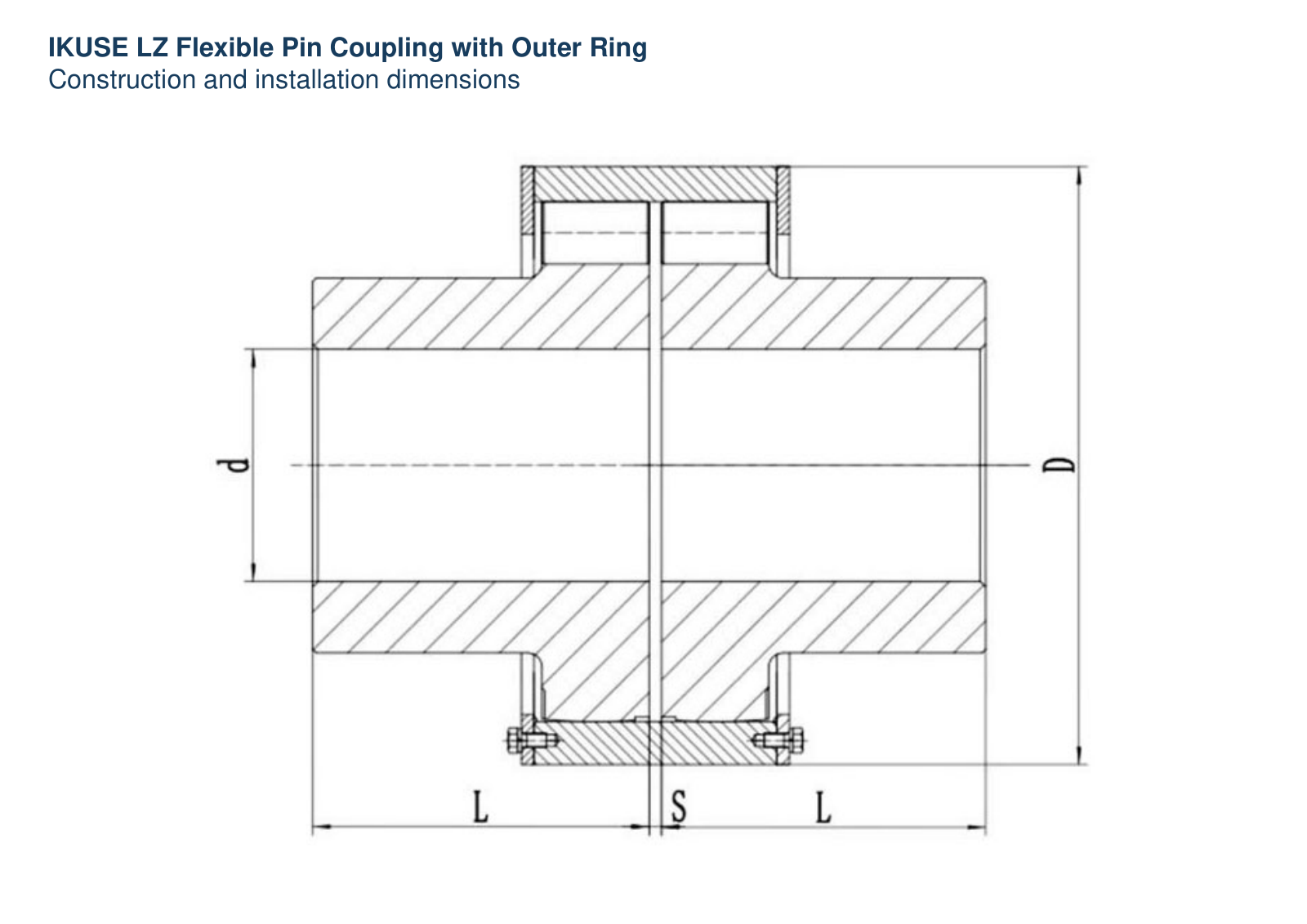

Construction
Compact, lubrication-free construction with replaceable elastic pins. Assess vibration damping for the operating conditions.
Applications
Coaxial drives and general machinery requiring a compact arrangement.

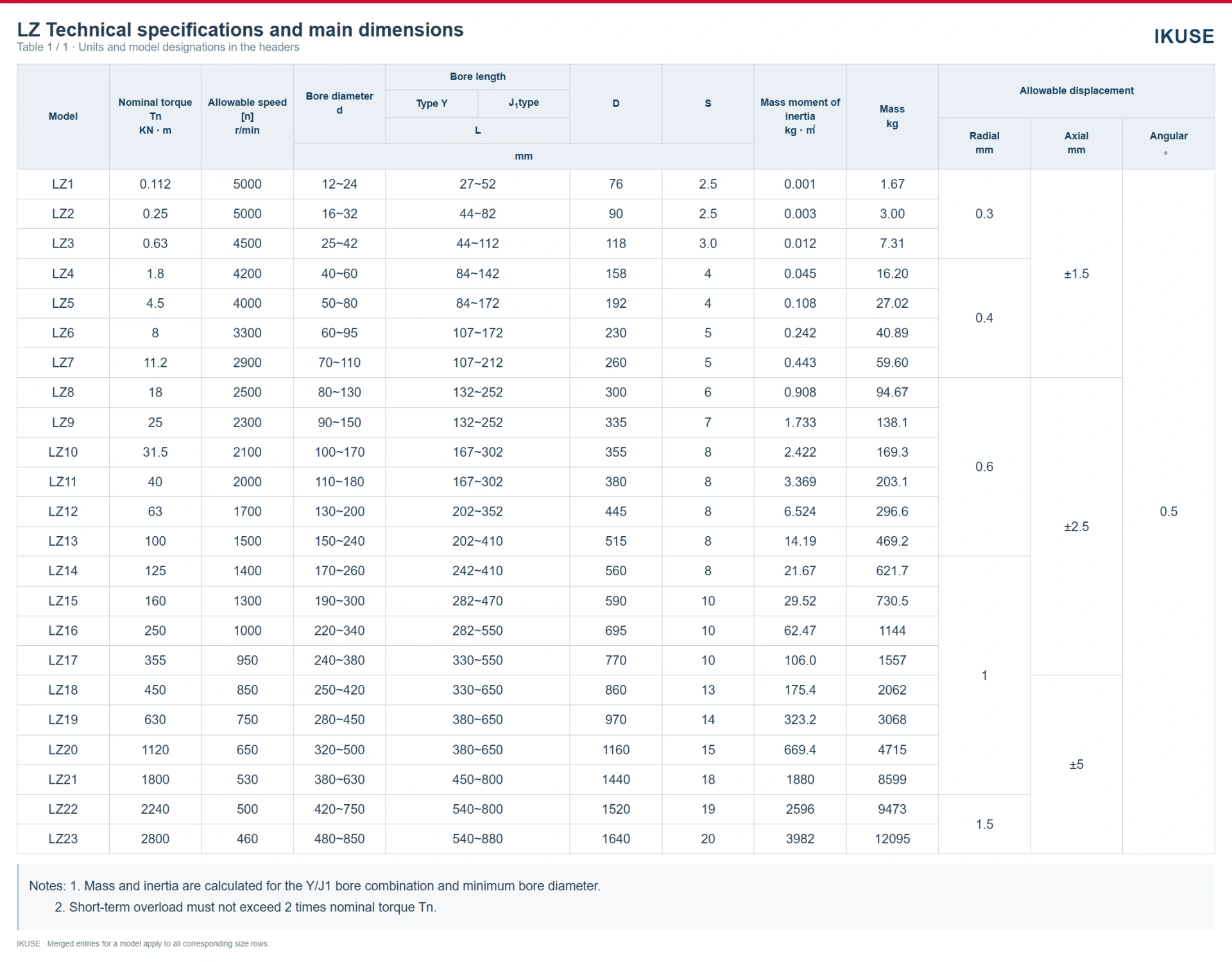

Selection
Operating temperature −20…+70 °C. Check transient overload and permissible pin loading for the selected size.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
