Overview
Non-metallic elastic pins connect the flanges, transmit torque and accommodate specified shaft displacements.

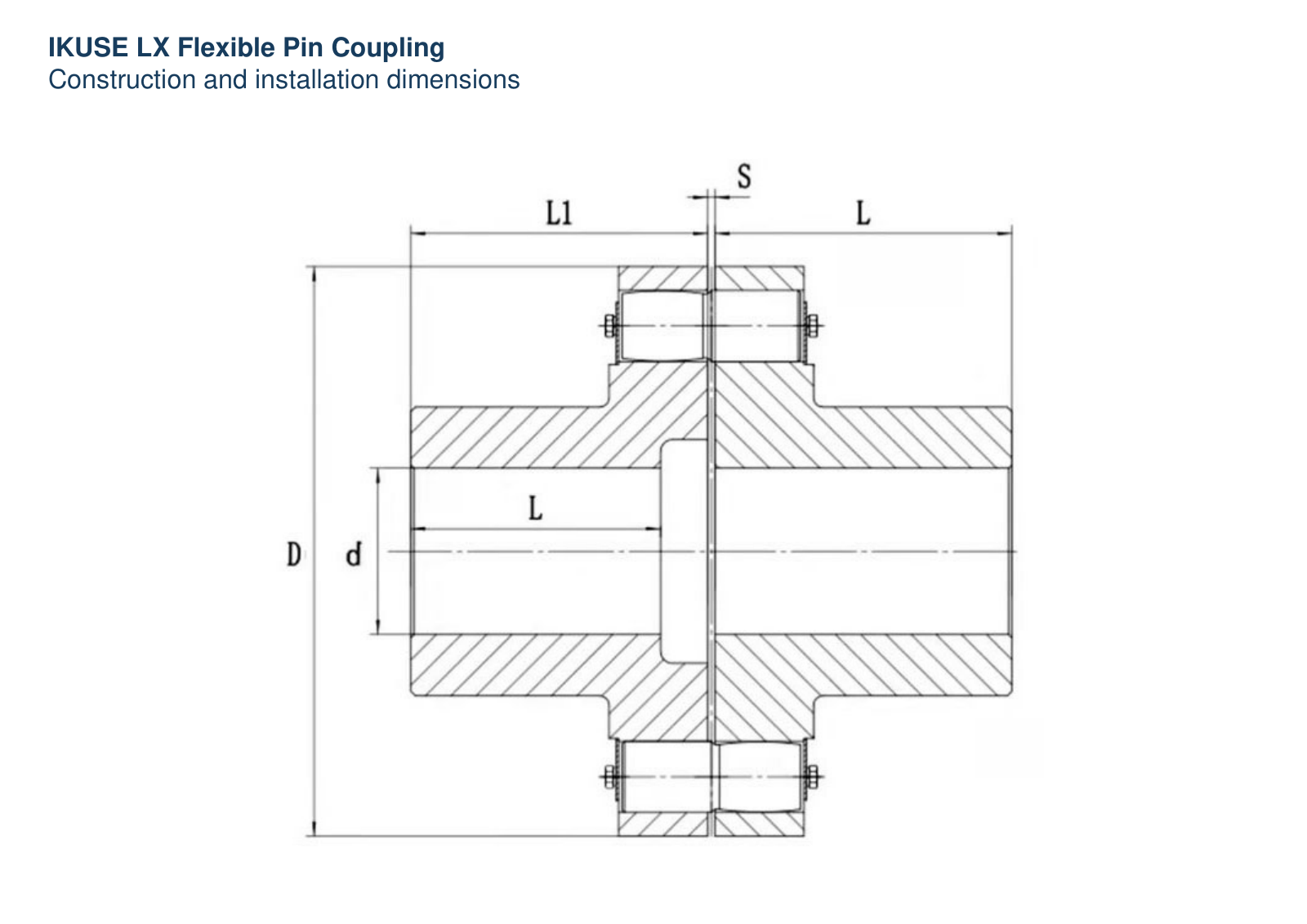

Construction
Replaceable pins and simple construction cushion normal shocks and vibration.
Applications
General industrial drives between two nominally coaxial shafts.

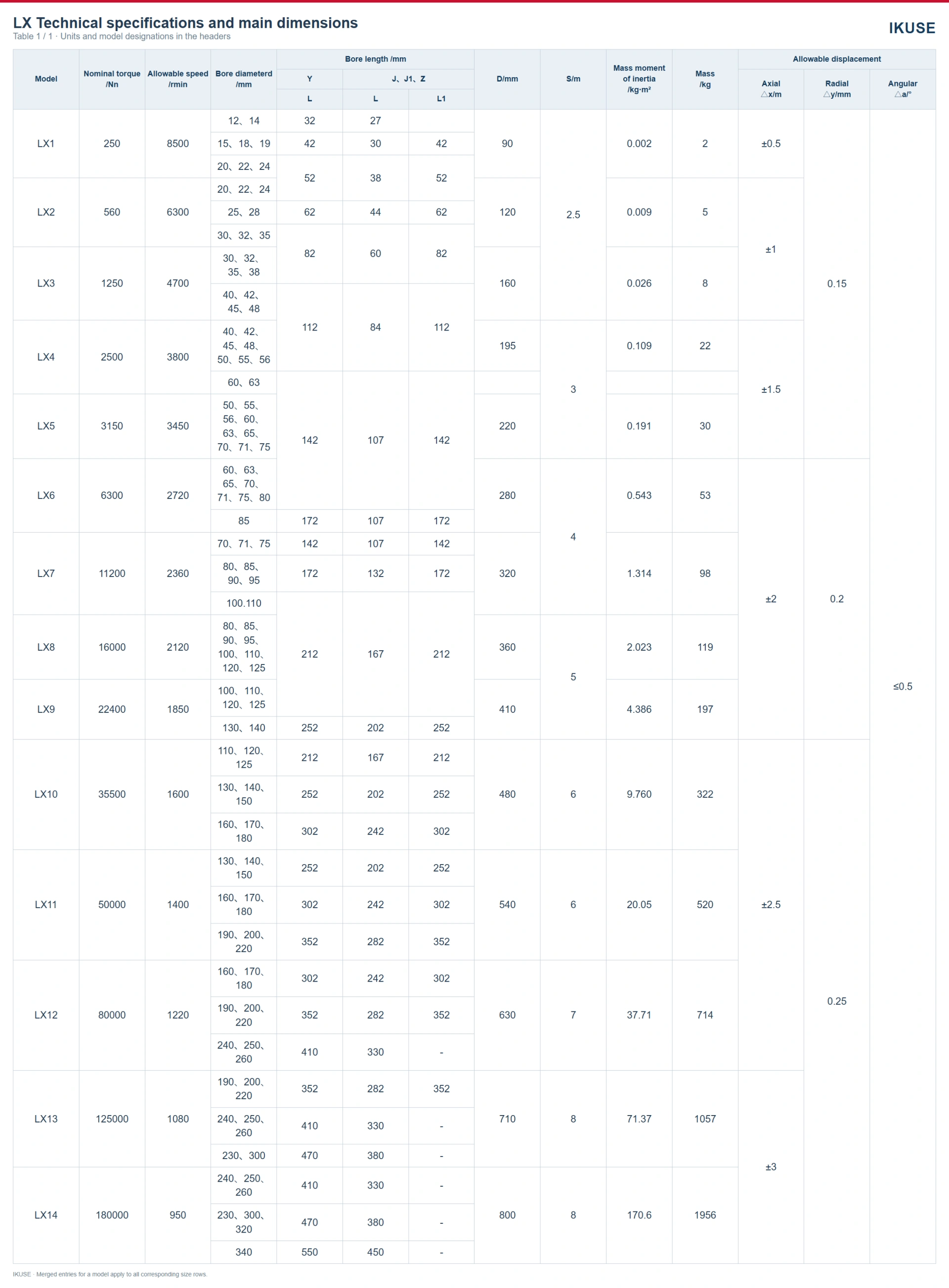

Selection
Operating temperature −20…+70 °C. Confirm bores, shaft ends and pin material for the operating conditions.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
