Product overview
Wear parts forming the working surfaces of the fixed and moving jaws. Tooth profile, pitch, plate contour and rear fixing structure must match the crushing chamber and feed conditions.
Design and configuration
Identify fixed or moving position, one-piece or segmented construction, and the part numbers and direction of each segment. Tooth geometry and the matching plate are part of the complete chamber arrangement.
Operating conditions and installation
Check back support, location and clamping interfaces against the machine drawings. Similar length, width, weight or tooth appearance does not establish interchangeability. Consider feed properties and discharge requirements.
Inspection and maintenance
Separate working-face wear from sudden fracture and damage at mounting interfaces. Record the installation position, operating period, feed changes and condition of the matching parts; follow the equipment maintenance requirements.
Information for enquiries
Provide crusher model, jaw position, full drawings, tooth profile and pitch, segment arrangement, fixing details, part numbers and quantities. Include feed size, material properties and records of the existing plates.

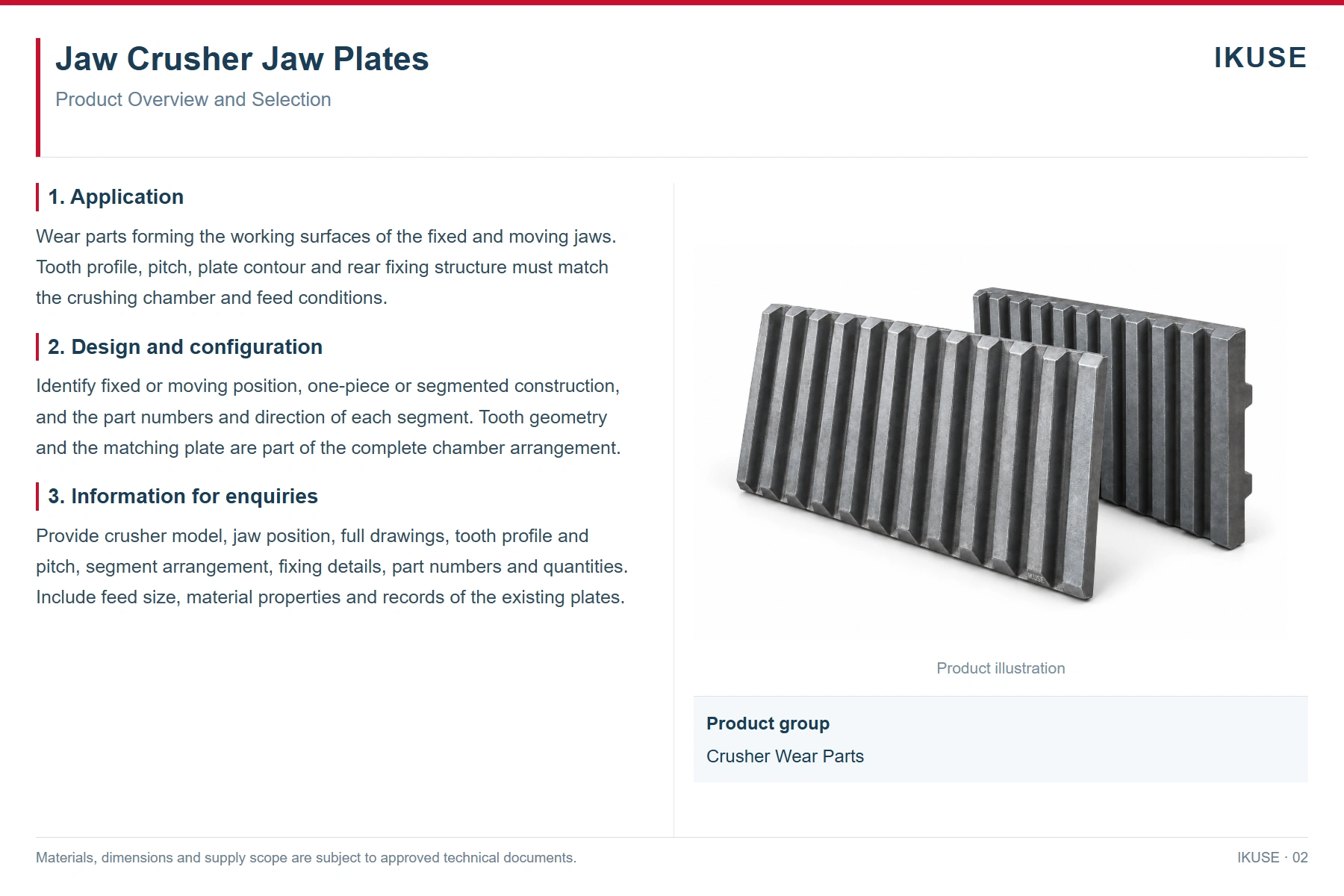

Product illustration
Illustrations show typical structural arrangements. Materials, dimensions, interfaces and supply scope are subject to the approved drawings and technical documents.
