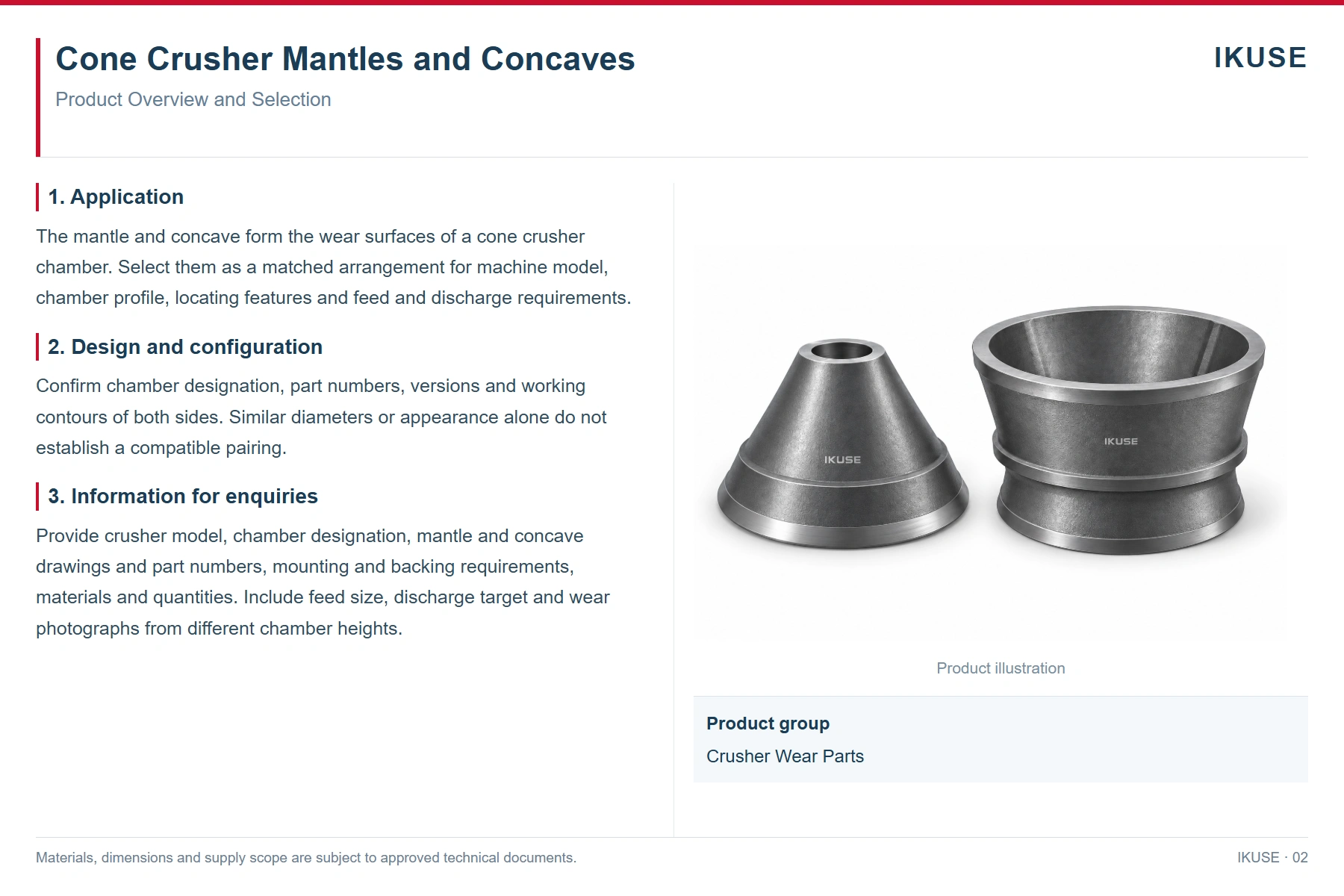

Product overview
The mantle and concave form the wear surfaces of a cone crusher chamber. Select them as a matched arrangement for machine model, chamber profile, locating features and feed and discharge requirements.
Design and configuration
Confirm chamber designation, part numbers, versions and working contours of both sides. Similar diameters or appearance alone do not establish a compatible pairing.
Operating conditions and installation
Locating surfaces, support, locking interfaces and any backing-compound requirements must follow the equipment documents. Review both liners and surrounding components as a complete assembly.
Inspection and maintenance
Separate working-face wear from sudden fracture and damage at mounting interfaces. Record the installation position, operating period, feed changes and condition of the matching parts; follow the equipment maintenance requirements.
Information for enquiries
Provide crusher model, chamber designation, mantle and concave drawings and part numbers, mounting and backing requirements, materials and quantities. Include feed size, discharge target and wear photographs from different chamber heights.

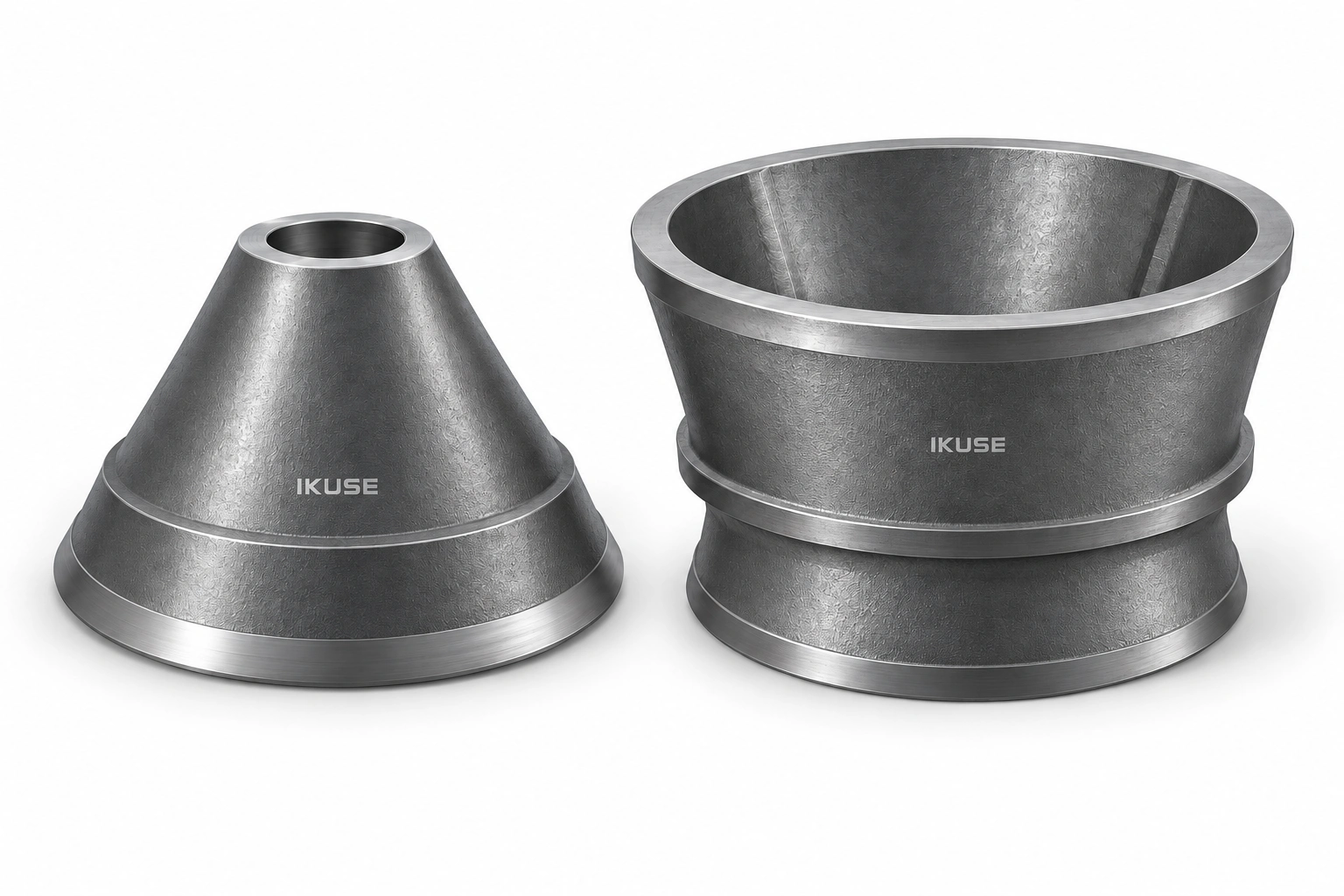

Product illustration
Illustrations show typical structural arrangements. Materials, dimensions, interfaces and supply scope are subject to the approved drawings and technical documents.
