IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Jacketed Valves

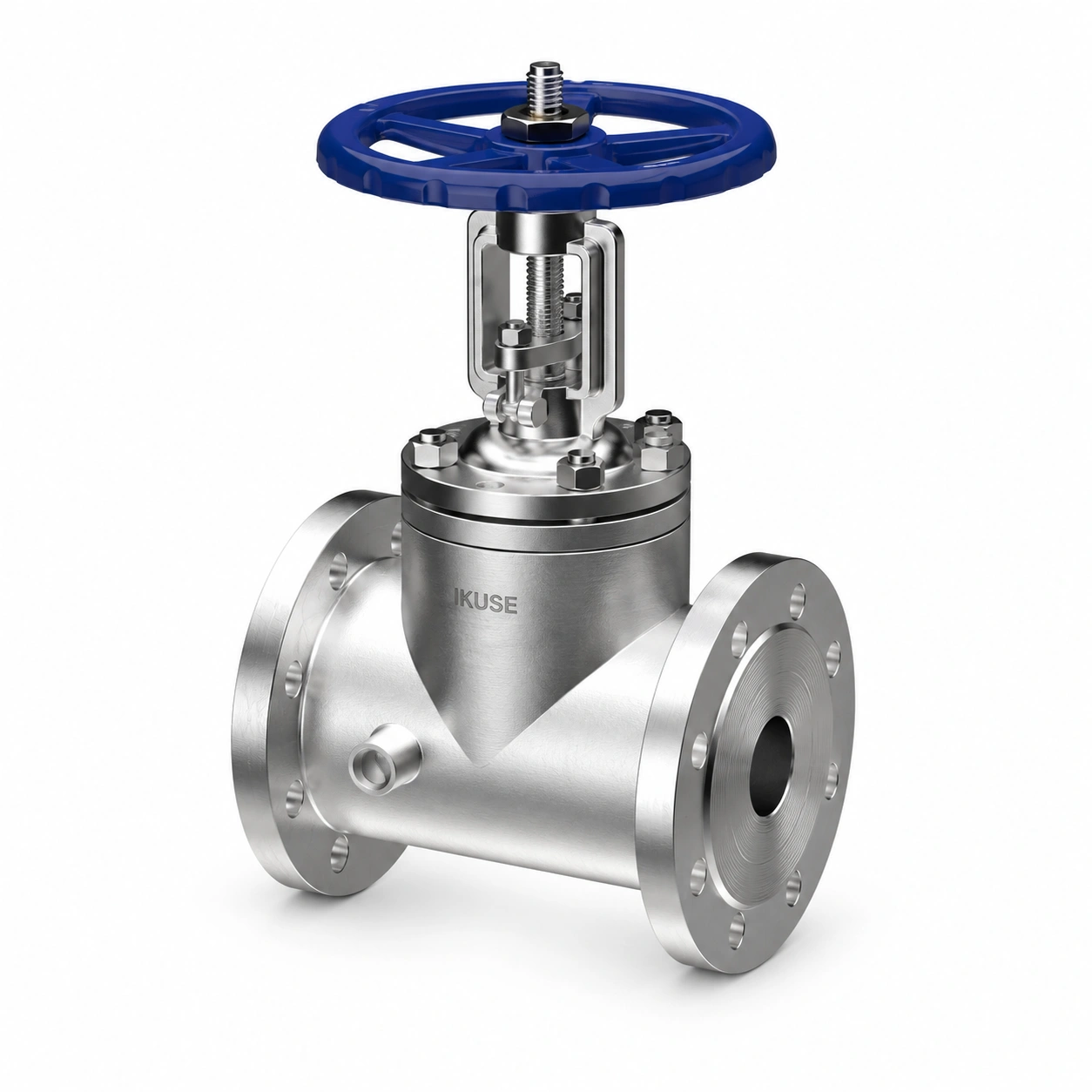

IKUSE Jacketed Gate Valve

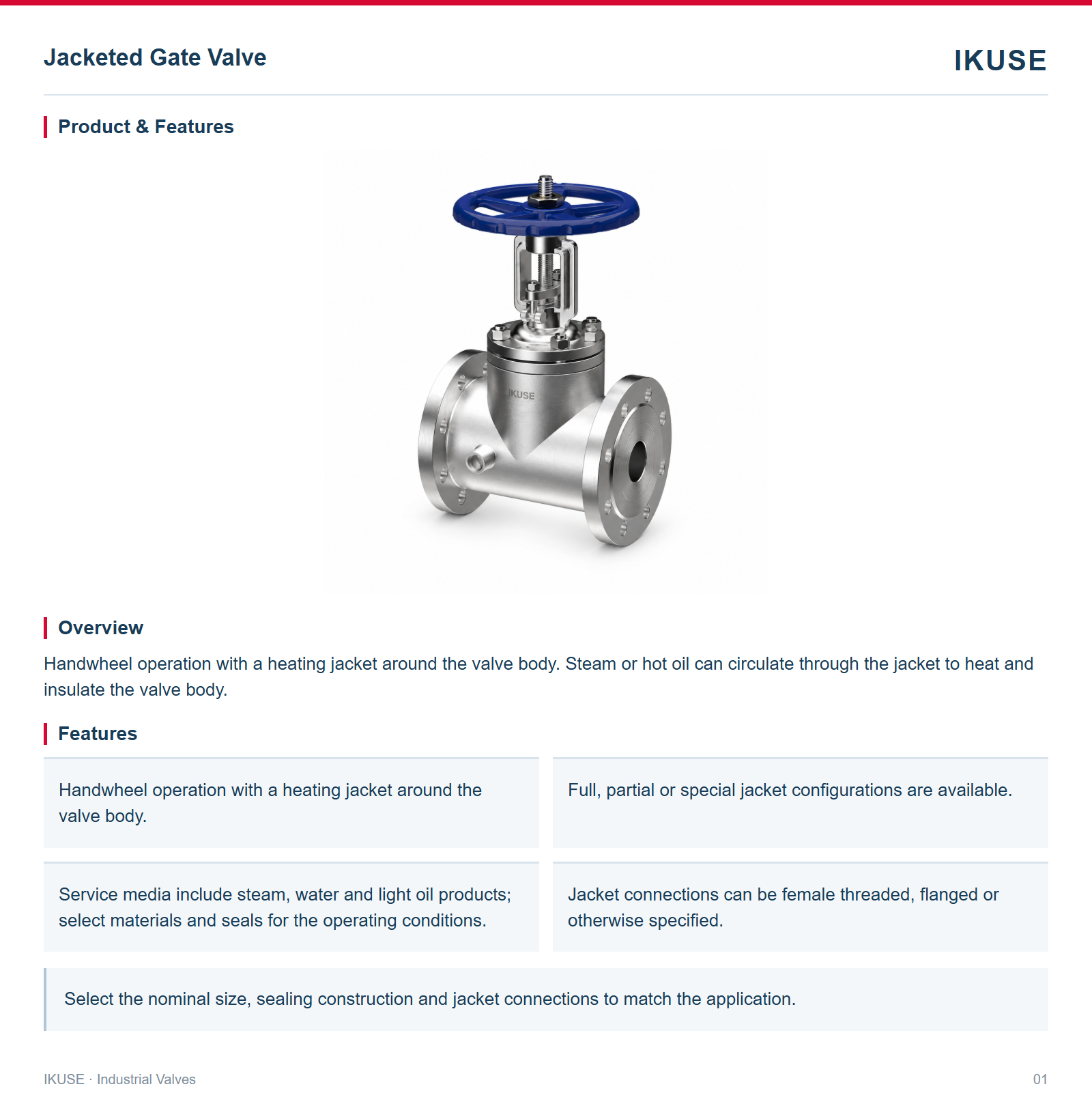

Handwheel operation with a heating jacket around the valve body. Steam or hot oil can circulate through the jacket to heat and insulate the valve body.
Price
Price on request
Submit requirements for a customized quote
PN
1.6 MPa
Seal
STL
Size
DN15–200
Brand
IKUSE
Body material
304 / 316L
Service Hotline
+86 156 1819 0516

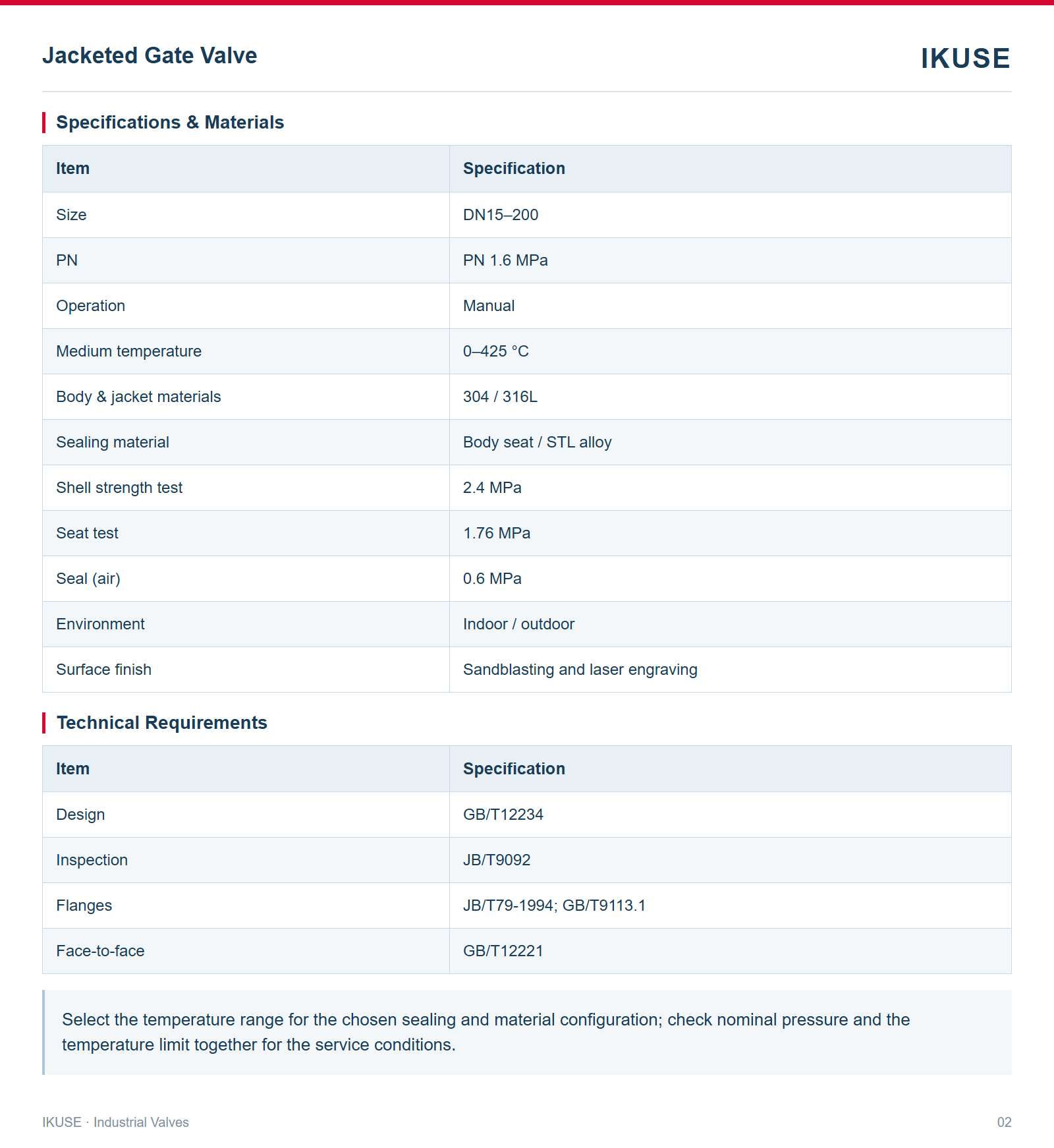

Technical Parameters
Technical Specifications
| PN | 1.6 MPa |
| Seal | STL |
| Size | DN15–200 |
| Brand | IKUSE |
| Body material | 304 / 316L |
Product Details
Product Details
