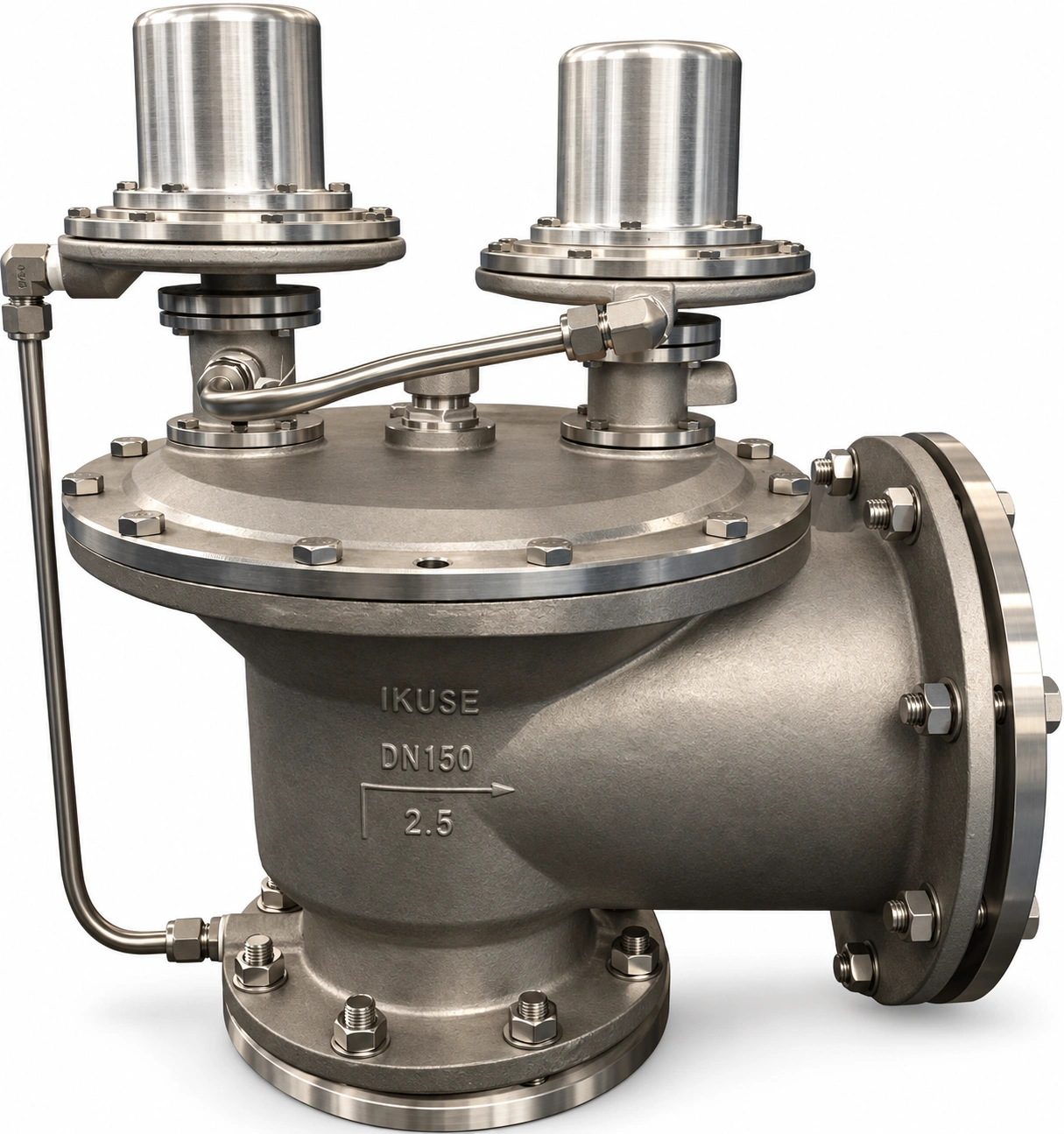

IKUSE Pilot-operated Pressure Vent Valve · DA49L-2.5P · DN100–250
IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Safety & Breather Valves
IKUSE Pilot-operated Pressure Vent Valve · DA49L-2.5P · DN100–250
Model: DA49L-2.5P; Size: DN100–250; PN: 0.25 MPa; Temperature: −196°C～+80°C; Body: CF8; Opening pressure: 11–60 kPa; Connection: Flanged, JB/T81–94.
Price
Price on request
Submit requirements for a customized quote
PN
0.25 MPa
Body
CF8
Size
DN100–250
Model
DA49L-2.5P
Connection
Flanged, JB/T81–94
Temperature
−196°C～+80°C
Service Hotline
+86 156 1819 0516

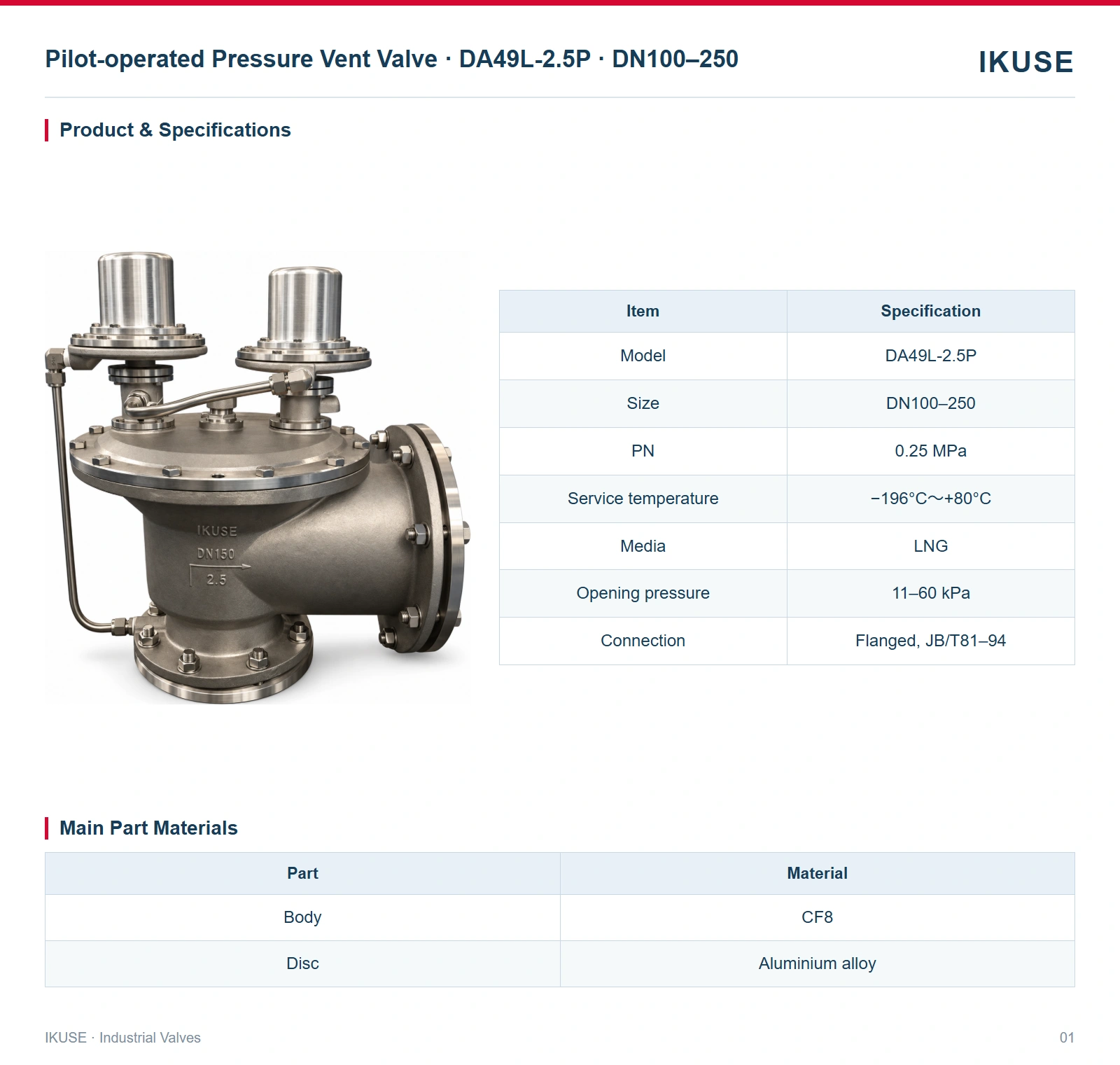

Technical Parameters
Technical Specifications
| PN | 0.25 MPa |
| Body | CF8 |
| Size | DN100–250 |
| Model | DA49L-2.5P |
| Connection | Flanged, JB/T81–94 |
| Temperature | −196°C～+80°C |
| Opening pressure | 11–60 kPa |
