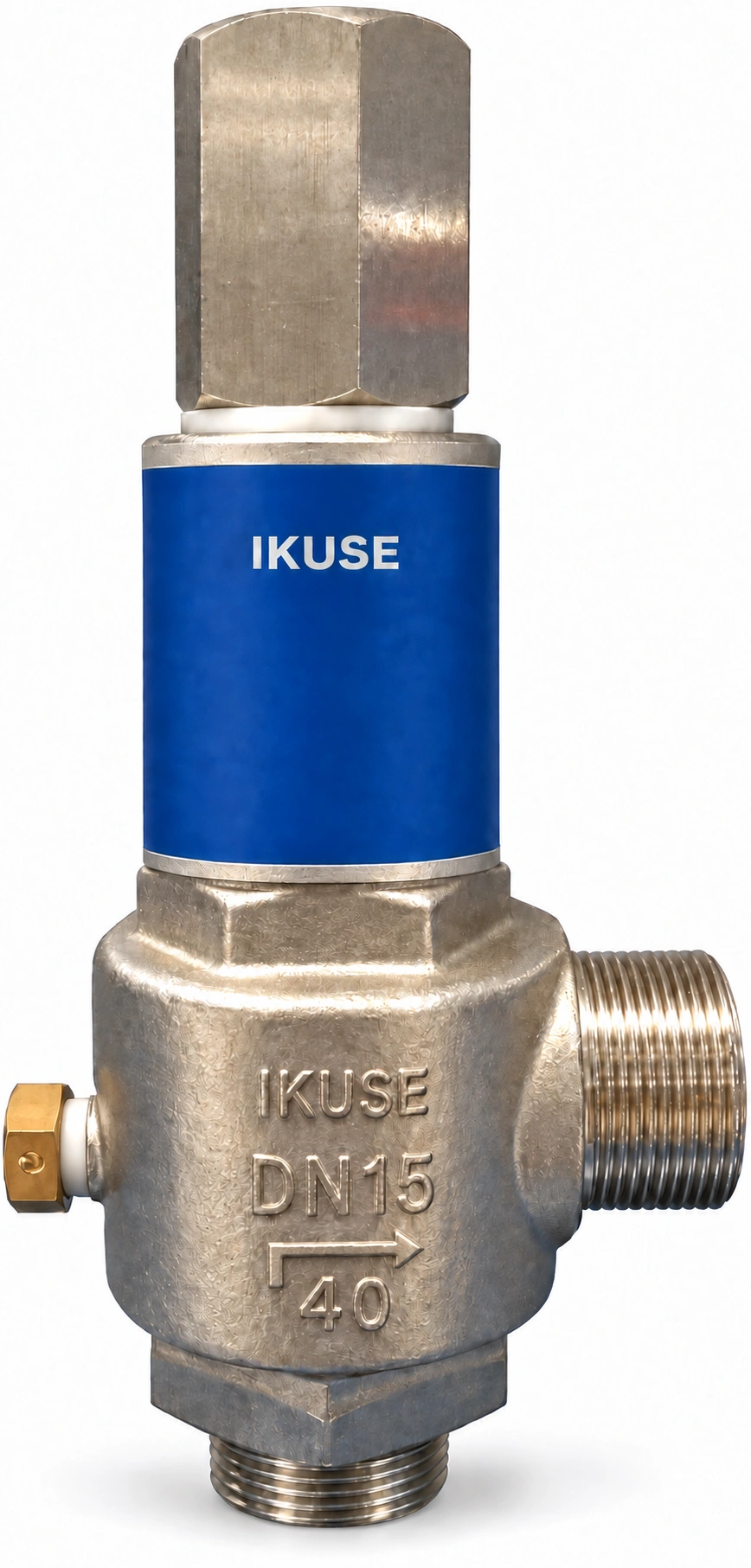

IKUSE Cryogenic Full-lift Safety Valve · DA22Y-40P · DN10–25
IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Safety & Breather Valves
IKUSE Cryogenic Full-lift Safety Valve · DA22Y-40P · DN10–25

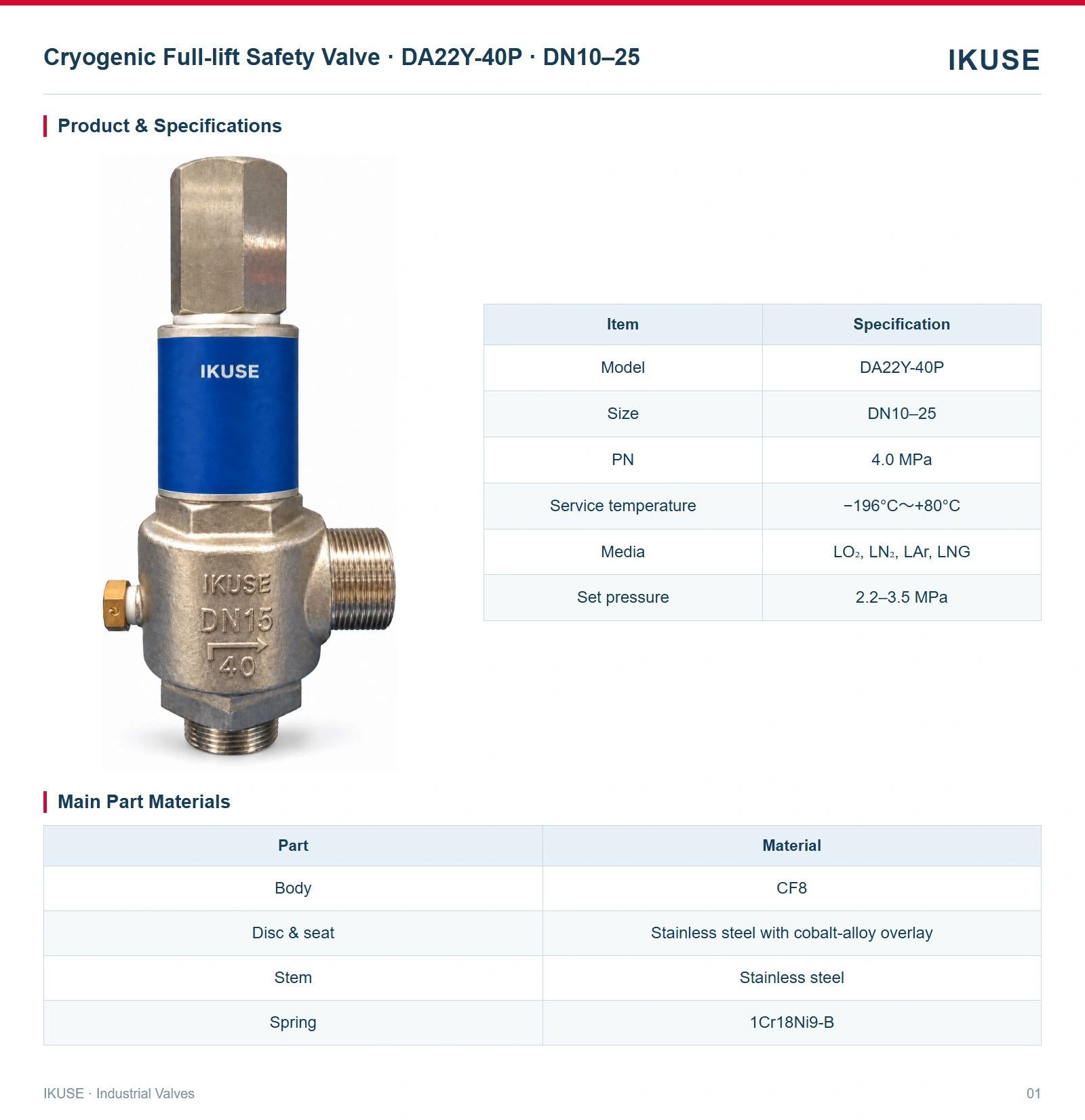

Model: DA22Y-40P; Size: DN10–25; PN: 4.0 MPa; Temperature: −196°C～+80°C; Body: CF8; Set pressure: 2.2–3.5 MPa.
Price
Price on request
Submit requirements for a customized quote
PN
4.0 MPa
Body
CF8
Size
DN10–25
Model
DA22Y-40P
Temperature
−196°C～+80°C
Set pressure
2.2–3.5 MPa
Service Hotline
+86 156 1819 0516
Technical Parameters
Technical Specifications
| PN | 4.0 MPa |
| Body | CF8 |
| Size | DN10–25 |
| Model | DA22Y-40P |
| Temperature | −196°C～+80°C |
| Set pressure | 2.2–3.5 MPa |
Product Details
Product Details
