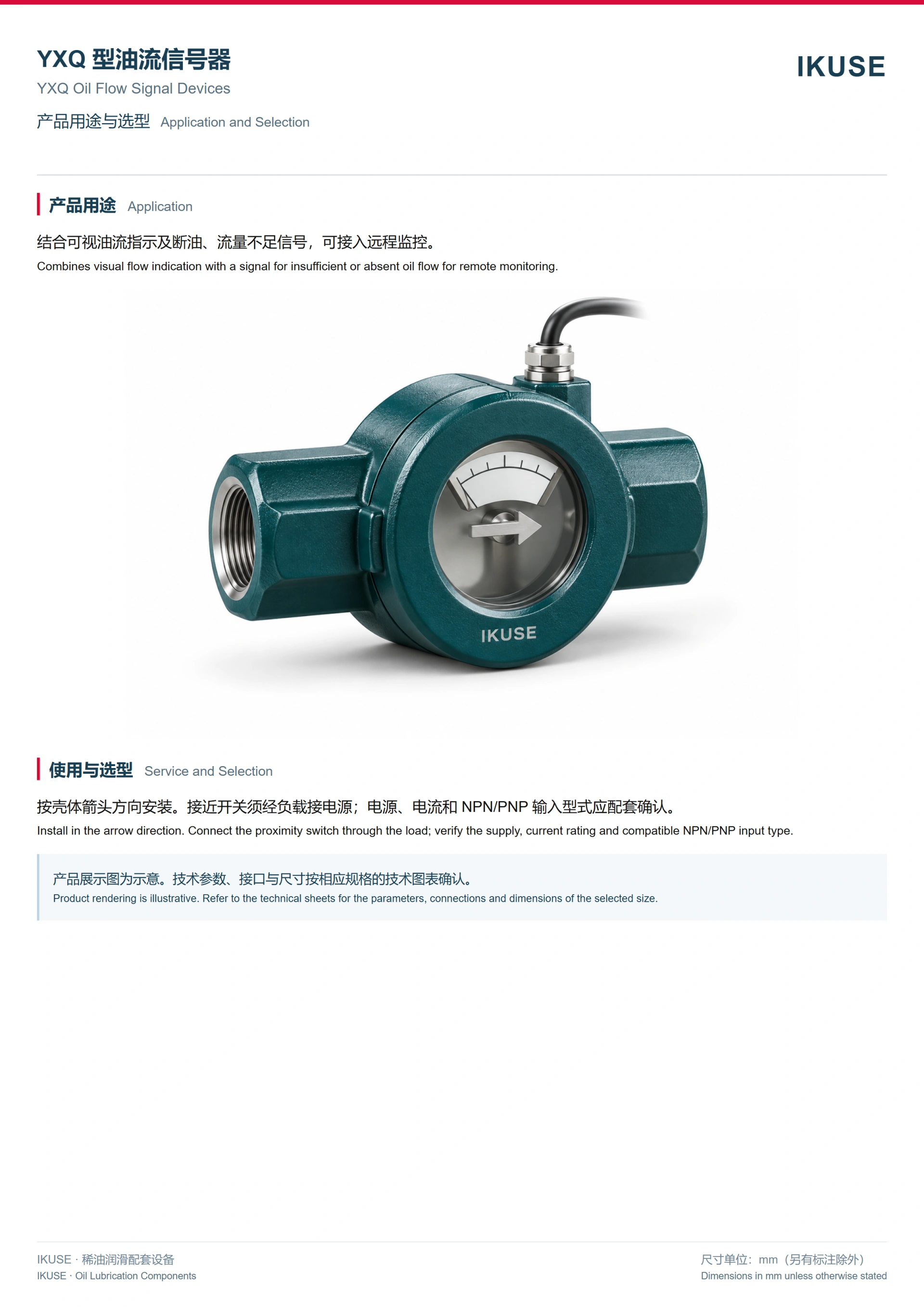

产品概述 / Overview
结合可视油流指示及断油、流量不足信号，可接入远程监控。
Combines visual flow indication with a signal for insufficient or absent oil flow for remote monitoring.
Combines visual flow indication with a signal for insufficient or absent oil flow for remote monitoring.
使用与选型 / Service and Selection
按壳体箭头方向安装。接近开关须经负载接电源；电源、电流和 NPN/PNP 输入型式应配套确认。
Install in the arrow direction. Connect the proximity switch through the load; verify the supply, current rating and compatible NPN/PNP input type.
Install in the arrow direction. Connect the proximity switch through the load; verify the supply, current rating and compatible NPN/PNP input type.

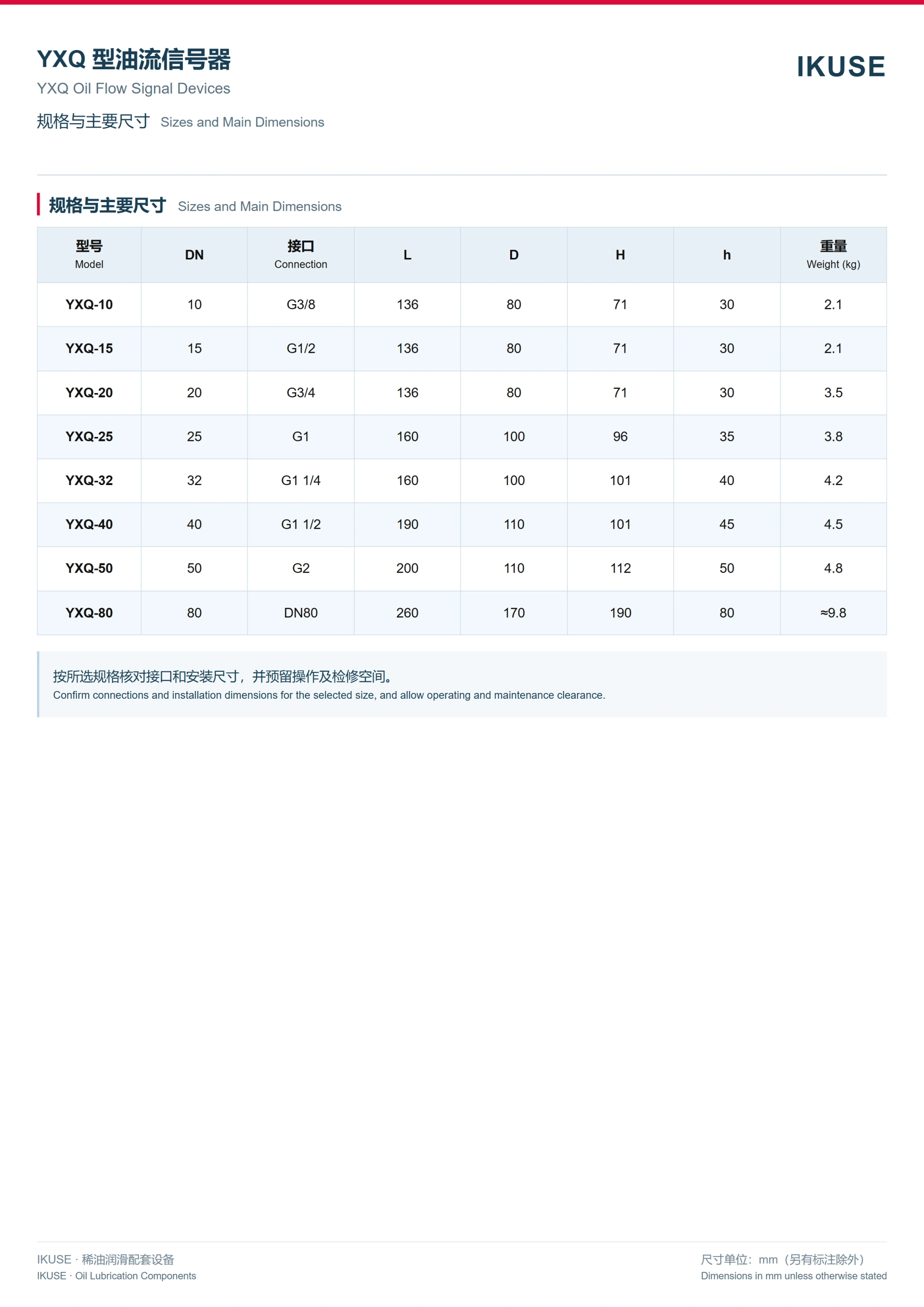

技术资料 / Technical Data

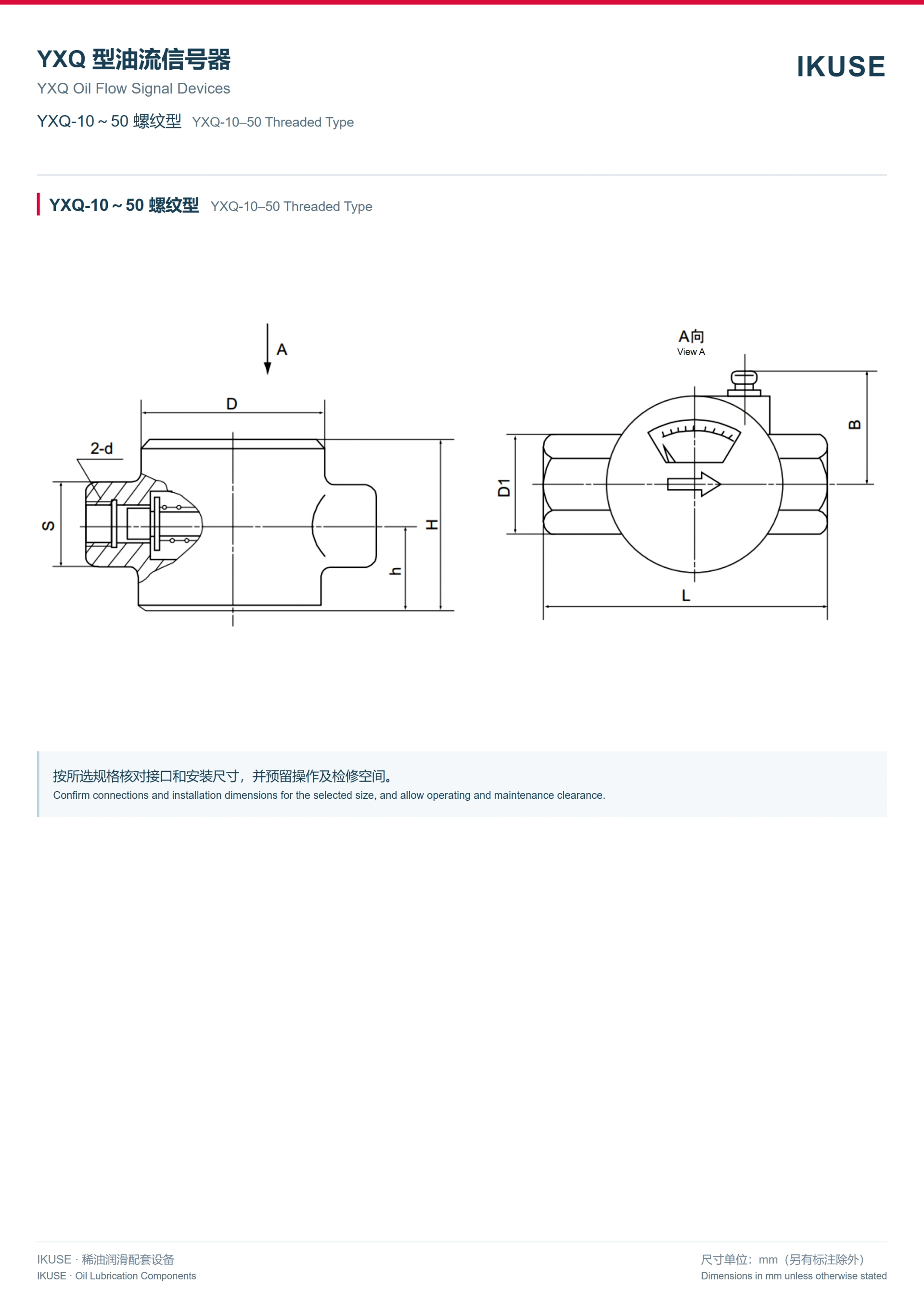

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

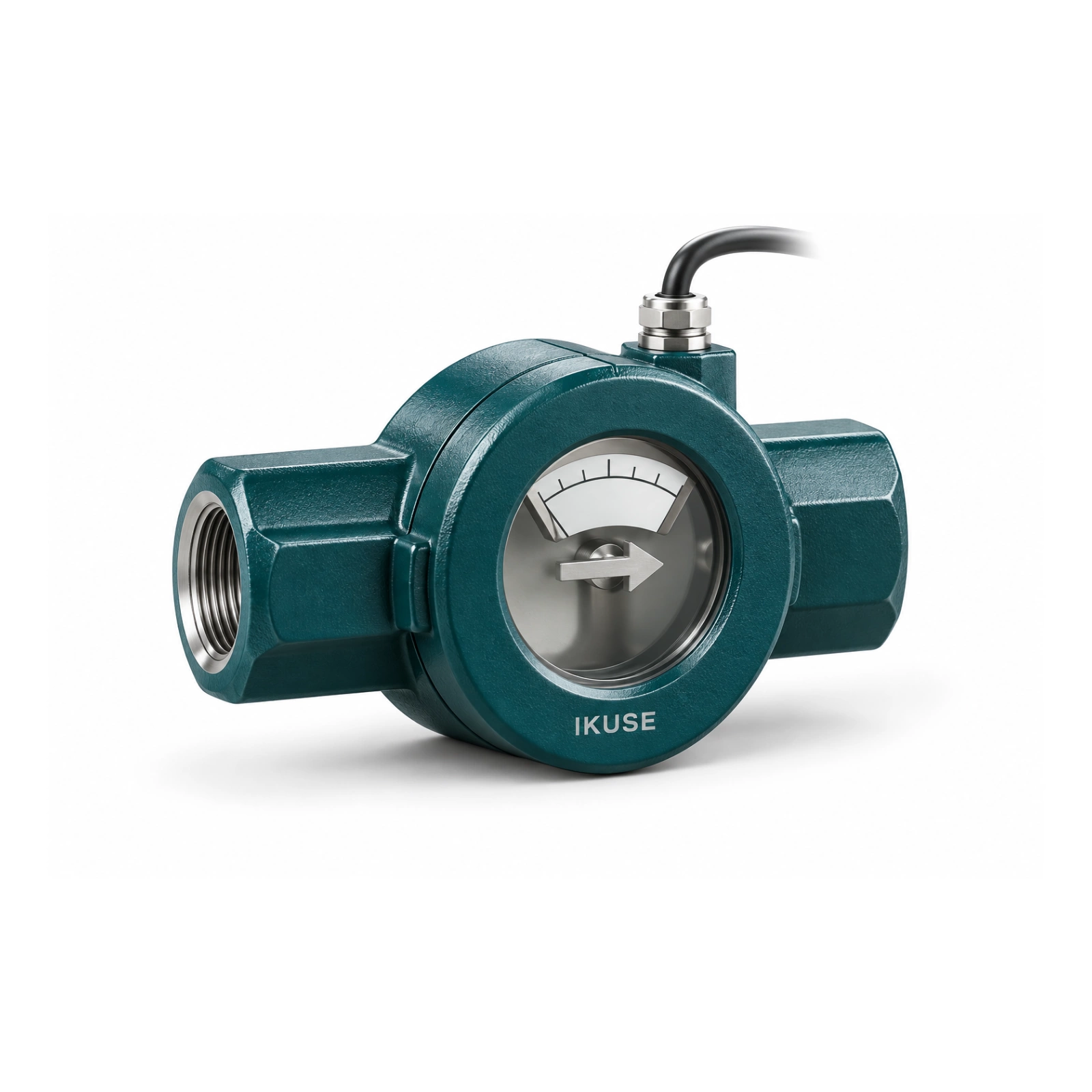

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
