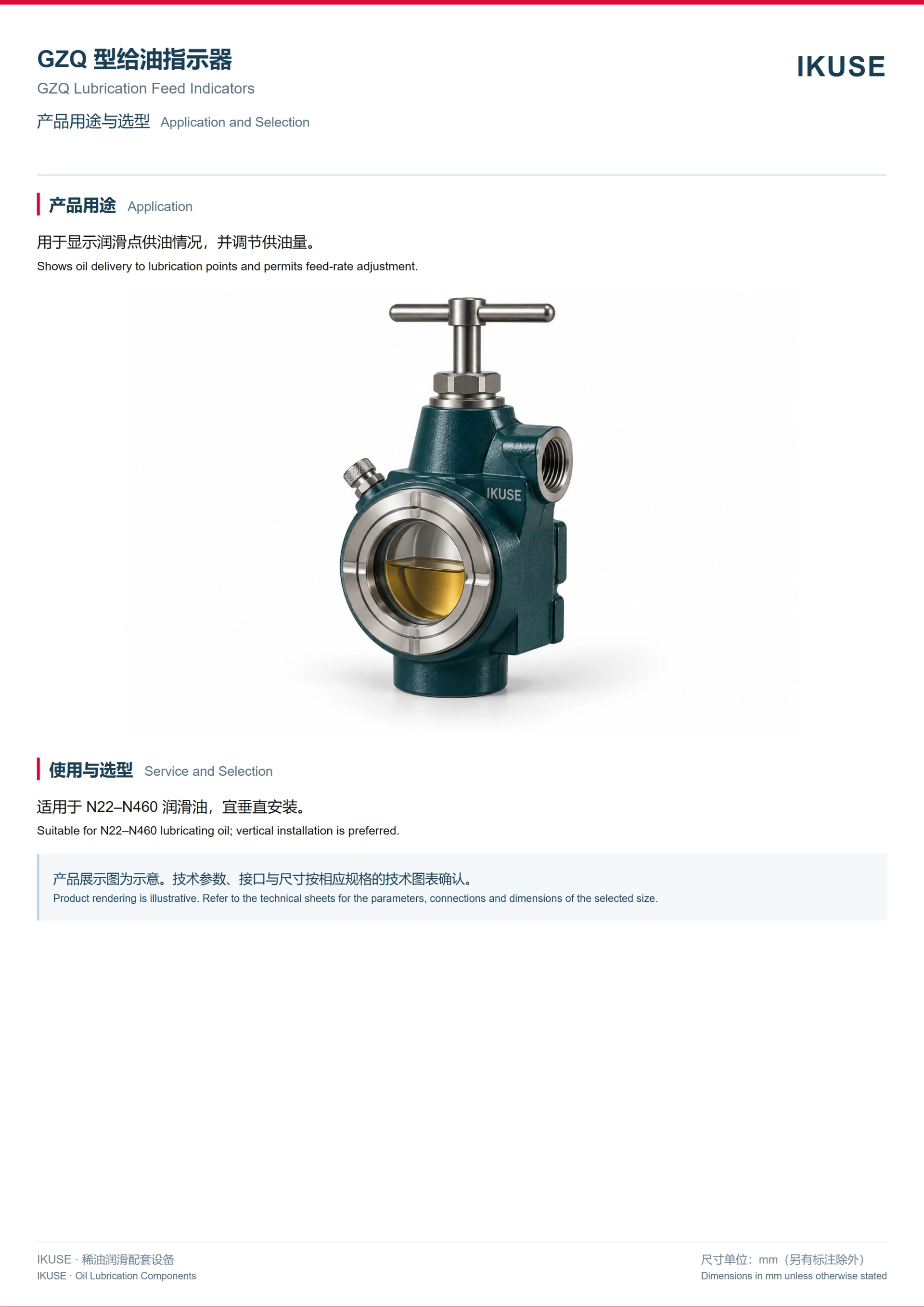

产品概述 / Overview
用于显示润滑点供油情况，并调节供油量。
Shows oil delivery to lubrication points and permits feed-rate adjustment.
Shows oil delivery to lubrication points and permits feed-rate adjustment.
使用与选型 / Service and Selection
适用于 N22–N460 润滑油，宜垂直安装。
Suitable for N22–N460 lubricating oil; vertical installation is preferred.
Suitable for N22–N460 lubricating oil; vertical installation is preferred.
技术资料 / Technical Data

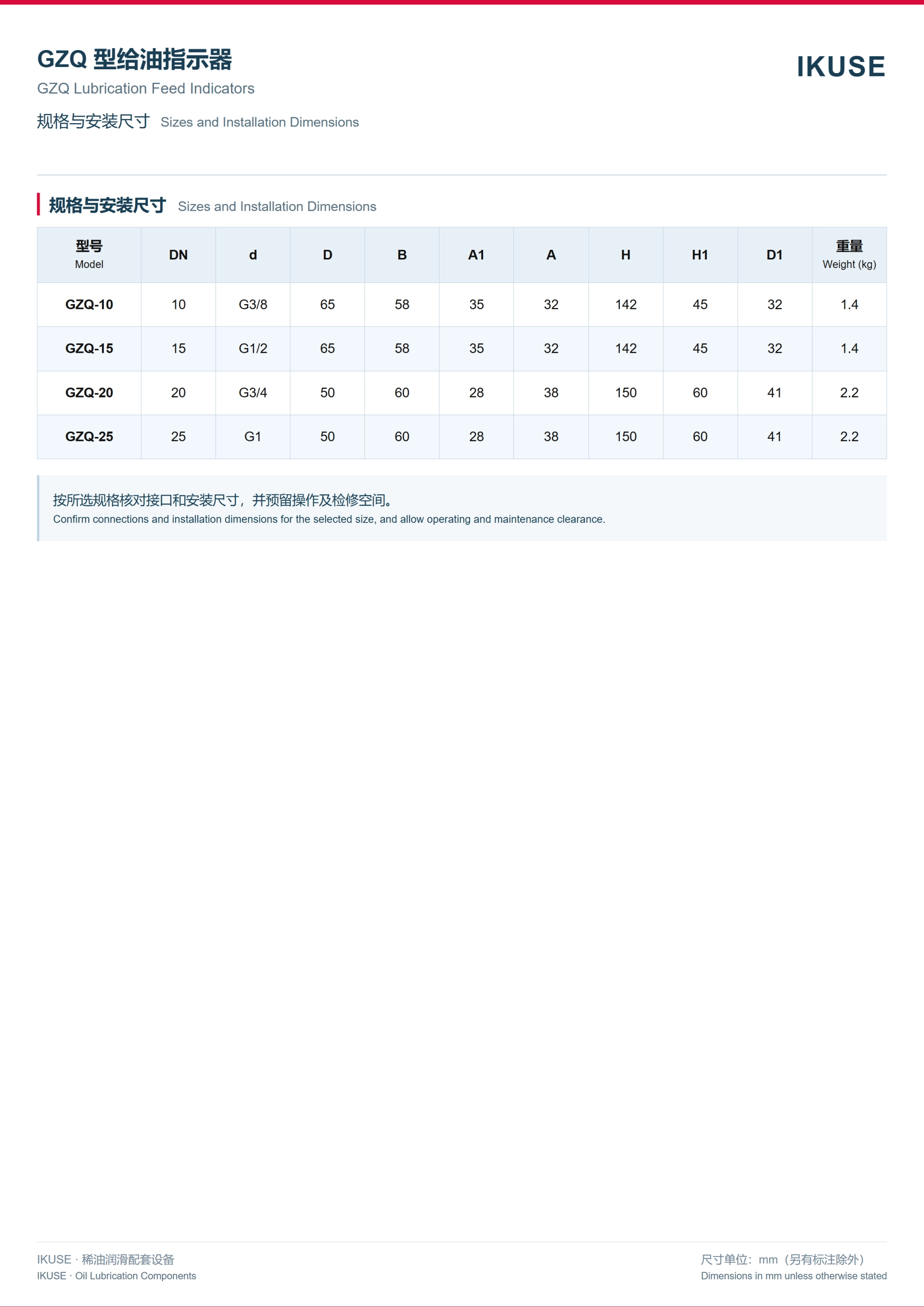

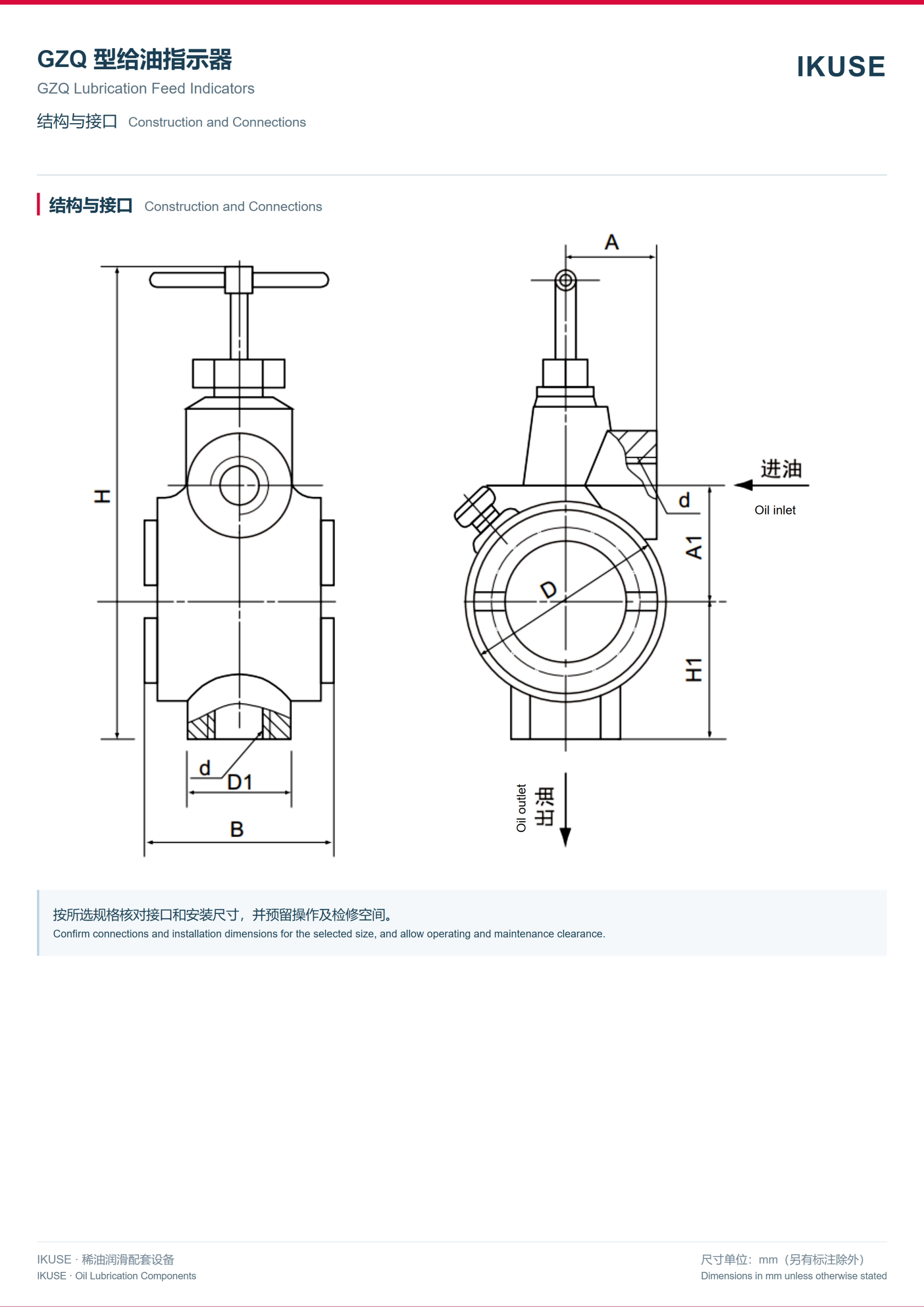

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

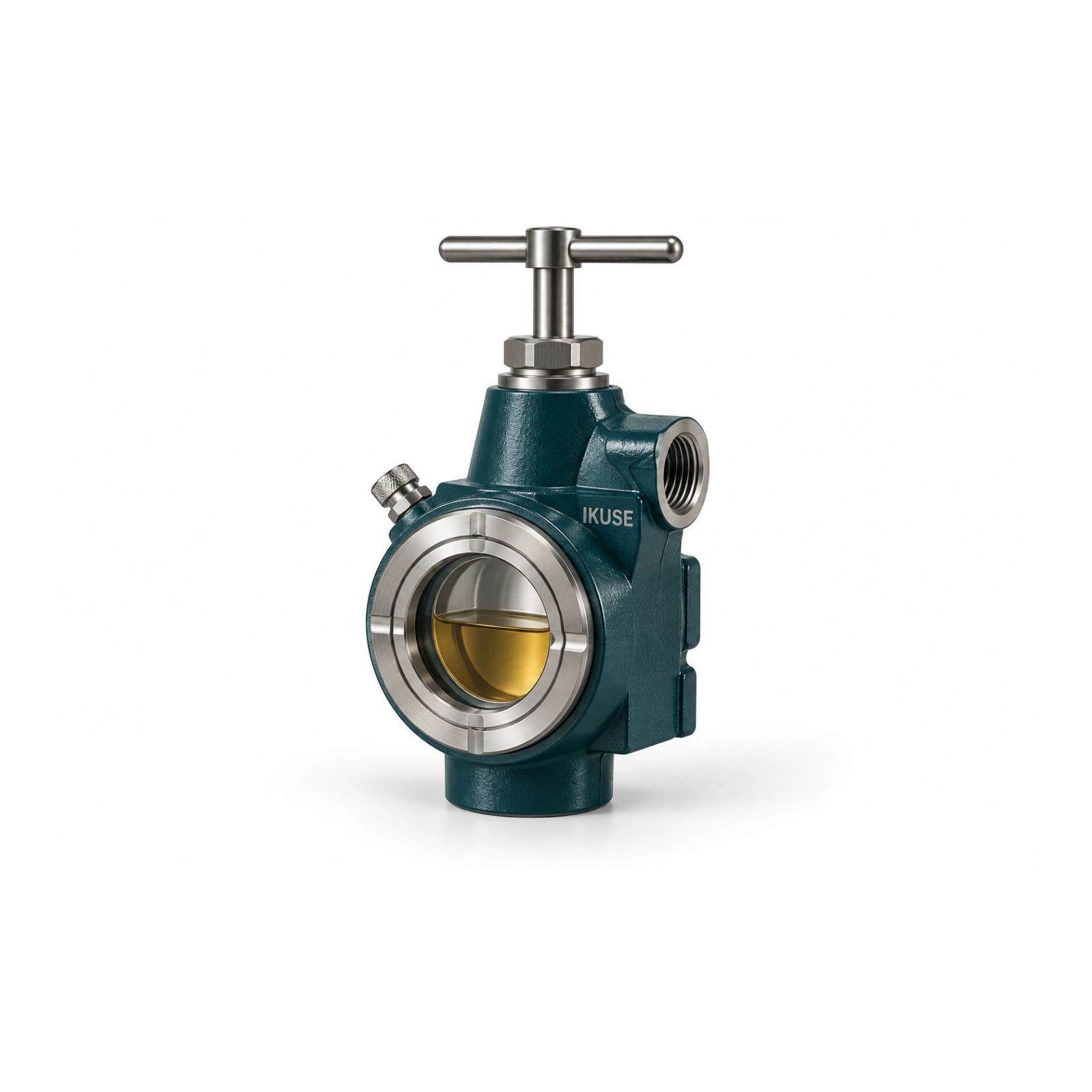

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
