产品概述 / Overview

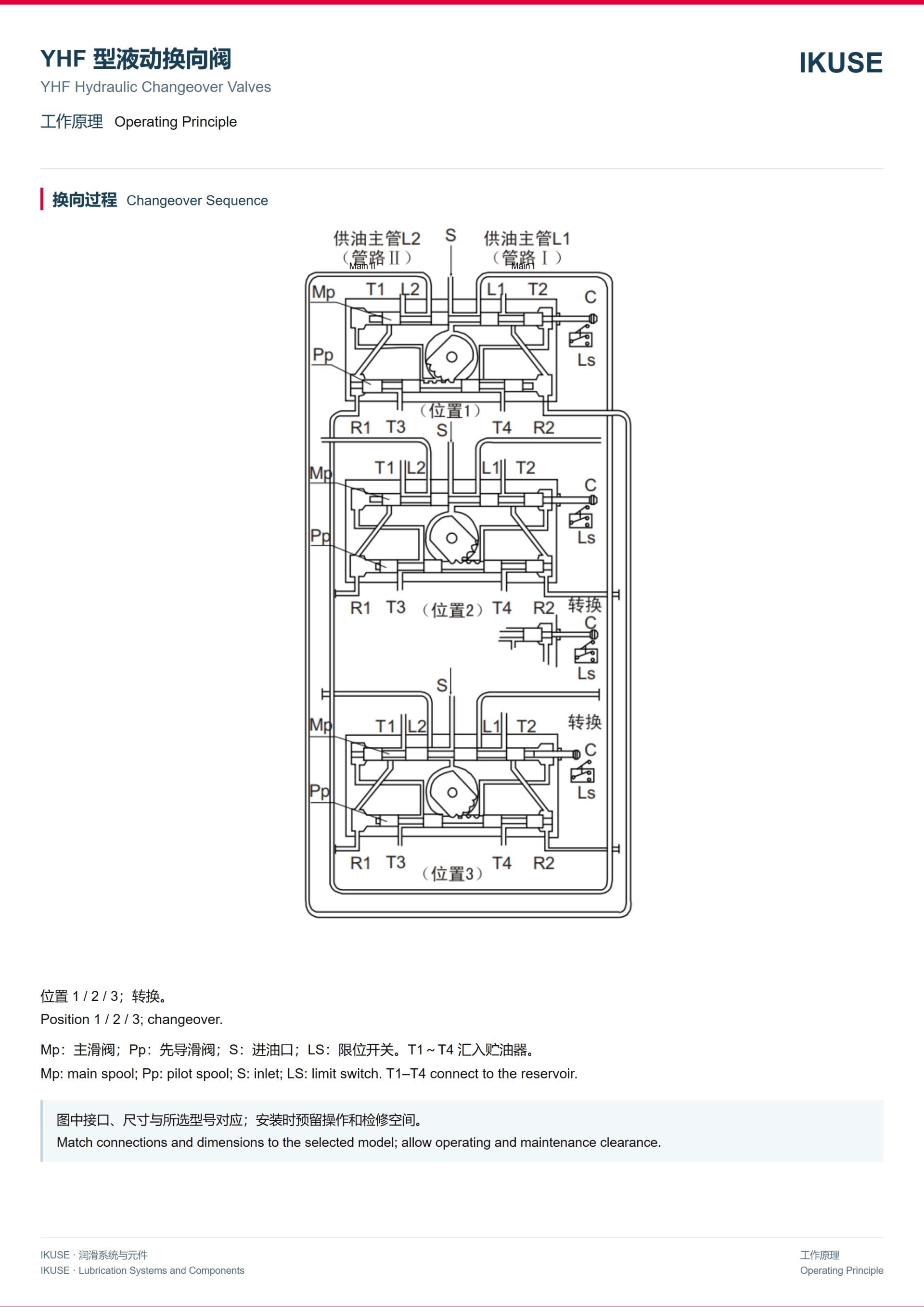

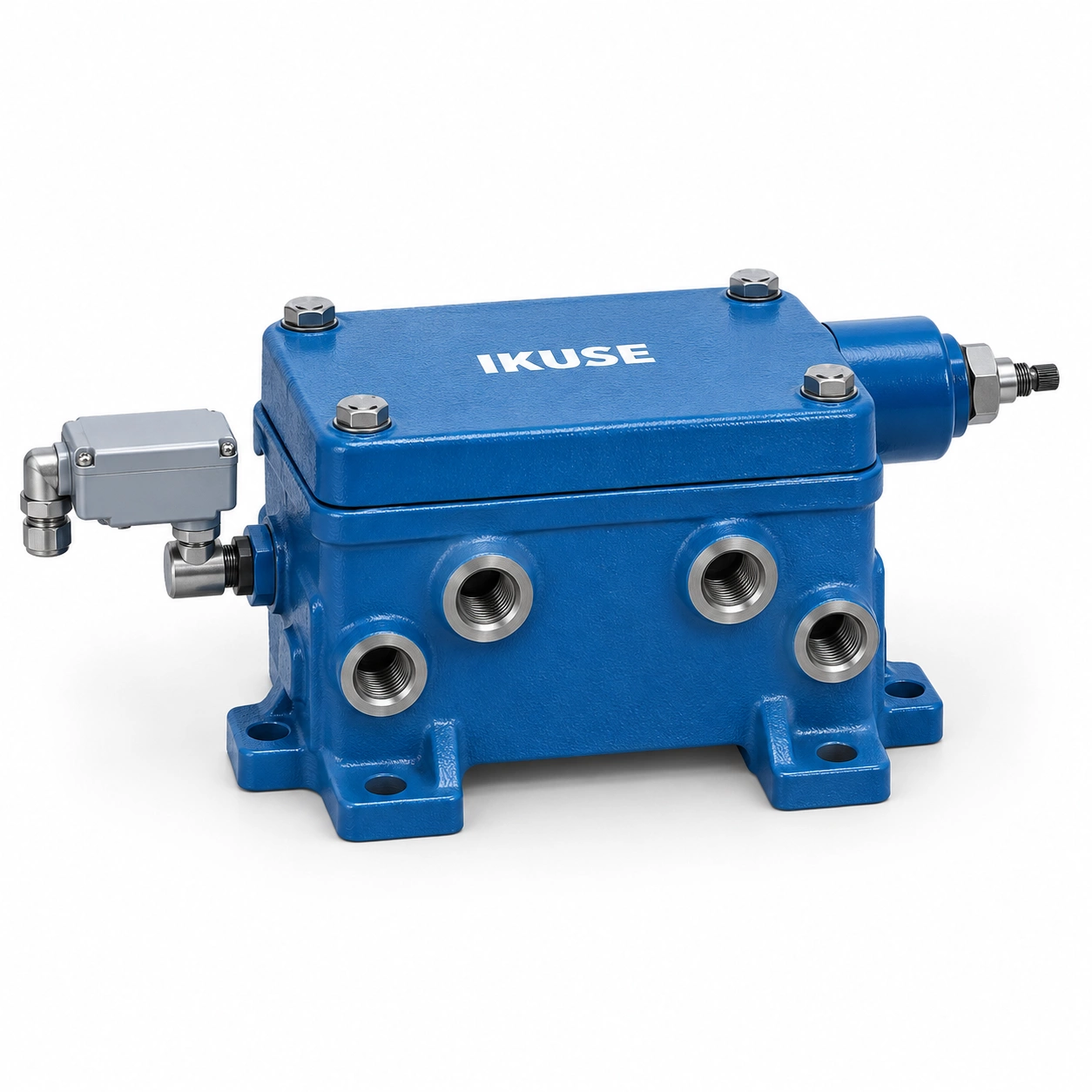

利用主管路返回端的压力直接驱动换向，用于电动环式集中润滑系统。
Uses pressure at the returning end of the main to reverse flow in electric loop centralized lubrication systems.
Uses pressure at the returning end of the main to reverse flow in electric loop centralized lubrication systems.
选型与使用 / Selection and Service

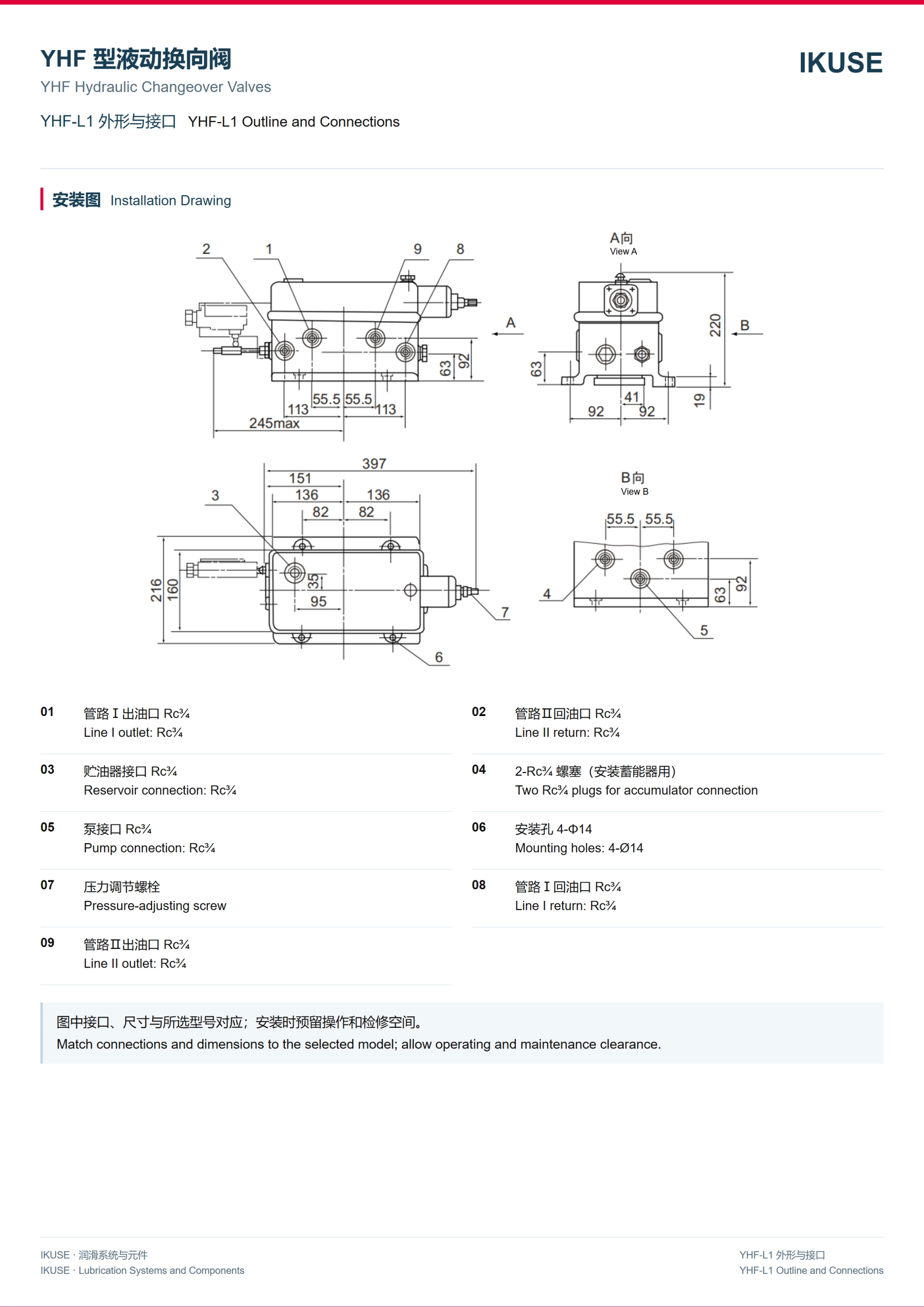

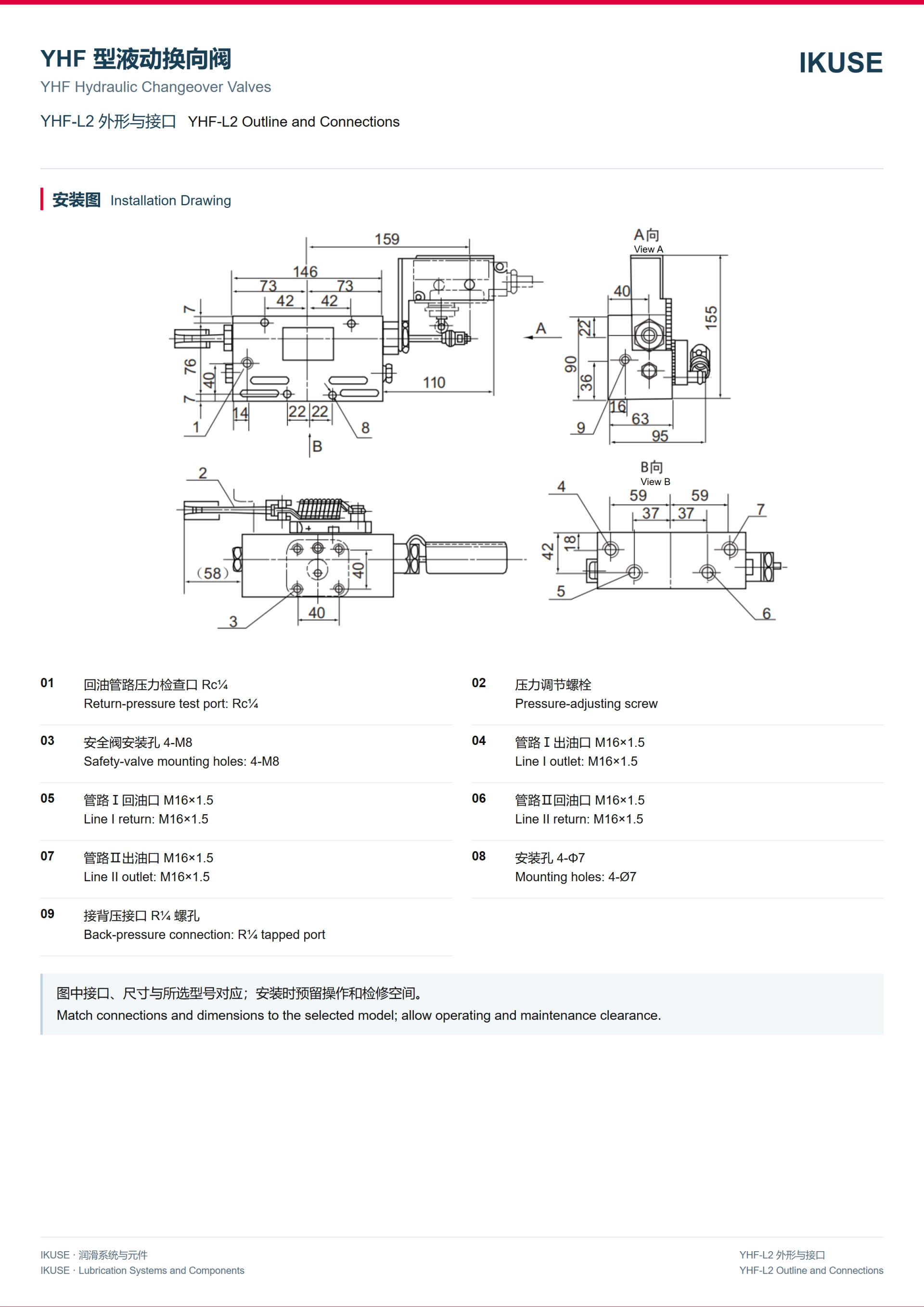

L1 配 585 mL/min 泵并采用底板安装，L2 配 60 或 195 mL/min 泵并安装在泵体上。
L1 suits 585 mL/min pumps with subplate mounting; L2 suits 60 or 195 mL/min pumps and mounts on the pump.
L1 suits 585 mL/min pumps with subplate mounting; L2 suits 60 or 195 mL/min pumps and mounts on the pump.

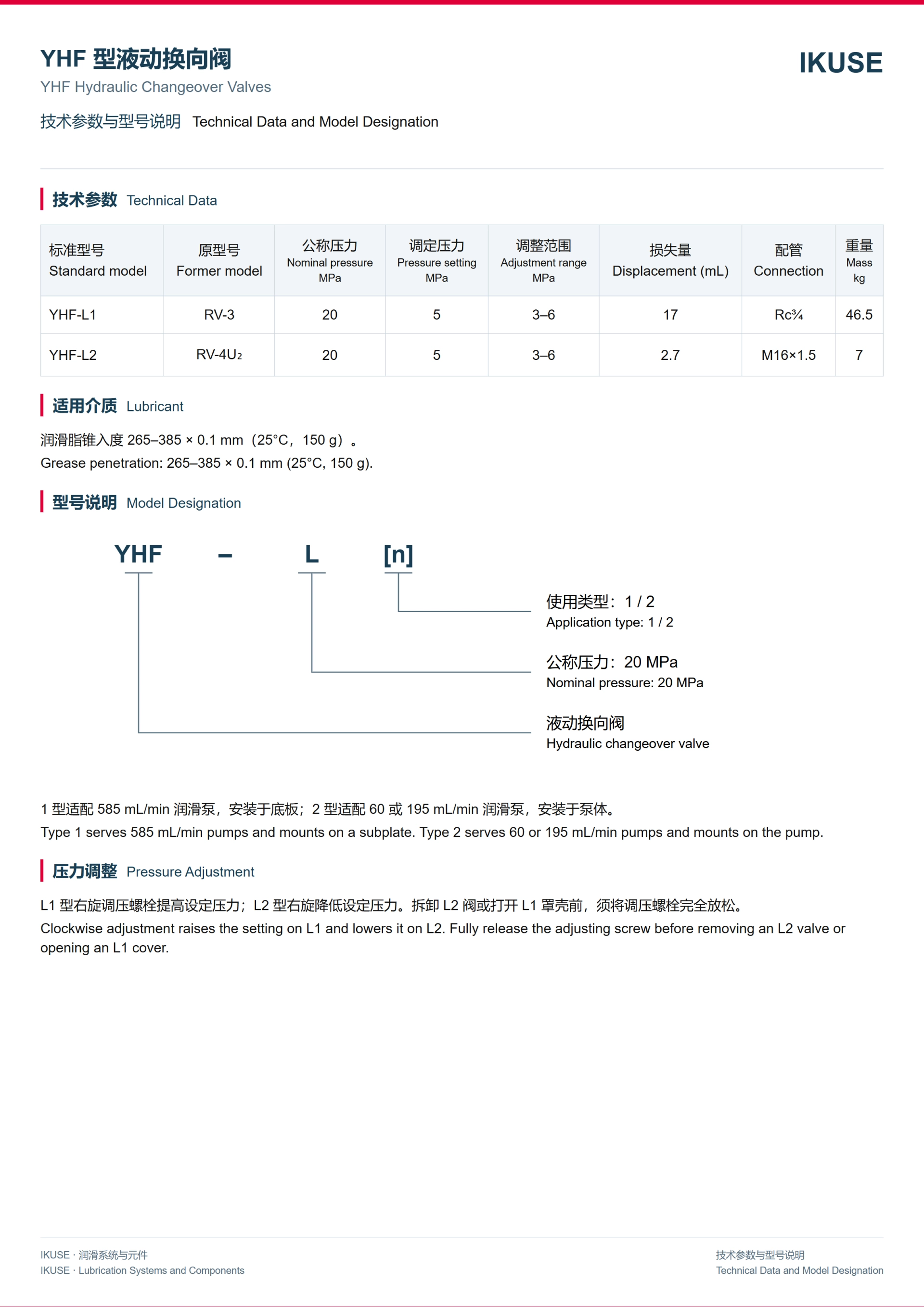

技术资料 / Technical Data
技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
