产品概述 / Overview

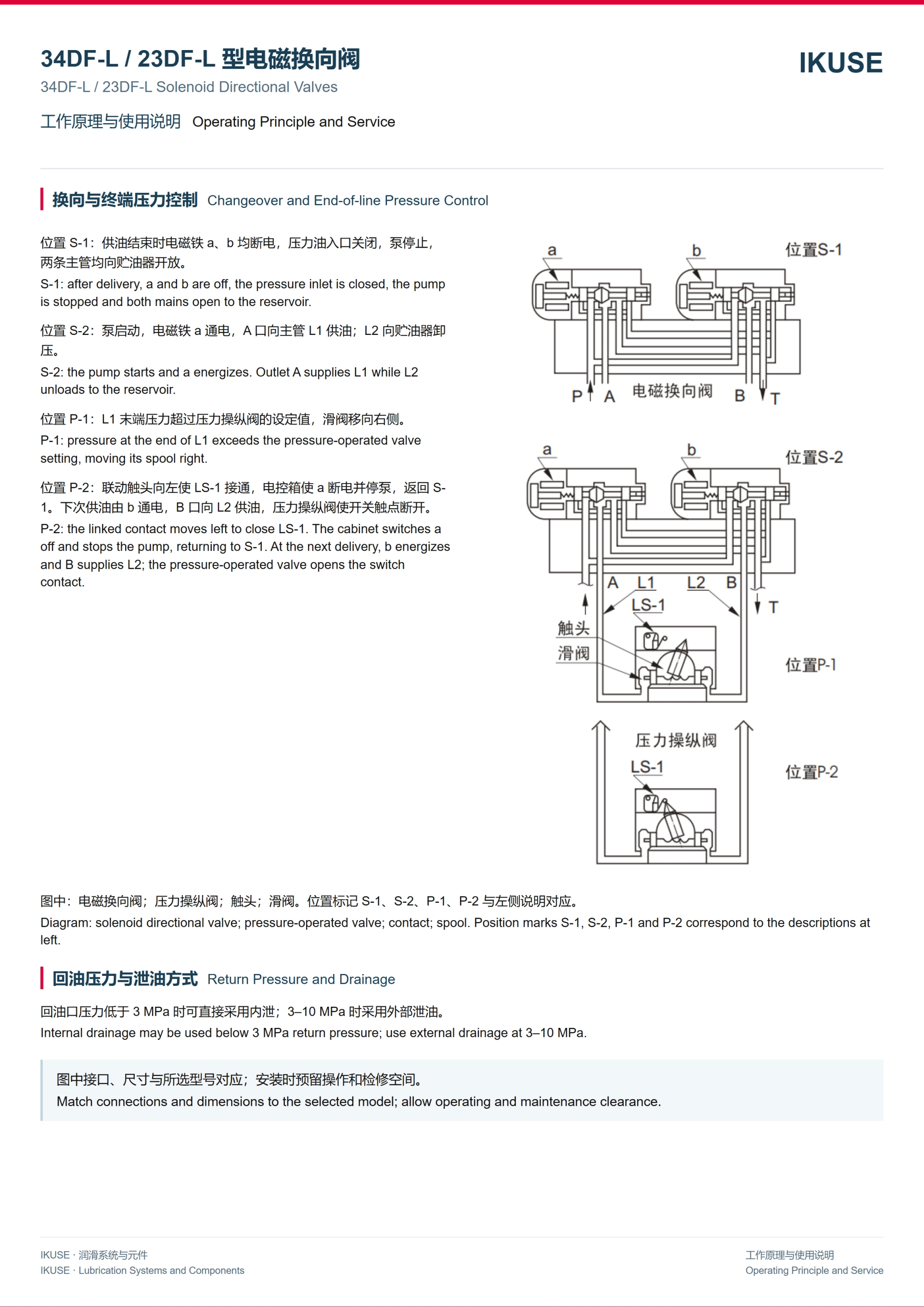

用于 20 MPa 电动终端式润滑系统，由电控箱控制两条主管路交替供油和卸压。
For 20 MPa electric end-of-line lubrication, alternating main supply and unloading under cabinet control.
For 20 MPa electric end-of-line lubrication, alternating main supply and unloading under cabinet control.
选型与使用 / Selection and Service
按回油压力选择内泄或外泄方式，并核对电源与电磁铁参数。
Select internal or external drainage by return pressure and check power-supply and solenoid specifications.
Select internal or external drainage by return pressure and check power-supply and solenoid specifications.
技术资料 / Technical Data

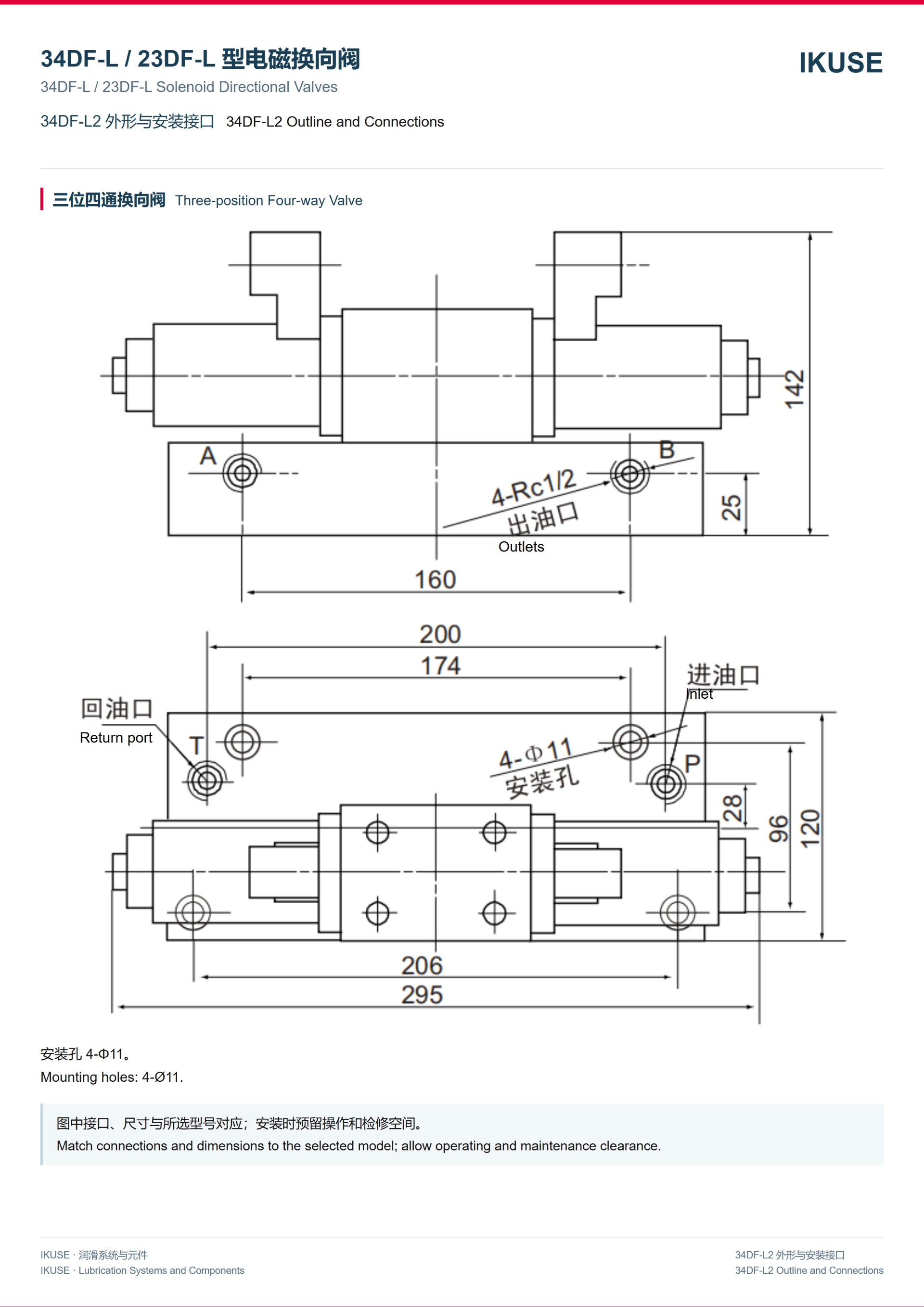

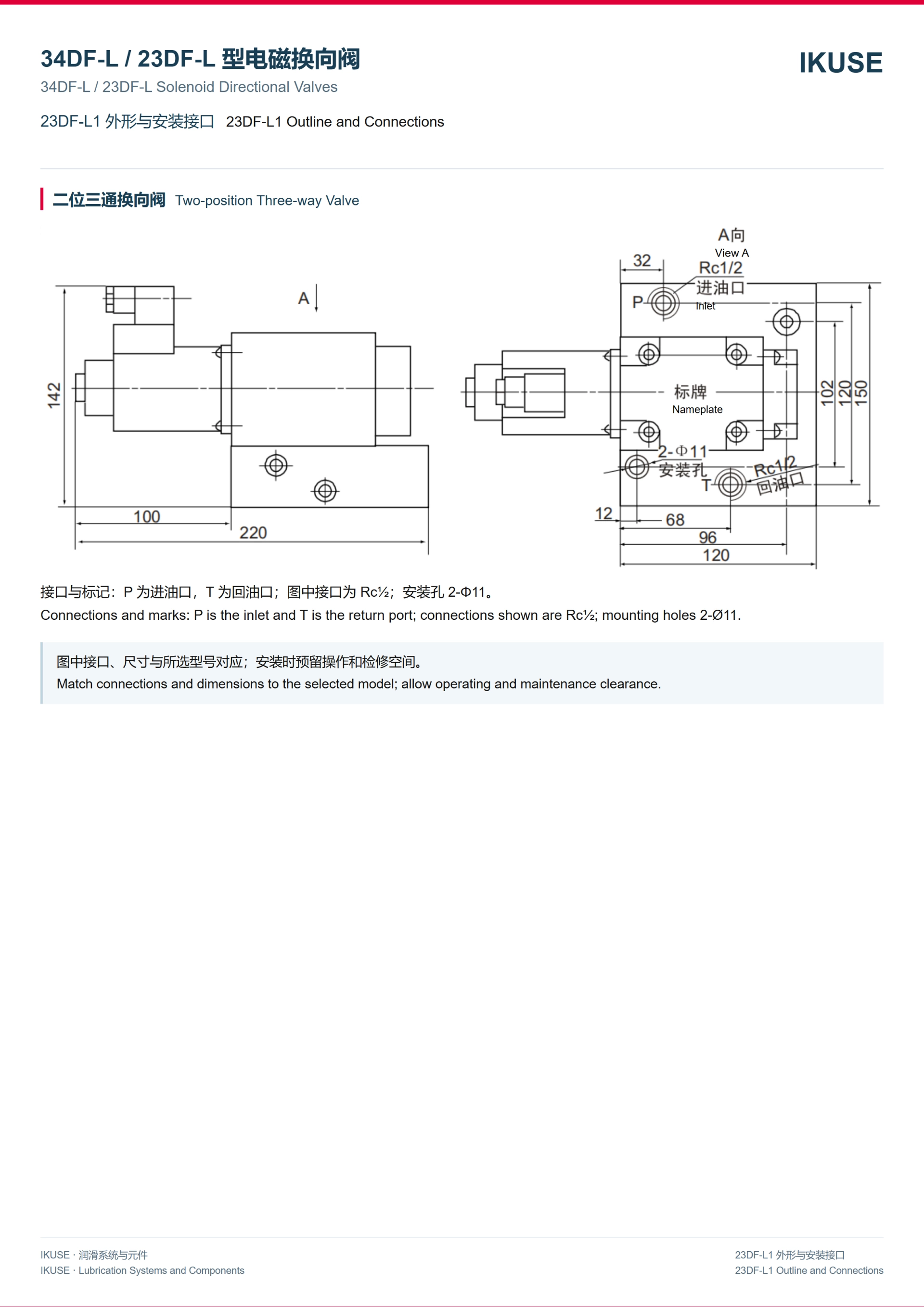

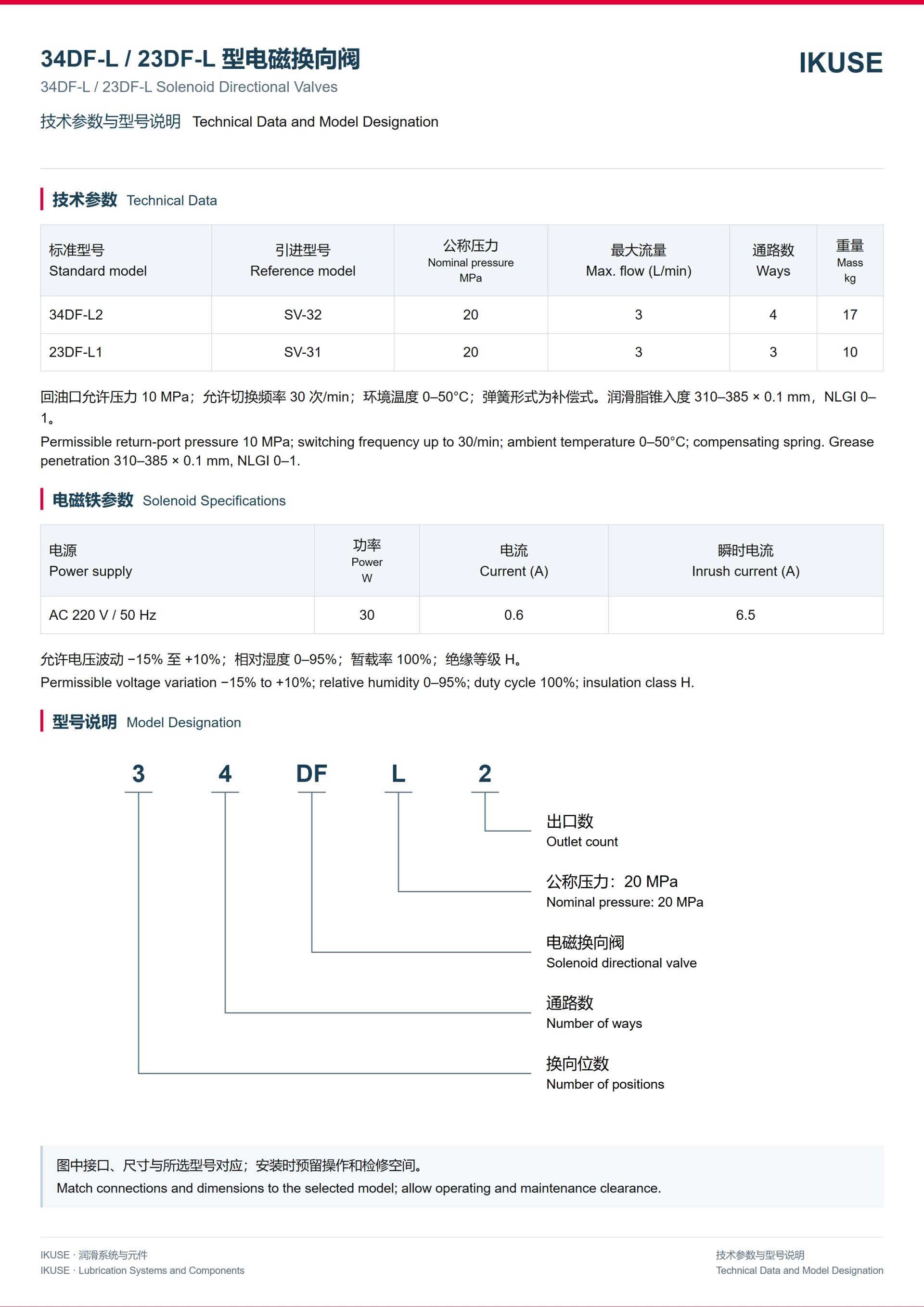

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
