产品概述 Overview
用于减速器与卷筒等机构之间的连接，按对应结构核对转矩及径向载荷。
Connects a reducer to a drum or similar mechanism. Check torque and radial load for the selected arrangement.
Connects a reducer to a drum or similar mechanism. Check torque and radial load for the selected arrangement.

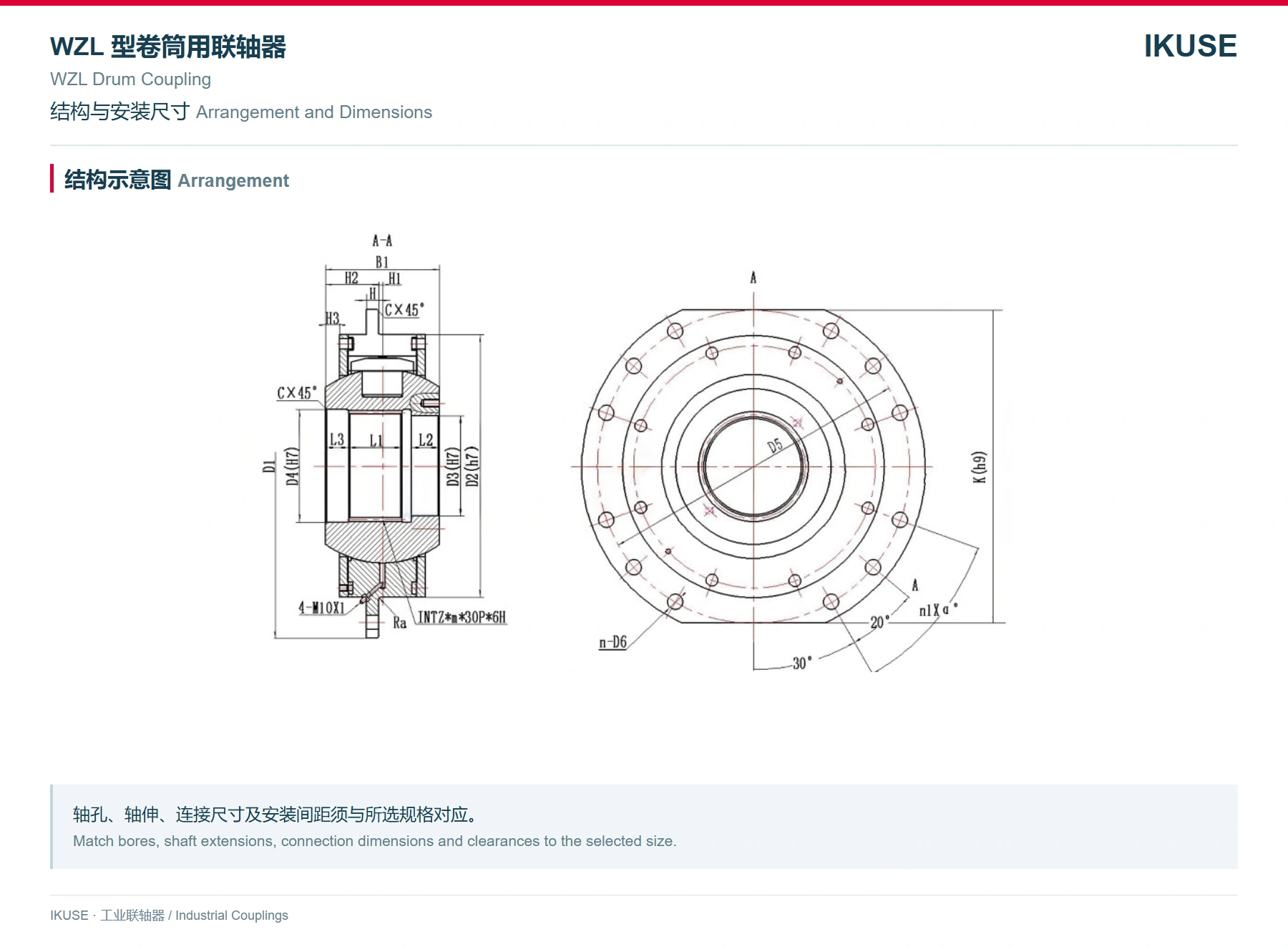

结构与使用 Construction and Service
核对卷筒法兰、轴端连接、安装空间及润滑维护位置。
Check the drum flange, shaft connection, installation envelope and lubrication access.
Check the drum flange, shaft connection, installation envelope and lubrication access.

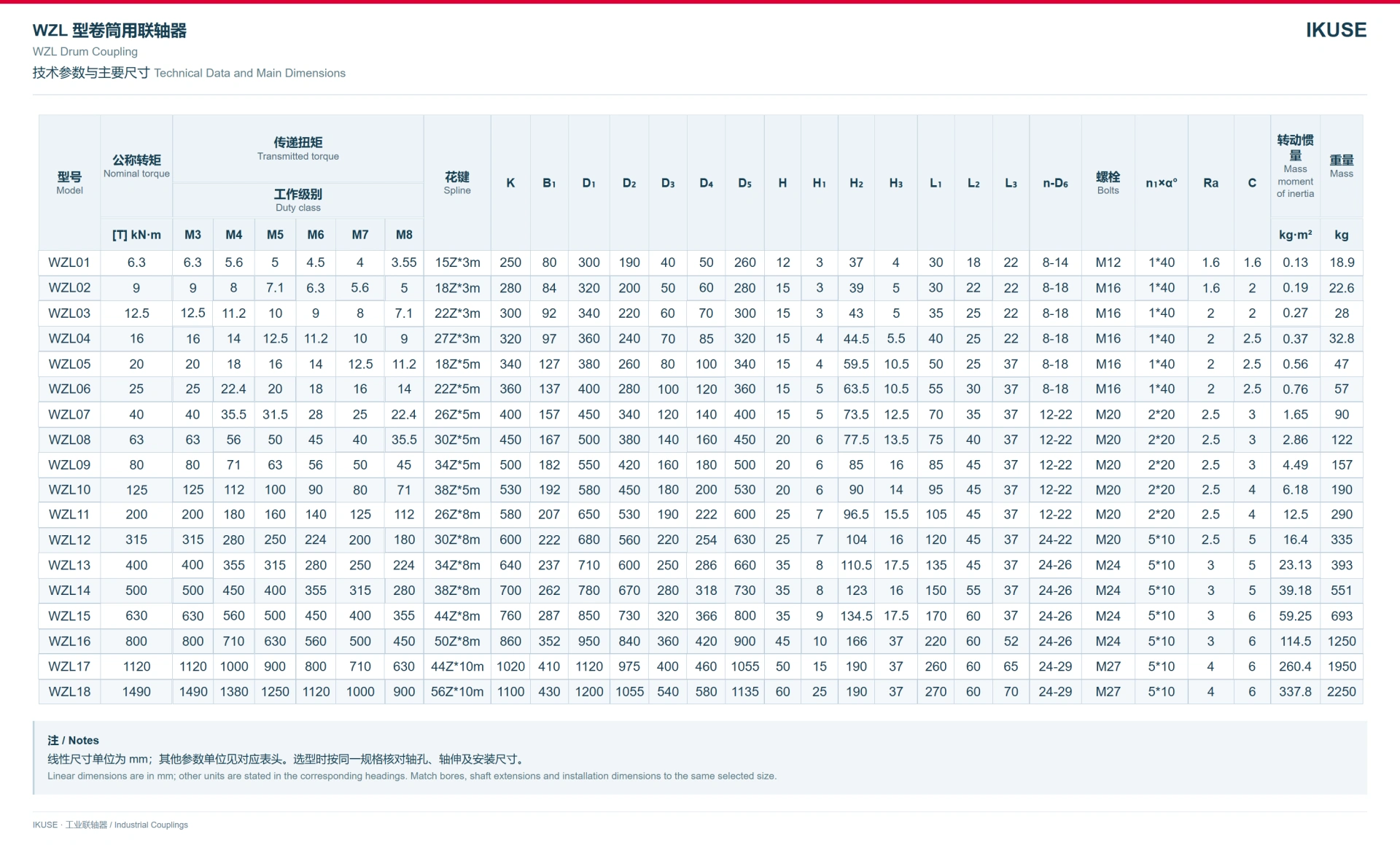

技术参数与主要尺寸 Technical Data and Dimensions
WZL01–WZL18，公称转矩 6.3–1490 kN·m。按 M3–M8 工作级别选用对应传递转矩，并核对花键、卷筒法兰及安装尺寸。
WZL01–WZL18, nominal torque 6.3–1490 kN·m. Select transmitted torque for duty class M3–M8 and check the spline, drum flange and installation dimensions.
WZL01–WZL18, nominal torque 6.3–1490 kN·m. Select transmitted torque for duty class M3–M8 and check the spline, drum flange and installation dimensions.
订货信息 Ordering
请提供所选型号、工作级别、工作转矩、径向载荷、花键规格、卷筒连接尺寸及安装条件。
Specify model, duty class, operating torque, radial load, spline specification, drum connection dimensions and installation conditions.
Specify model, duty class, operating torque, radial load, spline specification, drum connection dimensions and installation conditions.
