产品概述 Overview

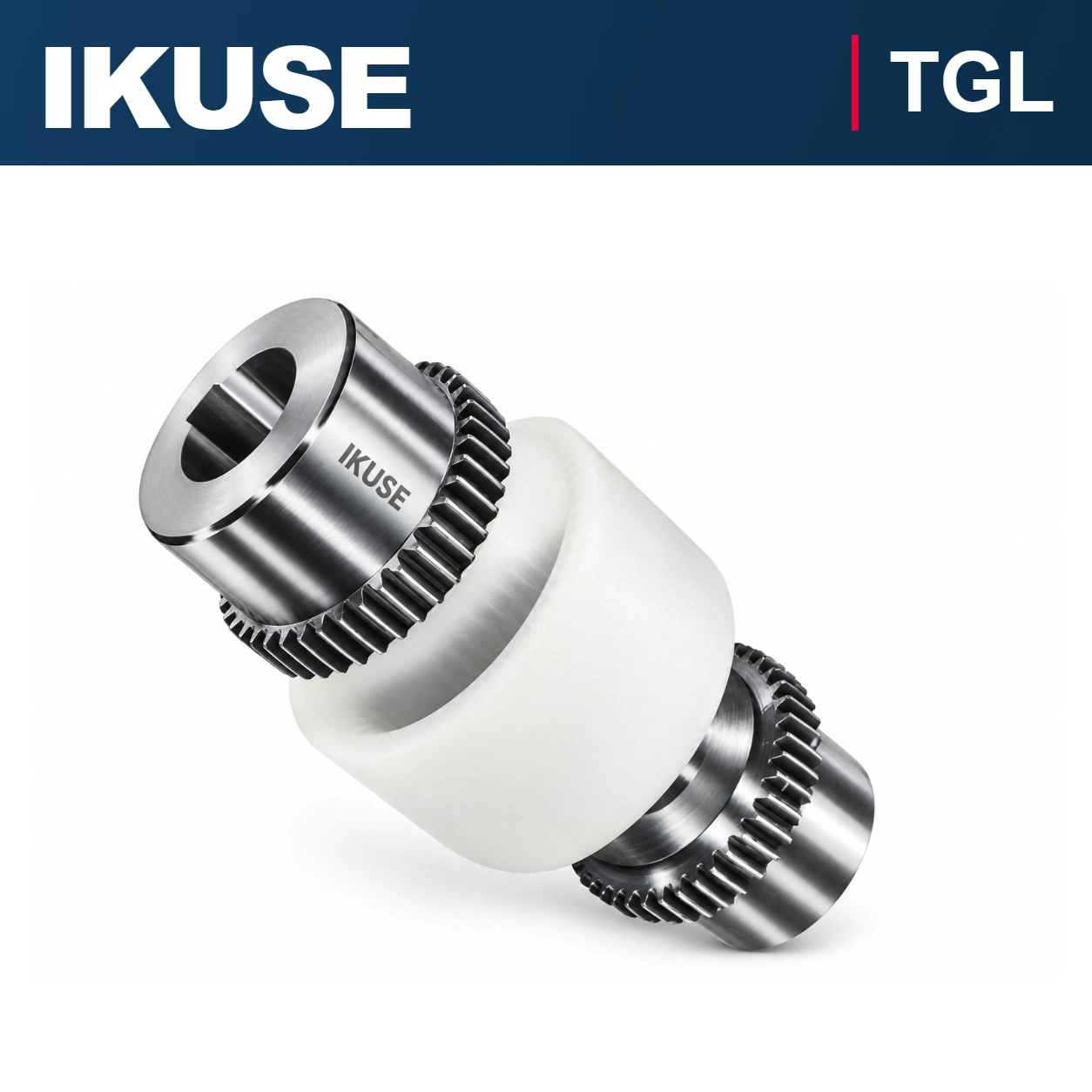

由金属外齿轴套与尼龙内齿圈配合传递转矩。
Metal toothed hubs engage a nylon sleeve to transmit torque.
Metal toothed hubs engage a nylon sleeve to transmit torque.
结构与使用 Construction and Service

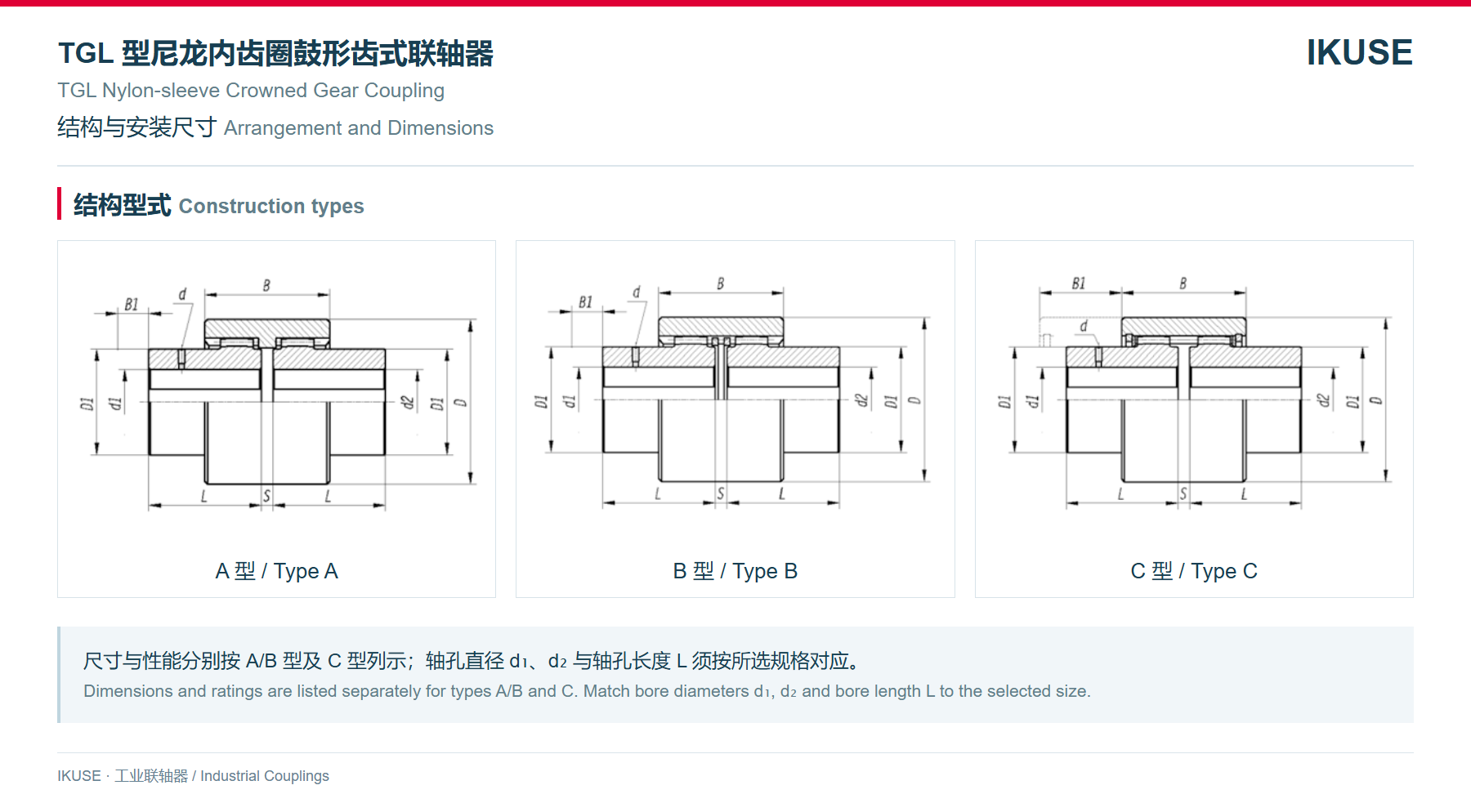

提供 A、B、C 结构型式；核对尼龙齿圈、金属轴套及固定方式，定期检查齿圈磨损。
Types A, B and C are available. Check the nylon sleeve, metal hubs and retention arrangement; inspect sleeve tooth wear periodically.
Types A, B and C are available. Check the nylon sleeve, metal hubs and retention arrangement; inspect sleeve tooth wear periodically.
技术参数与主要尺寸 Technical Data and Dimensions

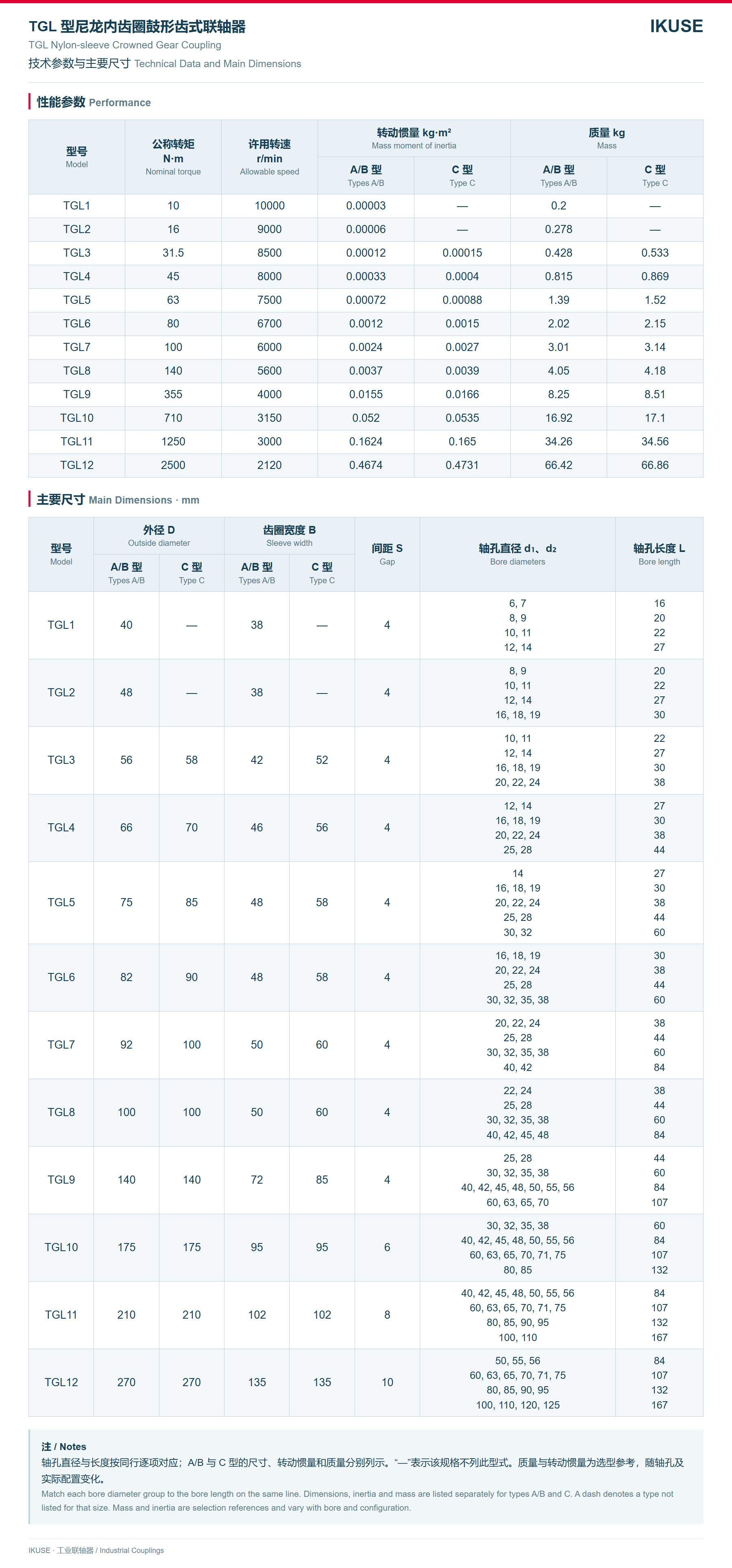

TGL1–TGL12，公称转矩 10–2500 N·m。尺寸、转动惯量和质量按 A/B 型及 C 型分别列示；轴孔直径与轴孔长度按表内同行对应。
TGL1–TGL12, nominal torque 10–2500 N·m. Dimensions, inertia and mass are listed separately for types A/B and C; match bore diameters and bore lengths on the same table line.
TGL1–TGL12, nominal torque 10–2500 N·m. Dimensions, inertia and mass are listed separately for types A/B and C; match bore diameters and bore lengths on the same table line.
订货信息 Ordering
请提供功率、工作转速、负载特性、两端轴径与轴伸长度、轴端间距以及安装环境；涉及制动、动平衡和弹性元件配置时请一并说明。
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
