产品概述 Overview
将鼓形齿式联轴结构与制动盘连接结构组合，用于需要配套制动盘的轴系。
Combines a crowned gear coupling arrangement with a brake-disc connection for shaft systems requiring a brake disc.
Combines a crowned gear coupling arrangement with a brake-disc connection for shaft systems requiring a brake disc.

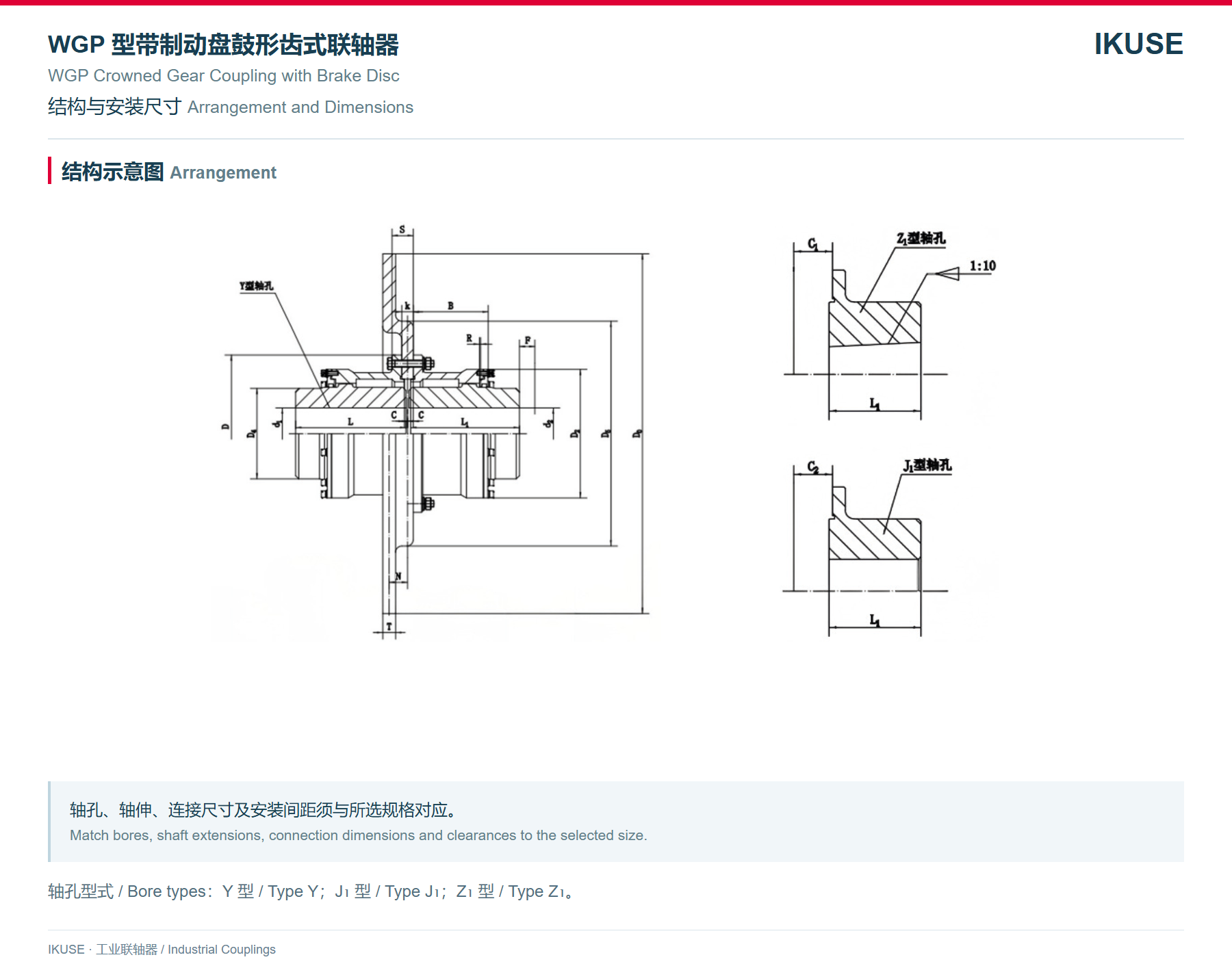

结构与使用 Construction and Service
核对制动盘、齿套、轴孔及制动器安装空间。
Check the brake disc, gear sleeves, bores and brake installation clearance.
Check the brake disc, gear sleeves, bores and brake installation clearance.

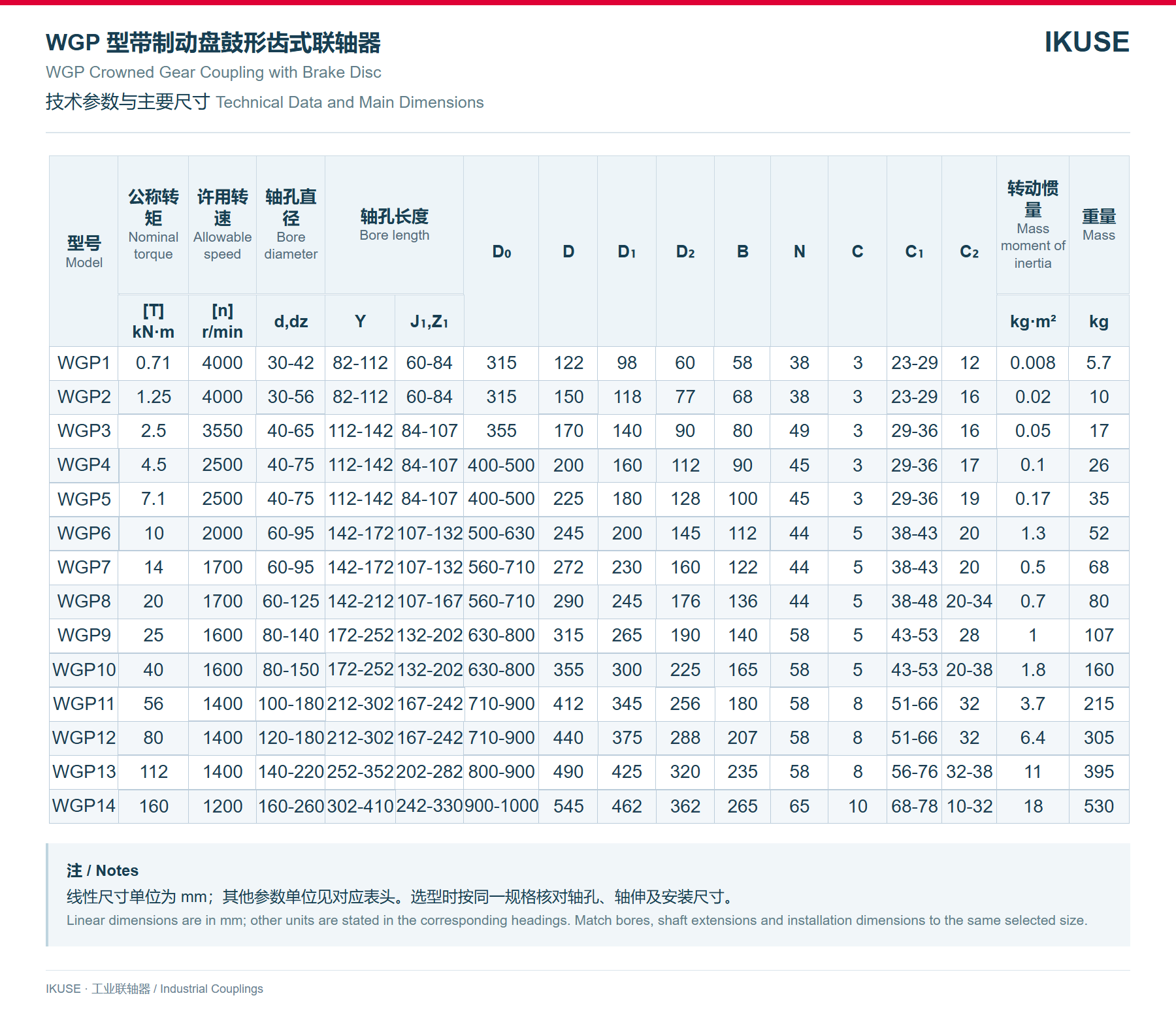

技术参数与主要尺寸 Technical Data and Dimensions
转矩、转速、轴孔和安装尺寸应按同一规格对应核对。
Check torque, speed, bore and installation dimensions for the same selected size.
Check torque, speed, bore and installation dimensions for the same selected size.
订货信息 Ordering
请提供功率、工作转速、负载特性、两端轴径与轴伸长度、轴端间距以及安装环境；涉及制动、动平衡和弹性元件配置时请一并说明。
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
